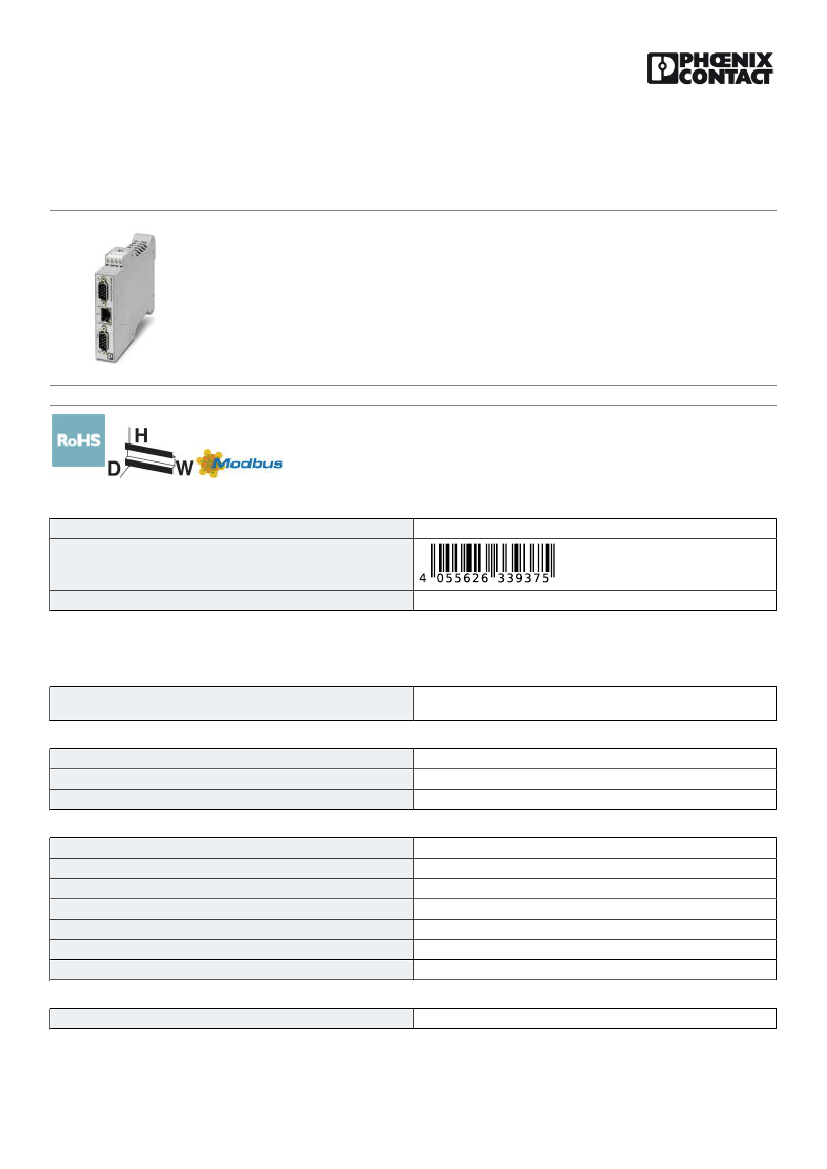

Interface converters - GW MODBUS TCP/ASCII 1E/2DB9 - 2702769
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
The GW MODBUS TCP/ASCII... converts RAW or ASCII serial strings into Modbus registers. Includes one
RJ45 port and two D-SUB 9 ports.
Key Commercial Data
Packing unit
GTIN
GTIN
4055626339375
1 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
22.5 mm
99 mm
115 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Altitude
Degree of protection
Noise immunity
-40 °C ... 70 °C
-40 °C ... 80 °C
10 % ... 95 % (non-condensing)
5 % ... 95 % (non-condensing)
< 2000 m
IP20
EN 61000-6-2:2005
General
Electrical isolation
IEC UL 61010-1 (VCC // Ethernet)
10/03/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/2702769
Interface converters - GW MODBUS TCP/ASCII 1E/2DB9 - 2702769
Technical data
General
Test voltage data interface/data interface
Test voltage data interface/power supply
Standards/regulations
Electromagnetic compatibility
Noise emission
Net weight
Housing material
Color
MTBF
1.5 kV
rms
(50 Hz, 1 min.)
1.5 kV
rms
1.5 kV
rms
(50 Hz, 1 min.)
EN 55022, EN 55024
Conformance with EMC Directive 2014/30/EU
EN 61000-6-4
125 g
PA 6.6
gray
69.4 Years (Telcordia standard, 25°C temperature, 50% stress,
Environmental Factor = 1.0)
46.3 Years (Telcordia standard, 40°C temperature, 50% stress,
environmental factor = 1.0)
Conformance
UL, USA
UL, USA/Canada
CE-compliant
UL 61010-1
Class I, Div. 2, Groups A, B, C, D T4A
Power supply
Supply voltage range
Max. current consumption
Typical current consumption
Conductor cross section flexible max.
Conductor cross section flexible min.
Conductor cross section AWG max.
Conductor cross section AWG min.
10.8 V DC ... 30 V DC (via pluggable COMBICON screw terminal block)
85 mA (24 V DC)
76 mA (24 V DC)
2.50 mm²
0.20 mm²
12
24
Serial interface
Interface 1
Interface
No. of ports
Connection method
Transmission length
Auxiliary protocols
Serial transmission speed
Interface
Number of connections
Connection method
File format/coding
Transmission length
Data flow control/protocols
Serial transmission speed
Interface
Modbus/TCP
Ethernet
1
RJ45 socket, shielded
≤ 100 m (shielded twisted pair)
ARP, DHCP (Client), PING
10/100 Mbps, auto negotiation
RS-232
2
D-SUB 9 plug
5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
15 m
Software handshake, Xon/Xoff or hardware handshake RTS/CTS
0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
RS-422
10/03/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/2702769
Interface converters - GW MODBUS TCP/ASCII 1E/2DB9 - 2702769
Technical data
Serial interface
Number of connections
Connection method
File format/coding
Transmission length
Serial transmission speed
Interface
Number of connections
Connection method
File format/coding
Serial transmission speed
2
D-SUB 9 plug
5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
≤ 1200 m
120 Ω (configurable)
0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
RS-485
2
D-SUB 9 plug
5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
120 Ω (configurable)
0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
Function
Web-based management
Management
yes
Web-based management
Standards and Regulations
Electromagnetic compatibility
Type of test
Noise emission
Noise immunity
Standards/regulations
Conformance
UL, USA
UL, USA/Canada
Noxious gas test
Conformance with EMC Directive 2014/30/EU
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Shock in acc. with EN 60068-2-27/IEC 60068-2-27
EN 61000-6-4
EN 61000-6-2:2005
EN 55022, EN 55024
CE-compliant
UL 61010-1
Class I, Div. 2, Groups A, B, C, D T4A
ISA-S71.04-1985 G3 Harsh Group A
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
10/03/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/2702769
Interface converters - GW MODBUS TCP/ASCII 1E/2DB9 - 2702769
Block diagram
24 V
1
120
3.3 V
24 V
2
24 V
0V
6
1
RS-232
2
3
4
C
RS-422
RS-485
6
EEPROM
Flash
5
6
7
8
9
SDRAM
6
3V3
51 k
51 k
120
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
UL Listed / cUL Listed / cULus Listed
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 238705
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 238705
cULus Listed
