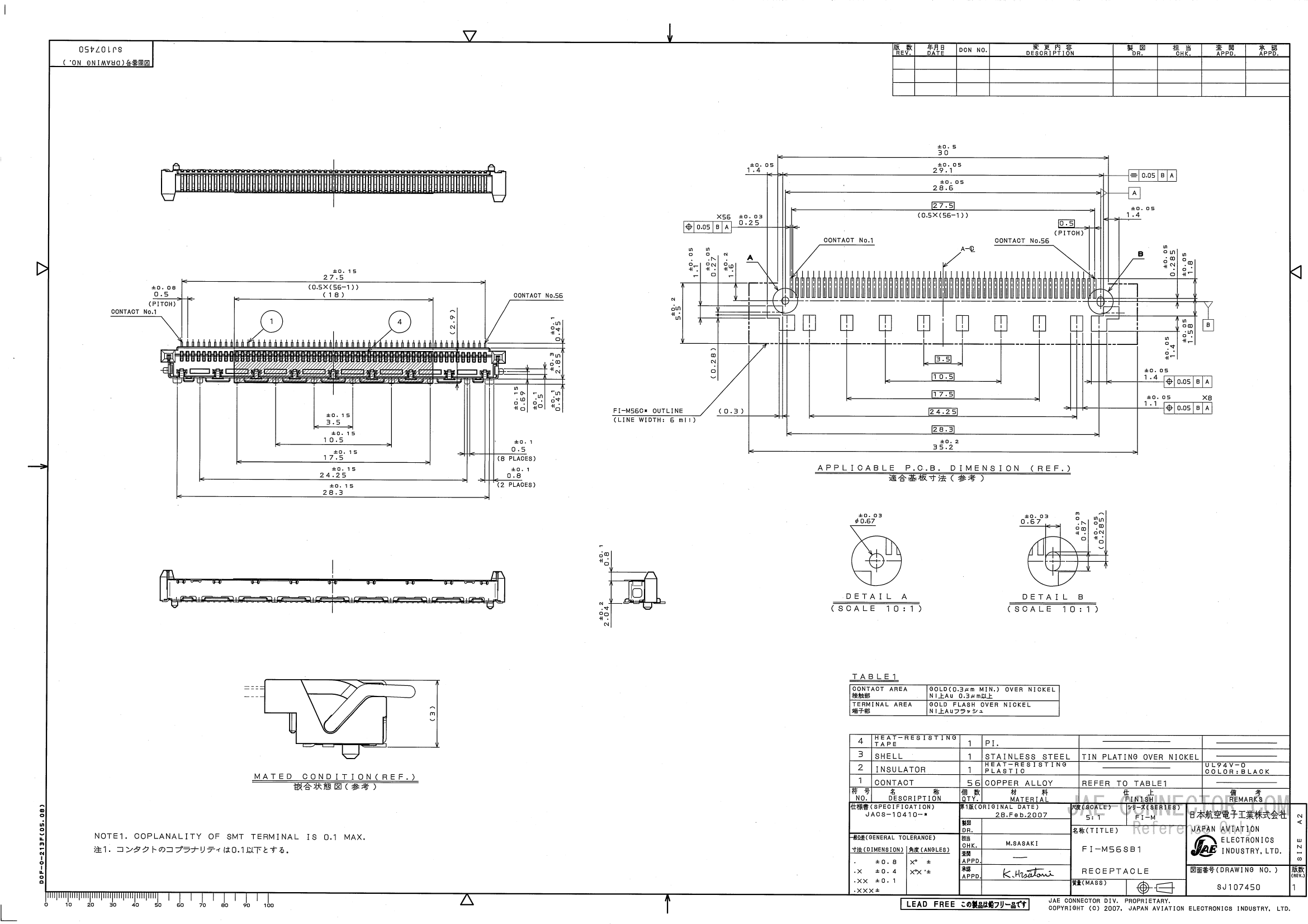

FI-M56SB1-R1500 datasheet, PDF

FI-M56SB1-R1500: DescriptionCONN RCPT 56POS; CategoryThe connector; File Size165KB，1 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

FI-M56SB1-R1500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FI-M56SB1-R1500	-	-	View	Buy Now

CONN RCPT 56POS

Parameter Name	Attribute value
Connector type	socket
Contact type	No male or female type
style	Board to cable/wire
Number of pins	56
Number of pins loaded	all
Spacing - Mating	0.020"（0.50mm）
Number of rows	1
Line spacing - patching	-
Installation type	surface mount
Termination	welding
Fastening type	latch holder
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	12.0µin（0.30µm）
Insulation color	black
Insulation height	0.080"（2.03mm）
Contact length - terminal	-
Operating temperature	-
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	gold
Joint stack height	3mm
Intrusion protection	-
characteristic	Board guide, fixed solder tail
Rated current	-
Rated voltage	-
application	-
Insulation Materials	plastic
Contact shape	-
Contact material	copper alloy
Contact Surface Treatment Thickness - Column	flash memory

	FI-M56SB1-R1500
Description	CONN RCPT 56POS
Connector type	socket
Contact type	No male or female type
style	Board to cable/wire
Number of pins	56
Number of pins loaded	all
Spacing - Mating	0.020"（0.50mm）
Number of rows	1
Installation type	surface mount
Termination	welding
Fastening type	latch holder
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	12.0µin（0.30µm）
Insulation color	black
Insulation height	0.080"（2.03mm）
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	gold
Joint stack height	3mm
characteristic	Board guide, fixed solder tail
Insulation Materials	plastic
Contact material	copper alloy
Contact Surface Treatment Thickness - Column	flash memory
