• over voltage, over current, and short circuit protections
• UL/cUL, PSE safety approvals
• certified to 60950-1 and 62368-1 standards
MODEL
SWI6-3.3-N
SWI6-5-N
SWI6-5.9-N
SWI6-7.5-N
SWI6-9-N
SWI6-12-N
SWI6-15-N
Notes:
output
voltage
(Vdc)
output
current
max
(A)
output
power
max
(W)
ripple
and noise
1
max
(mVp-p)
efficiency
level
3.3
5
5.9
7.5
9
12
15
1.5
1.5
1.2
1.0
0.67
0.6
0.5
4.95
7.5
7.08
7.5
6.03
7.2
7.5
100
100
100
100
100
120
150
VI
VI
VI
VI
VI
VI
VI
1. At full load, nominal input, 20 MHz bandwidth oscilloscope, output terminated with 0.1 μF multilayer ceramic and 47 μF low ESR electrolytic capacitors.
PART NUMBER KEY
SWI6
-
XX
- N
-
XXX
-
CXX
Base Number
Output Voltage
AC Input Type:
North America
Reserved for Custom
Configurations
DC Plug Type:
XXX = See output plug options
on page 4 for more details
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWI6-N
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
08/31/2018
│
page
2 of 5
INPUT
parameter
voltage
frequency
current
inrush current
leakage current
no load power consumption
at 115/230 Vac
at 240 Vac, full load, 25°C, cold start
conditions/description
min
90
47
typ
max
264
63
0.19
60
0.25
0.1
units
Vac
Hz
A
A
mA
W
OUTPUT
parameter
regulation
hold-up time
conditions/description
3.3 Vdc output model
all other models
at full load
10
min
typ
±10
±5
max
units
%
%
ms
PROTECTIONS
parameter
over voltage protection
conditions/description
output shut down
output shut down, auto recovery
3.3 Vdc output model
5 Vdc output model
5.9 Vdc output model
7.5 Vdc output model
9 Vdc output model
12 Vdc output model
15 Vdc output model
output shut down, auto recovery
min
typ
max
180
3.5
3.5
3
2.5
1.5
1.5
1.3
units
%
A
A
A
A
A
A
A
over current protection
short circuit protection
SAFETY & COMPLIANCE
parameter
isolation voltage
isolation resistance
safety approvals
EMI/EMC
MTBF
RoHS
conditions/description
input to output at 10 mA for 1 minute
input to output at 500 Vdc
UL/cUL (60950-1, 62368-1), PSE
FCC Part 15B Class B
as per Telcordia SR-332, 25°C
yes
300,000
hours
10
min
typ
3,000
max
units
Vac
MΩ
ENVIRONMENTAL
parameter
operating temperature
storage temperature
operating humidity
storage humidity
non-condensing
non-condensing
conditions/description
min
0
-20
20
10
typ
max
40
60
80
90
units
°C
°C
%
%
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWI6-N
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
08/31/2018
│
page
3 of 5
MECHANICAL
parameter
dimensions
inlet plug
weight
conditions/description
56 x 28 x 42
North America, 2-pin
78
g
min
typ
max
units
mm

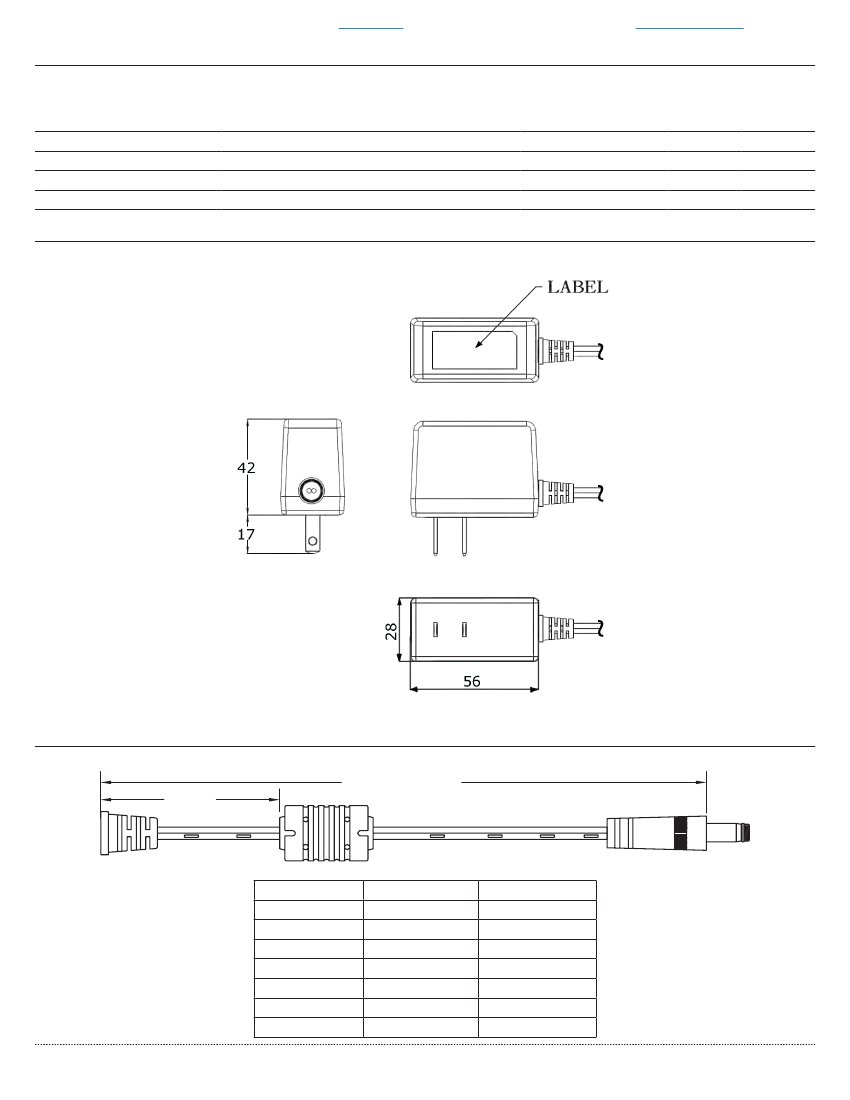

MECHANICAL DRAWING
units: mm
tolerance: ±1.0 mm
DC CORD
units: mm
80±5
cord length
Table 1
MODEL NO.
SWI6-3.3-N
SWI6-5-N
SWI6-5.9-N
SWI6-7.5-N
SWI6-9-N
SWI6-12-N
SWI6-15-N
CABLE
UL2468, 20 AWG
UL2468, 20 AWG
UL2468, 20 AWG
UL2468, 22 AWG
UL2468, 22 AWG
UL2468, 22 AWG
UL2468, 22 AWG
cui.com
CORD LENGTH
1,500 mm ±30
1,500 mm ±30
1,500 mm ±30
1,500 mm ±30
1,500 mm ±30
1,500 mm ±30
1,500 mm ±30
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWI6-N
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
08/31/2018
│
page
4 of 5

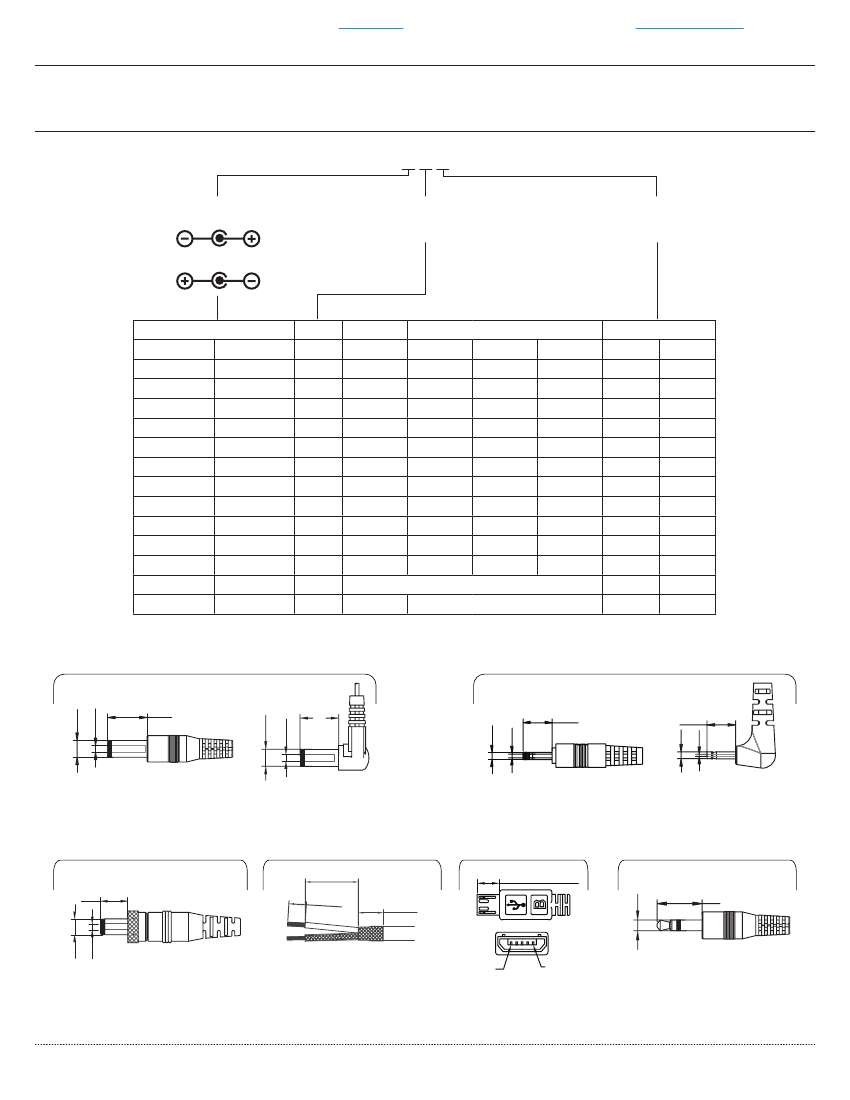

DC PLUG TYPE PART NUMBER KEY
XXX
Plug Polarity:
P = Center Positive
N = Center Negative
Plug Code:
X = Choose a code from the
options below
Plug Angle:
“blank” = Straight
R = Right Angle
Plug Polarity
Center Pos.
N/A
●
●
●
●
●
●
●
●
●
●
N/A
N/A
Center Neg.
N/A
●
●
●
●
●
●
●
●
●
●
N/A
N/A
Code
Option
P1
1
5
6
7
8
9
10
11
12
13
14
ST
MUB
USB
Type
Audio
Standard
Standard
Standard
Standard
Standard
Locking
Locking
EIAJ-1
EIAJ-2
EIAJ-3
A
Dimensions (mm)
B
N/A
2.1
2.5
1.35
1.35
1.05
2.1
2.5
0.7
1.7
1.7
Micro USB Type B
C
14
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
3.5
5.5
5.5
3.5
3.8
3.8
5.5
5.5
2.35
4.0
4.75
Plug Angle
Straight
●
●
●
●
●
●
●
●
●
●
●
N/A
●
Right
N/A
●
●
●
●
●
N/A
N/A
●
●
●
N/A
N/A
Stripped & Tinned
Note: 1. Tip positive
2. Contact CUI for additional plug options
Standard
C
EIAJ
C
B
A
A
B
C
B
A
A
C
B
C
Straight
Right Angle (R)
Straight
Right Angle (R)
Locking
C
Stripped & Tinned
25±5
5±5
10±2
USB
5.4+0.4/-0
A
Audio
A
B
P5(-)
P1(+)
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWI6-N
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
08/31/2018
│
page
5 of 5
REVISION HISTORY
rev.
1.0
1.01
1.02
1.03
1.04
1.05
description
initial release
added models
updated drawing
added micro USB Type B plug option
added audio plug option
added 62368-1 standard
date
08/07/2015
08/12/2015
11/10/2015
06/30/2016
11/07/2016
08/31/2018
