190-015 Plug, 190-016 Jam Nut Receptacle
& 190-004 Box Mount Receptacle
Harsh Environment MIL-C-5015 Compliant
Composite Connectors
190-015-14S-5 P N M
Basic Part Number
190-015 = Plug Assy
190-016 = Jam Nut Receptacle Assy
190-004 = Box Mount Receptacle Assy
Shell Size
M = Molding Adapter, Omit for None
Alternate Insert Position (See Page B-3)
N for Normal
Contact Style - P = Pins, S = Sockets
Fiber Optic
Connectors
40% Glass Filled
Ryton Engineering
Composite
Thermoplastic
Insert Arrangement Dash No.

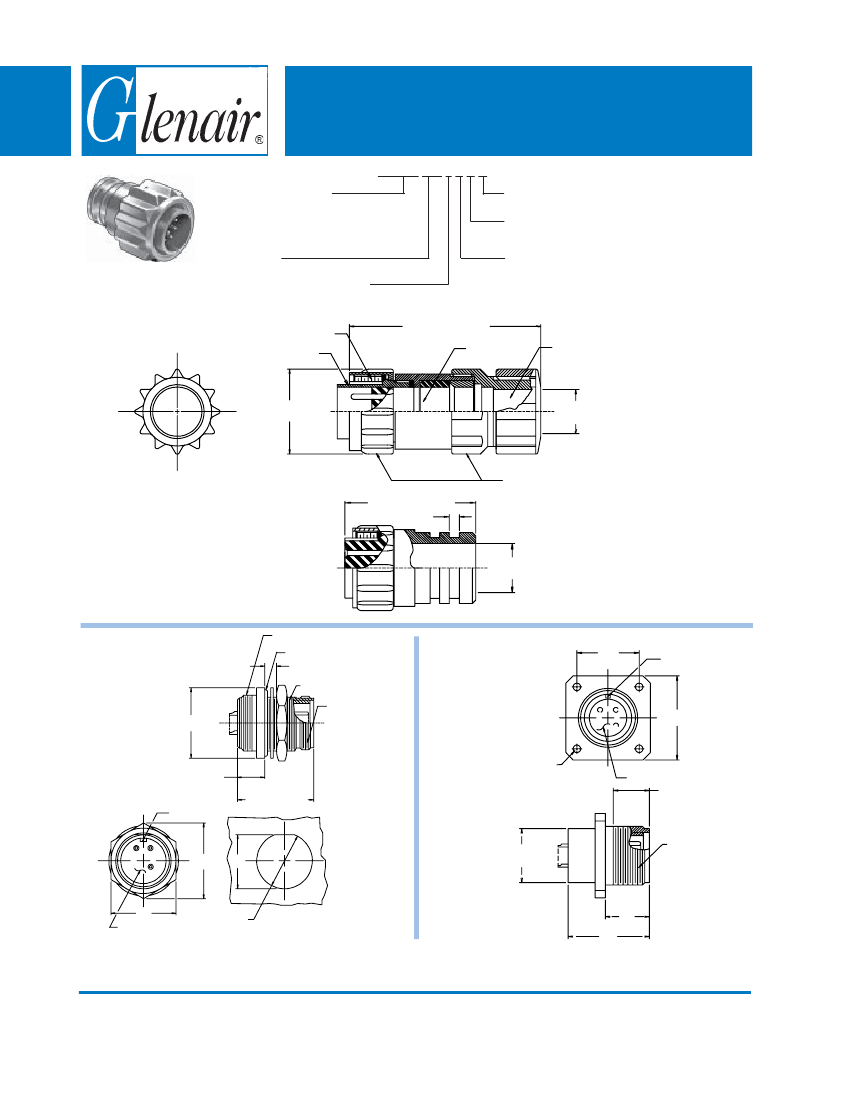

190-015 Plug Assembly
D Thread
Master Keyway
3.00 (76.2) Max
Gland Seal
Internal Mechanical
Strain Relief
A Dia (Typ)
Cable
Range
2.10 (53.3) Max
.125 (3.2) Typ.
Castellation Style
Mfr. Option (Typ.)
Sym M
Molding Adapter
Option
C Thread
O-Ring
Panel .156 (4.0) Max
.030 (.8) Min
B Thread
D Thread
G Dia
Cable
Range
For Environmental Dust
Covers Ref. Glenair P/N
660-077 (plug) and
660-078 (receptacle)
190-016
Jam Nut
Receptacle
Assembly
190-004
Box Mount
Receptacle
Assembly
C
Polarizing Key
B
.540 (13.7)
1.620 (41.1)
Max
E Hole
Thru
See Note 1
G.M.P.T
Polarizing Key
D Thread
L
J
Recommended
Panel Cutout
A
K
H
Insert arrangement with solder pot contacts, see
face views and part number development or Note 1
NOTE:
1. Insert arrangement with
solder pot contacts, see face
views and part number
development
H
F
Metric dimensions (mm) are indicated in parentheses
© 2003 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-2
190-015 Plug, 190-016 Jam Nut Receptacle
& 190-004 Box Mount Receptacle
Harsh Environment MIL-C-5015 Compliant
Composite Connectors
Insert
Arrangements
Shell Size - Insert Arrangement Dash No.
Contact Size & Quantity
MS Service Rating
Available Alternate Insert Positions
(Degrees rotation clockwise looking
into the front of the pin insert)
10SL-4
2 - #16
A
n/a
10SL-3
3 - #16
A
n/a
14S-2
4 - #16
INST.
X=120°,
Y= 240°
14S-5
5 - #16
INST.
n/a
14S-6
6 - #16
INST.
n/a
14S-10
10 - #20
INST.
n/a
18-13
3 - #12
INST.
n/a
18-1
10 - #16
4 A, 6 Inst.
W=70°, X=145°,
Y=215°, Z=290°
DIMENSIONAL DETAILS (190-004)
Shell
Size
10SL
14S
16
18
A
Max
.609 (15.5)
.733 (18.6)
.864 (21.9)
.975 (24.8)
B Sq
+.031 (0.8)
1.000 (25.4)
1.188 (30.2)
1.281 (32.5)
1.375 (34.9)
E
C
D Thread
+.005 (0.1)
+.010 (0.3) -.005 (0.1)
Class 2A
.719 (19.3)
.120 (3.0)
5/8 - 24 UNEF
.906 (25.7)
.120 (3.0)
7/8 - 20 UNEF
.969 (00.0)
.120 (3.0)
1 - 20 UNEF
1.062 (32.0) 1 1/8 - 18 UNEF
.120 (3.0)
F
Max
1.000 (25.4)
1.000 (25.4)
1.120 (28.4)
1.120 (28.4)
G
H
M.P.T.
+.031 (0.8) -.000
.375 (9.5) .562 (14.3)
.375 (9.5) .562 (14.3)
.625 (15.9) .724 (18.4)
.625 (15.9) .724 (18.4)
DIMENSIONAL DETAILS (190-015)
Shell D Thread
Size
Class 2B
10SL .625 - .1P-1L
14S .875 - .1P-1L
18 1.125 - .1P-1L
Standard Cable Range
Min
Max
.203 (5.2) .375 (9.5)
.203 (5.2) .375 (9.5)
.328 (8.3) .500 (12.7)
Length
Max
3.000 (76.2)
3.000 (76.2)
3.000 (76.2)
DIMENSIONAL DETAILS (190-016)
E Dia
D Dia
Shell
D Thread
C Thread
B Thread
+.010 (0.3) -.000
Max
Size
Class 2A
Class 2A
Class 2A
.760 (19.3)
10SL 3/4 - 20 UNEF 5/8 - 24 UNEF .625 - .1P-.1L 1.100 (27.9)
14S
1 - 20 UNEF 7/8 - 20 UNEF .875 - .1P-.1L 1.450 (36.8) 1.010 (25.7)
18 1 1/4 - 18 UNEF 1 1/8 - 16 UN 1.125 - .1P-.1L 1.750 (44.5) 1.260 (32.0)
F
+.010 (0.3) -.000
.710 (18.0)
.960 (24.4)
1.210 (30.7)
Cable Range*
H
G
Min
Max
Max
Dia (Flats)
.938 (23.8) 1.090 (27.7) .210 (5.3) .312 (7.9)
1.250 (31.8) 1.440 (36.6) .210 (5.3) .312 (7.9)
1.500 (38.1) 1.730 (43.9) .310 (7.9) .438 (11.1)
* Cable Range Min. Not Applicable with Molding Adapter Option
Products are manu-
factured from a 40%
glass filled Ryton engi-
neering plastic—a high
temperature, injection
molded material with
good mechanical prop-
erties and excellent
chemical resistance at
elevated temperatures,
up to 500
o
F.
PERFORMANCE RATINGS
Shell, Barrel, Coupling Nut
and Rear Accy Hdwr.
Insulator, O-Ring, Grommet
Grommet Follower (Plug Assy)
Contacts
Contact Current Rating
Rated Operating Voltage
Dielectric Withstanding
Voltage (Hi-Pot)
Insulation Resistance
Temperature Range
High Grade Engineering Thermoplastic
Nitrile/Neoprene
Nylon
Gold Plated Copper Alloy With Solder Pots
#12: 12.5 Amps; #16: 10 Amps; #20: 7.5 Amps
Service Rating INST - 250 VDC
Service Rating A - 700 VDC
Service Rating INST - 1000 VRMS
Service Rating A - 2000 VRMS
5000 Megohms minimum at
500 VDC and +25°C
-55°C to +125°C
1. Metric dimensions (mm) are indicated in parentheses.
2.
Electrical safety limits must be established by the user. Peak voltages,
switching surges, etc., should be used to determine the safety of application.
