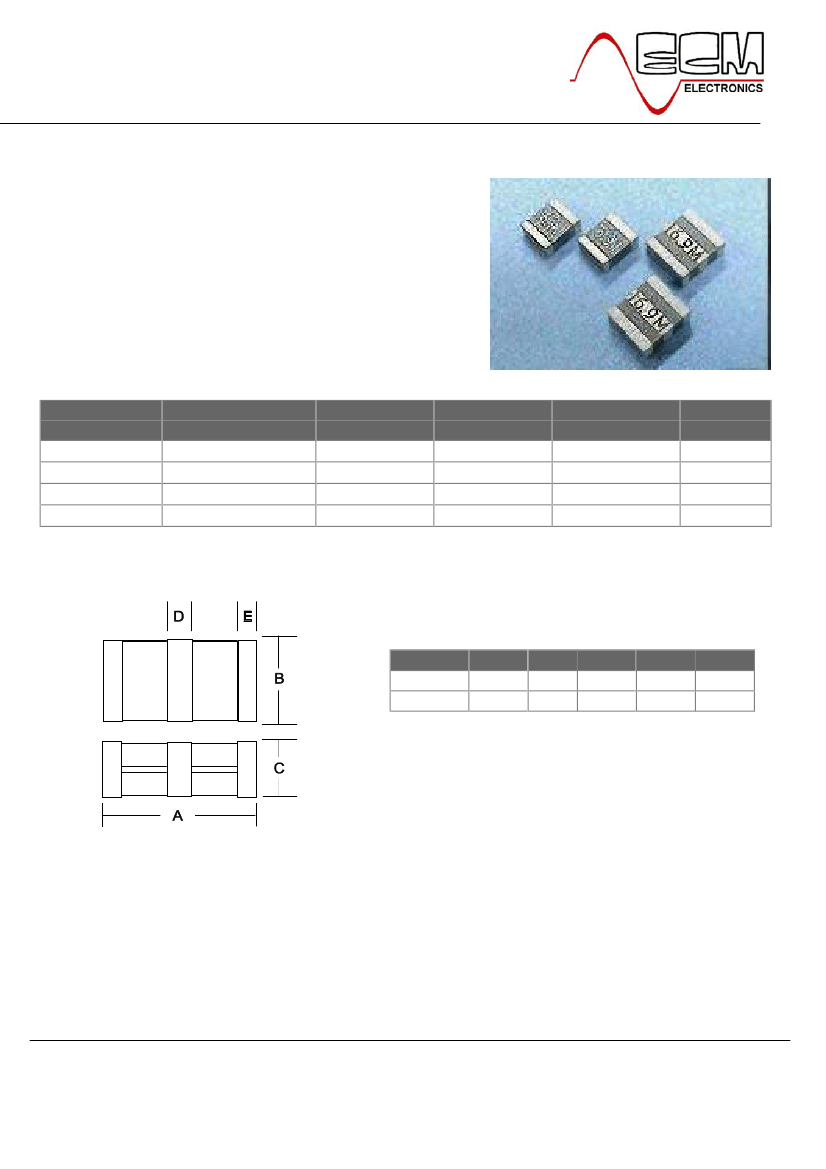

ECM Electronics Ceramic Resonator
ZTTCS Series
Surface Mount
Built in Capacitor
Fast Delivery
Tape & Reel or Bulk Packaging
Highly Competitive Prices for Volume Users
8.00000MHz to 50.00MHz
Series
ZTTCS--.--MT
ZTTCS--.--MX
ZTTCV--.--MT
ZTTCV--.--MX
Frequency
Range
8.00 – 13.00MHz
13.01 – 50.00MHz
8.00 – 12.00MHz
16.01 – 50.00MHz
Frequency
Tolerance
+/- 0.5%
+/- 0.5%
+/- 0.5%
+/- 0.5%
ESR
25Ω
40Ω
20Ω
40Ω
Temperature
Tolerance
+/- 0.3%
+/- 0.3%
+/- 0.3%
+/- 0.3%
Aging
+/- 0.5%
+/- 0.5%
+/- 0.5%
+/- 0.5%
Series
ZTTCS
ZTTCV
A
4.70
3.70
B
4.10
3.01
C
1.60
1.20
D
1.0
0.9
E
0.80
0.70
Dimensions in mm
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: sales@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
Issue 1
