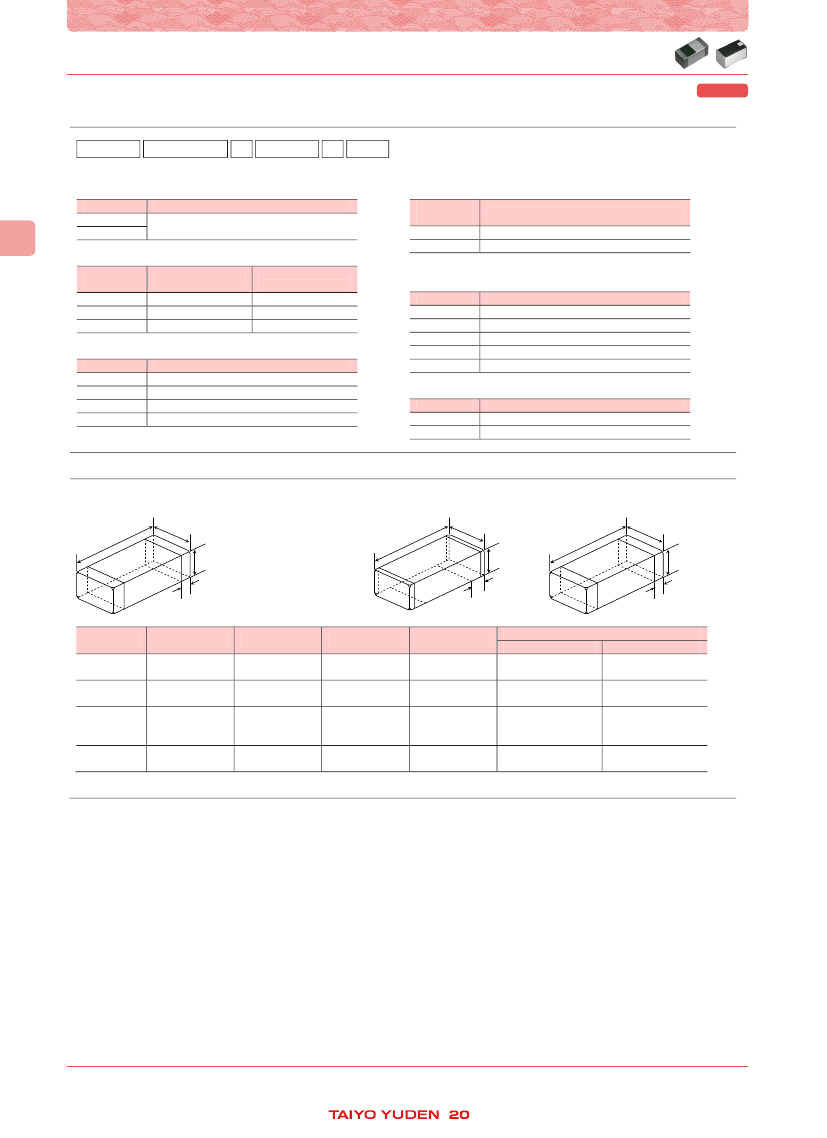

HIGH-Q MULTILAYER CHIP INDUCTORS FOR HIGH FREQUENCY APPLICATIONS(HK SERIES Q TYPE/AQ SERIES)
HIGH-Q MULTILAYER CHIP INDUCTORS FOR HIGH FREQUENCY APPLICATIONS（HK SERIES Q TYPE/AQ SERIES）
■PARTS
NUMBER
* Operating Temp.：-55½+125℃
REFLOW
REFLOW
H
K Q
①
0
6
②
0
3
S
③
1
0 N
④
J
⑤
－ T
⑥
△＝Blank space
①Series name
Code
HKQ
AQ△
②Dimensions（L×W）
Series name
High-Q multilayer chip inductor for high
frequency applications
④Nominal inductance
Code
（example）
3N9
10N
※N＝0.0（nH type）
⑤Inductance tolerance
Code
H
J
B
C
S
⑥Packaging
Code
－T
－E
Nominal inductance［nH½
3.9
10.0
INDUCTORS INDUCTORS FOR HIGH FREQUENCY APPLICATIONS
／
100
Code
0402
0603
105△
③Series code
Code
△
W
S
U
Type（inch）
0402（01005）
0603（0201）
105（0402）
Dimensions
（L×W）［mm½
0.4×0.2
0.6×0.3
1.0×0.6
Series code
Standard
W
S
U
Inductance tolerance
±3％
±5％
±0.1nH
±0.2nH
±0.3nH
Packaging
Taping
Taping（1mm pitch）0402type only
■STANDARD
EXTERNAL DIMENSIONS / STANDARD QUANTITY
HKQ0402、HKQ0603S、HKQ0603U、AQ 105
HKQ0603W 0N6½24N
HKQ0603W 27N½R10
W
L
T
e
W
L
T
e
L
W
T
e
Type
HKQ0402
（01005）
HKQ0603W
（0201）
HKQ0603S
HKQ0603U
（0201）
AQ 105
（0402）
L
0.4±0.02
（0.016±0.001）
0.6±0.03
（0.024±0.001）
0.6±0.03
（0.024±0.001）
1.0±0.05
（0.039±0.002）
W
0.2±0.02
（0.008±0.001）
0.3±0.03
（0.012±0.001）
0.3±0.03
（0.012±0.001）
0.6±0.1
（0.024±0.004）
T
0.2±0.02
（0.008±0.001）
0.3±0.03
（0.012±0.001）
0.3±0.03
（0.012±0.001）
0.5±0.05
（0.020±0.002）
e
0.1±0.03
（0.004±0.001）
0.15±0.05
（0.006±0.002）
0.1±0.05
（0.004±0.002）
0.175±0.075
（0.007±0.003）
Standard quantity［pcs½
Paper tape
Embossed tape
20000
15000
15000
10000
40000
－
－
－
Unit：mm（inch）
i_mlci_HKQ_AQ_e-E06R01
