Multilayer Diplexer
For 2400-2500MHz / 4900-5950MHz
DPX165950DT-8026D1
1.6x0.8mm [EIA 0603]*
* Dimensions Code JIS[EIA]
RF Components
Multilayer Diplexer
For 2400-2500MHz / 4900-5950MHz
Conformity to RoHS Directive
DPX165950DT-8026D1
SHAPES AND DIMENSIONS
[Top view]
(6)
1.60±0.15
(5)
( 4)
0.80±0.15
0.60±0.10
(1)
(2)
(3)
Marking
[Bottom view]
0.15±0.10
0.55±0.10
0.30±0.10
Terminal functions
1 GND
2 Common
3 GND
4 High-band
5 GND
6 Low-band
0.25±0.10
0.10±0.10
Dimensions in mm
RECOMMENDED LAND PATTERN
0.30
0.60
0.25
RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20160901 / rf_dpx_dpx165950dt-8026d1_en.fm
0.30
Dimensions in mm
RF Components
DPX165950DT-8026D1
ELECTRICAL CHARACTERISTICS
LOW-BAND
Item
Insertion Loss (dB)
Return Loss (dB)
Attenuation (dB)
Characteristic Impedance ()
・Ta:
+25±5°C
Frequency Range
(MHz)
2400 to 2500
2400 to 2500
4800 to 5000
7200 to 7500
Min.
—
10.88
28
28
Typ.
0.40
16
34
32
50 (Nominal)
Max.
0.55
—
—
—
HIGH-BAND
Item
Insertion Loss (dB)
Return Loss (dB)
Attenuation (dB)
Characteristic Impedance ()
・Ta:
+25±5°C
Frequency Range
(MHz)
4900 to 5950
4900 to 5950
30 to 2700
9800 to 11900
14700 to 17850
Min.
—
10.88
32
15
13
Typ.
0.56
17
36
21
20
50 (Nominal)
Max.
0.80
—
—
—
—
COMMON
Item
Isolation (dB)
Return Loss (dB)
Characteristic Impedance ()
・Ta:
+25±5°C
Frequency Range
(MHz)
30 to 2700
4900 to 5950
2400 to 2500
4900 to 5950
Min.
32
28
10.88
10.88
Typ.
34
31
16
17
50 (Nominal)
Max.
—
—
—
—
TEMPERATURE RANGE
Operating temperature
（°C）
–40 to +85
Storage temperature
（°C）
–40 to +85
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20160901 / rf_dpx_dpx165950dt-8026d1_en.fm
RF Components
DPX165950DT-8026D1

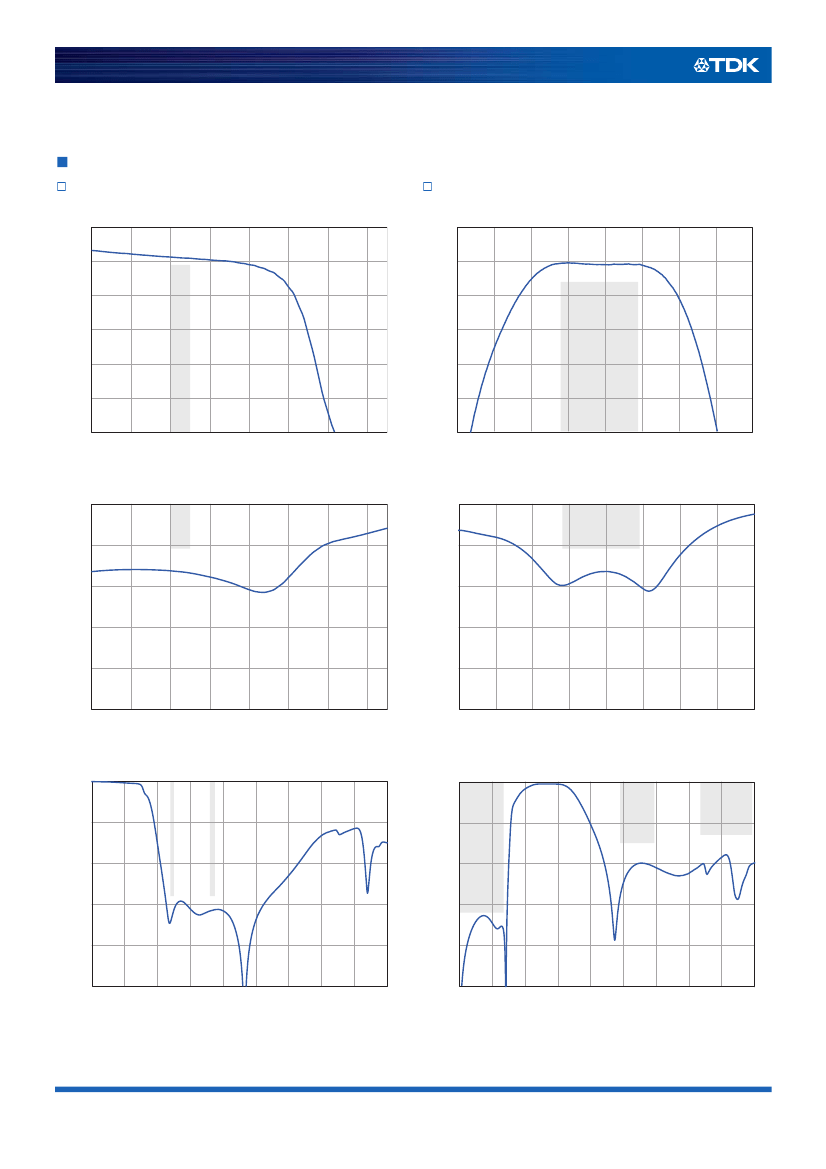

FREQUENCY CHARACTERISTICS
LOW-BAND
Insertion Loss
0.0
HIGH-BAND
Insertion Loss
0.0
0.5
0.5
Insertion Loss(dB)
1.5
Insertion Loss(dB)
1.0
1.0
1.5
2.0
2.0
2.5
2.5
3.0
2000
2200
2400
2600
2800
Frequency(MHz)
3000
3200
3400
3.0
3500
4000
4500
5000
5500
6000
Frequency(MHz)
6500
7000
7500
Return Loss
0
Return Loss
0
10
10
Return Loss(dB)
20
Return Loss(dB)
2200
2400
2600
2800
Frequency(MHz)
3000
3200
3400
20
30
30
40
40
50
2000
50
3500
4000
4500
5000
5500
6000
Frequency(MHz)
6500
7000
7500
Attenuation
0
Attenuation
0
10
10
Attenuation(dB)
20
Attenuation(dB)
0
20
30
30
40
40
50
2000
4000
6000
8000 10000 12000
Frequency(MHz)
14000
16000
18000
50
0
2000
4000
6000
8000 10000 12000
Frequency(MHz)
14000
16000
18000
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20160901 / rf_dpx_dpx165950dt-8026d1_en.fm
RF Components
DPX165950DT-8026D1

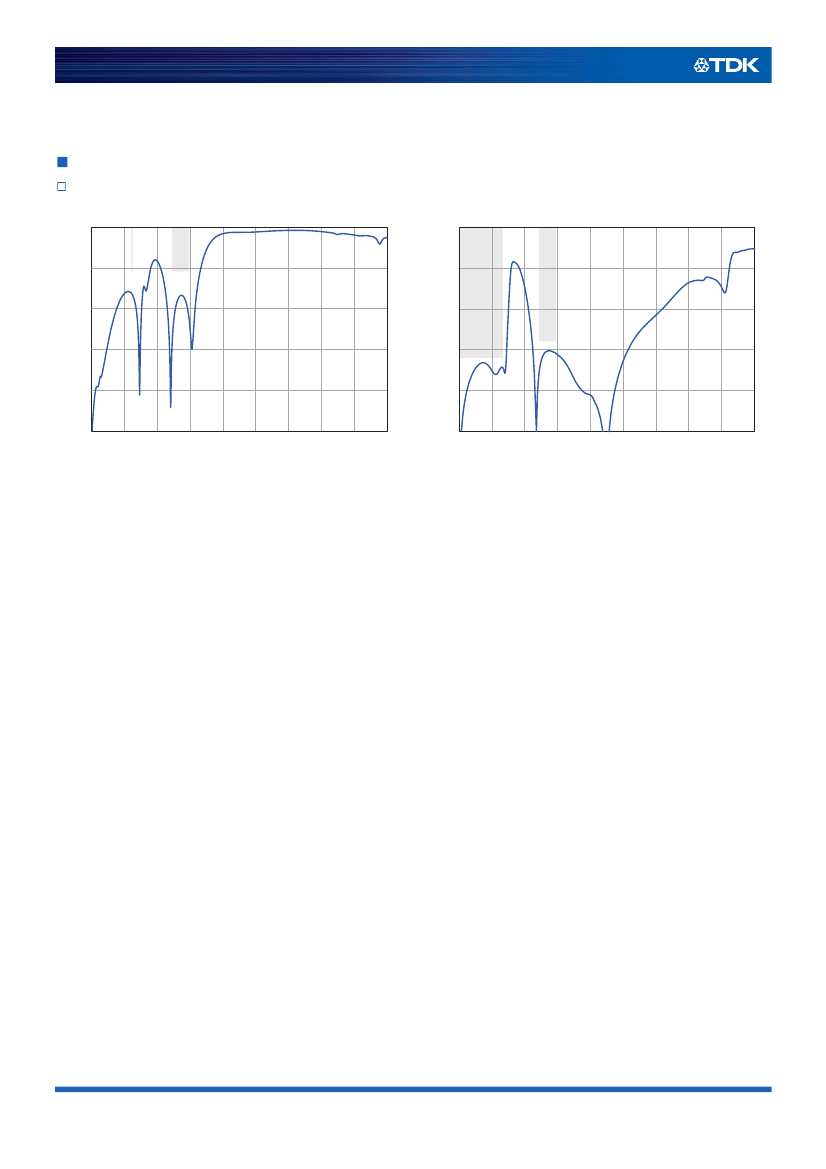

FREQUENCY CHARACTERISTICS
COMMON
Return Loss
0
Isolation
0
10
10
Return Loss(dB)
30
Isolation(dB)
0
2000
4000
6000
8000 10000 12000
Frequency(MHz)
14000
16000
18000
20
20
30
40
40
50
50
0
2000
4000
6000
8000 10000 12000
Frequency(MHz)
14000
16000
18000
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20160901 / rf_dpx_dpx165950dt-8026d1_en.fm
