Multilayer Band Pass Filter
For LTE
DEA Series
2.0x1.25mm [EIA 0805] TYPE
P/N:
DEA203500BT-2213A1-H
All specifications are subject to change without notice.
TDK Technology - Proprietary and Confidential Information of TDK Group Companies
DEA203500BT-2213A1-H
■

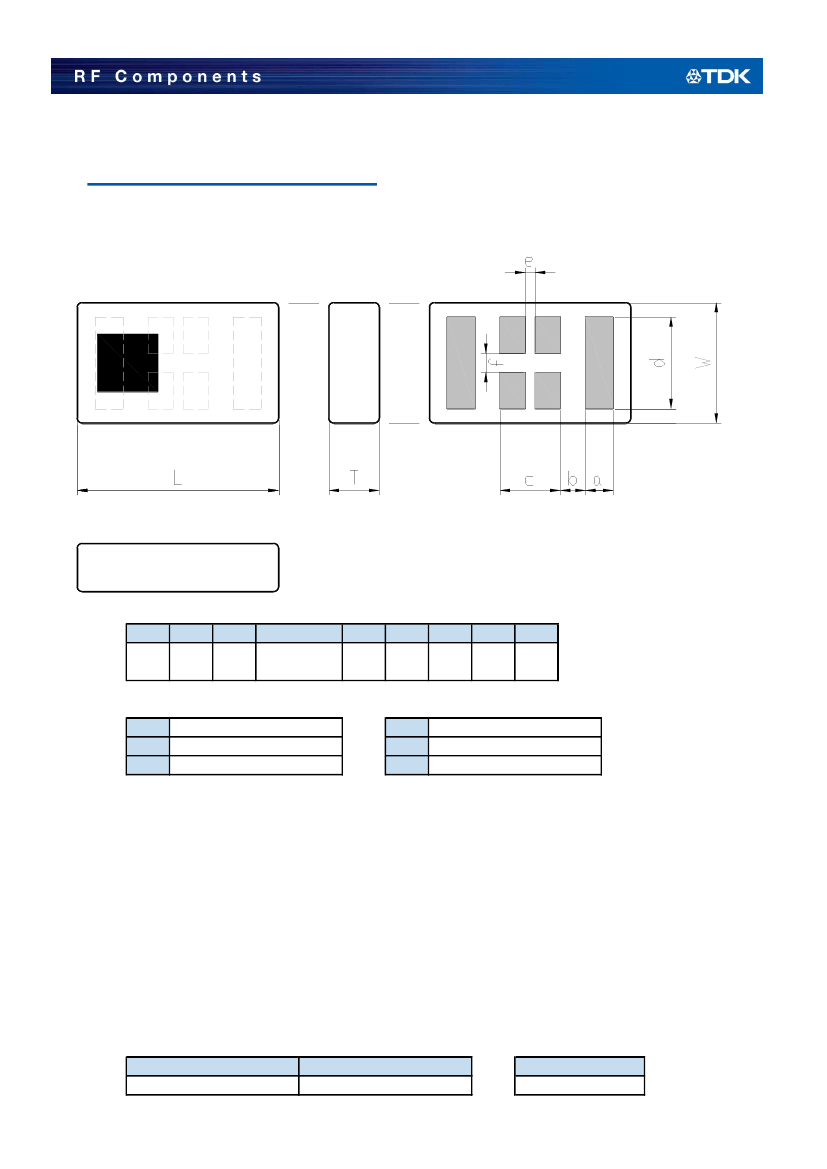

SHAPES AND DIMENSIONS
[Top View]
(6) (5)
(1)
(2) (3)
(4)
(4)
(3) (2)
April. 2017 Ver.3.1a
TDK Corporation
[Bottom View]
(5) (6)
(1)
Dimensions (mm)
L
W
T
2.00 1.25 0.65
+/-0.15 +/-0.10
Max
a
0.275
+/-0.10
b
c
d
e
f
0.25 0.60 0.95 0.10 0.20
+/-0.10 +/-0.10 +/-0.15 +/-0.05 +/-0.05
Terminal functions
Input/Output Port
(1)
GND
(2)
GND
(3)
(4)
(5)
(6)
Input/Output Port
GND
GND
DC Cut
No. There is NOT a DC Cut between the IN & OUT & GND.
■
TEMPERATURE RANGE
Operating temperature Storage temperature
–40 to +85 °C
–40 to +85 °C
■
TERMINATION FINISH
Material
Ag
All specifications are subject to change without notice.
TDK Technology - Proprietary and Confidential Information of TDK Group Companies
DEA203500BT-2213A1-H
■
ELECTRICAL CHARACTERISTICS
Parameter
Insertion Loss (dB)
Frequency (MHz)
3400 to
to
to
3400 to
to
to
3400 to
to
to
500 to
880 to
1710 to
2300 to
4800
4900
5150
6250
6800
7200
10200
Power Handling (W)
Characteristic Impedance (ohm)
Ta = +25+/-5°C
to
to
to
to
to
to
to
3600
TDK Spec
Min. Typ. Max.
-
0.84 1.00
-
-
-
0.94 1.10
-
-
10 22.2
-
-
-
40 40.7
-
40 43.6
-
40 40.7
-
32 34.5
-
6.1 19.2
-
25 34.3
-
30 38.7
-
35 44.6
-
40 45.2
-
40 48.5
-
35 50.1
-
35 46.4
-
-
-
1
50 (Nominal)
April. 2017 Ver.3.1a
TDK Corporation
( Measurement )
Insertion Loss (dB)
( –40 to +85 °C )
Return Loss (dB)
3600
3600
Attenuation (dB)
2170
960
1785
2700
4400
4900
5150
5925
6550
7200
9000
10800
All specifications are subject to change without notice.
TDK Technology - Proprietary and Confidential Information of TDK Group Companies
DEA203500BT-2213A1-H
■
FREQUENCY CHARACTERISTICS

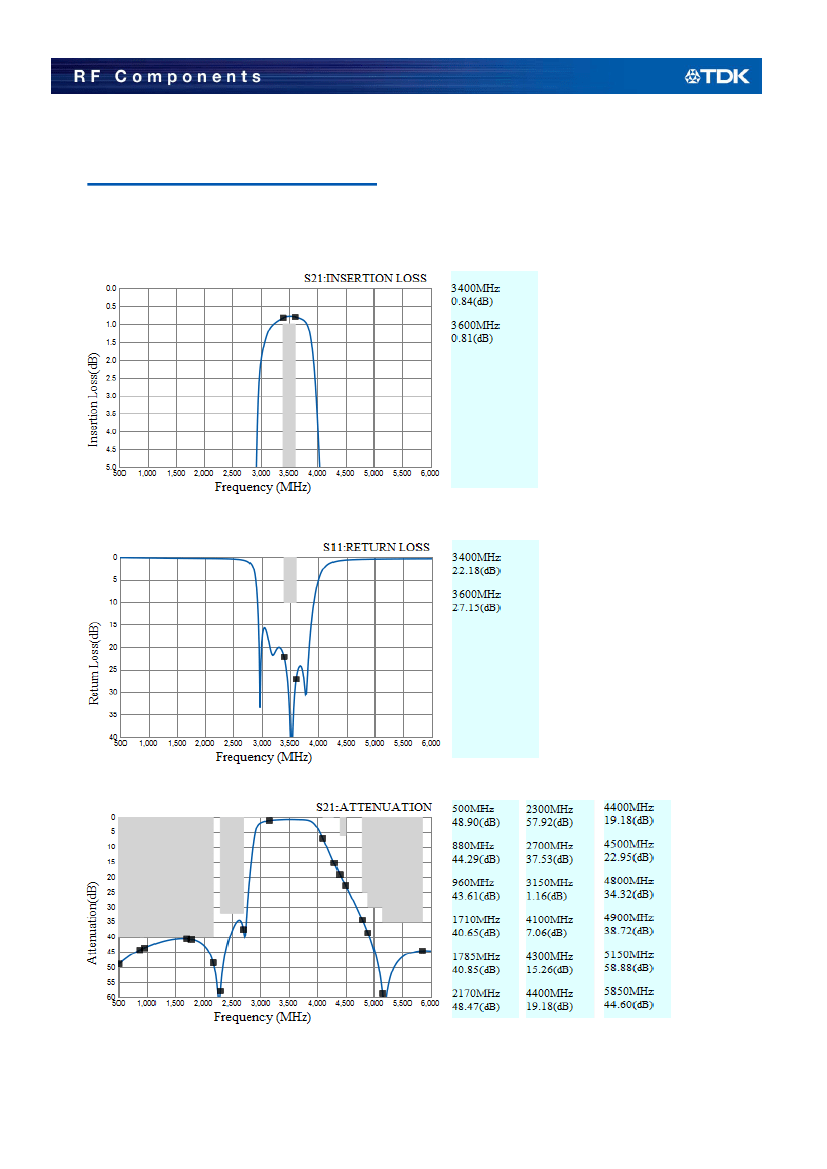

Insertion Loss
April. 2017 Ver.3.1a
TDK Corporation
Return Loss
Attenuation
All specifications are subject to change without notice.
TDK Technology - Proprietary and Confidential Information of TDK Group Companies
DEA203500BT-2213A1-H
■
FREQUENCY CHARACTERISTICS

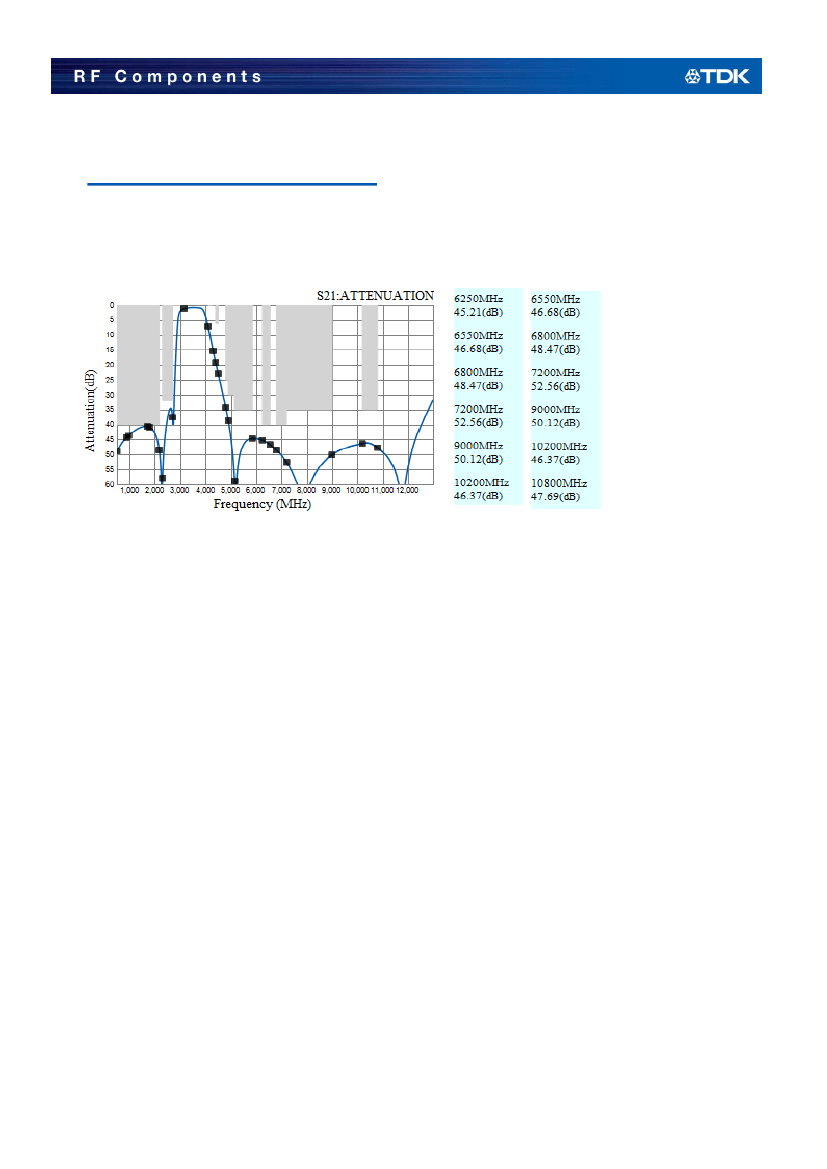

Attenuation
April. 2017 Ver.3.1a
TDK Corporation
All specifications are subject to change without notice.
TDK Technology - Proprietary and Confidential Information of TDK Group Companies
