BZT52B3V0JS
THRU
BZT52B75JS
200 mW
Zener Diode
3.0
to
75
Volts
Features
Planar Die Construction
200mW Power Dissipation
General Purpose Medium Current
Ideally Suited for Automated Assembly Processes
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Lead Free Finish/RoHS Compliant("P" Suffix
designates RoHS Compliant. See ordering information)
Halogen
free available upon request by adding suffix "-HF"
•
•
•
•
SOD-323
A
B
Unit
mW
Absolute Maximum Ratings
Symbol
P
D
T
J
T
STG
Parameter
Power dissipation*
Junction Temperature
Storage Temperature Range
Rating
200
-55 to +150
-55 to +150
C
E
*
Mounted on 5.0mm
2
(.013mm thick) land areas.
H
D
Absolute Maximum Ratings
Symbol
R
thJA
Parameter
Thermal Resistance Junction to
Ambient*
Rating
625
Unit
/W
G
J
DIM
A
B
C
D
E
G
H
J
Electrical Characteristics
Symbol
Parameter
Rating
Unit
DIMENSIONS
INCHES
MM
MIN
MAX
MIN
MAX
.090
.107
2.30
2.70
.063
.071
1.60
1.80
.045
.053
1.15
1.35
.031
.045
0.80
1.15
.010
.016
0.25
0.40
.004
.018
0.10
0.45
.004
.010
0.10
0.25
-----
.006
-----
0.15
SUGGESTED SOLDER
PAD LAYOUT
NOTE
V
F
Maximum Forward Voltage
(I
F
=10mAdc)
0.9
V
0.074"
0.027”
0.022”
www.mccsemi.com
Revision:
F
1 of
4
2017/06/14
MCC
Micro Commercial Components
R

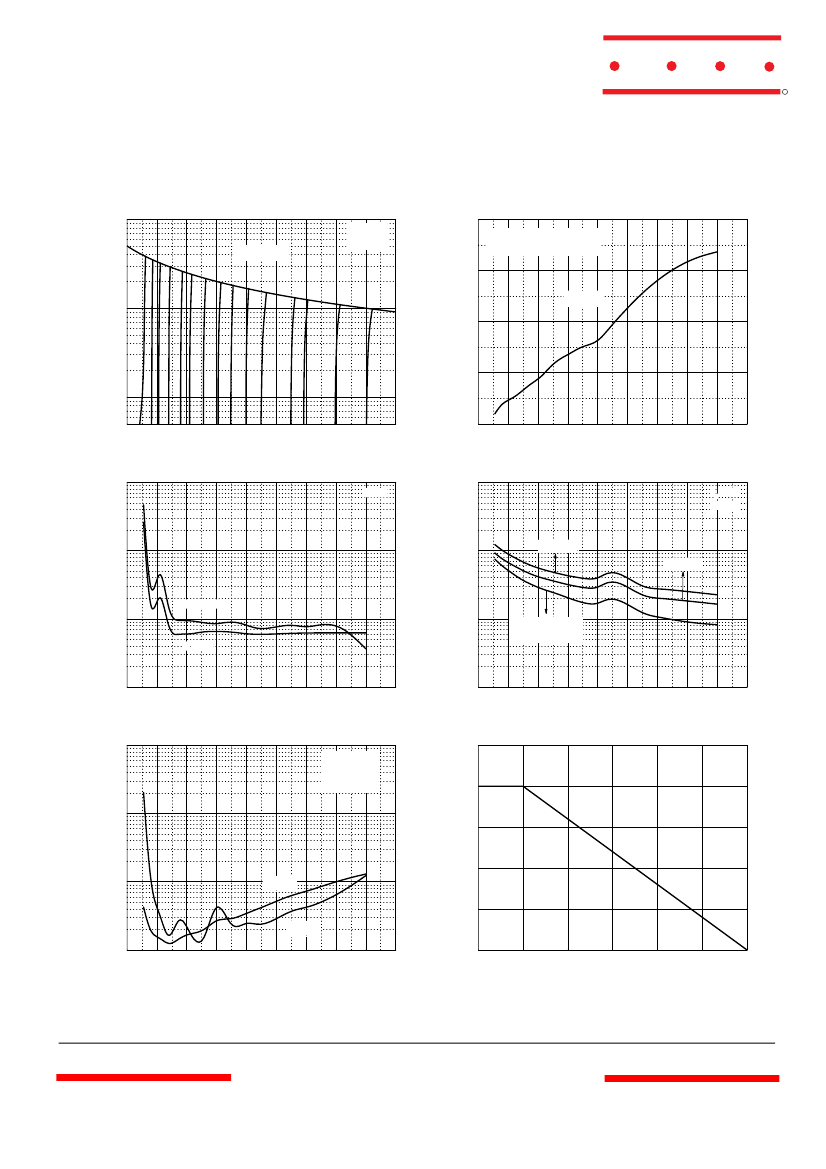

Typical Characteristics
Zener Characteristics
(
V
Z
5.1V to 20 V
)
100
20
Temperature Coefficients
TYPICAL T
a
VALUES
FORBZT52BXXXJS
SERIES
P
D
=200mW
I
Z
, ZENER CURRENT (mA)
Pulsed
θ
VZ
, TEMPERATURE COEFFICIENT (mV/
℃
)
T
a
=25
℃
15
10
V
Z
@ I
ZT
10
5.1
9.1
11
6.2
5.6
6.8
7.5
8.2
12
13
10
15
16
18
20
5
1
0.5
0
4
6
8
10
12
14
16
18
20
22
4
6
8
10
12
14
16
18
20
22
V
Z
, ZENER VOLTAGE (V)
V
Z
, NOMINAL ZENER VOLTAGE (V)
0.1
Typical Leakage Current
Pulsed
Typical Capacitance
1000
T
a
=25
℃
f=1MHz
I
R
, LEAKAGE CURRENT (uA)
C, CAPACITANCE (pF)
0.01
100
0V BIAS
1V BIAS
T
a
=100
℃
1E-3
10
BIAS AT
50% OF V
Z
NOM
T
a
=25
℃
1E-4
4
6
8
10
12
14
16
18
20
22
1
4
6
8
10
12
14
16
18
20
22
V
Z
, NOMINAL ZENER VOLTAGE (V)
V
Z
, NOMINAL ZENER VOLTAGE (V)
Effect of Zener Voltage on Zener Impedance
1000
250
Power Derating Curve
T
a
=25
℃
f=1kHz
100
(mW)
P
D
POWER DISSIPATION
22
I
Z(AC)
=0.1I
Z(DC)
Z
ZT
, DYNAMIC IMPEDANCE(Ω)
200
150
100
10
I
Z
=5mA
50
I
Z
=1mA
1
4
6
8
10
12
14
16
18
20
0
0
25
50
75
100
125
150
V
Z
, NOMINAL ZENER VOLTAGE (V)
AMBIENT TEMPERATURE
T
a
(
℃
)
www.mccsemi.com
Revision:
F
3
of
4
2017/06/14
MCC
Micro Commercial Components
R
Ordering Information :
Device
Part Number-TP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel:
3Kpcs/Reel
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp .
does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp .
and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express written
approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited
below.
Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
www.mccsemi.com
Revision:
F
4
of
4
2017/06/14
