ABM8-16.000MHZ-D2-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> ABM8-16.000MHZ-D2-T

Preview

ABM8-16.000MHZ-D2-T: DescriptionCRYSTAL 16.000MHZ 18PF SMD; CategoryPassive components; File Size110KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM8-16.000MHZ-D2-T Overview

CRYSTAL 16.000MHZ 18PF SMD

ABM8-16.000MHZ-D2-T Parametric

Parameter Name	Attribute value
type	MHz crystal
frequency	16MHz
frequency stability	±50ppm
frequency tolerance	±20ppm
load capacitance	18pF
ESR (equivalent series resistance)	70 Ohms
Operating mode	basic harmony
Operating temperature	-40°C ~ 85°C
grade	-
Installation type	surface mount
Package/casing	4-SMD, no leads
size/dimensions	0.126" long x 0.098" wide (3.20mm x 2.50mm)
Height - Installation (maximum)	0.032"（0.80mm）

Preview

Download Datasheet

View All

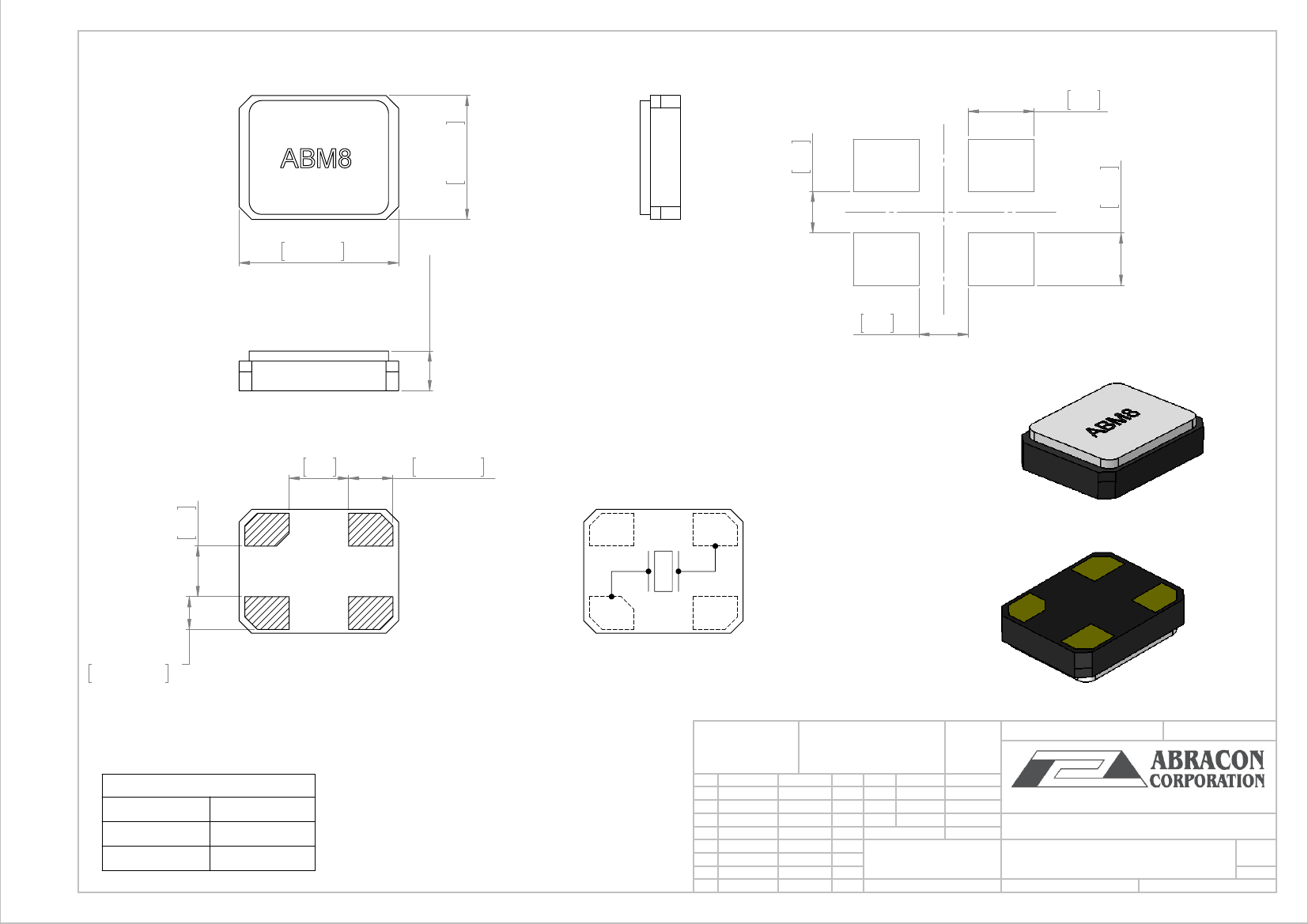

Recommended Land Pattern

0.098±0.008

2.5±0.2

0.052

1.3

0.033

0.8

SEE TABLE 2

0.126±0.008

3.2±0.2

0.039

1.0

0.047

1.2

0.04

1.0

1

0.035±0.006

0.9±0.15

2

4

GND

3

GND

0.026±0.006

0.66±0.15

4

Bottom View

3

1

Top View

2

TABLE 2

Height (mm)

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

SAAZVAT

XXXXXX

FINISH:

DEBUR AND

BREAK SHARP

EDGES

0.041

1.05

DO NOT SCALE DRAWING

REVISION

-

SIGNATURE

DATE

ABM8

ABM81

ABM82

0.80 max

0.65+/-0.05

0.60+/-0.10

TOP PACKAGE MARKING IS

FOR ILLUSTRATION PURPOSES ONLY

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

SMD Crystal

MATERIAL:

DWG NO.

ABM8

SHEET 1 OF 1

A3

WEIGHT:

SCALE:16:1
