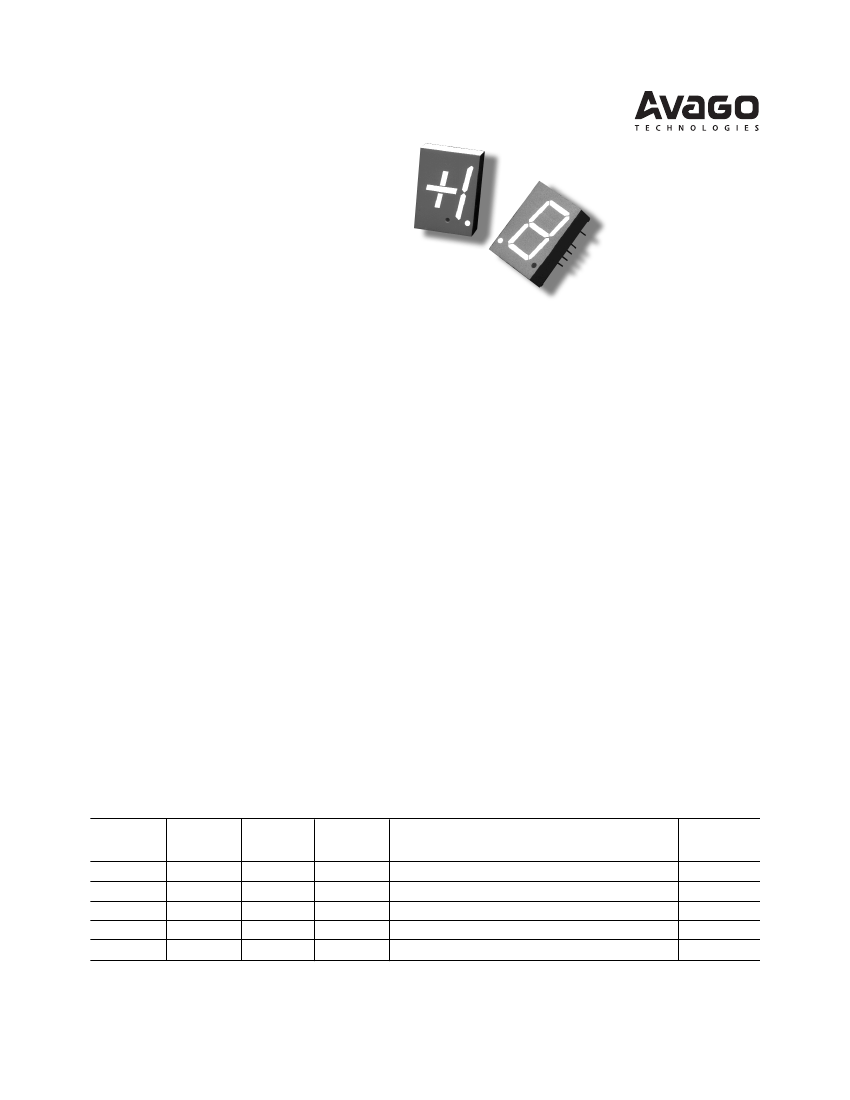

HDSP-390x Series
20 mm (0.8 inch) Seven Segment Displays
Data Sheet
HDSP-390x Series
HDSP-420x Series
HDSP-860x Series
HDSP-N15x Series
Description
The 20 mm (0.8 inch) LED seven segment displays are
designed for viewing distances up to 10 metres (33
feet). These devices use an industry standard size
package and pinout. All devices are available as either
common anode or common cathode.
These displays are ideal for most applications. Pin for
pin equivalent displays are also available in a low
current design. The low current displays are ideal for
portable applications. For additional information see
the Low Current Seven Segment Displays data sheet.
Features
• Industry standard size
• Industry standard pinout
15.24 mm (0.6 in.) DIP leads on 2.54 mm (0.1 in.) centers
• Choice of Colors
AlGaAs Red, High Efficiency Red, Yellow, Green
• Excellent appearance
Evenly lighted segments
Mitered corners on segments
Gray package gives optimum contrast
±50°
viewing angle
• Design flexibility
Common anode or common cathode
Left and right hand decimal points
±1.
overflow character
• Categorized for luminous intensity
Yellow and green categorized for color
Use of like categories yields a uniform display
• High light output
• High peak current
• Excellent for long digit string multiplexing intensity
and color selection option
See
Intensity and Color Selected Displays
Data Sheet
• Sunlight viewable AlGaAs
Devices
AlGaAs
[1]
HDSP-
N150
N151
N153
N155
N156
HER
HDSP-
3900
3901
3903
3905
3906
Yellow
HDSP-
4200
4201
4203
4205
4206
Green
HDSP-
8600
8601
8603
8605
8606
Description
Common Anode Left Hand Decimal
Common Anode Right Hand Decimal
Common Cathode Right Hand Decimal
Common Cathode Left Hand Decimal
Universal
±1.
Overflow
[2]
Package
Drawing
A
B
C
D
E
Notes:
1. These displays are recommended for high ambient light operation. Please refer to the HDSP-N10x AlGaAs data sheet for low current operation.
2. Universal pinout brings the anode and cathode of each segment's LED out to separate pins. See internal diagram E.
Part Numbering System
5082 -X X X X-X X X X X
HDSP-X X X X-X X X X X
Mechanical Options
[1]
00: No Mechanical Option
Color Bin Options
[1,2]
0: No Color Bin Limitation
Z: Color Bins 2- and 3+ Only (applicable for Yellow devices only)
Maximum Intensity Bin
[1,2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1,2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
0: Common Anode
1: Common Anode
3: Common Cathode
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
N: 20 mm (0.8 inch) Single Digit Seven Segment Display
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest Avago
representative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1 bin per tube
(exceptions may apply). Please refer to respective datasheet for specific bin limit information.
2

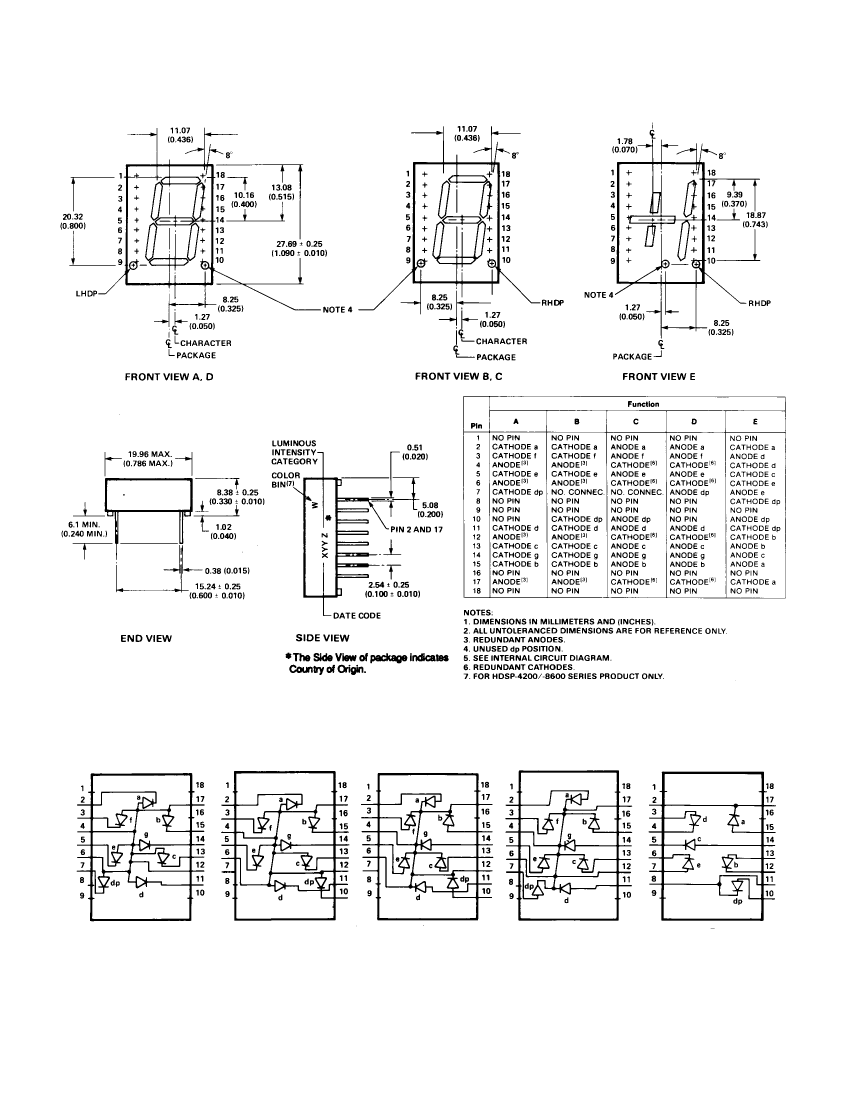

Package Dimensions
Internal Circuit Diagram
A
B
HDSP-39xx
C
D
E
3
Absolute Maximum Ratings
AlGaAs Red
HDSP-N150
Series
96
160
[1]
40
[2]
–20 to +100
[7]
HER
HDSP-3900
Series
105
135
[3]
40
[4]
–40 to +100
–55 to +100
3.0
25
0
Yellow
HDSP-4200
Series
105
135
[3]
40
[4]
Green
HDSP-8600
Series
105
90
[5]
30
[6]
–40 to +100
Description
Average Power per Segment or DP
Peak Forward Current per
Segment or DP
DC Forward Current per
Segment or DP
Operating Temperature Range
Storage Temperature Range
Reverse Voltage per Segment or DP
Wave Soldering Temperature for
3 Seconds (1.60 mm [0.063 in.]
below body)
Units
mW
mA
mA
°C
°C
V
°C
Notes:
1. See Figure 2 to establish pulsed conditions.
2. Derate above 55°C at 0.8 mA/°C.
3. See Figure 7 to establish pulsed conditions.
4. Derate above 50°C at 0.73 mA/°C.
5. See Figure 8 to establish pulsed conditions.
6. Derate above 50°C at 0.54 mA/°C.
7. For operation below –20°C, contact your local Avago components sales office or an authorized distributor.
4
Electrical/Optical Characteristics at T
A
= 25°C
AlGaAs Red
Device
Series
Parameter
Luminous Intensity/Segment
[1,2,5]
(Digit Average)
Forward Voltage/Segment or DP
HDSP-
N15x
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED Junction-
to-Pin
Symbol
I
V
Min.
6.0
Typ.
14.0
1.8
V
F
2.0
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-PIN
3.0
645
637
15
-2
430
3.0
V
nm
nm
V
mV/°C
°C/W/
Seg
I
R
= 100
µA
I
F
= 100 mA
Max.
Units
mcd
V
Test Conditions
I
F
= 20 mA
I
F
= 20 mA
High Efficiency Red
Device
Series
Parameter
Luminous
(Digit Average)
Intensity/Segment
[1,2]
Symbol
I
V
4800
Forward Voltage/Segment or DP
HDSP-
390x
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED Junction-
to-Pin
V
F
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-PIN
3.0
2.6
635
626
25
-2
375
3.5
µcd
V
nm
nm
V
mV/°C
°C/W/
Seg
I
R
= 100
µA
Min.
3350
Typ.
7000
Max.
Units
µcd
Test Conditions
I
F
= 100 mA Peak:
1 of 5 df
I
F
= 20 mA
I
F
= 100 mA
5
