NLVVHC1GT08DFT1G datasheet, PDF

Datasheet> All Categories > logic> logic> NLVVHC1GT08DFT1G

NLVVHC1GT08DFT1G: DescriptionIC GATE AND 1CH 2-INP SC88A; Categorylogic logic; File Size123KB，6 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

NLVVHC1GT08DFT1G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NLVVHC1GT08DFT1G	-	-	View	Buy Now

NLVVHC1GT08DFT1G Overview

IC GATE AND 1CH 2-INP SC88A

NLVVHC1GT08DFT1G Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
Maker	ON Semiconductor
Parts packaging code	SOT-353
package instruction	SC-70, SC-88A, SOT-353, 5 PIN
Contacts	5
Manufacturer packaging code	419A-02
Reach Compliance Code	compliant
Factory Lead Time	5 weeks
series	AHC/VHC
JESD-30 code	R-PDSO-G5
JESD-609 code	e3
length	2 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.008 A
Humidity sensitivity level	1
Number of functions	1
Number of entries	2
Number of terminals	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP5/6,.08
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TR
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Maximum supply current (ICC)	0.04 mA
Prop。Delay @ Nom-Sup	11 ns
propagation delay (tpd)	16.5 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	AEC-Q100
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	1.25 mm

Preview

Download Datasheet

View All

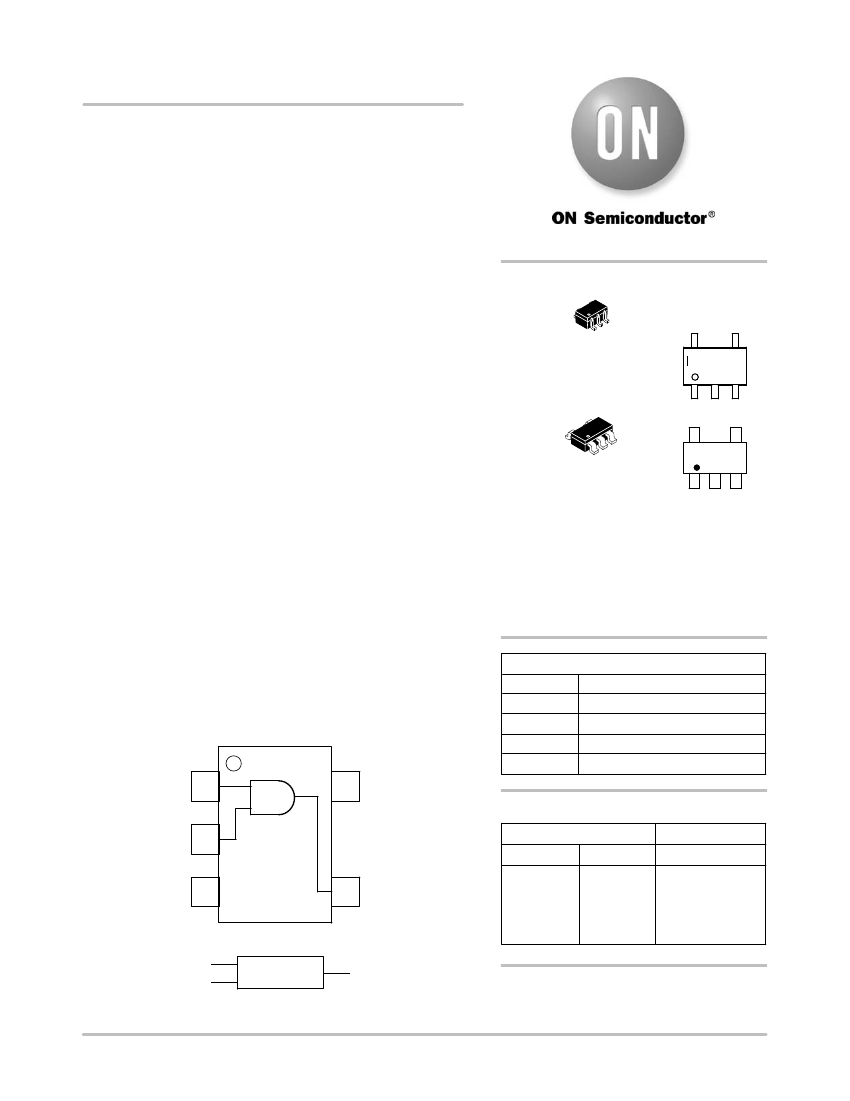

MC74VHC1GT08

2-Input AND Gate/CMOS

Logic Level Shifter

The MC74VHC1GT08 is an advanced high speed CMOS 2−input

AND gate fabricated with silicon gate CMOS technology. It achieves

high speed operation similar to equivalent Bipolar Schottky TTL

while maintaining CMOS low power dissipation.

The internal circuit is composed of three stages, including a buffer

output which provides high noise immunity and stable output.

The device input is compatible with TTL−type input thresholds and

the output has a full 5 V CMOS level output swing. The input protection

circuitry on this device allows overvoltage tolerance on the input,

allowing the device to be used as a logic−level translator from 3 V

CMOS logic to 5 V CMOS Logic or from 1.8 V CMOS logic to 3 V

CMOS Logic while operating at the high−voltage power supply.

The MC74VHC1GT08 input structure provides protection when

voltages up to 7 V are applied, regardless of the supply voltage. This

allows the MC74VHC1GT08 to be used to interface 5 V circuits to

3 V circuits. The output structures also provide protection when

= 0 V. These input and output structures help prevent device

destruction caused by supply voltage

−

input/output voltage mismatch,

battery backup, hot insertion, etc.

Features

http://onsemi.com

MARKING

DIAGRAMS

SC−88A / SOT−353 / SC−70

DF SUFFIX

CASE 419A

VT M

TSOP−5 / SOT−23 / SC−59

DT SUFFIX

CASE 483

•

High Speed: t

= 3.5 ns (Typ) at V

= 5 V

Low Power Dissipation: I

= 1

(Max) at T

= 25°C

TTL−Compatible Inputs: V

= 0.8 V; V

= 2 V

CMOS−Compatible Outputs: V

> 0.8 V

; V

< 0.1 V

@Load

Power Down Protection Provided on Inputs and Outputs

Balanced Propagation Delays

Pin and Function Compatible with Other Standard Logic Families

Chip Complexity: FETs = 64; Equivalent Gates = 15

NLV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC−Q100

Qualified and PPAP Capable

•

These Devices are Pb−Free and are RoHS Compliant

VT = Device Code

= Date Code*

= Pb−Free Package

(Note: Microdot may be in either location)

*Date Code orientation and/or position may vary

depending upon manufacturing location.

PIN ASSIGNMENT

IN B

IN A

GND

OUT Y

IN B

FUNCTION TABLE

IN A

GND

OUT Y

Inputs

Output

Figure 1. Pinout

(Top View)

IN A

IN B

OUT Y

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 4 of this data sheet.

Figure 2. Logic Symbol

Semiconductor Components Industries, LLC, 2013

January, 2013

−

Rev. 12

Publication Order Number:

MC74VHC1GT08/D

NLVVHC1GT08DFT1G Related Products

	NLVVHC1GT08DFT1G	MC74VHC1GT08_07	MC74VHC1GT08	NLVVHC1GT08DTT1G	M74VHC1GT08DFT2G	M74VHC1GT08DTT1G
Description	IC GATE AND 1CH 2-INP SC88A	AHC/VHC SERIES, 2-INPUT AND GATE, PDSO5	AHC/VHC SERIES, 2-INPUT AND GATE, PDSO5	IC GATE AND 1CH 2-INP 5TSOP	Logic Type: AND Gate Additional Features:-	Logic Type: AND Gate Additional Features:-
series	AHC/VHC	AHC/VHC	AHC/VHC	AHC/VHC	AHC/VHC	AHC/VHC
Number of functions	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5
Maximum operating temperature	125 °C	125 Cel	125 Cel	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 Cel	-55 Cel	-55 °C	-55 °C	-55 °C
surface mount	YES	Yes	Yes	YES	YES	YES
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Brand Name	ON Semiconductor	-	-	ON Semiconductor	ON Semiconductor	ON Semiconductor
Is it lead-free?	Lead free	-	-	Lead free	Lead free	Lead free
Maker	ON Semiconductor	-	-	ON Semiconductor	ON Semiconductor	ON Semiconductor
Parts packaging code	SOT-353	-	-	TSOP	SOT-353	TSOP
package instruction	SC-70, SC-88A, SOT-353, 5 PIN	-	-	TSOP-5	SC-70, SC-88A, SOT-353, 5 PIN	TSOP-5
Contacts	5	-	-	5	5	5
Manufacturer packaging code	419A-02	-	-	483	419A-02	483
Reach Compliance Code	compliant	-	-	compliant	compliant	compliant
Factory Lead Time	5 weeks	-	-	9 weeks	1 week	1 week
JESD-30 code	R-PDSO-G5	-	-	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5
JESD-609 code	e3	-	-	e3	e3	e3
length	2 mm	-	-	3 mm	2 mm	3 mm
Load capacitance (CL)	50 pF	-	-	50 pF	50 pF	50 pF
Logic integrated circuit type	AND GATE	-	-	AND GATE	AND GATE	AND GATE
MaximumI(ol)	0.008 A	-	-	0.008 A	0.008 A	0.008 A
Humidity sensitivity level	1	-	-	1	1	1
Number of entries	2	-	-	2	2	2
Package body material	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	-	-	TSOP	TSSOP	TSOP
Encapsulate equivalent code	TSSOP5/6,.08	-	-	TSOP5/6,.11,37	TSSOP5/6,.08	TSOP5/6,.11,37
Package shape	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	-	-	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE
method of packing	TR	-	-	TR	TR	TR
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	-	NOT SPECIFIED	260	260
power supply	3.3/5 V	-	-	3.3/5 V	3.3/5 V	3.3/5 V
Maximum supply current (ICC)	0.04 mA	-	-	0.04 mA	0.04 mA	0.04 mA
Prop。Delay @ Nom-Sup	11 ns	-	-	11 ns	11 ns	11 ns
propagation delay (tpd)	16.5 ns	-	-	16.5 ns	16.5 ns	16.5 ns
Certification status	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	-	-	NO	NO	NO
Maximum seat height	1.1 mm	-	-	1.1 mm	1.1 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	-	-	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	-	-	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	-	-	5 V	5 V	5 V
technology	CMOS	-	-	CMOS	CMOS	CMOS
Terminal surface	Tin (Sn)	-	-	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal pitch	0.65 mm	-	-	0.95 mm	0.65 mm	0.95 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	-	-	NOT SPECIFIED	40	40
width	1.25 mm	-	-	1.5 mm	1.25 mm	1.5 mm
