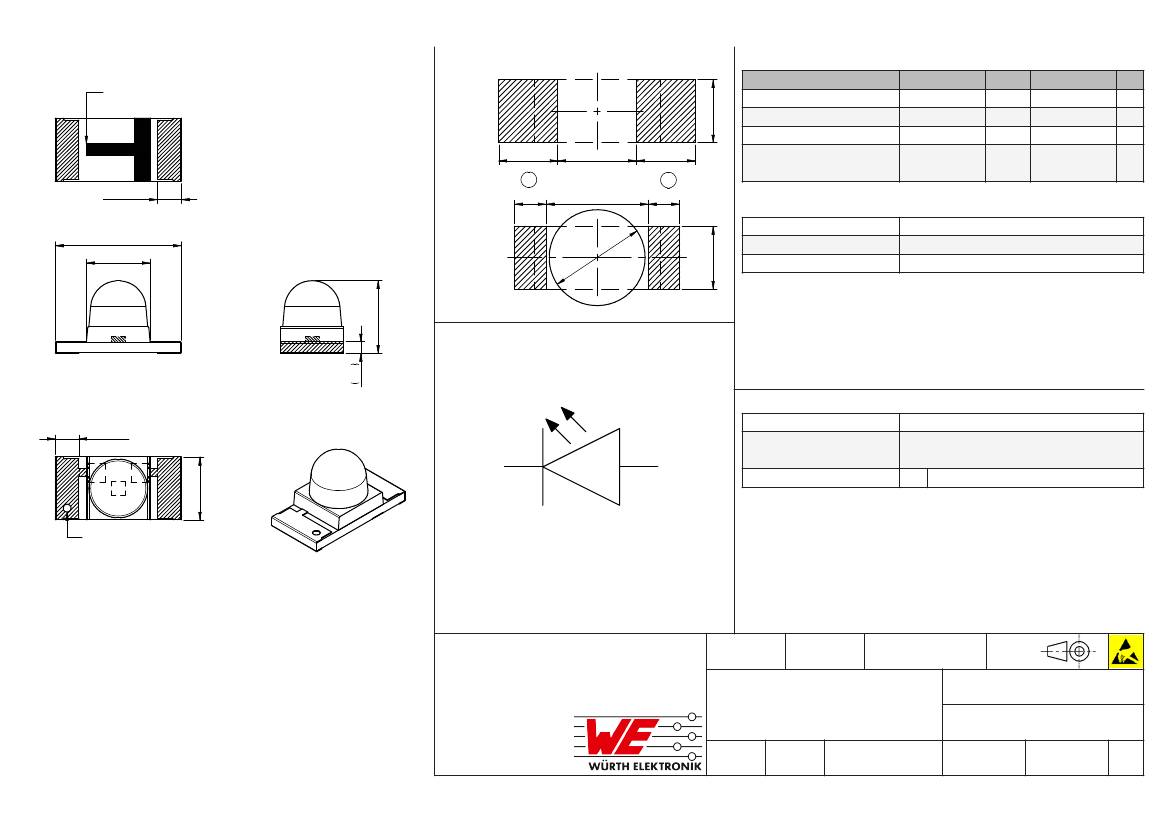

Absolute Maximum Ratings (Ambient Temperature 25°C):
Properties
Power Dissipation
Peak Forward Current
Reverse Current
ESD Threshold/ Human Body
Model
duty/ 10 @ 1 kHz
Test conditions
P
Diss
I
F Peak
I
REV
V
ESD HBM
Value
48
40
100
1000
Unit
mW
mA
µA
V
0,6 typ.
0,8
Optical Properties:
Chip Technology
1,6
3,2 ±0,1
1,62 ±0,1
reverse
use
O
4
2,4
AlInGaP
Super Red
Dome
Emitting Color
Lens Type
1,85 ±0,1
Scale - 10:1
Schematic:
0,3
General Information:
0,6 typ.
-
1
+
2
Operating Temperature
Storage Temperature (in original
packaging)
Moisture Sensitive Level
MSL
-40 °C up to +85 °C
-40 °C up to +85 °C; 60% RH max.
3
Polarity Mark
(Cathode)
1,6 ±0,1
Scale - 10:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PLD
DIN ISO 2768-1m
WL-SMRW SMD Mono-color
Reverse mount Waterclear
SIZE
REVISION
STATUS
ORDER CODE
156120SS82500
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
1206
001.002
Valid
2017-01-30
eiPal
1/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

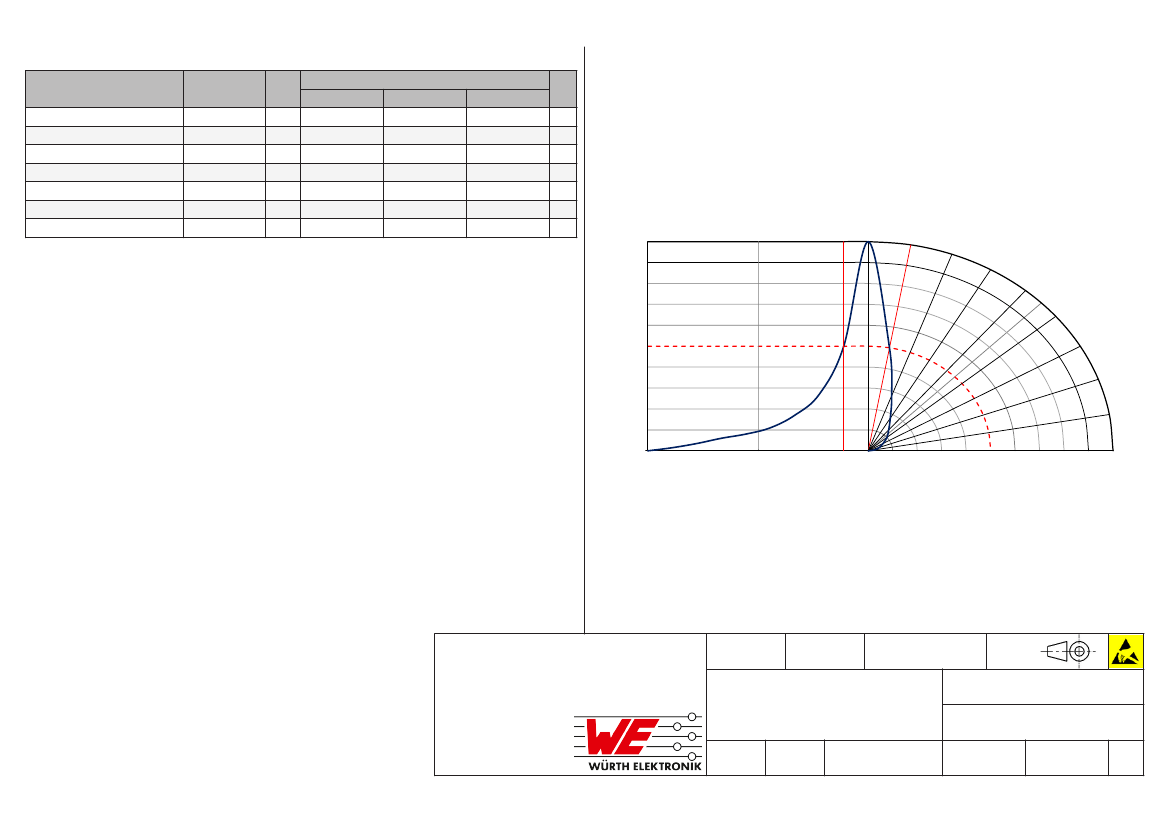

Electrical & Optical Properties:
Properties
Peak Wavelength
Dominant Wavelength
Luminous Intensity
Forward Voltage
Spectral Bandwidth
Reverse Voltage
Viewing Angle Phi 0°
Test conditions
20 mA
20 mA
20 mA
20 mA
20 mA
100 µA
20 mA
λ
Peak
λ
Dom
I
V
V
F
Δλ
V
REV
2θ
50%
20
360
Value
min.
typ.
645
630
900
2
20
5
2.4
max.
Unit
nm
nm
mcd
V
nm
V
°
Viewing Angle:
-10°
100
90
0°
10°
20°
30°
40°
45°
Relative Luminous Intensity (%)
80
70
50°
60
50
40
70°
30
20
10
80°
60°
90°
-90
-45
0
10
20
30
40
50
60
70
80
90
100
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PLD
DIN ISO 2768-1m
WL-SMRW SMD Mono-color
Reverse mount Waterclear
SIZE
REVISION
STATUS
ORDER CODE
156120SS82500
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
1206
001.002
Valid
2017-01-30
eiPal
2/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

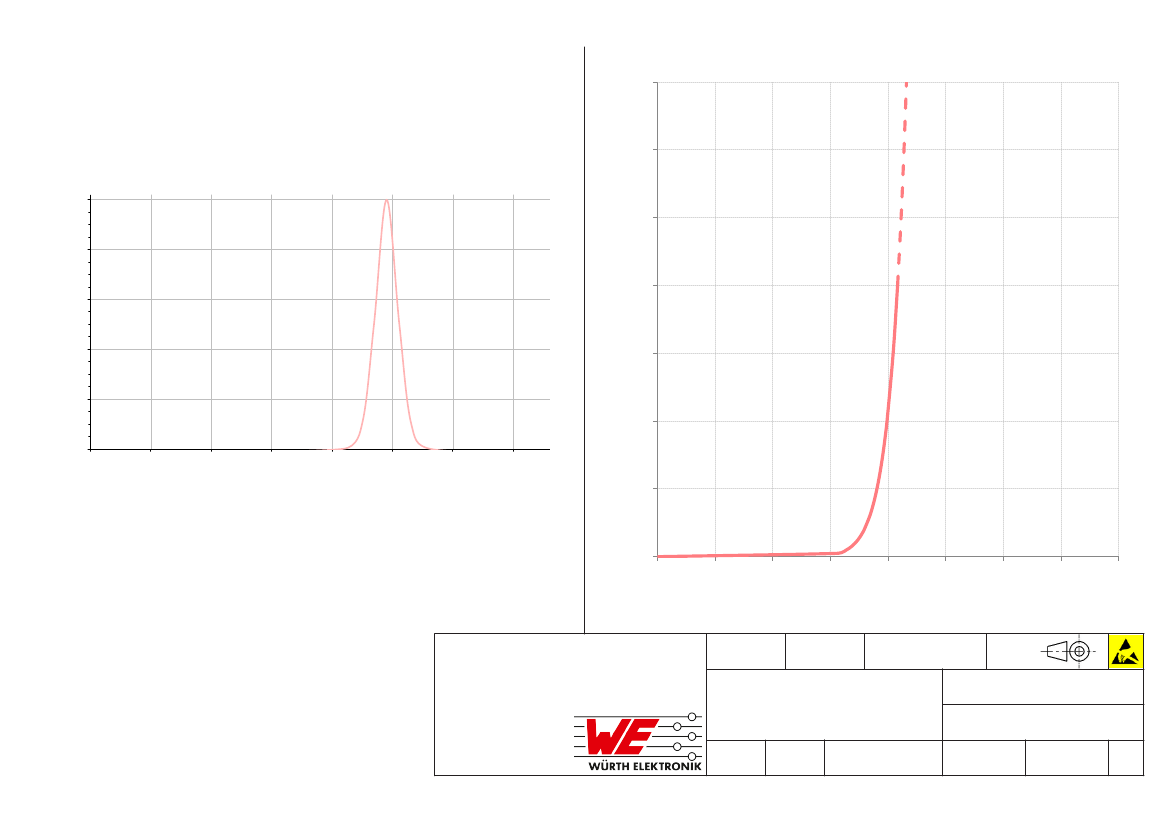

Spectral:
Forward Current vs. Forward Voltage:
35
30
100
25
Forward Current [mA]
400
450
500
550
600
650
700
750
Wavelength [nm]
80
Relative Intensity [%]
20
60
40
15
20
10
0
5
0
0,0
0,5
1,0
1,5
2,0
2,5
Forward Voltage [V]
3,0
3,5
4,0
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PLD
DIN ISO 2768-1m
WL-SMRW SMD Mono-color
Reverse mount Waterclear
SIZE
REVISION
STATUS
ORDER CODE
156120SS82500
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
1206
001.002
Valid
2017-01-30
eiPal
3/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Luminous Intensity vs. Forward Current:
2000
1900
1800
1700
1600
1500
1400

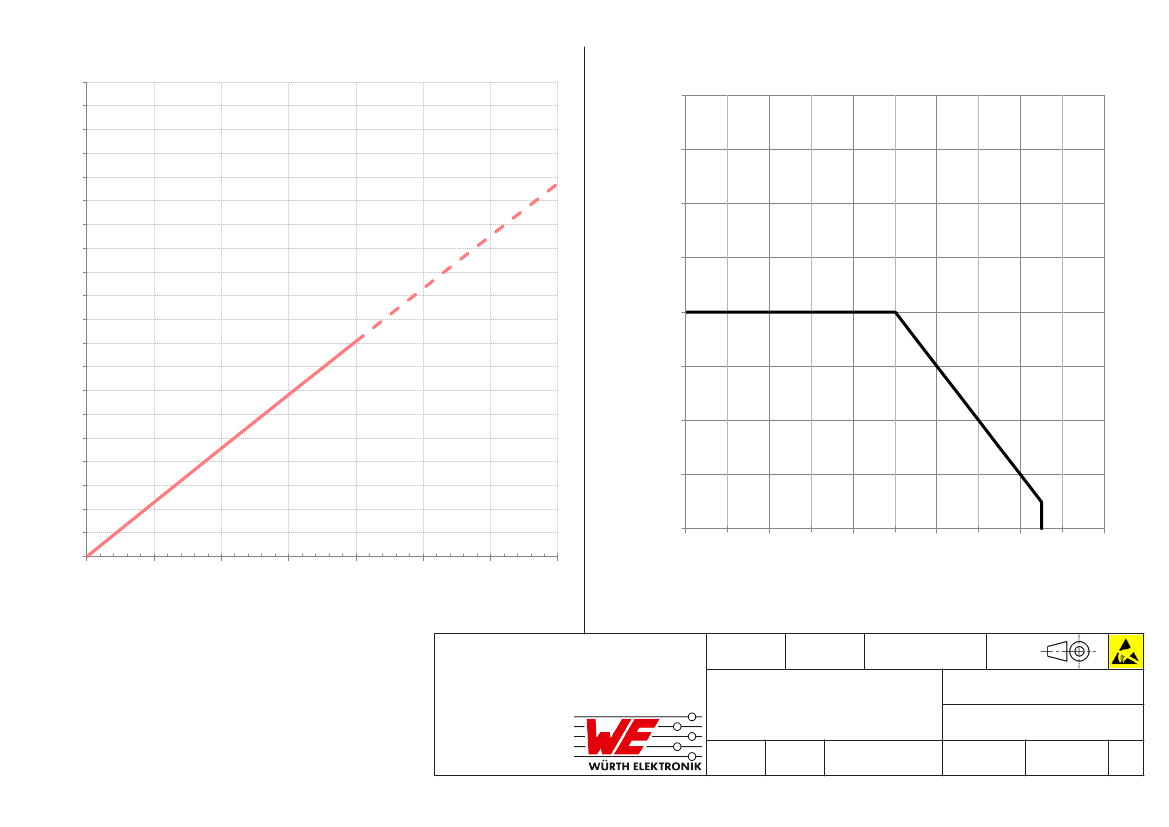

Derating Curve:
40
35
30
Luminous Intensity [mcd]
Forward Current [mA]
1300
1200
1100
1000
900
800
700
600
500
400
300
25
20
15
10
5
200
100
0
0
5
10
15
20
Forward Current [mA]
25
30
35
0
0
20
40
60
80
100
Ambient Temperature [°C]
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PLD
DIN ISO 2768-1m
WL-SMRW SMD Mono-color
Reverse mount Waterclear
SIZE
REVISION
STATUS
ORDER CODE
156120SS82500
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
1206
001.002
Valid
2017-01-30
eiPal
4/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

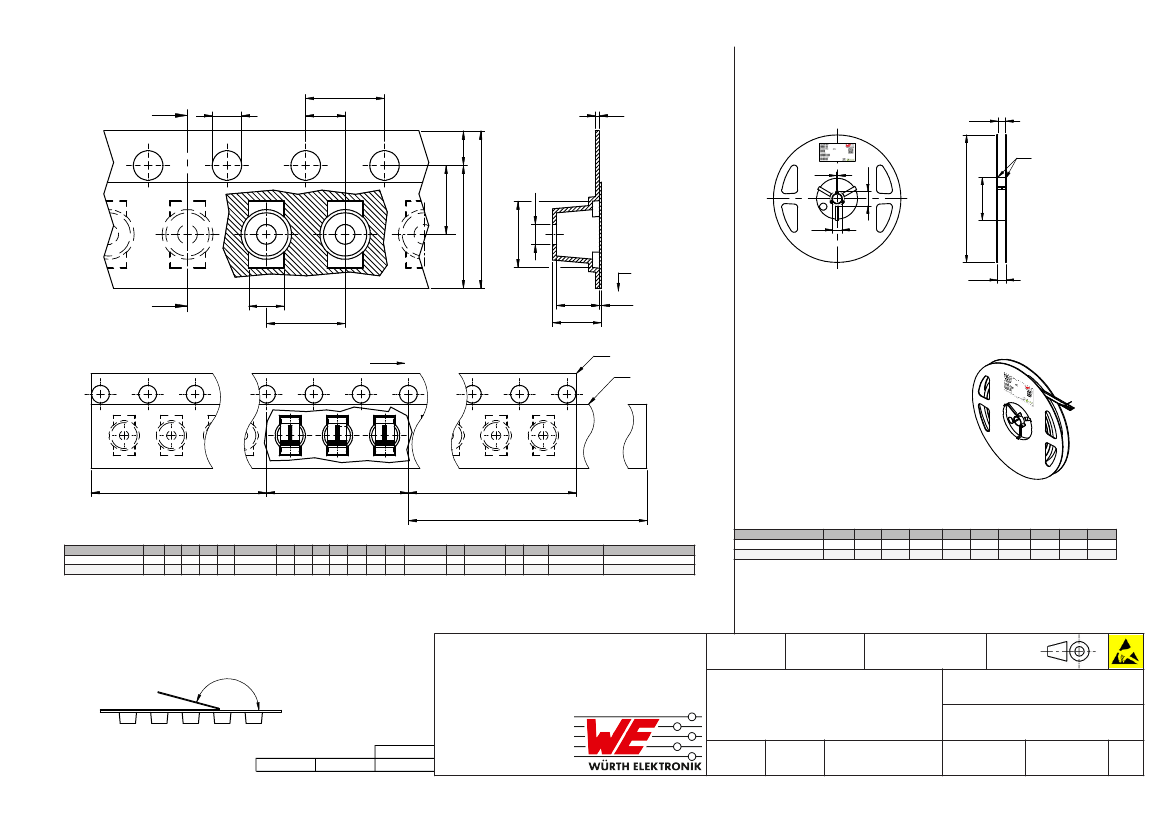

Packaging Specification - Tape and Reel: [mm]
P0
sectional drawing A-A
T
E1
W3
A
D0
P2
F
D
B
W1
close to center
E2
D1
W
C
B0
top cover
tape
W2
A
A0
P1
K0
T2
T1
End
Feeding direction
Start
Carrier tape
Cover tape
No Component
min. 160 mm
Components
No Component
min. 390 mm
Cover Tape
min. 400 mm
D1 E1
typ. +0,1/ -0,0
1.00 1.75
E2 F
Tape Type 2a
min. ±0,05
6.25 3.50 Polycarbonate
VPE / packaging unit
pcs.
2000
tolerance
Tape width
8mm
A
178
Tolerance
size
A0 B0 B1 G
W
typ. typ. typ. typ. +0,3/ -0,1
1206 1.80 3.55 3.94 0.78 8.00
T
T1 T2 K0 P0 P1 P2 D0
typ. typ. typ. typ. ±0,1 ±0,1 ±0,1 +0,1/ -0,0
0.23 0.06 2.19 1.90 4.00 4.00 2.00 1.50
B
min.
1.5
C
± 0,8
13
D
min.
20.2
N
min.
50
N
W1
± 1,5
8.4
A
W2
max.
14.4
W3
min.
7.9
W3
max.
10.9
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PLD
DIN ISO 2768-1m
165° - 180°
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WL-SMRW SMD Mono-color
Reverse mount Waterclear
SIZE
REVISION
STATUS
ORDER CODE
156120SS82500
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
Pull-of force
Tape width
8 mm
0,1 N - 1,0 N
1206
001.002
Valid
2017-01-30
eiPal
5/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
