HMC Series
High Value Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
•
•
R Value extension of RMCF product
Highly stable performance over time
Power derating from 100% at 70ºC to zero at 125ºC
E12 and E24 values
Nickel barrier terminations
RoHS compliant and halogen-free

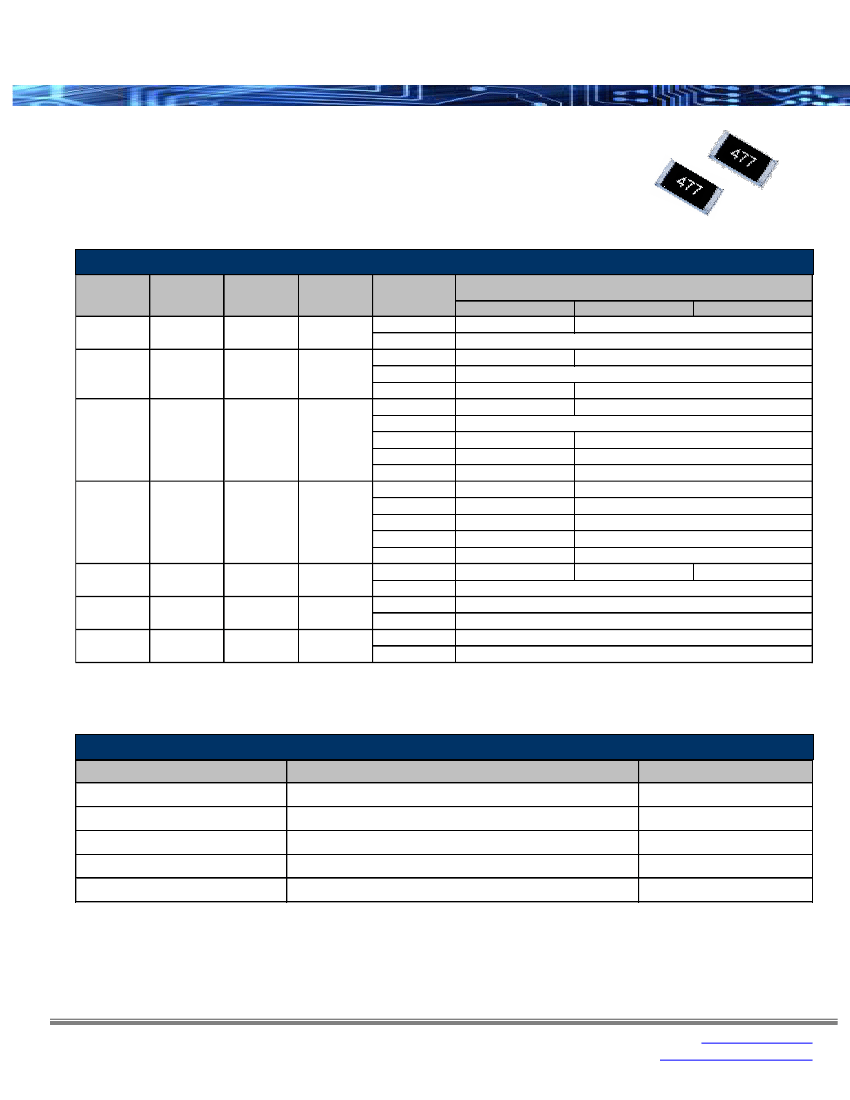

Electrical Specifications
Type/Code
Power Rating
(Watts) @
70ºC
0.063W
Maximum
Working
Voltage
(1)
50V
Maximum
Overload
Voltage
100V
Resistance
Temperature
Coefficient
±200 ppm/ºC
±400 ppm/ºC
±200 ppm/ºC
HMC0603
0.1W
50V
100V
±400 ppm/ºC
±500 ppm/ºC
±200 ppm/ºC
±400 ppm/ºC
HMC0805
0.125W
150V
300V
±500 ppm/ºC
±1000 ppm/ºC
±1500 ppm/ºC
±200 ppm/ºC
±400 ppm/ºC
HMC1206
0.25W
200V
400V
±500 ppm/ºC
±1000 ppm/ºC
±1500 ppm/ºC
HMC1210
HMC2010
HMC2512
0.33W
0.75W
1W
200V
200V
250V
400V
400V
500V
±200 ppm/ºC
±400 ppm/ºC
±200 ppm/ºC
±400 ppm/ºC
±200 ppm/ºC
±400 ppm/ºC
-
-
-
11M - 20M
22M - 100M
-
-
-
11M - 20M
-
22M - 100M
11M - 20M
22M - 100M
11M - 20M
22M - 100M
-
11M - 20M
22M - 100M
110M - 500M
510M - 1G
1.2G - 10G
-
30M - 100M
110M - 500M
510M - 1G
1.2G - 10G
11M - 20M
11M - 20M
22M - 100M
110M - 1G
-
Ohmic Range (Ω) and Tolerance
1%
11M - 20M
22M - 100M
-
5%
-
10%
HMC0402
(1) Lesser of √PR or maximum working voltage.
Performance Characteristics
Test
Long Term Stability
High Temperature Loading
Resistance to Solder Heat
Short Time Overload
Voltage Coefficient of Resistance
Operating Temperature Range:
-55ºC to +125ºC
Test Condition (JIS C 5202)
Nominal temperature & humidity for 1,000 hrs.
15VDC, 1.5 hr. ON, 0.5 hr. OFF, 1,000 hrs. 70ºC
260ºC ± 5ºC, 10 seconds +1/-0
5 seconds at maximum overload voltage
Per JIS C 5202
Test Result
± 0.5%
± 3%
± 1%
± 2%
± 0.5%/V
Rev Date: 08/20/2018
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
HMC Series
High Value Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

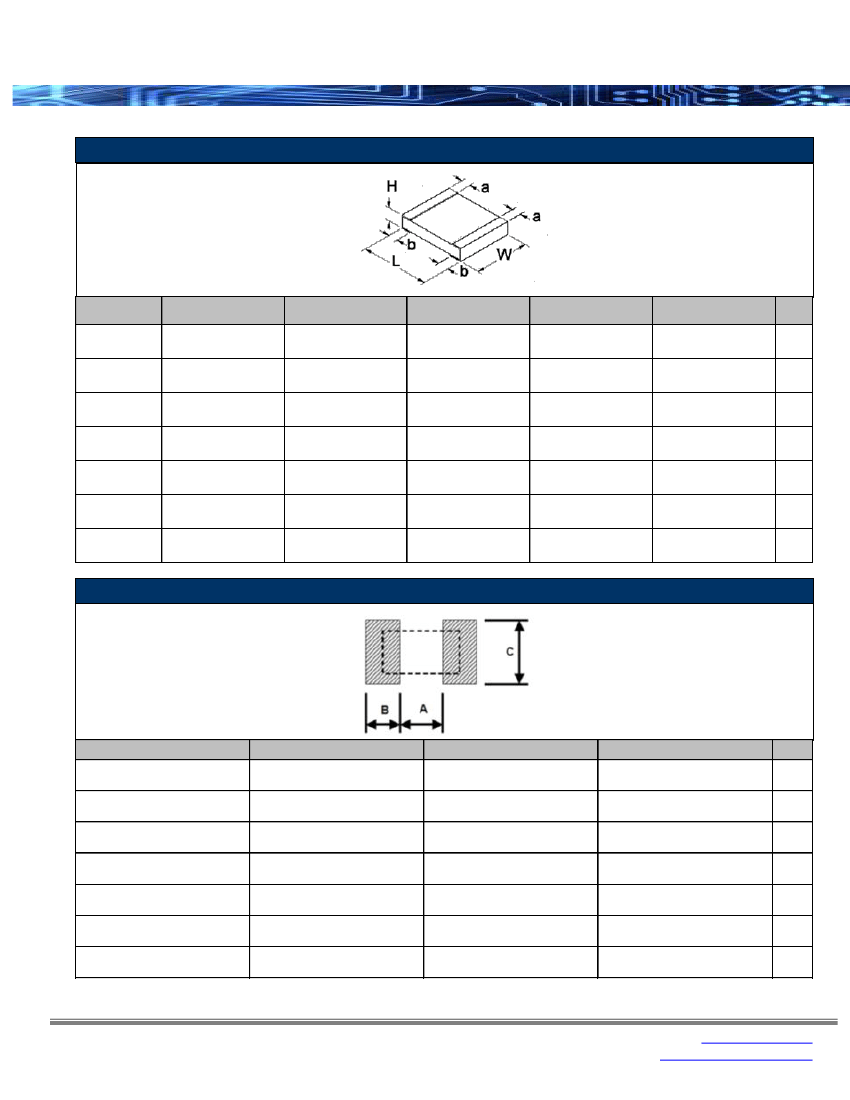

Mechanical Specifications
Type/Code
HMC0402
HMC0603
HMC0805
HMC1206
HMC1210
HMC2010
HMC2512
L
Body Length
0.039 ± 0.002
1.00 ± 0.05
0.063 ± 0.004
1.60 ± 0.10
0.079 ± 0.008
2.00 ± 0.20
0.122 ± 0.006
3.10 ± 0.15
0.126 ± 0.008
3.20 ± 0.20
0.197 ± 0.008
5.00 ± 0.20
0.250 ± 0.008
6.35 ± 0.20
W
Body Width
0.020 ± 0.002
0.50 ± 0.05
0.031 ± 0.004
0.80 ± 0.10
0.049 ± 0.004
1.25 ± 0.10
0.061 ± 0.004
1.55 ± 0.10
0.102 ± 0.006
2.60 ± 0.15
0.098 ± 0.006
2.50 ± 0.15
0.126 ± 0.006
3.20 ± 0.15
H
Body Height
0.014 ± 0.002
0.35 ± 0.05
0.018 ± 0.004
0.45 ± 0.10
0.020 ± 0.004
0.50 ± 0.10
0.022 ± 0.006
0.55 ± 0.15
0.022 ± 0.004
0.55 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
a
Top Termination
0.008 ± 0.004
0.20 ± 0.10
0.012 ± 0.008
0.30 ± 0.20
0.016 ± 0.008
0.40 ± 0.20
0.020 ± 0.010
0.50 ± 0.25
0.020 ± 0.008
0.50 ± 0.20
0.024 ± 0.010
0.60 ± 0.25
0.024 ± 0.010
0.60 ± 0.25
b
Bottom Termination
0.008 ± 0.004
0.20 ± 0.10
0.012 ± 0.008
0.30 ± 0.20
0.016 ± 0.008
0.40 ± 0.20
0.020 ± 0.008
0.50 ± 0.20
0.020 ± 0.008
0.50 ± 0.20
0.020 ± 0.008
0.50 ± 0.20
0.020 ± 0.008
0.50 ± 0.20
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Recommended Pad Layouts
Type/Code
HMC0402
HMC0603
HMC0805
HMC1206
HMC1210
HMC2010
HMC2512
A
0.020
0.50
0.035
0.90
0.047
1.20
0.079
2.00
0.079
2.00
0.150
3.80
0.193
4.90
B
0.018
0.45
0.024
0.60
0.028
0.70
0.035
0.90
0.035
0.90
0.035
0.90
0.063
1.60
C
0.024
0.60
0.035
0.90
0.051
1.30
0.063
1.60
0.110
2.80
0.110
2.80
0.138
3.50
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Rev Date: 08/20/2018
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
HMC Series
High Value Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

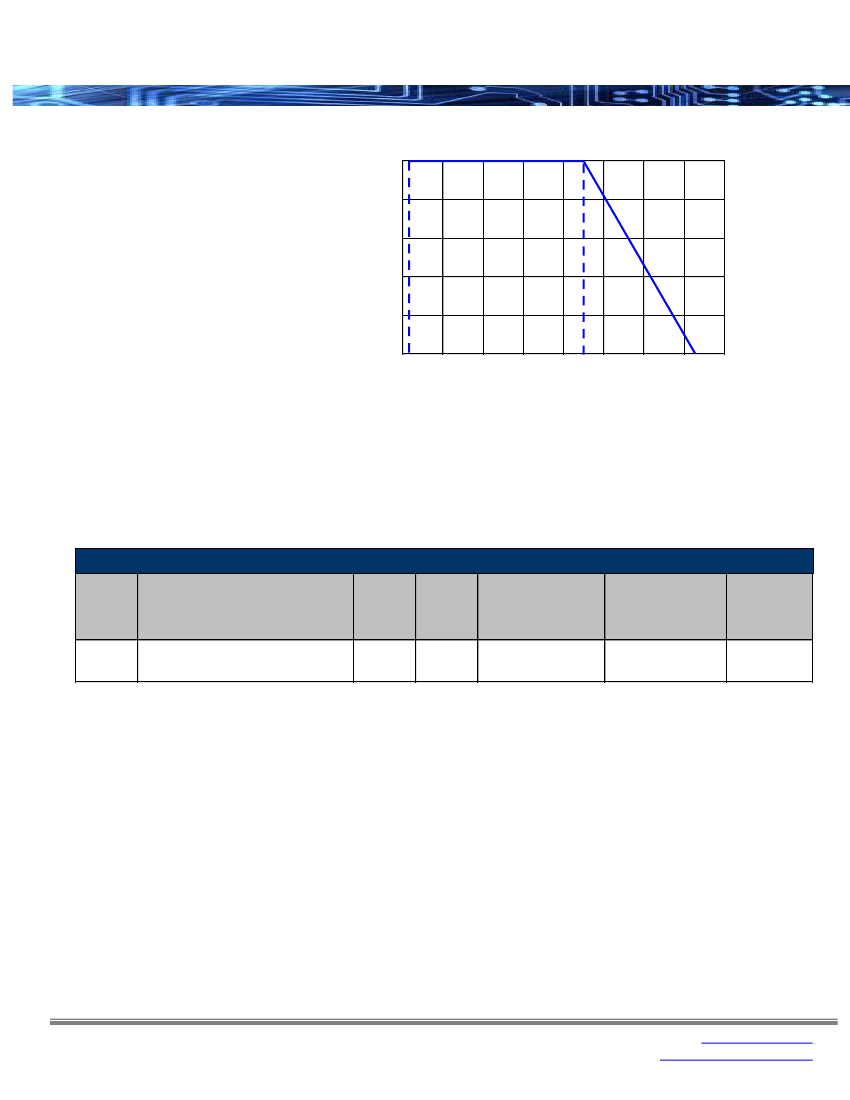

Power Derating Curve:
100
-55ºC
70ºC
Percent Rated Power (%)
80
60
40
20
0
-60
125ºC
0
20
40
60
80
100
120
140
Ambient Temperature (ºC)
RoHS Compliance
Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to meet the various
regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions on Hazardous Substances”
(RoHS 3). As part of this ongoing program, we periodically update this document with the status regarding the availability of our
compliant components. All our standard part numbers are compliant to EU Directive 2011/65/EU of the European Parliament as
amended by Directive (EU) 2015/863/EU as regards the list of restricted substances.
RoHS Compliance Status
Standard
Product
Series
Description
Package /
Termination
Type
Standard
Series
RoHS
Compliant
YES(1)
Lead-Free Termination
Composition
Lead-Free
Mfg. Effective Date
(Std Product Series)
Lead-Free
Effective Date
Code
(YY/WW)
04/01
HMC
High Value Thick Film
Surface Mount Chip Resistor
SMD
100% Matte Sn over Ni
Jan-04
Note (1): RoHS Compliant by means of exemption 7c-I.
“Conflict Metals” Commitment
We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region” of the
eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals used in the
electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible that the materials and
products we supply do not contain metals sourced from this conflict region. As such, we are in compliance with the requirements of
Dodd-Frank Act regarding Conflict Minerals.
Compliance to “REACH”
We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High Concern) free
and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation, Authorization and Restriction of
Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH Substance Candidate List.
Rev Date: 08/20/2018
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
HMC Series
High Value Thick Film Chip Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Environmental Policy
It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We continually
strive to improve our effect on the environment. We observe all applicable laws and regulations regarding the protection of our
environment and all requests related to the environment to which we have agreed. We are committed to the prevention of all forms
of pollution.
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
13
H
M
C
0
8
0
5
F
T
4
7
M
0
Product Series
Code Description
High Value
HMC
Thick Film
Code
0402
0603
0805
1206
1210
2010
2512
Size
Power
0.063W
0.1W
0.125W
0.25W
0.33W
0.75W
1W
Tolerance
Code Tol
Value
F
1%
E24
J
5%
K
10%
Code
T
Packaging
Description
Size
0402
7" Reel
0603, 0805
Paper Tape
1206, 1210
7" Reel
2010
2512
Plastic Tape
Resistance Value
Quantity
10,000
5,000
4,000
Four characters with the
multiplier used as the decimal
holder.
30 Mohm = 30M0
100 Mohm = 100M
1.2 Gohm = 1G20
Rev Date: 08/20/2018
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
