S32V Series
S32V234: 64-bit Multi-core A53 processor for vision and
ADAS applications
Product Summary
The NXP® S32V234 is a high-performance processor with the right set of features to support safe
computation-intensive applications around vision and sensor fusion for transportation and industrial
markets. It includes quad Arm Cortex®-A53 cores running at up to 1 GHz, dual APEX-2 vision
accelerators enabled by OpenCL™ and OpenCV™, 3D GPU (Vivante GC3000), MIPI CSI2 and
parallel image sensor interfaces, embedded ISP for HDR, color conversion, tone mapping, etc. and 4
MB on chip system RAM.
The S32V234 processor addresses ISO 26262 ASIL B/C requirements and includes the CSE2, a
hardware security encryption module together with Arm TrustZone® technology that provides
protection against IP theft and malicious hacking.
1 S32V234 Processor Specification Highlights
High Performance Processing –
Up to Quad core Arm A53 600-1GHz Safe Clusters @
~10000 DMIPS
Vision Acceleration –
Dual APEX-2 image cognition processor cores enabled by OpenCV
Automotive Safety –
Developed according to
ISO 26262 standard reaching ASIL B and higher
Security Enabled –
HIS-SHE compliant Crypto
Service Engine optimized for flash less devices

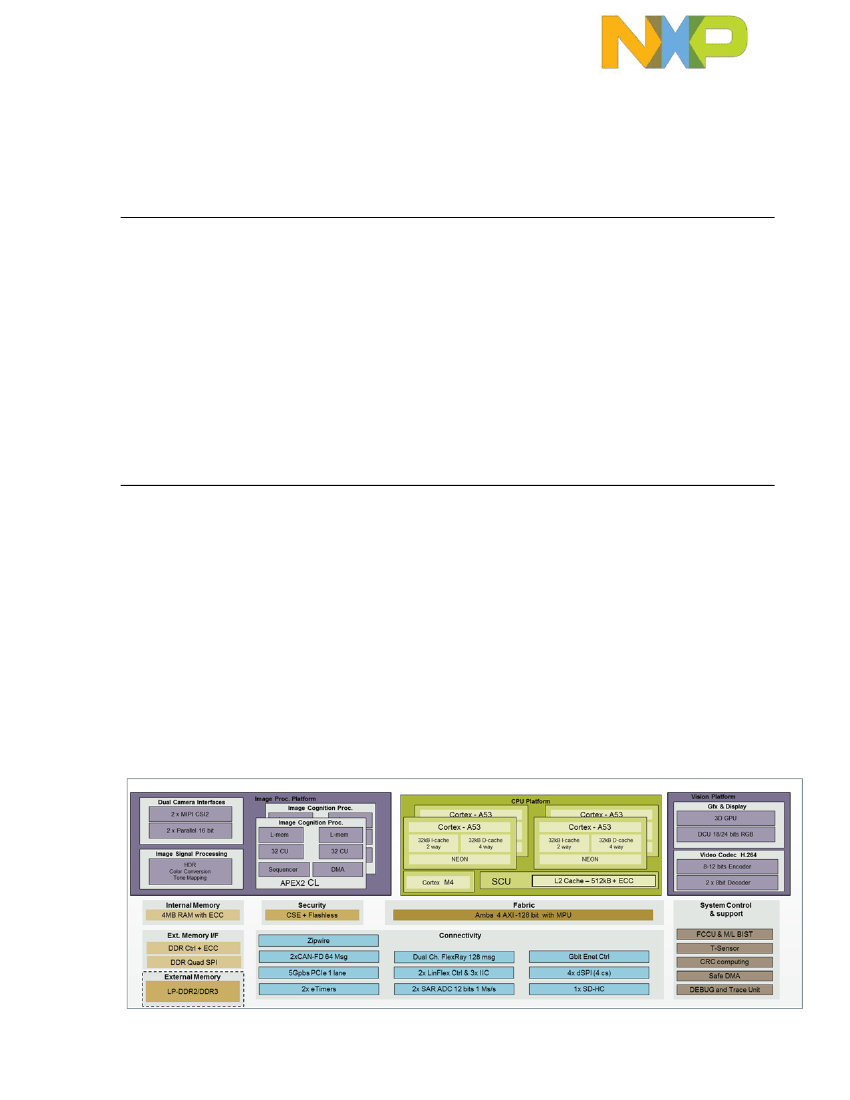

S32V234 Functional Block Diagram

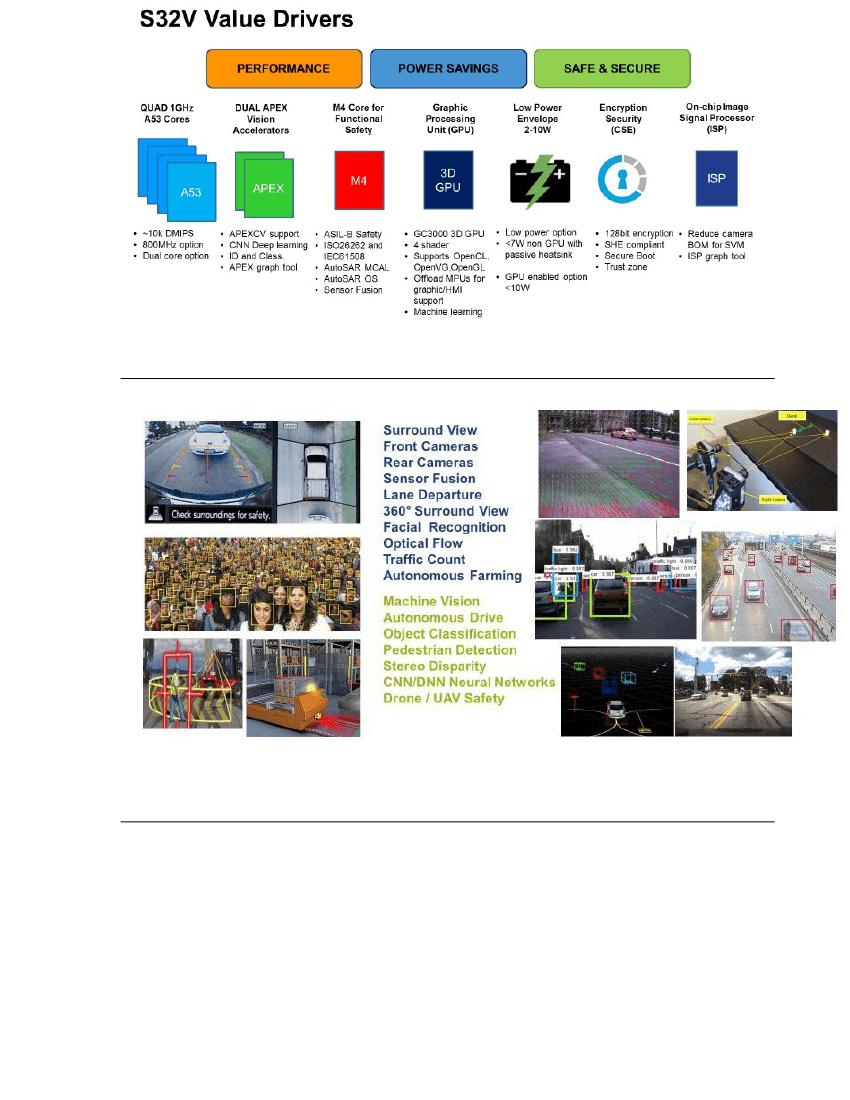

2 Target Application

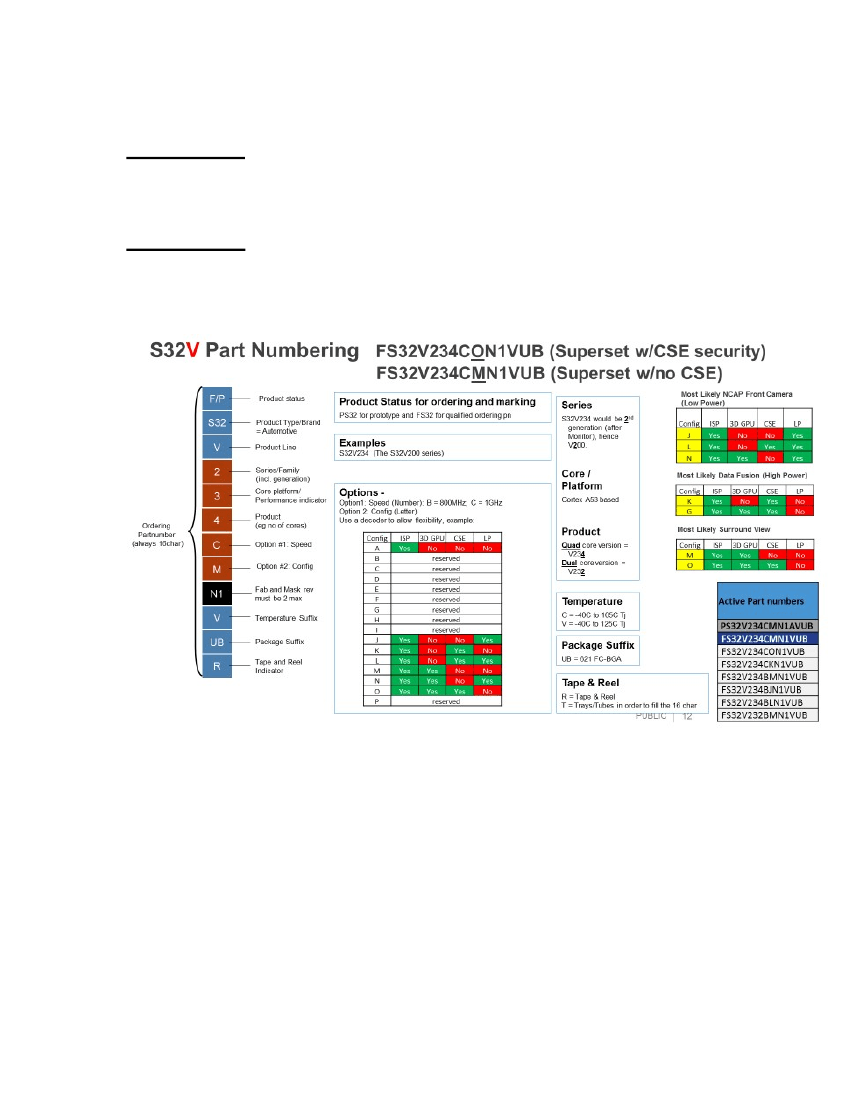

3 Part Attributes
General Purpose Processing
• Two 2 x Arm A53 Safe Clusters
•
•
•
•
64 bit, 1.0 GHz
2 x 256 KB L2 cache per cluster
Neon SIMD
~10,000 DMIPS
• 2 x 32b DDR3/LPDDR2 at 533 MHz
Accelerated Processing
• Image Signal Processing
• 2 x APEX2 – Image cognition Processing
Open CL
• h.264 Codec and MJPEG decoder
• 3D GPU GC3000 (4 Shader)
Functional SAFETY
• Classic ASIL B/C capable SoC
• LBIST, MBIST
• Voltage and temperature monitoring
• Full memory ECC, E2E ECC
• Software Core Self Tests
• Software independent fault monitoring and reporting
• Safe DMA, CRC processing and MCAL
High Speed Serial Interfaces
• 1 PCIe controllers
•
1 dual channel FlexRay®
• 1 Zipwire
• 2 x MIPI CSI2 - 4 lanes 6 Gb/s
Low Speed Serial Interfaces
• 2 CAN –FD
• 4 SPI, 2 LinFLEX
• 4 x Timer
• FlexRay
Security
• 1 CSE3 – Flashless
4 Development tools and Ecosystem
Evaluation Boards / Hardware
SBC‐S32V234
−
The SBC-S32V234 is a EVB consisting of
o
o
MPX-S32V234 is a SOM based adapter with the S32V234 MPU
CRX-S32V234 is the carrier board adapter that MPX-S32V234 plugs into
OV10640CSP-S32V
The OV10640CSP-S32V is a MIPI camera that features the OV10640 image sensor. This camera
allows users to make full use of the ISP integrated in the S23V234 MPU.
S32V234-EVB2
The NXP S32V234-EVB2 is an evaluation system and development platform.
Features:
−
Video input (VIU connectors, 2 x MIPI)
−
Video Output (RGM to LVDS converter, RGB to HDMI converter)
−
Ethernet and FlexRay
−
Memory plus SD card slot
−
Various Communication and General IO connectors
−
Accelerometer and magnetometer plus gyroscope
−
Expansion card options
MXOV10635-S32V
The Maxim MXOV10635-S32V is a LVDS Camera that features the OV10635 image sensor which
integrates an image signaling processor.
MAX9286S32V234
The Maxim MAX9286S32V234 is a deserializer adapter for expanding 1x MIPI port to up to 4 LVDS
cameras for surround view.
