25PZA120M8X12.5 datasheet, PDF

Datasheet> All Categories > Passive components> 25PZA120M8X12.5

25PZA120M8X12.5: DescriptionCAP ALUM POLY 120UF 20% 25V T/H; CategoryPassive components; File Size89KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

25PZA120M8X12.5 Overview

CAP ALUM POLY 120UF 20% 25V T/H

25PZA120M8X12.5 Parametric

Parameter Name	Attribute value
type	polymer
capacitance	120µF
Tolerance	±20%
Voltage - Rated	25V
ESR (equivalent series resistance)	27 milliohms
Service life at different temperatures	3000 hours at 105°C
Operating temperature	-55°C ~ 105°C
grade	AEC-Q200
application	Automotive grade
Ripple current @ low frequency	120mA @ 120Hz
Ripple current @ high frequency	2.4A @ 100kHz
lead spacing	0.138"（3.50mm）
size/dimensions	0.315" diameter (8.00mm)
Height - Installation (maximum)	0.492"（12.50mm）
Surface mount pad dimensions	-
Installation type	Through hole
Package/casing	Radial, Can

Preview

Download Datasheet

View All

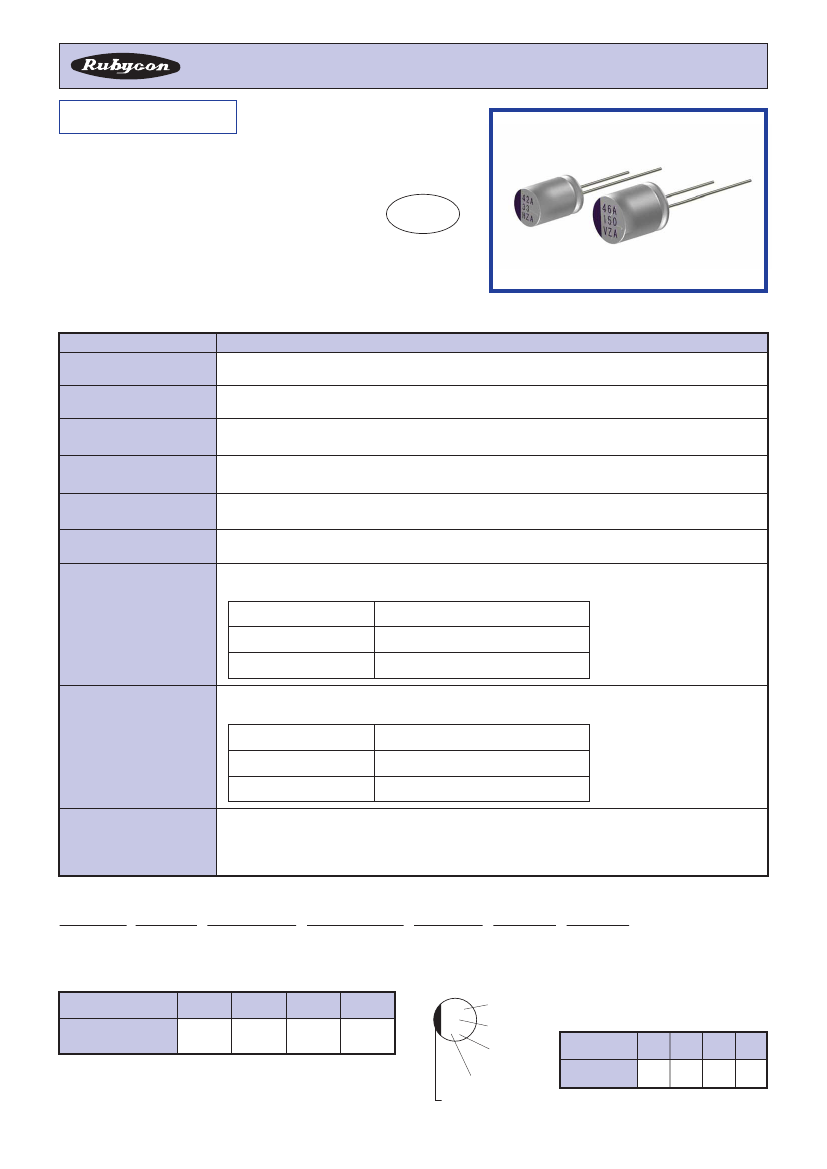

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS

PZA

SERIES

Load Life : 105℃ 3000 hours, Radial Lead Type

・

High Voltage ∼63Vdc), Ultra Low ESR, High Ripple Current.

（

・

AEC-Q200.

RoHS

compliance

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Surge Voltage

Characteristics

−55∼＋105℃

25∼63Vdc

Rated Voltage ×1.15

±20％

（20℃，

120Hz）

The value is shown in

“STANDARD SIZE”

table (After 2 minutes)

Not more than 0.12

（20℃,120Hz）

After applying rated voltage for 3000 hours at 105℃,

the capacitors shall meet the following requirements.

Capacitance Tolerance

Leakage Current(MAX)

Dissipation Factor(MAX)

(tanδ)

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within ±20％ of the initial value.

Not more than 150％ of the speciﬁed value.

Not more than the speciﬁed value.

After applying rated voltage for 1000 hours at 60℃ and humidity of 90 to 95%,

the capacitors shall meet the following requirements.

Damp heat(Stady state)

Capacitance Change

Dissipation Factor

Leakage Current

Within ±20％ of the initial value.

Not more than 150％ of the speciﬁed value.

Not more than the speciﬁed value.

Low Temperature Characteristics

Impedance Ratio MAX）

（

（−55℃）（＋20℃）

≦1.25

（−25℃）（＋20℃）

≦1.15

（100kHz）

◆PART NUMBER

□□□

Rated Voltage

PZA

Series

□□□□□

Capacitance

Ｍ

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency

（Hz）

Coeﬃcient

◆MARKING

100k≦

1.00

110

V ZA

120

0.05

0.30

10k

0.70

Lot No.

Capacitance

Series

※

Rated voltage code

※Voltage code

Rated Voltage

(Vdc)

Voltage code

Negative
