Floating Stacking 0.5mm Pitch Board to Board Connector
FX20 Series
X direction
Y direction
Floating range
: 0.6mm
Floating range
: 0.6 to 0.8mm
■Features
1. 0.5mm pitch
2. Connection type: Stacking
3. Number of positions: 40, 60, 80, 100, 120 and 140
4. Floating range; X direction: ± 0.6 to 0.8mm, Y direction: ± 0.6mm
5. The Double beam contact design ensures a highly
reliable contact(Refer to the right figure.)
6. Current capacity: 0.5A / pin
7. Effective contact length of 1.5mm
This connector utilizes a 1.5mm effective contact length for signal and
provides a margin sufficient for mating stroke.
Enlarged view of contact area
Receptacle-side
contact
8. No restrictions on pattern area
9. Capability of automatic mounting
(The connector has the vacuum pick-up area.)
10. Self aligning and self-guiding
Built-in guide posts allow secure self-alignment
Header-side
contact
■Stacking
Variation
Header
Receptacle
FX20-**S-0.5SV
FX20-**S-0.5SV10
X direction
Floating range
Y direction
FX20-**P-0.5SV15
15mm
25mm
±0.6mm
±0.6mm
FX20-**P-0.5SV20
20mm
30mm
±0.8mm
±0.6mm
FX20-＊
＊S-0.5SV10
FX20-＊
＊S-0.5SV
h=15mm
h=20mm
FX20-＊
＊P-0.5SV15
h=25mm
FX20-＊
＊P-0.5SV20
h=30mm
2012.6
1
FX20 Series●Floating Stacking 0.5mm Pitch Board to Board Connector
■Product
specification
Current rating
Rating
Voltage rating
Item
AC 50V
Specification
Storage temperature range
-10 to +60 °C (Note 2)
Condition
0.5A
Operating temperature range
-55 to +85°C (Note 1)
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. Number of mating and
un-mating cycles
5. Vibration resistance
70mø max.
100Mø min.
No flashover and insulation breakdown
Amount of variation of contact resistance:
20mø max.
No electrical discontinuity of 1 μs or more
Measured at 100mA
Measured at DC 100V
AC 150V for one minute
50 mating and un-mating cycles
Frequency: 10 to 55Hz, single amplitude of 0.75mm,
5 minutes for 1 cycle, 3 directions, 10 cycles for each direction
Acceleration of 490m/s , duration of 11ms,
three directions with sine half-wave for both sides,
three times for each direction
Exposed for 96 hours at the temperature of 40°C and
the humidity of 90 to 95%
Temperature: -55 and +85°C
Time: 30 and 30 minutes for 5 cycles each
2
6. Shock resistance
No electrical discontinuity of 1 μs or more
Amount of variation of contact resistance:
20mø max.
Insulation resistance: 100Mø min.
Amount of variation of contact resistance:
20mø max.
Insulation resistance: 100Mø min.
7. Humidity resistance
8. Temperature cycle
(Note 1) This includes the rise in temperature caused by the current flow.
(Note 2) The term “storage” refers to connectors stored for a long period of time prior to mounting on PCB and use.
(Note 3) The specification shown above represents the general requirements for this series. Please refer to “Delivery Specification” for a
specific official agreement.
■Material
Part
Insulator
Contact
Metal fixture
Header
Receptacle
Header
Receptacle
Brass
Material
Polyamide resin
LCP (Liquid Crystal Polymer) resin
Copper alloy
Phosphor bronze
Finish
Color: Black
Color: Black
Contact area: Gold plating
Mounting area: Gold plating
Tin plating
Specification
UL94V-0
UL94V-0
---------------
---------------
■Ordering
information
●Straight
receptacle
FX20 − 60 S − 0.5 SV 10
❶
❷
❸
❹
❺
❻
❶
Series name
❷
Number of contacts
❸
Connector type
❹
Contact pitch
❺
Housing configuration
❻
Stacking height type
: FX20
S: Receptacle type
P: Header type
: 0.5mm
SV: Straight type
Mated height [mm] =
Height of receptacle side +
Height of header side

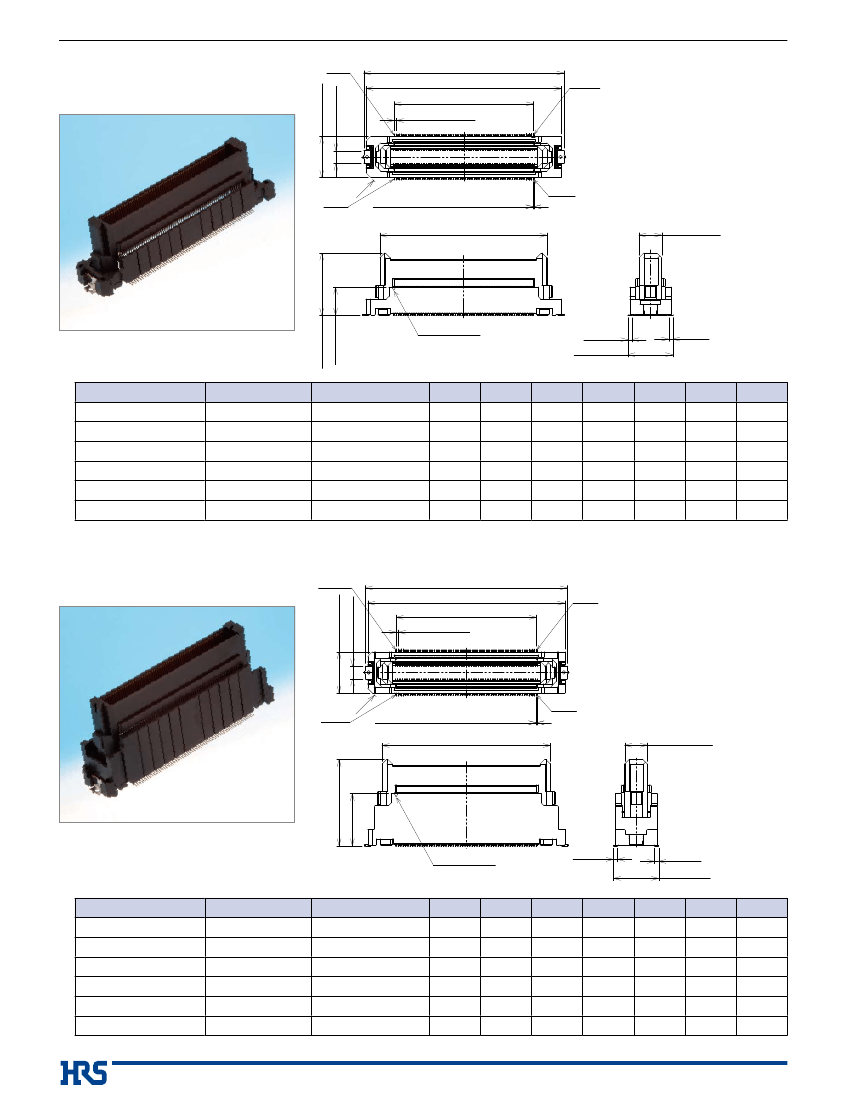

●Straight
header
FX20 − 60 P − 0.5 SV 15
❶
❷
❸
❹
❺
❻
2
FX20 Series●Floating Stacking 0.5mm Pitch Board to Board Connector
●

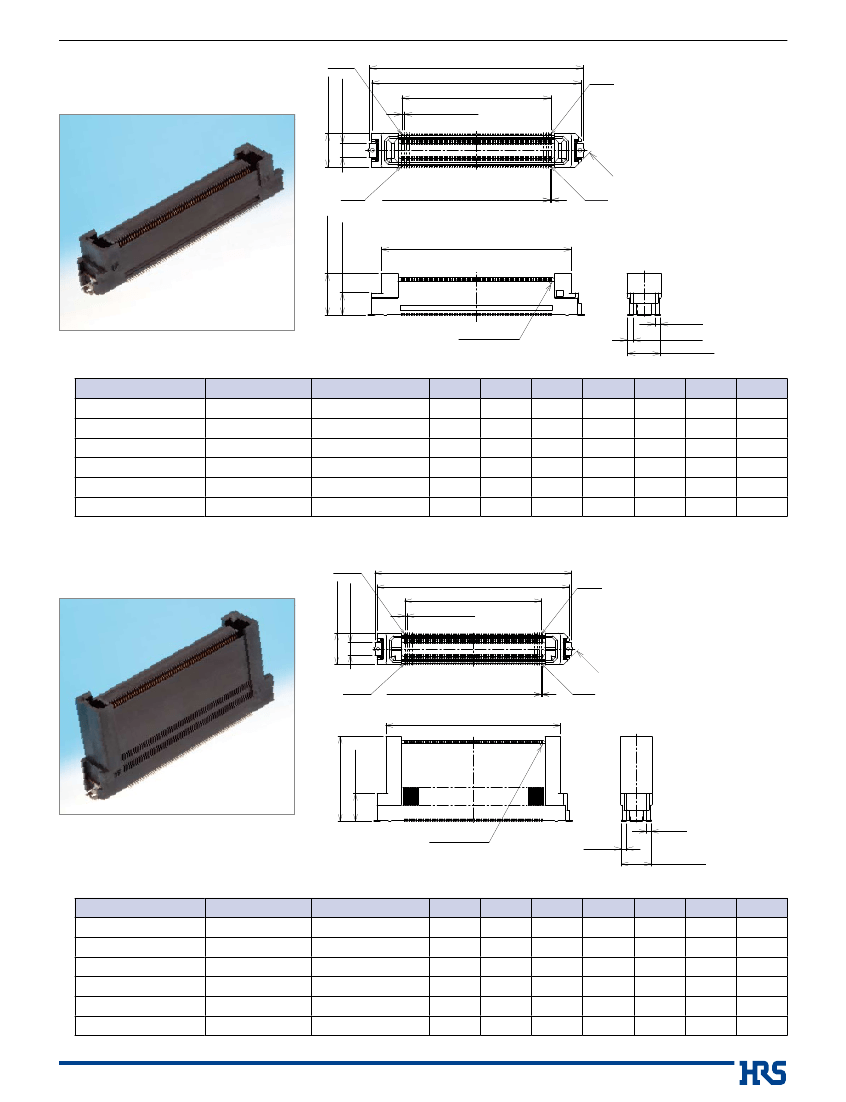

traight receptacle
S
[FX20-**S-0.5SV]
6.8±0.3
No.G
2.7±0.2
A±0.3
B±0.3
C±0.2
P=0.5±0.15
No.F
No.E
8.3±0.3
4.5±0.3
t=0.2±0.05×w=0.15±0.03
No.1
2
1.
C
D±0.3
(1.1)
Polarity mark
(1.1)
6.5±0.25
Unit : mm
Part number
★
FX20-40S-0.5SV
★
FX20-60S-0.5SV
★
FX20-80S-0.5SV
FX20-100S-0.5SV
★
FX20-120S-0.5SV
FX20-140S-0.5SV
HRS No.
CL570-1101-5
CL570-1102-8
CL570-1103-0
---------------
CL0570-1105-6
---------------
Number of contacts
40
60
80
100
120
140
A
22.4
27.4
32.4
37.4
42.4
47.4
B
21.4
26.4
31.4
36.4
41.4
46.4
C
9.5
14.5
19.5
24.5
29.5
34.5
D
17.65
22.65
27.65
32.65
37.65
42.65
E
20
30
40
50
60
70
F
21
31
41
51
61
71
G
40
60
80
100
120
140
★
Indicates a released product. Others are under development.
No.G
6.8±0.3
2.7±0.2
[FX20-**S-0.5SV10]
A±0.3
B±0.3
C±0.2
P=0.5±0.15
No.F
C
1.
2
No.E
t=0.3±0.05×w=0.15±0.03
D±0.3
No.1
18.3±0.3
6±0.3
(1.1)
Polarity mark
(1.1)
6.5±0.25
Unit : mm
Part number
★
FX20-40S-0.5SV10
★
FX20-60S-0.5SV10
★
FX20-80S-0.5SV10
FX20-100S-0.5SV10
★
FX20-120S-0.5SV10
FX20-140S-0.5SV10
HRS No.
CL570-1107-1
CL570-1108-4
CL570-1109-7
---------------
CL0570-1111-9
---------------
Number of contacts
40
60
80
100
120
140
A
22.4
27.4
32.4
37.4
42.4
47.4
B
21.4
26.4
31.4
36.4
41.4
46.4
C
9.5
14.5
19.5
24.5
29.5
34.5
D
17.65
22.65
27.65
32.65
37.65
42.65
E
20
30
40
50
60
70
F
21
31
41
51
61
71
G
40
60
80
100
120
140
★
Indicates a released product. Others are under development.
3
FX20 Series●Floating Stacking 0.5mm Pitch Board to Board Connector
●Straight
header
[FX20-**P-0.5SV15½
No.F
8.7±0.2
2.7±0.2
A±0.3
B±0.3
C±0.2
P=0.5±0.15
No.G
C
1
No.1
t=0.15±0.03×w=0.2±0.05
D±0.15
No.E
4.8±0.15
13.2±0.3
6±0.3
Polarity mark
(0.85)
9.5±0.25
(0.85)
Unit : mm
A
22.4
27.4
32.4
37.4
42.4
47.4
B
21.4
26.4
31.4
36.4
41.4
46.4
C
9.5
14.5
19.5
24.5
29.5
34.5
D
15.4
20.4
25.4
30.4
35.4
40.4
E
20
30
40
50
60
70
F
21
31
41
51
61
71
G
40
60
80
100
120
140
40
60
80
100
120
140
Part number
★
FX20-40P-0.5SV15
★
FX20-60P-0.5SV15
★
FX20-80P-0.5SV15
FX20-100P-0.5SV15
★
FX20-120P-0.5SV15
FX20-140P-0.5SV15
HRS No.
CL570-1001-0
CL570-1002-3
CL570-1003-6
---------------
CL0570-1005-1
---------------
Number of contacts
★
Indicates a released product. Others are under development.
[ FX20-**P-0.5SV20
½
No.F
8.7±0.2
2.7±0.2
A±0.3
B±0.3
C±0.2
P=0.5±0.15
No.G
No.1
C
t=0.15±0.03×w=0.2±0.05
D±0.15
No.E
4.8±0.15
18.2±0.3
11±0.3
1
Polarity mark
(0.85)
(0.85)
9.5±0.25
Unit : mm
Part number
★
FX20-40P-0.5SV20
★
FX20-60P-0.5SV20
★
FX20-80P-0.5SV20
FX20-100P-0.5SV20
★
FX20-120P-0.5SV20
FX20-140P-0.5SV20
HRS No.
CL570-1007-7
CL570-1008-0
CL570-1009-2
---------------
CL0570-1011-4
---------------
Number of contacts
40
60
80
100
120
140
A
22.4
27.4
32.4
37.4
42.4
47.4
B
21.4
26.4
31.4
36.4
41.4
46.4
C
9.5
14.5
19.5
24.5
29.5
34.5
D
15.4
20.4
25.4
30.4
35.4
40.4
E
20
30
40
50
60
70
F
21
31
41
51
61
71
G
40
60
80
100
120
140
★
Indicates a released product. Others are under development.
4
FX20 Series●Floating Stacking 0.5mm Pitch Board to Board Connector
■Drawing
for recommended land pattern dimensions
●
traight receptacle
S
FX20-＊
＊S-0.5SV
FX20-＊
＊S-0.5SV10
(Board thickness: t=1.6mm / Metal mask thickness: t=0.15mm and t=0.12mm)
0
3.2
-0.1
3.2±0.05
A±0.03
P=0.5±0.03
7.1
+0.1
0
Unit : mm
A
40 positions
Land pattern:0.3±0.03
Metal mask(t=0.15):0.25±0.03
Metal mask(t=0.12):0.3±0.03
3±0.05
B±0.05
3±0.05
B
18.46
23.46
28.46
33.46
38.46
43.46
9.5
14.5
19.5
24.5
29.5
34.5
60 positions
80 positions
100 positions
120 positions
140 positions
*Pattern wiring can be implemented in the
area.
●Straight
header
FX20-＊
＊P-0.5SV15
FX20-＊
＊P-0.5SV20
3.2±0.05
P=0.5±0.03
6.5
-0.1
10.1
0
+0.1
0
A±0.03
Unit : mm
A
B
18.46
23.46
28.46
33.46
38.46
43.46
40 positions
60 positions
80 positions
9.5
14.5
19.5
24.5
29.5
34.5
Land pattern:0.3±0.03
Metal mask(t=0.15):0.25±0.03
Metal mask(t=0.12):0.3±0.03
3±0.05
B±0.05
3±0.05
100 positions
120 positions
140 positions
*Pattern wiring can be implemented in the
area.
5
