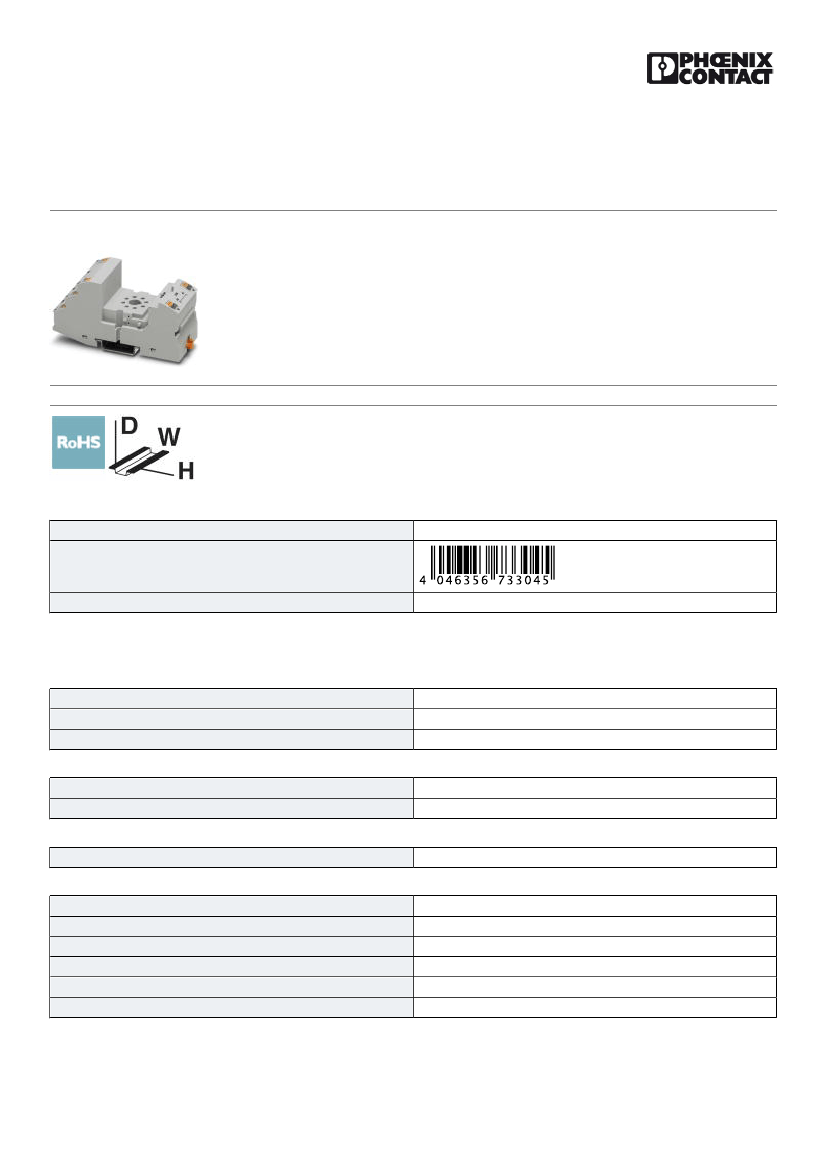

Relay base - RIF-3-BPT/2X21 - 2900937
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
RIF-3... relay base, for octal relay with 2 PDTs, push-in connection, plug-in option for input/suppressor
modules, for mounting on NS 35/7,5
Key Commercial Data
Packing unit
GTIN
GTIN
4046356733045
10 pc
Technical data
Dimensions
Width
Height
Depth with retaining bracket
40 mm
103 mm
90 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-40 °C ... 85 °C (Depends on application/assembly)
-40 °C ... 85 °C
Input data
Protective circuit
depending on the selected input/suppressor modules
Connection data, input side
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Coil side
Push-in connection
8 mm
0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
10/03/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/2900937
Relay base - RIF-3-BPT/2X21 - 2900937
Technical data
Connection data, input side
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on
double terminal block)
Conductor cross section AWG
26 ... 16 (solid)
26 ... 16 (flexible)
Connection data, output side
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Contact side
Push-in connection
8 mm
0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on
double terminal block)
Conductor cross section AWG
26 ... 16 (solid)
26 ... 16 (flexible)
General
Nominal voltage U
N
Nominal current I
N
Protective circuit
Color
Mounting position
250 V AC/DC
max. 12 A (Depends on application/assembly)
depending on the selected input/suppressor modules
gray
any
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
V2
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
UL Recognized / CSA / LR / EAC / PRS / DNV GL
Ex Approvals
10/03/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/2900937
Relay base - RIF-3-BPT/2X21 - 2900937
Approvals
Approval details
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 113228
CSA
http://www.csagroup.org/services-industries/product-listing/
2607057
LR
http://www.lr.org/en
15/20011
EAC
RU C-
DE.A*30.B.01082
PRS
http://www.prs.pl/
TE/2108/880590/16
DNV GL
http://exchange.dnv.com/tari/
TAA000018V
