221,AL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 221,AL

221,AL: DescriptionBOX ABS ALMOND 4.1"L X 2.6"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size558KB，2 Pages; ManufacturerSERPAC; Environmental Compliance

Download Datasheet Parametric Compare View All

221,AL Overview

BOX ABS ALMOND 4.1"L X 2.6"W

221,AL Parametric

Parameter Name	Attribute value
Container type	box
size/dimensions	4.100" long x 2.600" wide (104.14mm x 66.04mm)
high	1.510"（38.35mm）
Area (L x W)	10.7 in²（69 cm²）
design	Handheld, split-sided
Material	Plastic - ABS
color	almond color
thickness	0.100"（2.54mm）
characteristic	Battery box, 9V, PCB support
grade	IP40，NEMA 1
Material flammability rating	UL94 HB
delivery information	Shipping from Digi-Key
weight	0.17 lbs (77.11g)

Preview

Download Datasheet

View All

221

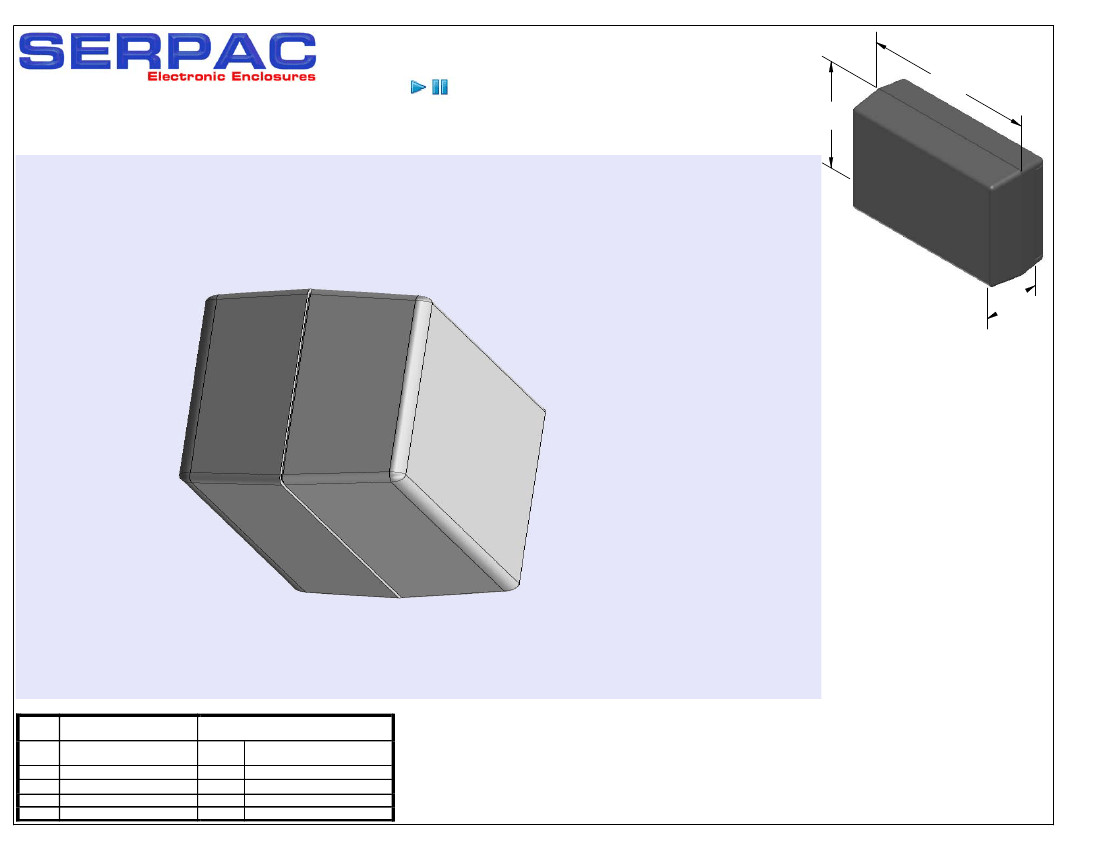

(3D exploded)

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

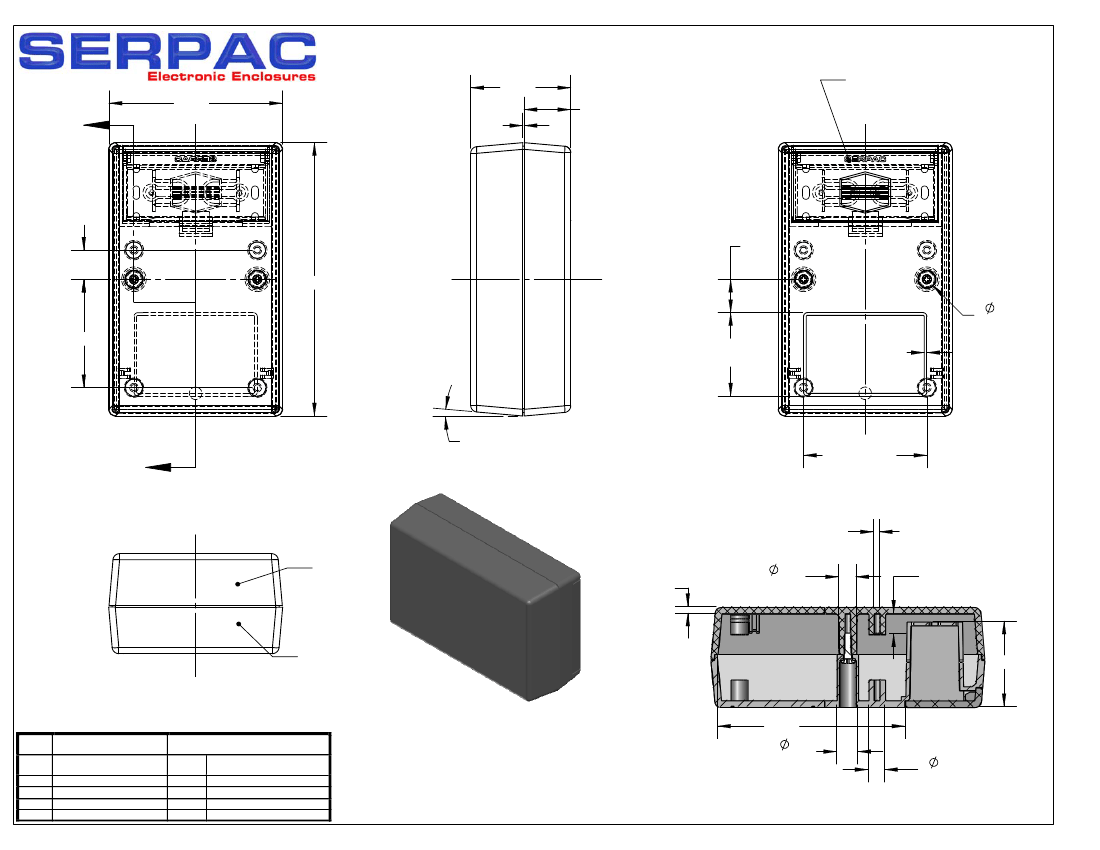

2.61

4.10

1.50

PART

NO.

2-1

1025

6005

DESCRIPTION

(Included)

TOP

BOTTOM

Battery Cover

#4X3/8” Self tapping (2)

ACCSESSORIES

(Optional)

PART

NO.

319

419

DESCRIPTION

Prototype grid board

Prototype clad board

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

Notes:

(Enclosure weight 0.17 lb / 79 gm)

1) Enclosure meets or exceeds IP40 and NEMA 1

2) Circuit Board drawings can be download at:

http://www.serpac.com/Products/Accessories/CircuitBoard/drawings/319-419.pdf

3) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com

ALL DIMENSIONS ARE ± .010"

4/09/10

(1 of 2)

619 Commercial Ave. Covina, CA 91723

221,AL Related Products

	221,AL	221,GY	221,BK	221EMI,BK	221,GY BULK
Description	BOX ABS ALMOND 4.1"L X 2.6"W	BOX ABS GRAY 4.1"L X 2.6"W	BOX ABS BLACK 4.1"L X 2.6"W	BOX ABS BLACK 4.1"L X 2.6"W	BOX ABS GRAY 4.1"L X 2.6"W
Container type	box	box	box	box	box
size/dimensions	4.100" long x 2.600" wide (104.14mm x 66.04mm)	4.100" long x 2.600" wide (104.14mm x 66.04mm)	4.100" long x 2.600" wide (104.14mm x 66.04mm)	4.100" long x 2.600" wide (104.14mm x 66.04mm)	4.100" long x 2.600" wide (104.14mm x 66.04mm)
high	1.510"（38.35mm）	1.510"（38.35mm）	1.510"（38.35mm）	1.510"（38.35mm）	1.510"（38.35mm）
Area (L x W)	10.7 in²（69 cm²）	10.7 in²（69 cm²）	10.7 in²（69 cm²）	10.7 in²（69 cm²）	10.7 in²（69 cm²）
design	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided	Handheld, split-sided
Material	Plastic - ABS	Plastic - ABS	Plastic - ABS	Plastic, ABS, EMI	Plastic - ABS
color	almond color	grey	black	black	grey
thickness	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
characteristic	Battery box, 9V, PCB support	Battery box, 9V, PCB support	Battery box, 9V, PCB support	Battery box, 9V, PCB support, EMI shielded	Battery box, 9V, PCB support
grade	IP40，NEMA 1	IP40，NEMA 1	IP40，NEMA 1	IP40	IP40，NEMA 1
Material flammability rating	UL94 HB	UL94 HB	UL94 HB	-	UL94 HB
delivery information	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key
weight	0.17 lbs (77.11g)	0.17 lbs (77.11g)	0.17 lbs (77.11g)	0.17 lbs (77.11g)	0.17 lbs (77.11g)
