6861332133F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 6861332133F

6861332133F: Description16MM HO/O PMI-12VDC; CategoryLED optoelectronic/LED; File Size250KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

6861332133F Overview

16MM HO/O PMI-12VDC

6861332133F Parametric

Parameter Name	Attribute value
type	LED
lamp color	yellow
Lens color	-
Lens transparency	-
grade	DC
Voltage	12V
current	30mA
Panel opening shape	round
Panel opening size	0.65"（16.51mm）
Lens style/size	-
millicandela level	500mcd
Wavelength - Peak	-
perspective	-
Terminal type	Lug
Intrusion protection	-
characteristic	-

Preview

Download Datasheet

View All

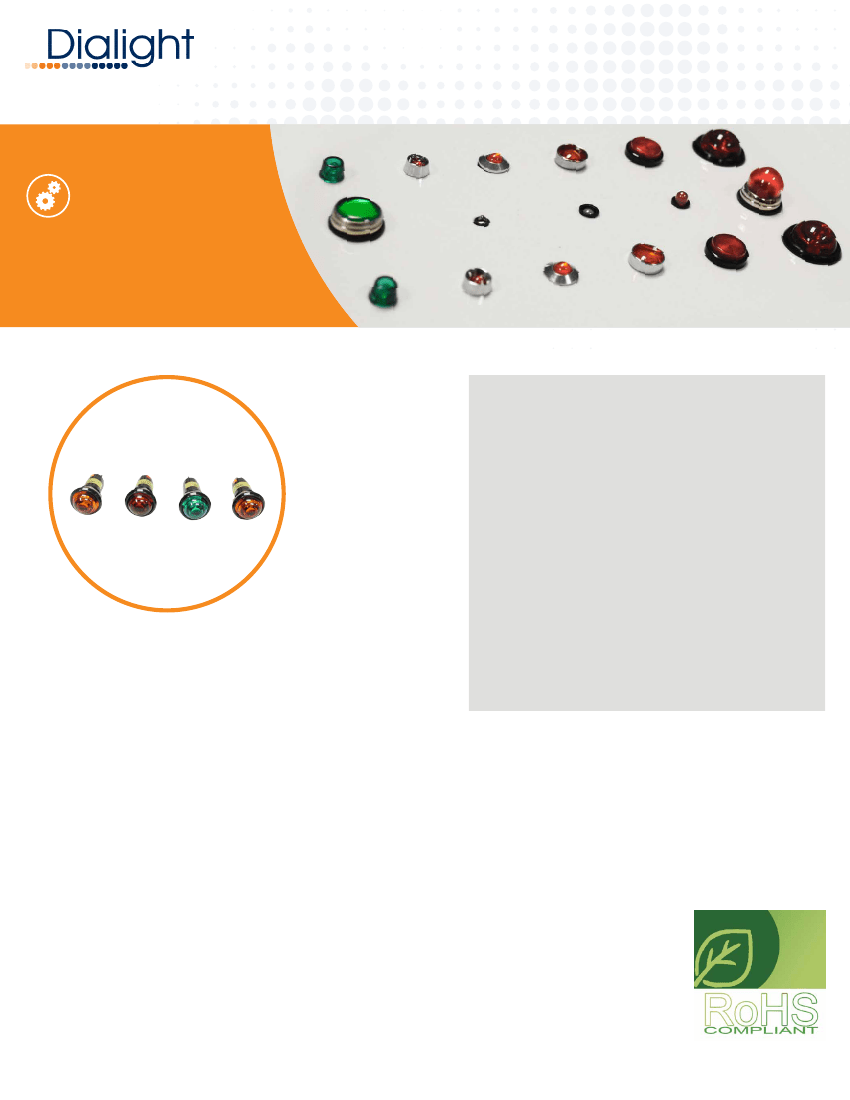

Panel Mount Indicators

686 Series

On when

it counts.

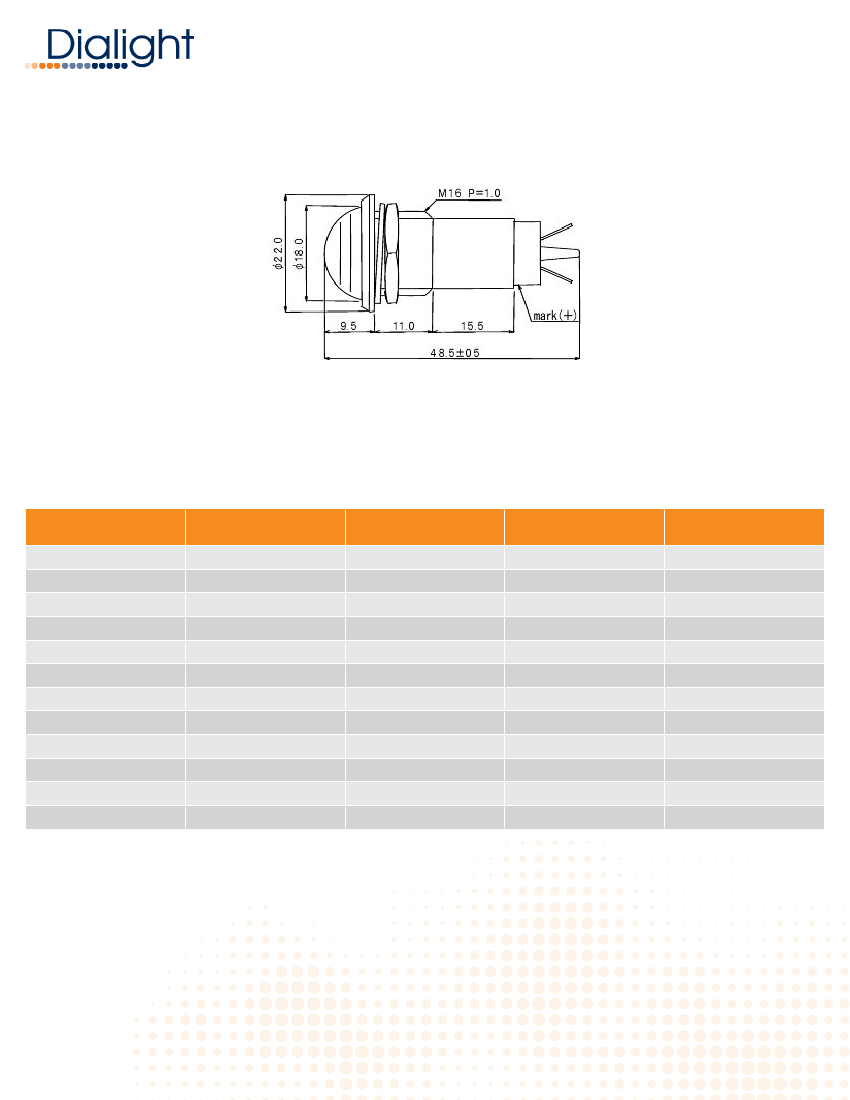

Mechanical Information:

Mounting hole size:

Max panel thickness:

Mounting torque:

0.650” (16.5mm)

0.236” (6.3mm)

0.217 lbs/ft (3 kg/cm)

Electrical Specifications:

Operating voltage:

Operating temperature:

Storage temperature:

Electrical connection:

6, 12 & 24VDC (no resistor required)

-4°F to +167°F (-20°C to +75°C)

-40°F to +212°F (-40°C to +100°C)

Solder terminals

Construction:

Housing:

Polycarbonate

Application

• Main power indication

• Remote power indication

• Status indication

• Maintenance and warning indication

• Instrumentation

...and many more!

All values typical unless otherwise stated

Certifications & Ratings

• RoHS compliant

Features & Benefits

• Low power consumption - uses up to 90% less energy than

an incandescent indicator

• No heat generated

• Long life, lasting up to 100K hours

• Colors include red, green, orange, and blue

• Front panel mounting

www.dialight.com | MDEL686CR_C

6861332133F Related Products

	6861332133F	6861432124F	6861332123F	6861132131F	6861132121F	6861232122F	6861235142F
Description	16MM HO/O PMI-12VDC	16MM HB/B PMI-6VDC	16MM HO/O PMI-6VDC	16MM HR/R PMI-12VDC	16MM HR/R PMI-6VDC	16MM HG/G PMI-6VDC	16MM HG/G PMI-24VDC
type	LED	LED	LED	LED	LED	LED	LED
lamp color	yellow	blue	yellow	red	red	green	green
grade	DC	DC	DC	DC	DC	DC	DC
Voltage	12V	6V	6V	12V	6V	6V	24V
current	30mA	30mA	30mA	30mA	30mA	30mA	30mA
Panel opening shape	round	round	round	round	round	round	round
Panel opening size	0.65"（16.51mm）	0.65"（16.51mm）	0.65"（16.51mm）	0.65"（16.51mm）	0.65"（16.51mm）	0.65"（16.51mm）	0.65"（16.51mm）
millicandela level	500mcd	240mcd	500mcd	660mcd	660mcd	8150mcd	8150mcd
Terminal type	Lug	Lug	Lug	Lug	Lug	Lug	Lug
