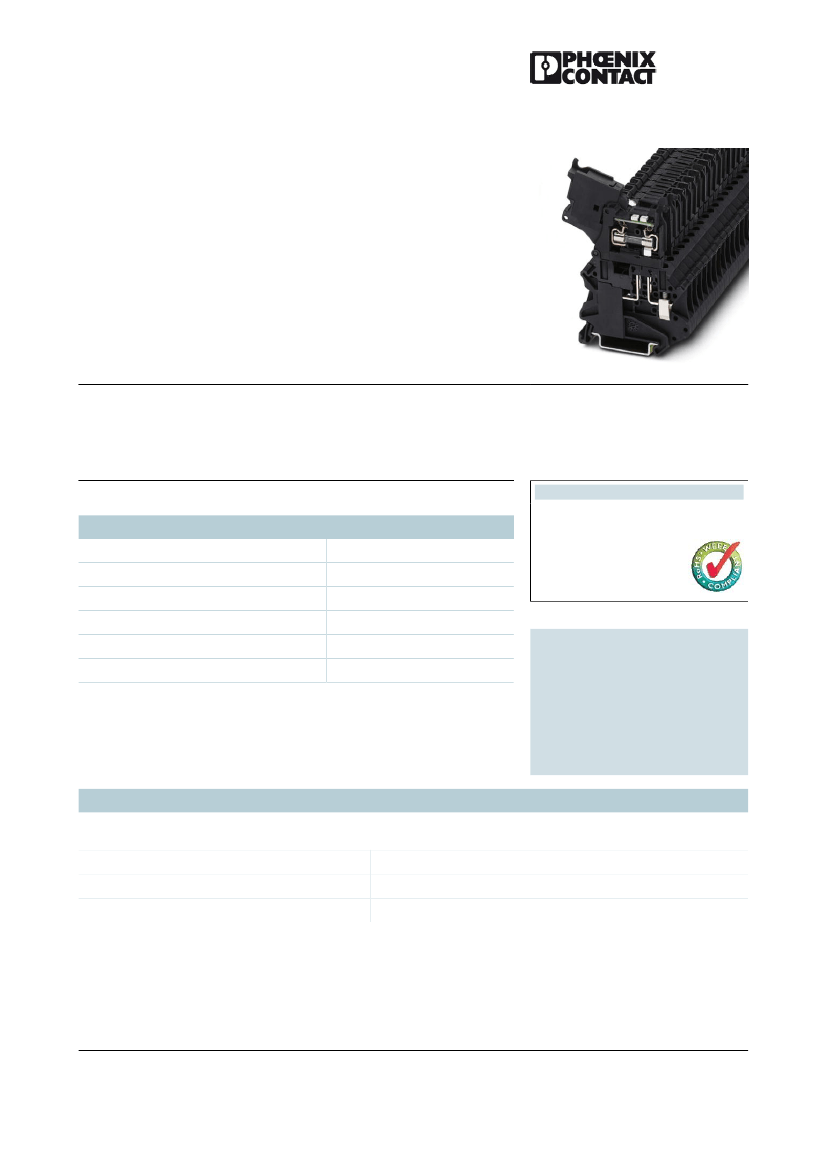

UT 4-HESILED 60 (5X20)
Order No.: 3046126
The illustration shows version UT 4-HESILED 24
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046126
Fuse modular terminal block, Connection method: Screw connection,
Cross section: 0.14 mm²- 6 mm², AWG: 26 - 10, Nominal current: 6.3
A, Nominal voltage: 60 V, Width: 6.2 mm, Fuse type: G / 5 x 20, Fuse
type: Glass, Mounting type: NS 35/7.5, NS 35/15, Color: black
Product notes
Commercial data
GTIN (EAN)
sales group
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918960964
A850
50 pcs.
85369010
0.01803 KG
Page 44 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
07/01/2006
Technical data
General
Number of levels
Number of connections
Color
1
2
black
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 7
Oct 27, 2010
UT 4-HESILED 60 (5X20)
Order No.: 3046126
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046126
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Fuse
Fuse type
LED voltage range
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
PA
V0
6.2 mm
57.8 mm
73 mm
80.5 mm
G / 5 x 20
Glass
30 V AC/DC ... 60 V AC/DC
4 kV
3
III
I
IEC 60947-7-3
6.3 A (if used as disconnect terminal block. With fuse, the current
is determined by the fuse used.)
60 V (if used as a fuse terminal block)
500 V (if used as disconnect terminal block)
Power loss
≥ 1.6 W (With single arrangement of the fuse terminal block in the
event of overload)
≥ 1.6 W (With interconnected arrangement of several fuse
terminal blocks in the event of overload)
≥ 4 W (With single arrangement of the fuse terminal block in the
event of a short-circuit)
≥ 2.5 W (With interconnected arrangement of several fuse
terminal blocks in the event of a short-circuit)
LED voltage range
LED current range
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
30 V AC/DC ... 60 V AC/DC
0.95 mA ... 2.5 mA
0.14 mm²
6 mm²
0.5 mm²
6 mm²
26
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 7
Oct 27, 2010
UT 4-HESILED 60 (5X20)
Order No.: 3046126
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046126
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.5 mm²
2.5 mm²
Screw connection
9 mm
A4
M3
0.6 Nm
0.8 Nm
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CB, CSA, CUL, DNV, GL, KEMA, LR, UL
60 V
6.3 A
26-10
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 7
Oct 27, 2010
UT 4-HESILED 60 (5X20)
Order No.: 3046126
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046126
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
Accessories
Item
Assembly
3022276
CLIPFIX 35-5
Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
NS 35 DIN rail, height 7.5 mm, length 755 mm
NS35 DIN rail, height 7.5 mm, length 955 mm
NS 35 DIN rail, height 7.5 mm, length 1155 mm
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
NS 35 DIN rail, perforated, height 15 mm, length 755 mm
NS 35 DIN rail, perforated, height 15 mm, length 955 mm
NS 35 DIN rail, perforated, height 15 mm, length 1155 mm
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Connection pin, Length: 1000 mm, Color: white
Designation
Description
600 V
6.3 A
26-10
600 V
6.3 A
26-10
0801762
1207640
1207653
1207666
0801733
0801681
1201756
1201895
1207679
1207682
1207695
1201730
1201714
1201798
3004207
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 755MM
NS 35/ 7,5 PERF 955MM
NS 35/ 7,5 PERF 1155MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 755MM
NS 35/15 PERF 955MM
NS 35/15 PERF 1155MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
VS
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 7
Oct 27, 2010
UT 4-HESILED 60 (5X20)
Order No.: 3046126
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3046126
Bridges
3030336
3030242
3030255
3030349
3030271
3030365
3032224
Marking
0811228
1050004
X-PEN 0,35
ZB 5 :UNBEDRUCKT
Marker pen without ink cartridge, for manual labeling of markers,
labeling extremely wipe-proof, line thickness 0.35 mm
Zack strip, unprinted, 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, pack is sufficient for 100 terminal
blocks, for a terminal width of 5.2 mm, color: White
Zack marker strip, 10-section, printed horizontally: with the
numbers 1 - 10, 11 - 20 and so on up to 491 - 500, color: white
Zack marker strip, 10-section, printed vertically: with consecutive
numbers 1 - 10, 11 - 20, and so on up to 491 - 500, color: white
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, for a terminal width of 5.2 mm, color: White
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Zack marker strip, 10-section, printed horizontally: with the
numbers 1 - 10, 11 - 20 and so on up to 491 - 500, color: white
Zack strip, unprinted: For individual labeling with M-PEN, ZB-T
or CMS system, large batch, sufficient for labeling 1000 terminal
blocks, for a terminal width of 6.2 mm, color: White
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
FBS 2-6
FBS 3-6
FBS 4-6
FBS 5-6
FBS 10-6
FBS 20-6
FBS 50-6
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 50, Color: red
1050017
1050020
5060906
ZB 5,LGS:FORTL.ZAHLEN
ZB 5,QR:FORTL.ZAHLEN
ZB 5/WH-100:UNBEDRUCKT
1050295
1051016
5060935
ZB 5:SO/CMS
ZB 6,LGS:FORTL.ZAHLEN
ZB 6/WH-100:UNBEDRUCKT
1050499
ZB 6:SO/CMS
Tools
1205053
SZS 0,6X3,5
Actuation tool, for ST terminal blocks, insulated, also suitable
for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-
component grip, with non-slip grip
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 7
Oct 27, 2010
