250873814504 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 250873814504

250873814504: DescriptionCAP TURRET TERMINAL 507 SERIES; CategoryLED optoelectronic/LED; File Size41KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

250873814504 Overview

CAP TURRET TERMINAL 507 SERIES

250873814504 Parametric

Parameter Name	Attribute value
type	-
lamp color	-
Lens color	-
Lens transparency	-
grade	-
Voltage	-
current	-
Panel opening shape	-
Panel opening size	-
Lens style/size	-
millicandela level	-
Wavelength - Peak	-
perspective	-
Terminal type	-
Intrusion protection	-
characteristic	-

Preview

Download Datasheet

View All

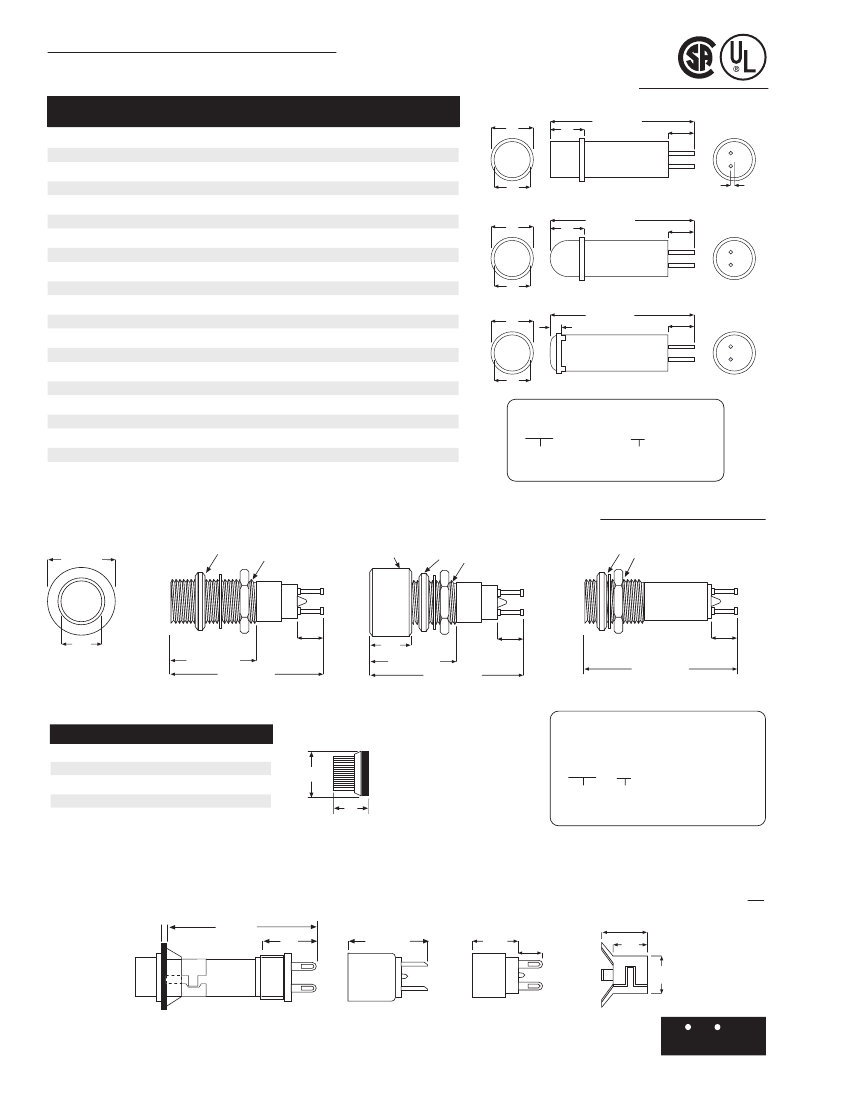

INCANDESCENT PANEL MOUNT INDICATORS

507 SERIES CARTRIDGES FOR USE WITH HOLDERS & CLIPS

507-3911-1431-600

RED

507-3911-1432-600

GREEN

507-3911-1433-600

AMBER

507-3911-1435-600

WHITE

507-3914-1471-600

RED

507-3914-1472-600

GREEN

507-3914-1473-600

AMBER

507-3914-1475-600

WHITE

507-3917-1471-600

RED

507-3917-1472-600

GREEN

507-3917-1473-600

AMBER

507-3917-1475-600

WHITE

507-3918-1437-600

CLEAR

507-3918-1471-600

RED

507-3918-1472-600

GREEN

507-3918-1473-600

AMBER

507-3918-1475-600

WHITE

507-5820-0747-600†

CLEAR

507-5821-0747-600†

CLEAR

507-5822-0747-600†

CLEAR

507-5824-0747-600†

CLEAR

120

† Use Holder 250-8758-33-504 and 250 Series Cap

PART NO.

COLOR

170

0.08

0.30

0.34

0.30

2.10

1.20

1.50

LIFE

HOURS

10,000

15,000

4,000

7,000

5,000

Fig. 1

FIG

8.38

[.330]

28.96 [1.140] MAX

6.73

[.265]

5.16

[.203]

7.14

[.280]

.51

[.020]

Fig. 2

8.38

[.330]

33.73 [1.33] MAX

11.51

[.45]

5.16

[.203]

7.14

[.280]

Fig. 3

8.38

[.330]

37.30 [1.47] MAX

2.74 [.11]

5.16

[.203]

7.14

[.280]

PART NUMBER ORDERING CODE

507 – 39xx – xxxx – 600

Series

Lens Shape:

14 – Fig 1 = Cylindrical

09 – Fig 2 = Stovepipe

250 & 508 SERIES HOLDERS FOR 3/8" MOUNTING HOLE

HOLDER WITHOUT COLLAR*

FLANGE NUT

13.1 [.515]

3/8 - 32 NEF THD

HOLDER WITH COLLAR *

COLLAR

FLANGE NUT

3/8 - 32 NEF THD

HOLDER WITHOUT COLLAR

†

FLANGE NUT

3/8 - 32 NEF THD

7.90

[.310]

15.90 [.625]

30.96 [1.22] MAX

5.00

[.197]

7.10

[.280]

15.90 [.625]

5.00

[.197]

43.26 [1.703] MAX

33.34 [1.31] MAX

5.00

[.197]

250-8738-14-504

508-8738-504

250-8758-33-504

for Figure 3 Only

250 Series Caps for use with 507 cartridges.

CAP PART NO.

COLOR

FIG

250-3531-500

250-3532-500

250-3533-500

250-3535-500

250-3537-500

RED

GREEN

AMBER

WHITE

CLEAR

13.10

[.52]

Fig. 4

PART NUMBER ORDERING CODE

250 – xx38 – 14 – 504

508 – xx38 – 504

Series

Terminal Type:

87 = Turret Terminals

74 = Solder Blade (Not Shown)

75 = Solder Cups (Not Shown)

12.25

[.50]

MAX

Material & Finish: Holder – Black Anodized Aluminum, Cap – Polycarbonate, Cartridge Clear Anodized Aluminum

515 SERIES CONNECTORS & SPEED CLIPS FOR 9/32" MOUNTING HOLE

CARTRIDGE WITH SPEED CLIP & CONNECTOR

1.59 [.06]

PANEL

30.02 [1.19]

15.88

[.625]

CONNECTOR

515-0012

15.88 [.625]

CONNECTOR

515-0074

13.89

[.547]

4.76

[.188]

SPEED CLIP 515-0051

9.14

[.360]

6.86

[.270]

7.49

[.295]

Dimensions in mm [inches]

Dialight

Dialight Corporation • 1501 State Route 34 • Farmingdale, NJ 07727 • TEL: (732) 919-3119 • FAX: (732) 751-5778 • www.dialight.com
