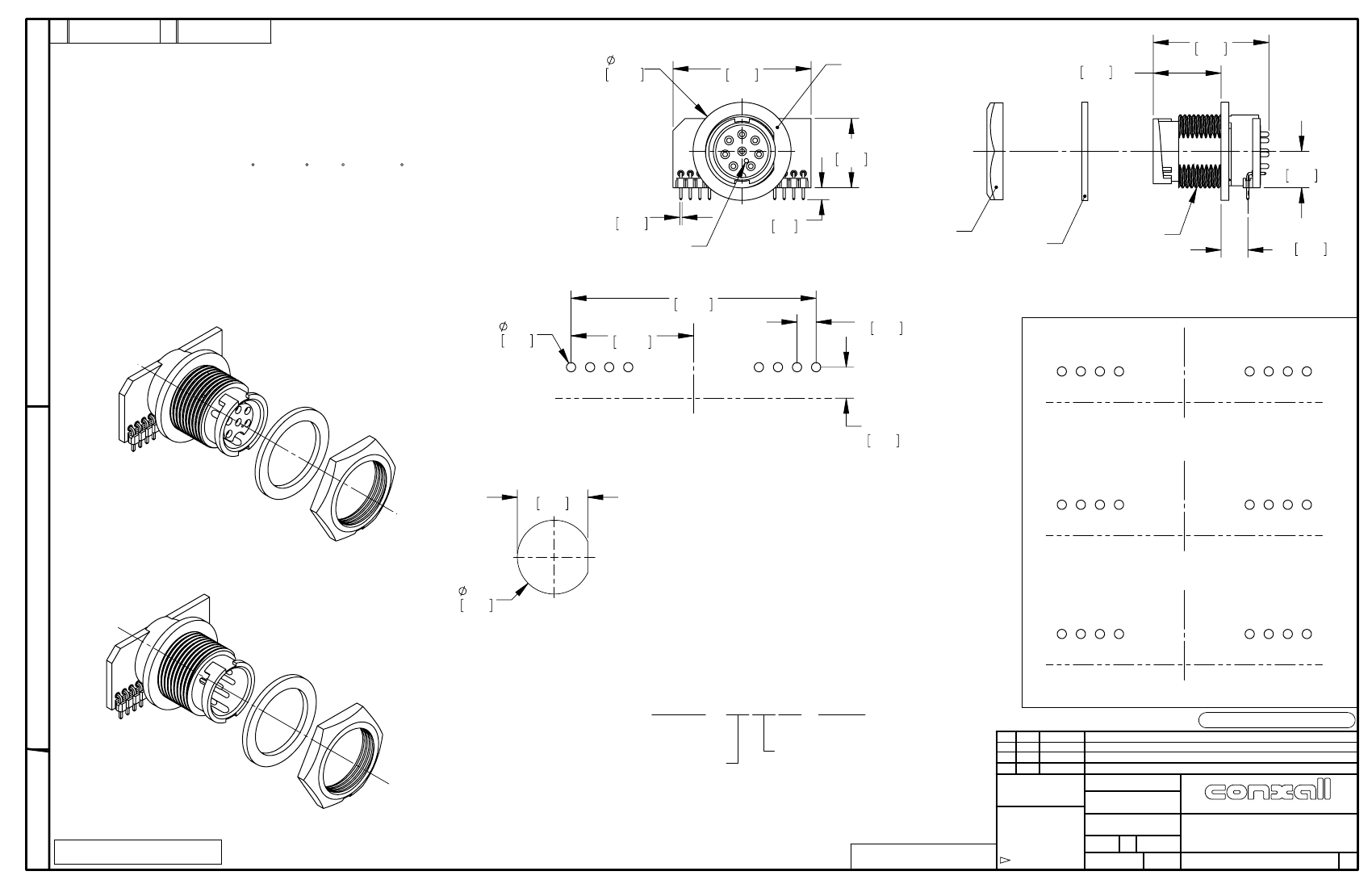

CUSTOMER DRAWING
NOTES:
1.
ALL HOLES REQUIRED REGARDLESS OF NUMBER OF POSITIONS OF
CONNECTOR.
2.
MAXIMUM PANEL THICKNESS RECOMMENDED: 0.188 [4.78mm]
3.
HEX NUT & GASKET SHIPPED UNASSEMBLED.
4.
HEX NUT TIGHTENING TORQUE: 8-10 IN/LB
5.
THE DIMENSION DOES NOT INCLUDE THE GASKET.
6.
CURRENT RATING-
5-8 CONTACT: 4.0 AMP
2-4 CONTACT: 5.0 AMP
7.
TEMPERATURE RATING: -40 C TO +85 C (-40 F TO +185 F)
8.
MATERIALS-
PANEL CONNECTOR, HEX NUT, & SPACER: THERMOPLASTIC
GASKET: ELASTOMER
CONTACTS: COPPER ALLOY, GOLD PLATE
PCB: FR-4
HEADER INSULATOR: THERMOPLASTIC, UL94V-0
9.
THIS PRODUCT IS RoHS COMPLIANT.
0.810
20.57
1.14
29.0
7251-8PG-300 SHOWN
0.56
14.2
(SEE NOTE 5)
0.96
24.3
0.57
14.5
0.301
7.65
18X 0.020
0.50
POSITION 1 INDICATOR
0.10
2.5
HEX NUT
(SEE NOTE 3 & 4)
GASKET
(SEE NOTE 3)
5/8-27
THREAD
0.222
5.63
(SEE NOTE 5)
1.012
25.70
8X
0.038
0.97
0.506
12.85
6X 0.079
2.00
4
NC
5
6
1
2
3
NC
RECOMMENDED PCB LAYOUT
PCB COMPONENT SIDE
SCALE 3:1
(SEE NOTE 1)
7251-6SG-300 SHOWN
6 PIN FEMALE ASSEMBLY
7251-_ _G-300 SERIES
0.582
14.8
C
L
0.128 MAX
3.25
TO EDGE OF PCB
2, 3, 5 & 6 POSITION LOCATIONS
C
L
3
NC
4
NC
1
2
NC NC
4 POSITION LOCATIONS
0.610
15.5
C
L
RECOMMENDED PANEL CUT-OUT
(SEE NOTE 2)
5
6
7
8
1
2
3
4
PART
NUMBER:
7251 -
7251-8PG-300 SHOWN
8 PIN MALE ASSEMBLY
# OF CONTACTS
2,3,4,5,6,7,8
(7&8 NOT AVAILABLE IN FEMALE)
G - 300
GENDER
P - MALE
S - FEMALE
0C
0B
0A
JGK
JGK
JGK
11/05/15
9/21/15
8/28/13
DATE
REV. INIT.
ALL INFORMATION ILLUSTRATED IS
THE PROPERTY OF "CONXALL
CORPORATION." UNAUTHORIZED
DUPLICATION OR DISTRIBUTION OF
THIS DOCUMENT IS PROHIBITED.
ALL UNITS ARE IN FEET,
INCHES, FRACTION OF INCHES
AND DECIMALS.
UNLESS OTHERWISE SPECIFIED
TOLERANCES:
3 PLACE DECIMALS ±.005
ANGLES ±1°
FRACTIONS ±1/16
= CRITICAL CHARACTERISTIC
FLAG PER SPEC. XXXX
7 & 8 POSITION LOCATIONS
CUSTOMER DRAWING
UPDATED NOTES.
UPDATED NOTES.
DRAWING CREATED PER PROJECT #09001.
DESCRIPTION
ORIG. DRAWN BY:
C
L
JGK
DATE:
8/26/13
601 E. WILDWOOD VILLA PARK, IL 60181
CHECKED BY:
APPROVED BY:
TITLE:
MINI-CON-X RIGHT ANGLE
2-8 POSITION
WIDE PC BOARD
STANDARD PRODUCT
PRELIMINARY
SCALE
RoHS COMPLIANT
3:2
SIZE
B
1 OF 1
DIRECTORY:
SHEET
CUSTOMER:
FILE:
SAME AS P/N
SLW
PART
NUMBER:
7251-_ _G-300 SERIES
0C
REV
