27S,BK: DescriptionBOX ABS BLACK 6.88"L X 4.88"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size68KB，1 Pages; ManufacturerSERPAC; Environmental Compliance

Download Datasheet Parametric Compare View All

27S,BK Overview

BOX ABS BLACK 6.88"L X 4.88"W

27S,BK Parametric

Parameter Name	Attribute value
Container type	box
size/dimensions	6.880" long x 4.880" wide (174.75mm x 123.95mm)
high	2.490"（63.25mm）
Area (L x W)	33.6 in²（217 cm²）
design	Split sides and sloping top
Material	Plastic - ABS
color	black
thickness	0.100"（2.54mm）
characteristic	Battery box, 9V, PCB support
grade	IP40
Material flammability rating	UL94 HB
delivery information	Shipping from Digi-Key
weight	0.43 lbs (195.04g)

Preview

Download Datasheet

View All

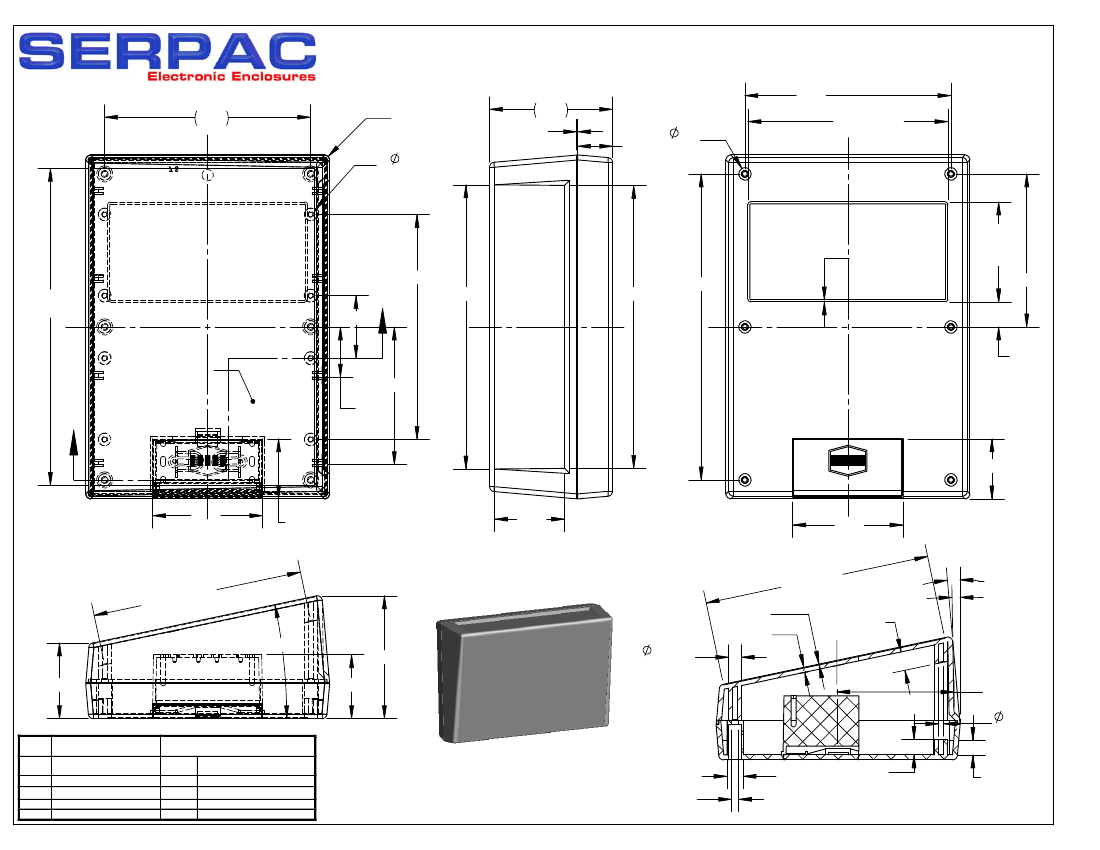

27S

4.12

R.10

typ.

.25

8 PLC'S

(user print)

2.46

.02

.70

.25

4 plc's

4.12

4.00

INSERT AREA

.04 X .02" depth

6.34

Insert-Plate

2.00

INSERT

AREA

3.06

A

1.25

4.50

5.68

5.66

6.12

Slanted Insert Area

Non-Textured

.015" recessed

.50

2.75

1.00

A

1.20

2.20

1.20

1.40

2.20

4.53

ANGLED

Insert Area

.015

.10

typ.

4.21

ANGLED PCB

BOSSES

12°

1.51

1.28

.25 typ.

22 PLC'S

.38

8 PLC'S

(TOP)

5° typ.

1°

2.46

2.34

.09

22 PLC'S

PART

NO.

7-S

27

6005

DESCRIPTION (Included)

TOP

BOTTOM

#4 self tapping screw (6)

ACCSESSORIES (Optional)

PART

NO.

PS-17

DESCRIPTION

Perimeter Seal

Notes:

1) Enclosure meets or exceeds IP40 and NEMA 1

2) When used with PS-17 the enclosure meets or exceeds

IP 67 and NEMA 4X, 12 and 13 MIL-STD-810G 506.5

3)

All components are RoHS Compliant.

SECTION A-A

.14

6 PLC'S

.32 TYP

6 PLC'S

.31

8 PLC'S

.29 8 PLC"S

Ph. (626) 331-0517 Fx. (626) 331-8584 www.serpac.com

ALL DIMENSIONS ARE ± .010"

7/29/2014

2009 Wright Ave. La Verne, CA 91750

27S,BK Related Products

	27S,BK	27S,AL	27S,GY
Description	BOX ABS BLACK 6.88"L X 4.88"W	BOX ABS ALMOND 6.88"L X 4.88"W	BOX ABS GRAY 6.88"L X 4.88"W
Container type	box	box	box
size/dimensions	6.880" long x 4.880" wide (174.75mm x 123.95mm)	6.880" long x 4.880" wide (174.75mm x 123.95mm)	6.880" long x 4.880" wide (174.75mm x 123.95mm)
high	2.490"（63.25mm）	2.490"（63.25mm）	2.490"（63.25mm）
Area (L x W)	33.6 in²（217 cm²）	33.6 in²（217 cm²）	33.6 in²（217 cm²）
design	Split sides and sloping top	Split sides and sloping top	Split sides and sloping top
Material	Plastic - ABS	Plastic - ABS	Plastic - ABS
color	black	almond color	grey
thickness	0.100"（2.54mm）	0.100"（2.54mm）	0.100"（2.54mm）
characteristic	Battery box, 9V, PCB support	Battery box, 9V, PCB support	Battery box, 9V, PCB support
grade	IP40	IP40	IP40
Material flammability rating	UL94 HB	UL94 HB	UL94 HB
delivery information	Shipping from Digi-Key	Shipping from Digi-Key	Shipping from Digi-Key
weight	0.43 lbs (195.04g)	0.43 lbs (195.04g)	0.43 lbs (195.04g)
