Protective Band
Antistatic Cover Tape
TO252-3L Unit Orientation

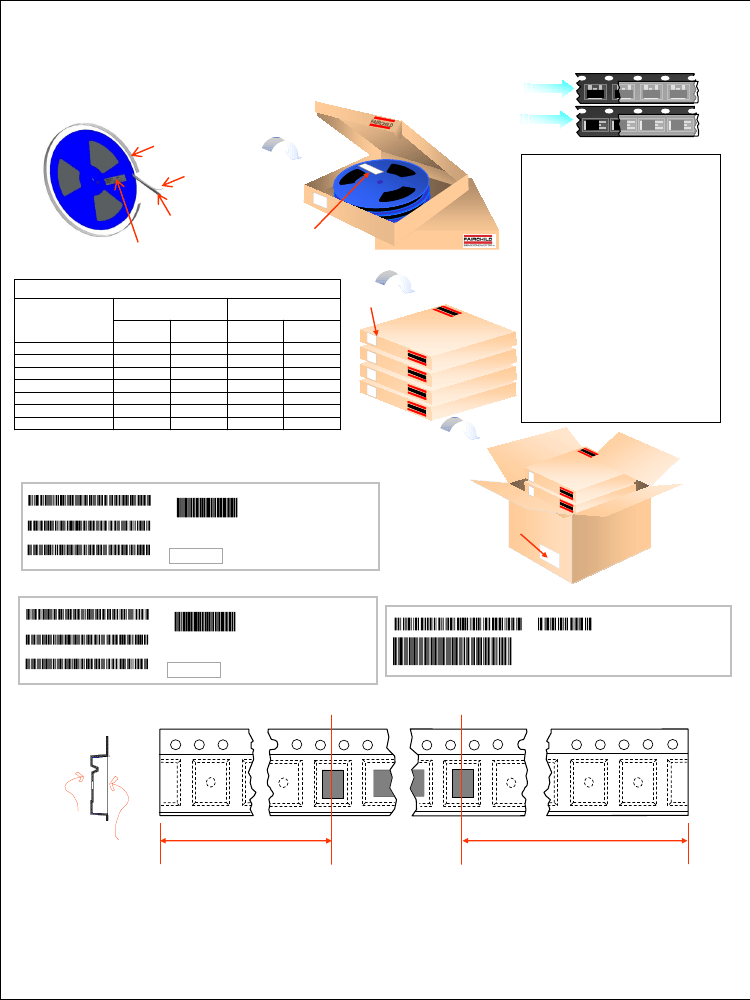

Packing Description:
TO252-3L parts are shipped in tape. The carrier
tape is made from a dissipative (carbon filled)
polycarbonate resin. The cover tape is a
multilayer film (Heat Activated Adhesive in
nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed
agent. These reeled parts in standard option are
shipped with 2500(TM) / 2000(TF) units per 13”
or 330cm diameter reel. The reels are dark blue
or black in color and is made of polystyrene
plastic (anti-static coated). This and some other
options are further described in the Packing
Information table.
These full reels are individually barcode labeled
and placed inside a standard intermediate box
(illustrated in figure 1.0) made of recyclable
corrugated brown paper. One box contains
three reels maximum. And these boxes are
placed inside a barcode labeled shipping box
which comes in different sizes depending on the
number of parts shipped.
Static Dissipative
Embossed Carrier
LABEL Tape
TO252-3L Packing Information
Packing Option
Standard
( TF)
Single Reel
Packing type
Qty per Reel/Tube/Bag
Reel Size
Inner Box Dimension (mm)
Max qty per Box
Outer Box Dimension (mm)
Max qty per Box
TNR
2,000
13” Dia
333x333x25
2,000
360x360x300
24,000
Double Reel
TNR
2,000
13” Dia
343x350x68
4,000
360x360x300
24,000
TNR Label
Inner box
Standard
( TM )
Single Reel
TNR
2,500
13” Dia
333x333x25
2,500
360x360x300
30,000
Double Reel
TNR
2,500
13” Dia
343x350x68
5,000
360x360x300
30,000
BOXTNR Label
Reel Barcode Label Sample
LOT:
FSID:
D/C1:
D/C2:
QTY1:
QTY2:
QTY:
SPEC:
SPEC REV:
Pb-Free
RoHS
COMPLIANT
2
ND
Level Interconnect
1. Category e3
2. Maximum safe temperature 200 deg C
3. MSL 1
FAIRCHILD SEMICONDUCTOR (BOXTNR) 6.1
BBX Label
Out box
Inner Box Barcode Label Sample
LOT:
FSID:
D/C1:
D/C2:
QTY1:
QTY2:
QTY:
Outer Box Barcode Label Sample
PART ID:
LOT:
QTY:
2013/02/01 08:33:54
BG FS00130
SPEC:
SPEC REV:
Pb-Free
RoHS
COMPLIANT
2
ND
Level Interconnect
1. Category e3
2. Maximum safe temperature 200 deg C
3. MSL 1
FAIRCHILD SEMICONDUCTOR (BOXTNR) 6.1
D/C:
FAIRCHILD SEMICONDUCTOR CORPORATION
SM13B11526
(BBX) 1.2
TO252-3L,JEDEC OPTION AA Tape Leader and Trailer
Configuration: Figure 2.0
Carrier Tape
Cover Tape
Components
Trailer Tape
320mm minimum or
40 empty pockets
Leader Tape
1000mm minimum or
125 empty pockets
NOTES:
A. ALL DIMENSION ARE IN MILLIMETERS UNLESS
OTHERWISE SPECIFIED
B. DRAWING FILE NAME: PKG-TO252A03REV3
C. PLASTIC REEL W1 DIMENSION CONTROL LIMITS:
8MM REEL = +/-1.0MM AND 12MM REEL AND ABOVE = +/- 1.5MM
FG1N60
XFD
115
TF
FG1N60
XFD
115
FG1N60
XFD
115
FG1N60
XFD
115
FG1N60
XFD
115
TO252-3L, JEDEC OPTION AA, PACKING
CONFIGURATION: Figure 1.0
TM

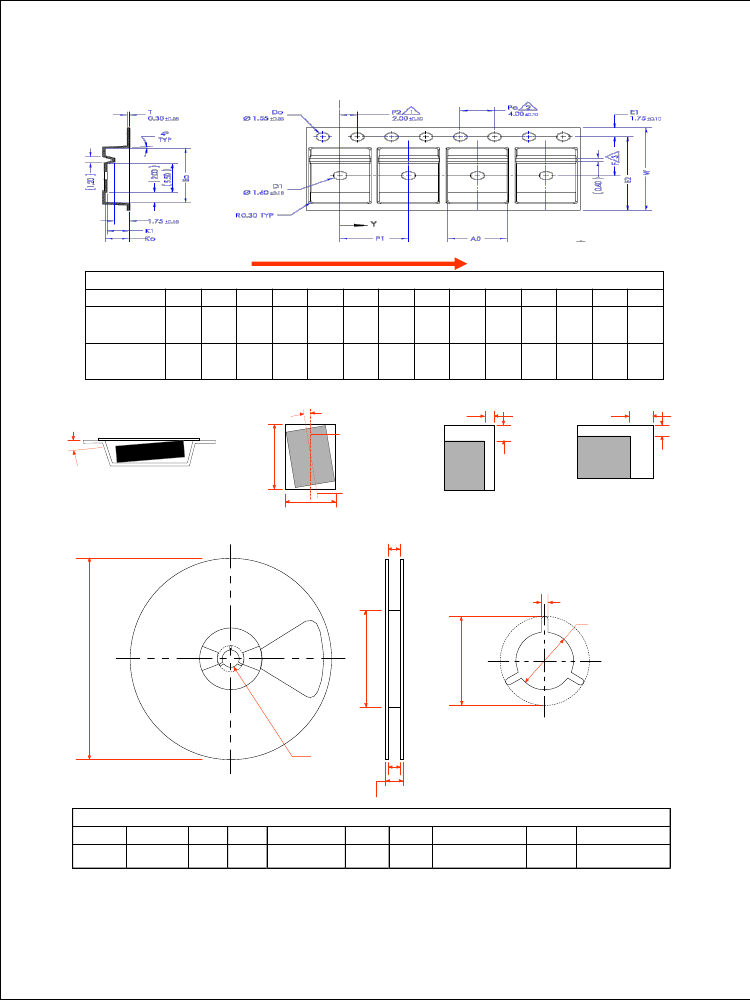

TO252-3L, JEDEC OPTION AA, Embossed Carrier Tape
Configuration: Figure 3.0
User Direction of Feed
Dimensions are in millimeter
Pkg type
TO252-3L TM / XM
(16mm)
TO252-3L TF / X
(16mm)
A0
6.90
+/-0.10
10.80
+/-0.10
B0
10.50
+/-0.10
7.20
+/-0.10
W
16.0
+/-0.3
16.0
+/-0.3
D0
1.50
0.10
/-0.00
1.5
0.1
/-0.00
D1
1.7
E1
1.75
E2
14.25
min
14.25
min
F
7.50
+/-0.10
7.50
+/-0.10
P1
8.0
+/-0.1
12.0
+/-0.1
P0
4.0
+/-0.1
4.0
+/-0.1
K0
2.85
+/-0.10
2.70
T
0.30
+/-0.05
0.30
Wc
13.3
+/-0.1
13.3
+/-0.1
Tc
0.1
max
0.1
max
+/-0.10 +/-0.10
1.7
+/-0.10
1.75
+/-0.10
+/-0.10 +/-0.05
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481 rotational and lateral movement requirements
(see sketches A, B, and C).
10 deg
0.8mm
1.7mm
maximum
Typical
component
cavity
center line
Typical
component
center line
maximum
maximum
B0
10 deg maximum component rotation
Sketch A (Side or Front Sectional View)
Component Rotation
1.4mm
maximum
0.9mm
maximum
A0
TO252-3L, JEDEC OPTION AA, Reel
Configuration: Figure 4.0
Sketch B (Top View)
Component Rotation
W1 Measured at Hub
TM Type
Sketch C (Top View)
Component lateral movement
TF Type
Sketch C (Top View)
Component lateral movement
B Min
Dim C
Dim A
max
Dim N
Dim D
min
DETAIL AA
See detail AA
W3
13” Diameter Option
W2 max Measured at Hub
Dimensions are in inches and millimeters
Tape Size
16mm
Reel Option
13” Dia
Dim A
330
Dim B
1.5
Dim C
13 +0.5/-0.2
Dim D
20.2
Dim N
100
Dim W1
16.4 +2/0
Dim W2
22.4
Dim W3 (LSL-USL)
15.9 – 19.4
NOTES:
A. ALL DIMENSION ARE IN MILLIMETERS UNLESS
OTHERWISE SPECIFIED
B. DRAWING FILE NAME: PKG-TO252A03REV3
C. PLASTIC REEL W1 DIMENSION CONTROL LIMITS:
8MM REEL = +/-1.0MM AND 12MM REEL AND ABOVE = +/- 1.5MM
