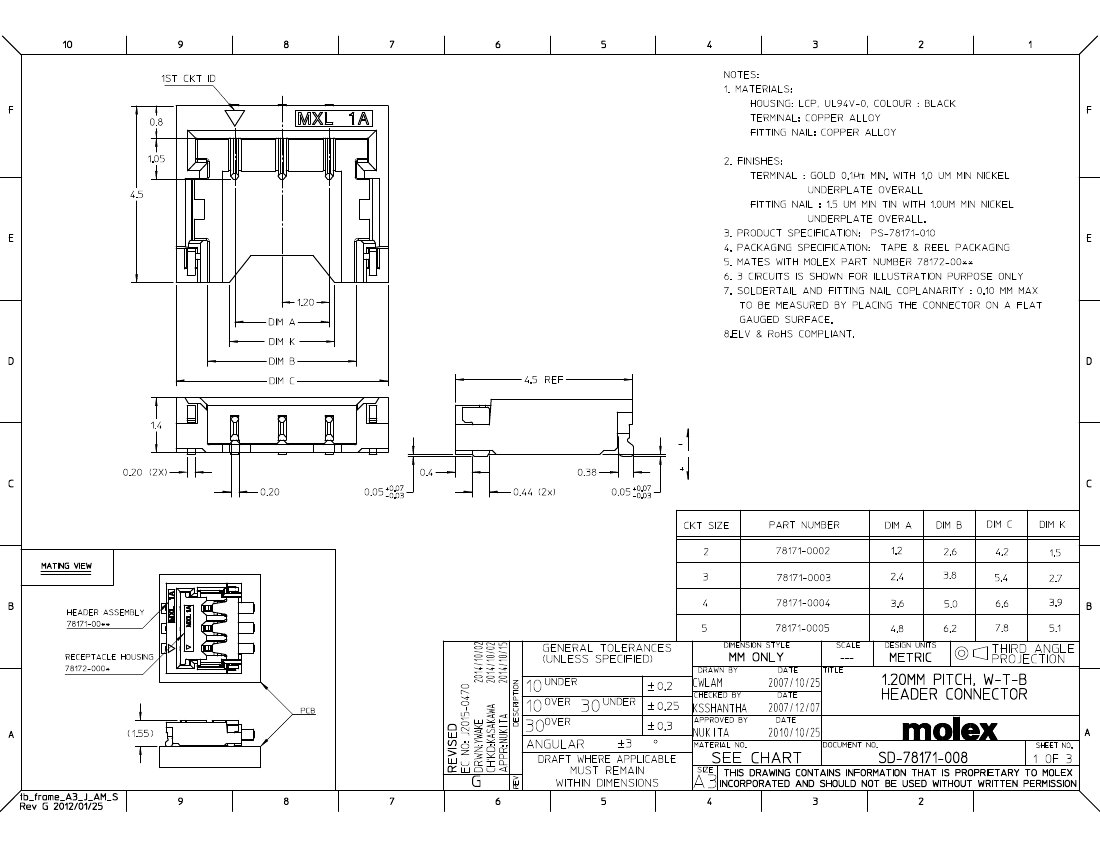

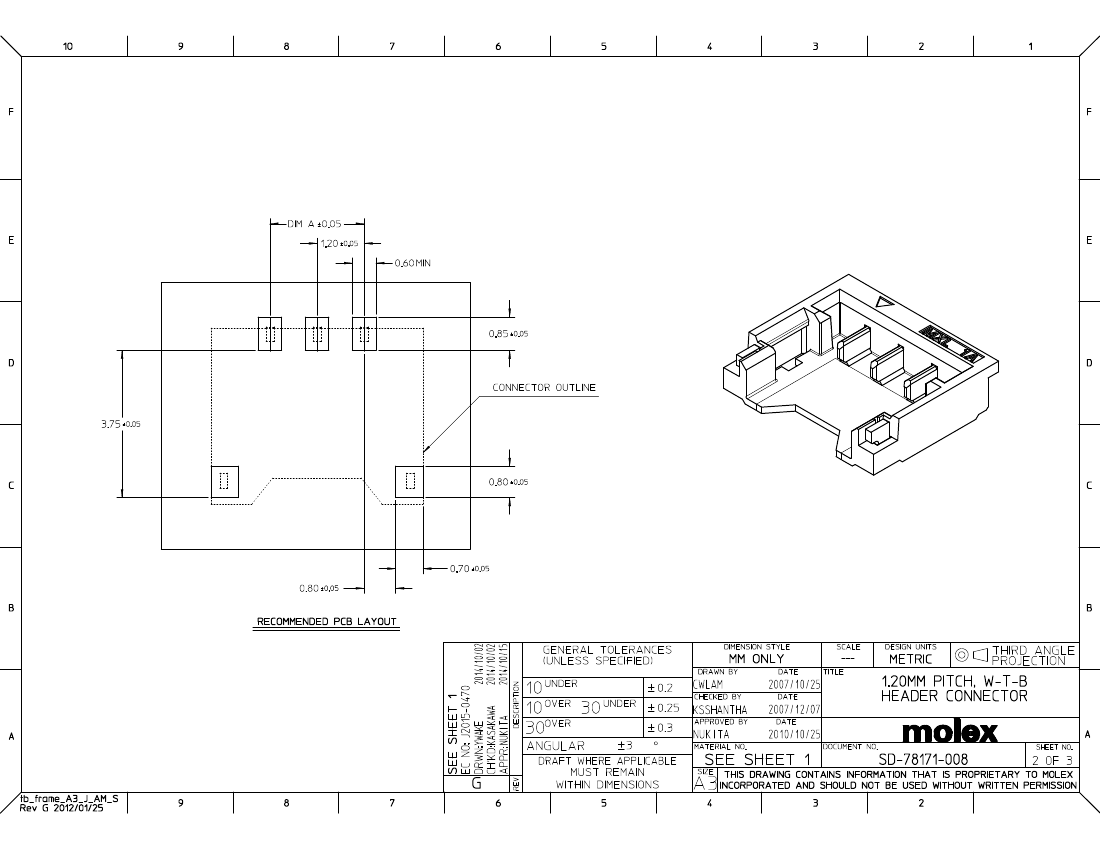

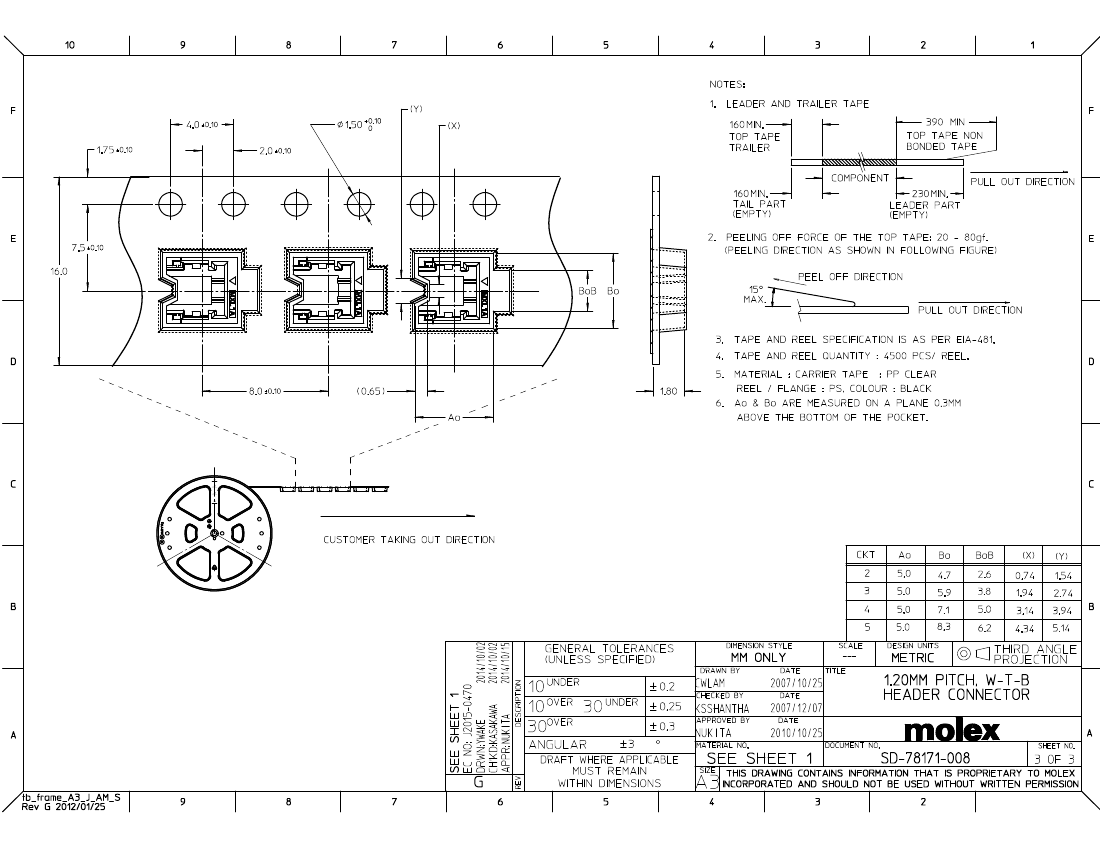

1.20MM WTB HEADER VERT 5POS
| Parameter Name | Attribute value |
| Connector type | plug |
| Contact type | Connector |
| Spacing - Mating | 0.047"（1.20mm） |
| Number of pins | 5 |
| Number of rows | 1 |
| Line spacing - patching | - |
| Number of pins loaded | all |
| style | Board to cable/wire |
| shield | Covered - 3 walls |
| Installation type | surface mount |
| Termination | welding |
| Fastening type | friction lock |
| Contact Length - Mating | - |
| Contact length - terminal | - |
| Overall contact length | - |
| Insulation height | 0.055"（1.40mm） |
| Contact shape | rectangle |
| Contact surface treatment - mating | gold |
| Contact Surface Treatment Thickness - Mating | - |
| Contact Surface Preparation - Column | - |
| Contact material | copper alloy |
| Insulation Materials | Liquid Crystal Polymer (LCP) |
| characteristic | Fixed solder tail |
| Operating temperature | -25°C ~ 85°C |
| Intrusion protection | - |
| Material flammability rating | UL94 V-0 |
| Insulation color | black |
| Rated current | - |
| Rated voltage | 50V |
| Joint stack height | - |
| Contact Surface Treatment Thickness - Column | - |
| application | Automotive, general, lighting, telecommunications |
| 0781710005 | 0781710004 | |
|---|---|---|
| Description | 1.20MM WTB HEADER VERT 5POS | 1.20MM WTB HEADER VERT 4POS |
| Connector type | plug | plug |
| Contact type | Connector | Connector |
| Spacing - Mating | 0.047"（1.20mm） | 0.047"（1.20mm） |
| Number of pins | 5 | 4 |
| Number of rows | 1 | 1 |
| Number of pins loaded | all | all |
| style | Board to cable/wire | Board to cable/wire |
| shield | Covered - 3 walls | Covered - 3 walls |
| Installation type | surface mount | surface mount |
| Termination | welding | welding |
| Fastening type | friction lock | friction lock |
| Insulation height | 0.055"（1.40mm） | 0.055"（1.40mm） |
| Contact shape | rectangle | rectangle |
| Contact surface treatment - mating | gold | gold |
| Contact material | copper alloy | copper alloy |
| Insulation Materials | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| characteristic | Fixed solder tail | Fixed solder tail |
| Material flammability rating | UL94 V-0 | UL94 V-0 |
| Insulation color | black | black |
| application | Automotive, general, lighting, telecommunications | Automotive, general, lighting, telecommunications |
