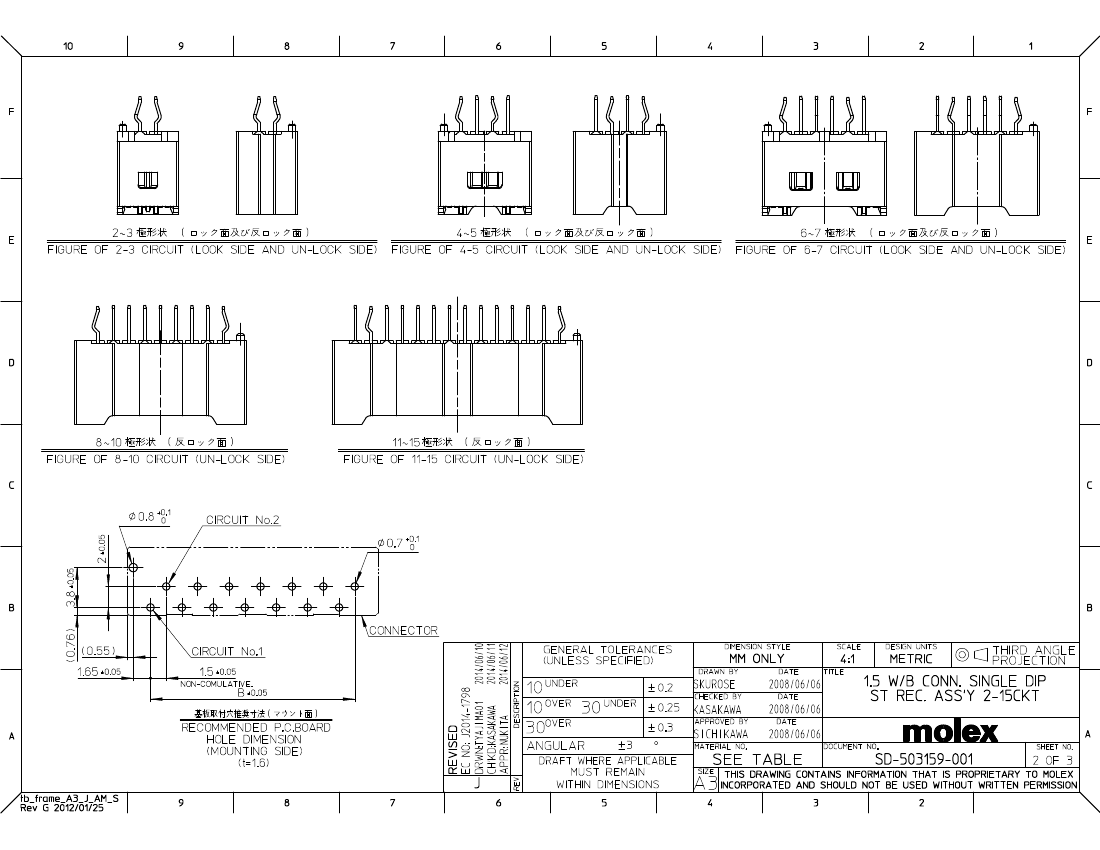

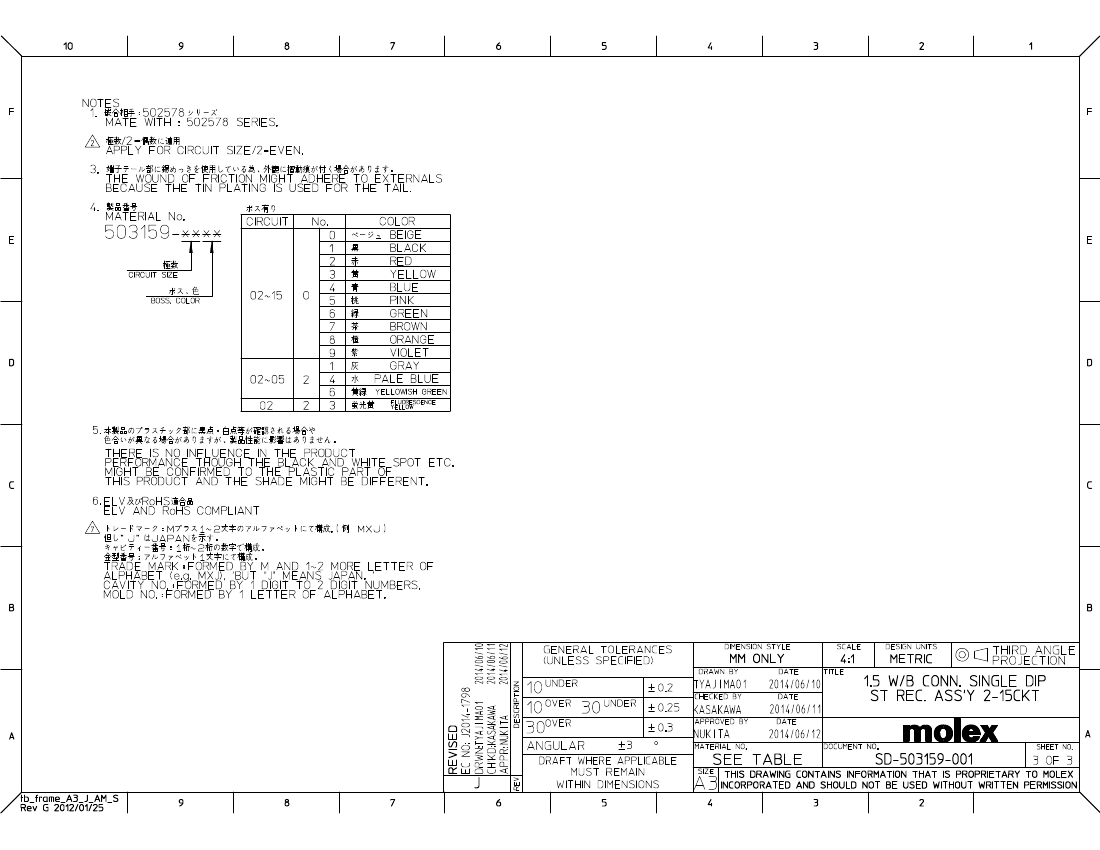

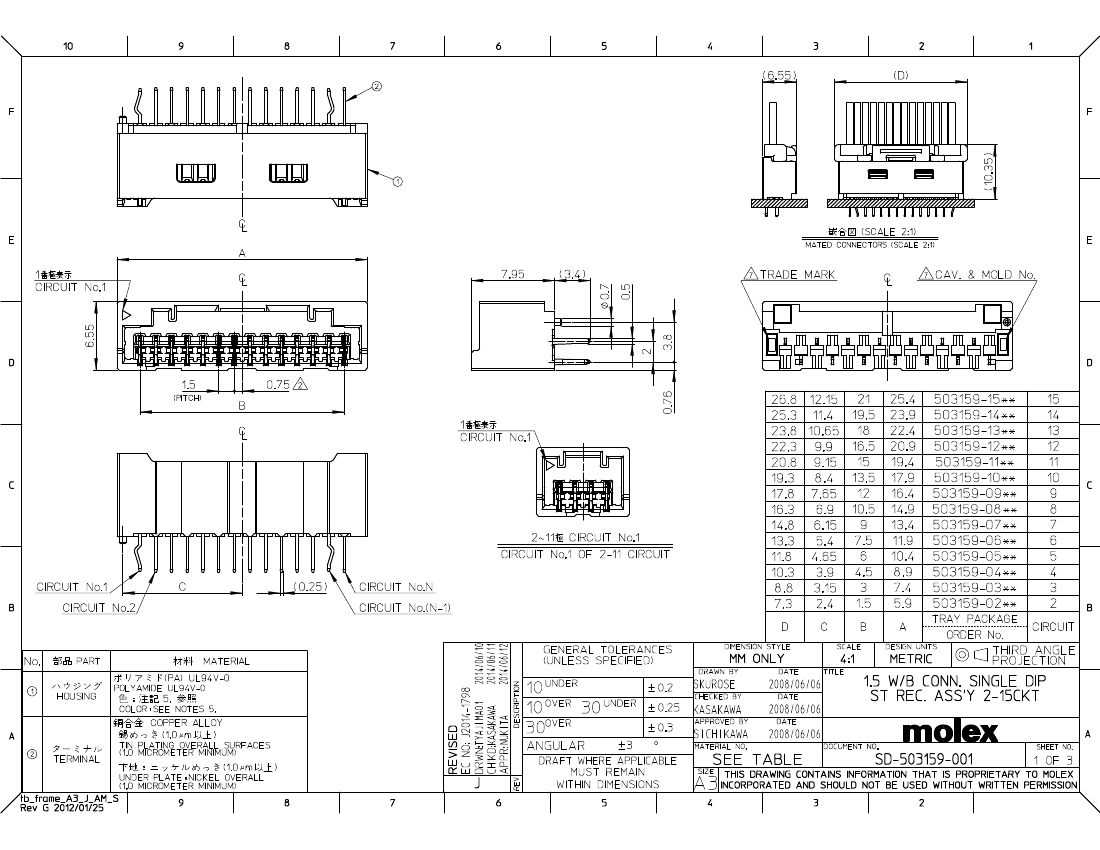

CONN RCPT SGL VERT 4CKT PCB
| Parameter Name | Attribute value |
| Connector type | socket |
| Contact type | Forked |
| style | Board to cable/wire |
| Number of pins | 4 |
| Number of pins loaded | all |
| Spacing - Mating | 0.059"（1.50mm） |
| Number of rows | 1 |
| Line spacing - patching | - |
| Installation type | Through hole |
| Termination | Kink pins, solder |
| Fastening type | latch holder |
| Contact surface treatment - mating | tin |
| Contact Surface Treatment Thickness - Mating | 39.4µin（1.00µm） |
| Insulation color | beige |
| Insulation height | 0.313"（7.95mm） |
| Contact length - terminal | 0.134"（3.40mm） |
| Operating temperature | -40°C ~ 105°C |
| Material flammability rating | UL94 V-0 |
| Contact Surface Preparation - Column | tin |
| Joint stack height | - |
| Intrusion protection | - |
| characteristic | board guide |
| Rated current | - |
| Rated voltage | - |
| application | Automotive, general, industrial, lighting, medical |
| Insulation Materials | Polyamide (PA), nylon |
| Contact shape | - |
| Contact material | copper alloy |
| Contact Surface Treatment Thickness - Column | 39.4µin（1.00µm） |
| 5031590400 | 5031591400 | 5031590200 | 5031590300 | 5031590500 | 5031591500 | |
|---|---|---|---|---|---|---|
| Description | CONN RCPT SGL VERT 4CKT PCB | CONN RCPT SGL VERT 14CKT PCB | CONN RCPT SGL VERT 2CKT PCB | CONN RCPT SGL VERT 3CKT PCB | CONN RCPT SGL VERT 5CKT PCB | CONN RCPT SGL VERT 15CKT PCB |
| Connector type | socket | socket | socket | socket | socket | socket |
| Contact type | Forked | Forked | Forked | Forked | Forked | Forked |
| style | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire | Board to cable/wire |
| Number of pins | 4 | 14 | 2 | 3 | 5 | 15 |
| Number of pins loaded | all | all | all | all | all | all |
| Spacing - Mating | 0.059"（1.50mm） | 0.059"（1.50mm） | 0.059"（1.50mm） | 0.059"（1.50mm） | 0.059"（1.50mm） | 0.059"（1.50mm） |
| Number of rows | 1 | 1 | 1 | 1 | 1 | 1 |
| Installation type | Through hole | Through hole | Through hole | Through hole | Through hole | Through hole |
| Termination | Kink pins, solder | Kink pins, solder | Kink pins, solder | Kink pins, solder | Kink pins, solder | Kink pins, solder |
| Fastening type | latch holder | latch holder | latch holder | latch holder | latch holder | latch holder |
| Contact surface treatment - mating | tin | tin | tin | tin | tin | tin |
| Contact Surface Treatment Thickness - Mating | 39.4µin（1.00µm） | 39.4µin（1.00µm） | 39.4µin（1.00µm） | 39.4µin（1.00µm） | 39.4µin（1.00µm） | 39.4µin（1.00µm） |
| Insulation color | beige | beige | beige | beige | beige | beige |
| Insulation height | 0.313"（7.95mm） | 0.313"（7.95mm） | 0.313"（7.95mm） | 0.313"（7.95mm） | 0.313"（7.95mm） | 0.313"（7.95mm） |
| Contact length - terminal | 0.134"（3.40mm） | 0.134"（3.40mm） | 0.134"（3.40mm） | 0.134"（3.40mm） | 0.134"（3.40mm） | 0.134"（3.40mm） |
| Operating temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Material flammability rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Surface Preparation - Column | tin | tin | tin | tin | tin | tin |
| characteristic | board guide | board guide | board guide | board guide | board guide | board guide |
| application | Automotive, general, industrial, lighting, medical | Automotive, general, industrial, lighting, medical | Automotive, general, industrial, lighting, medical | Automotive, general, industrial, lighting, medical | Automotive, general, industrial, lighting, medical | Automotive, general, industrial, lighting, medical |
| Insulation Materials | Polyamide (PA), nylon | Polyamide (PA), nylon | Polyamide (PA), nylon | Polyamide (PA), nylon | Polyamide (PA), nylon | Polyamide (PA), nylon |
| Contact material | copper alloy | copper alloy | copper alloy | copper alloy | copper alloy | copper alloy |
| Contact Surface Treatment Thickness - Column | 39.4µin（1.00µm） | 39.4µin（1.00µm） | 39.4µin（1.00µm） | 39.4µin（1.00µm） | 39.4µin（1.00µm） | 39.4µin（1.00µm） |
