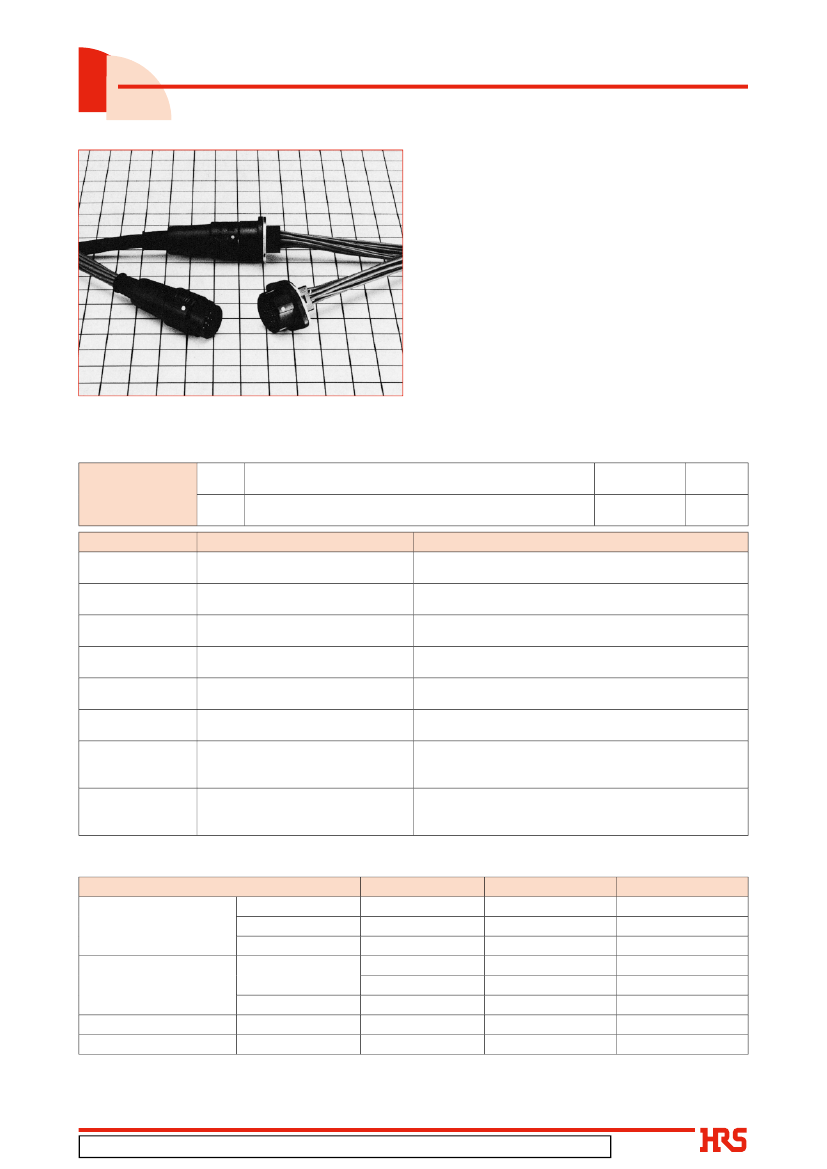

Small-sized, plastic type, push-pull lock connectors
RP17 Series
■Features
1. Superior mating operability
・
Secure mating and easy unmating is achieved
by a push-pull locking mechanism.
・
White index markings are provided on the mating
positions of the plug for easy mating alignment.
・
Our proprietary guide key allows for blind mating
conditions to be accomplished easily.
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2. Light weight and robust design
The strong outer shell is made of glass-reinforced
polycarbonate resin, and produces a light but
highly durable connectors.
3. Anti-static electricity type
The metal plates in the receptacle protect the signal
lines from static electricity.
■Product
Specifications
Ratings
Operating
Rated Contact numbers 1, 3 to 10 : 2 A (when using a wire of at least 26 AWG)
−10 to
+60℃
current Contact numbers 2, 11, 12 : 5 A (when using a wire of at least 22 AWG) temperature range
Rated
Storage
−10 to
+60℃
AC100V
,
DC140V
voltage
temperature range
Specifications
15mø max.
DIP Type : 20mø max.
1,000Mø min.
No flashover or dielectric breakdown.
No electrical discontinuity for 10µs or
greater.
No electrical discontinuity for 10µs or
greater.
Contact resistance : 20mø max.
Dip type : 25mø max.
Measured at DC 1A
Measured at DC 500V
AC 1000V for 1 minute
10 to 55Hz/cycle, amplitude : 0.75mm, 3 axis directions,
2 hours each direction
2
Acceleration : 490m/s , duration : 11ms, 3 axis directions,
3 times each direction
1,000 times
−55℃ : 30 minutes
➝
Normal temperature : 10 to 15 minutes
➝
85℃ : 30 minutes
➝
Normal Temperature : 10 to 15 minutes,
left for 5 cycles
Temperature : 40℃ , relative humidity : 90 to 95%,
left for 96 hours
Conditions
Items
1. Contact resistance
2. Insulation
resistance
3. Withstanding
voltage
4. Vibration
resistance
5. Shock resistance
6. Mating cycles
7. Temperature cycle Insulation resistance : 1,000Mø min.
8. Moisture
resistance
Insulation resistance : 10Mø min.
(at high humidities)
100Mø min. (when dry)
■Materials
/ Finish
Items
Shell, insulator
Plug
Clamp
Bushing
Receptacle
Crimped female contact
Crimped male contact
Shell, insulator
Female contact
Female contact
Male contact
Material
Polycarbonate resin
Brass
Vinyl chloride resin
Poly carbonate resin
Steel
Phosphor bronze
Phosphor bronze
Phosphor bronze
Finish
-----------
-----------
-----------
-----------
Nickel plating
Silver plating
Silver plating
Silver plating
Remarks
UL94V-0
-----------
-----------
UL94V-0
-----------
-----------
-----------
-----------
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2018.9w
1
RP17 Series
●
Small-sized, plastic type, push-pull lock connectors
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●
Plug
RP17 A - 13 P A - 12 S C
(01)
❶
❷
❸
❹
❺
❻
❼
½
❾
❻
Number of contacts
❼
Contact form
S : Female contact
P : Male contact
½
Contact termination method:
C : Contact termination by crimping
D : Straight PCB dipping method
❾
Other specifications : A two-digit character is added to
indicate other specifications when needed.
❶
Model name : RP17 Series
❷
Type identification
No marking : Standard type
A : Anti-static electricity type
❸
Shell size : The shell size is measured at the outer
diameter of the mating interface of the plug.
❹
Shell type
P : Straight plug
R : Receptacle
J : Jack
❺
Shell variation : Connectors are distinguished by A, B, or
C if another variation is applied in the same form.
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●
Crimp contact
RP17 - SC - 2 1 2
❶
❾
Applicable wire gauge
1 : For 18 to 22 AWG
2 : For 24 to 30 AWG
Type of plating
2 : Silver plating
❶
Model name : RP17
❾
Contact type :
SC : Crimped female contact
PC : Crimped male contact
Contact form
1 : Loose piece contacts
2 : Reel contacts
2
RP17 Series
●
Small-sized, plastic type, push-pull lock connectors

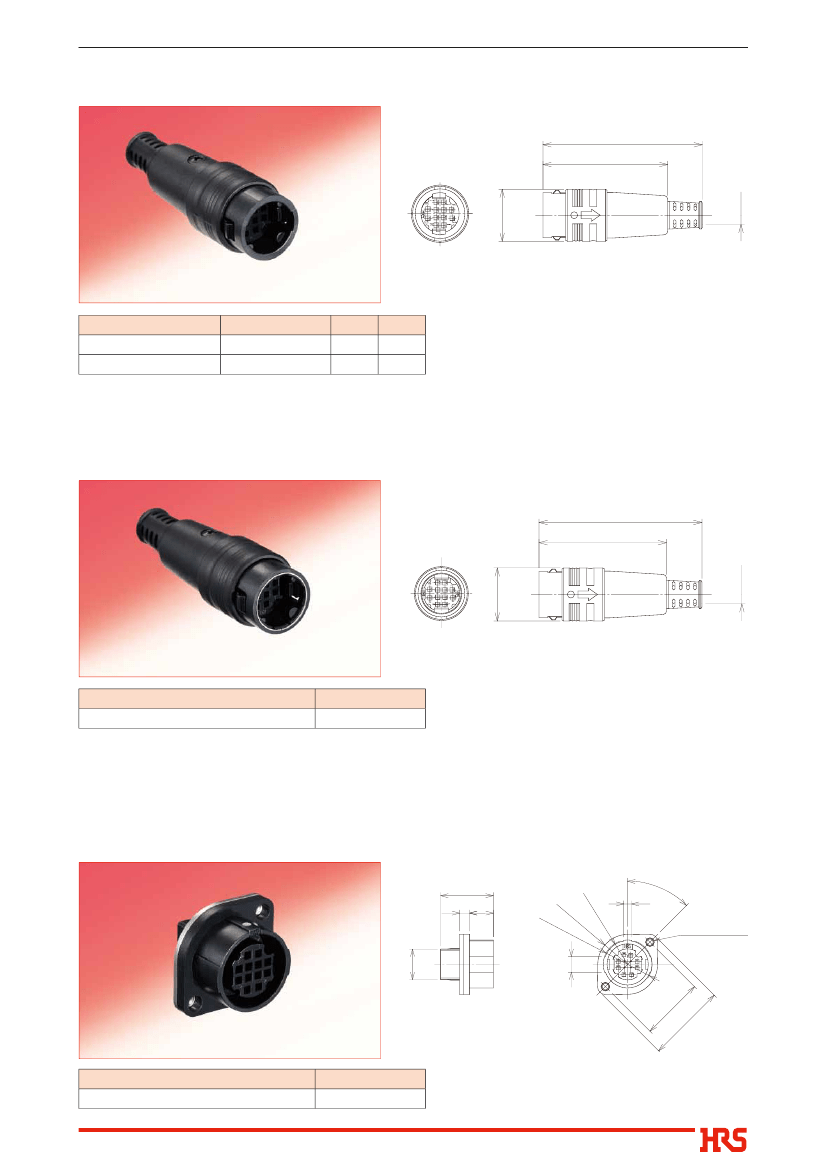

■Plug
(standard type)
B
36
Ø
15
(Representative example.)
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
RP17-13P-12PC(71)
Part No.
RP17-13P-12PC
(
71
)
RP17-13PA-12PC
(
71
)
HRS No.
113-0501-0 71
113-0512-7 71
Ø
A
5.3
6.1
B
46
51
Note : Cable clamping force, cable rotation force, and other
aspects may differ depending on the cable construction.
We recommend that you verify the suitability of the cable
assembly before use or production.
■Plug
(anti-static electricity type)
46
36
RP17A-13P-12PC(71)
Part No.
RP17A-13P-12PC
(
71
)
HRS No.
113-0551-9 71
Note : Cable clamping force, cable rotation force, and others
aspects may differ depending on the cable construction.
We recommend that you verify the suitability of the cable
assembly before use or production.

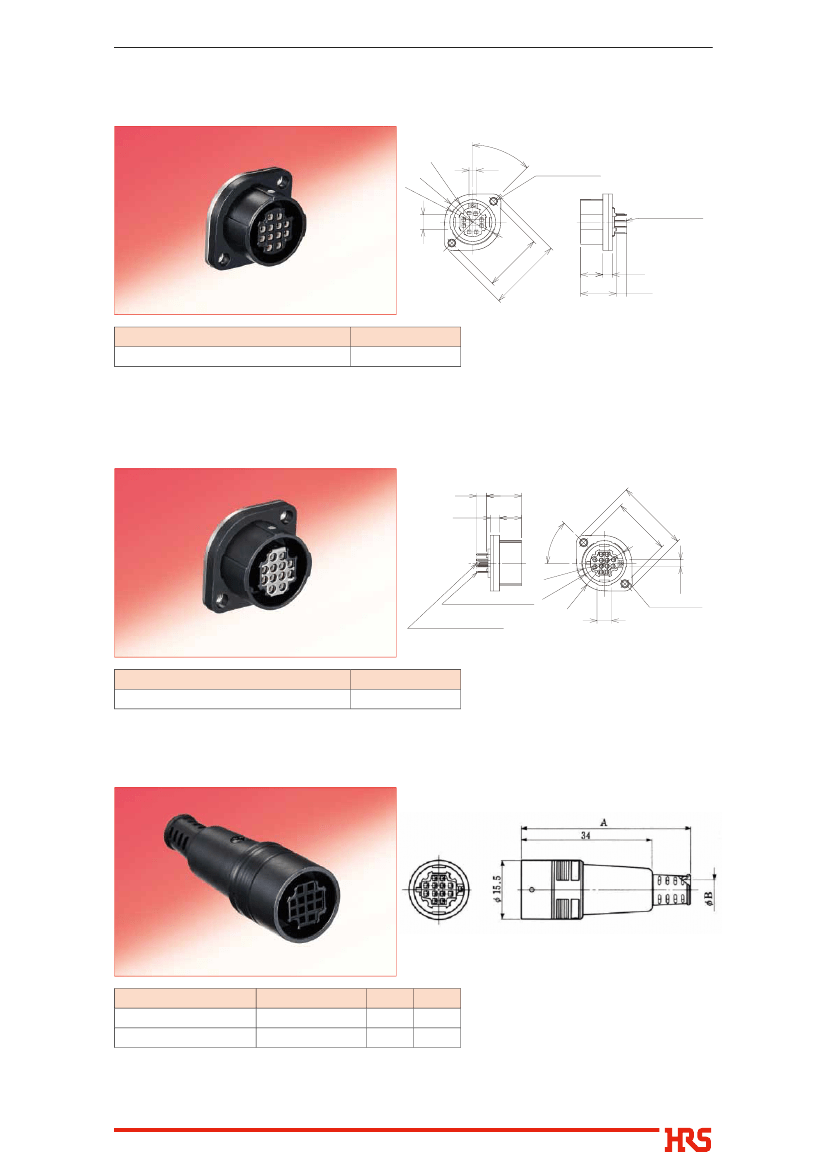

■Receptacle
(standard type)
(Crimping type)
16.7
3.2
7.5
Ø
1
Ø
15
45
°
Ø
1
2.5
2-M2.6
×
0.45
2
1
9
5.5
□
9.7
5
1
2
7
RP17-13R-12SC(71)
Part No.
RP17-13R-12SC
(
71
)
HRS No.
113-0502-3 71
25
20
Ø
5.3
Ø
A
Ø
1
5
3
RP17 Series
●
Small-sized, plastic type, push-pull lock connectors
■Receptacle
(standard type)
(PCB dip type)
45
°
Ø
1
Ø
1
2.5
5.5
9
2
1
Ø
1
2-M2.6
×
0.45
5
1
2
7
0.5
×
0.3
(Dip post diameter)
20
5
25
7.5
12
3.2
3.5
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
RP17-13RA-12SD(71)
Part No.
RP17-13RA-12SD
(
71
)
HRS No.
113-0511-4 71
Remarks : See page 5 for details on dip post assignment and layout.
■Receptacle
(anti-static electricity type)
(PCB dip type)
3.5
12
3.2 7.5
45
°
25
20
RP17A-13RA-12SD(71)
Part No.
RP17A-13RA-12SD
(
71
)
0.5
×
0.3
(Dip post for signal contact)
1
×
0.4
(Dip post for ground contact)
Ø
1
Ø
1
9
5.5
2-M2.6
×
0.45
5
HRS No.
113-0553-4 71
Remarks : See page 5 for details on dip post assignment and layout.
■Jack
(standard type)
(Representative example.)
RP17-13J-12SC(71)
Part No.
RP17-13J-12SC
(
71
)
RP17-13JA-12SC
(
71
)
HRS No.
113-0515-5 71
113-0516-8 71
A
44
49
Ø
B
5.3
6.1
Note : Cable clamping force, cable rotation force, and others
aspects may differ depending on the cable construction.
We recommend that you verify the suitability of the cable
assembly before use or production.
2.5
Ø
15
4
RP17 Series
●
Small-sized, plastic type, push-pull lock connectors

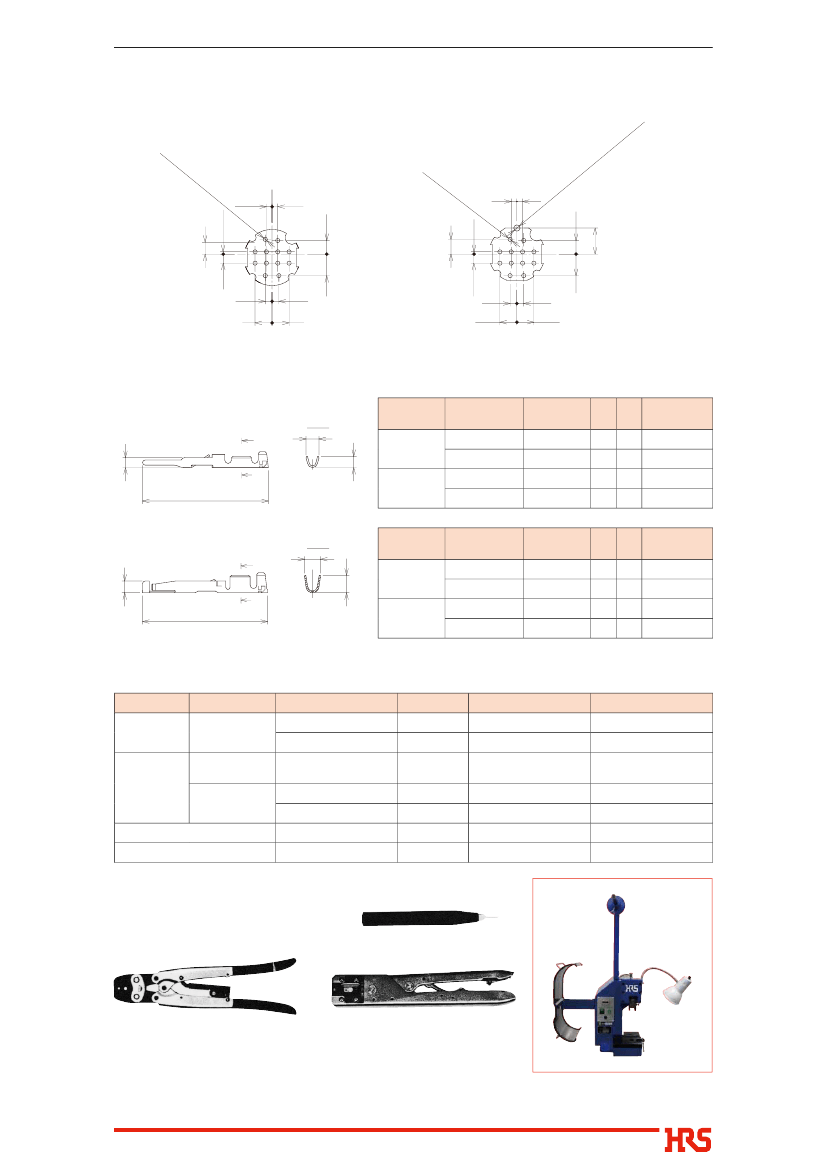

Dip post assignment and layout for receptacles
(Figures show as when viewed from the receptacle mating side.)
●
(Standard type)
12
×
Ø
0
●
(Anti-static electricity type)
12
×
Ø
0
.7
.7
0.4
1
0.4
2.6
1
3
7
1
2.4
2.6
1
1
.
Ø
1
1-
1(
o
Gr
un
d
ct)
ta
n
co
2.4
2
6
1
0
1
3
7
1
1
1
2
2
6
1
0
1.6
3.8
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1.2
3
1.2
3
1.6
1.2
1.2
3
3
Remarks : The machining tolerance of ±0.05 is recommended for the PCB layout dimensions.
■Contact
Male contact
C
A
B
A-A
1.2
Applicable
wire size
Loose piece RP17-PC-112 113-0503-6 1.6 2.1 18 to 22 AWG
contacts
RP17-PC-122 113-0504-9 1.2 1.35 24 to 30 AWG
Type
Part No.
HRS No.
B
C
Reel
contacts
RP17-PC-212 113-0507-7 1.6 2.1 18 to 22 AWG
RP17-PC-222 113-0508-0 1.2 1.35 24 to 30 AWG
A
15
Female contact
A
1.2
A
C
B
A-A
Applicable
wire size
Loose piece RP17-SC-112 113-0505-1 1.6 2.1 18 to 22 AWG
contacts
RP17-SC-122 113-0506-4 1.2 1.35 24 to 30 AWG
Type
Part No.
HRS No.
B
C
Reel
contacts
RP17-SC-212 113-0509-2 1.6 2.1 18 to 22 AWG
RP17-SC-222 113-0510-1 1.2 1.35 24 to 30 AWG
15
Applicable tools
Type
Manual
Items
Part No.
HRS No.
150-0043-8
150-0044-0
901-0001-0
901-2036-9
901-2026-5
150-0042-5
150-0039-0
Applicable contact
RP17-
PC
-112
SC
RP17-
PC
-122
SC
----------------------
RP17-
PC
-212
SC
RP17-
PC
-222
SC
----------------------
----------------------
Applicable wire size
18 to 22 AWG
24 to 30 AWG
----------------------
18 to 22 AWG
24 to 30 AWG
----------------------
----------------------
RP17-TC-11
Manual
crimping tools RP17-TC-12
Automatic
CM-105C
crimping press
AP105-RP17-1
Applicator
AP105-RP17-2
RP17-TC-01
RP6-SC-TP
Auto
Cable crimping tool
Extraction tool
Extraction tool
Cable crimping tool
(The handle shape shown is a
representative example.)
Manual crimping tools
Automatic crimping press
(Type CM-105C)
3.8
1
2
1
1
4.6
5
