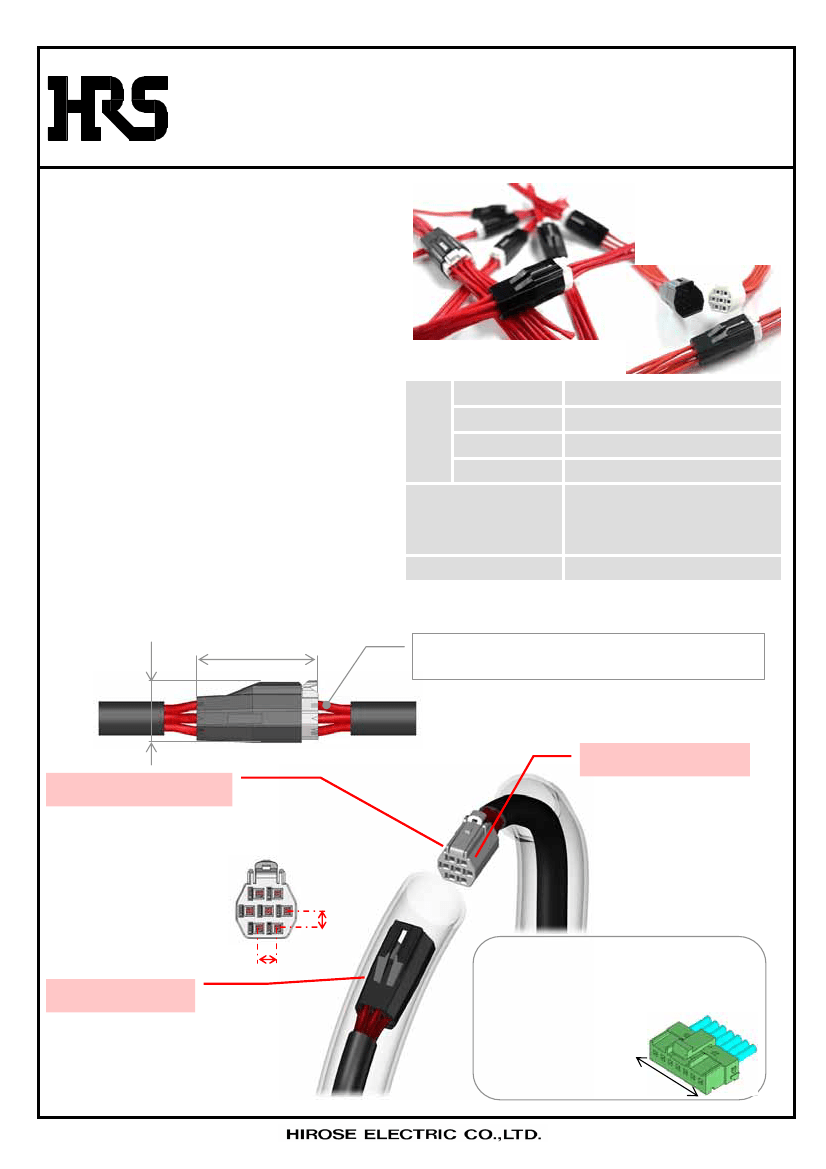

DF62 Series
Slim In-Line Connectors
Features
1. Slim design and smooth contour for
connection inside small spaces
2. Secure positive lock with tactile
click and visible lock confirmation
3. Protected crimp contact from
deformation
4. Contact lance for secure
connection
5. Wide pin count variations available
from 2 to 7, 13 and 24 pos.
6. Lock guarded socket type is also
available as DF62C.
7. RoHS compliant
ITS-P-11028NW_1
7 pos.
Plug
Part
No.
Male Contact
Socket
Female Contact
DF62B-xxEP-2.2C
DF62-EPxxPCF(A)
DF62B-xxS-2.2C
DF62-xxSCF(A)
AWG#22: 3 A
(4 A for 2 pos., 2.5 A for 24 pos.)
AWG#24: 2 A
AWG#26 to 30: 1 A
250 V AC/DC
Rated Current
Rated Voltage
Optimized design for connection inside small space
[7 pos. in mated condition]
9.3
(18.6)
Applicable Cable:
AWG#22 to 30 (Outer dia:
φ
0.75 to 1.45 mm)
No Metal Exposure
Multi-Row Pin Layout
Contacts are arranged in grid,
making the diagonal diameter
small.
[3 rows for 7 pos.]
1
2
3
Pitch: 2.2 mm
Pitch:
2 mm
No metal component
is exposed, avoiding
accidental conduction
to metal caliber.
Conventional Single Row Product
Smooth Contour
Connector outline is designed
to be smooth, eliminating
being caught in the middle of
small space during wiring.
1. Too wide to go through small space.
2. With rough outline and lock hock,
it could be blocked up inside
small spaces.
Specifications herein are subject to change without notice. Contact Hirose for latest specifications, drawings or availabilities.
Issued: Sept. 5, 2013
