E1106
User Manual
The New Vision of Touch
TM
E1106 User Manual
Contents
1
1.1
1.2
E1106 Overview........................................................................................................................ 3
Introduction ....................................................................................................................................................................................3
Contents of Kit ...............................................................................................................................................................................3
2
3
3.1
3.2
3.3
3.4
3.5
Setting Up the E1106 ............................................................................................................... 4
QT1106 Demo Software ...........................................................................................................5
Introduction ....................................................................................................................................................................................5
How to Use the E1106 QWheel/QSlide Assembly.........................................................................................................................6
QT1106 Demo Parameters............................................................................................................................................................6
Main Window .................................................................................................................................................................................6
Setup Dialog Box ...........................................................................................................................................................................6
3.5.1
3.5.2
3.5.3
3.5.4
3.5.5
3.5.6
3.5.7
Wheel/Slider Area ......................................................................................................................................................................................6
Keys Area...................................................................................................................................................................................................7
AKS Modes Area........................................................................................................................................................................................7
Operating Modes Area ...............................................................................................................................................................................7
General Area..............................................................................................................................................................................................8
Low Power/Sync/Sleep Mode Area............................................................................................................................................................8
Other Options.............................................................................................................................................................................................8
4
4.1
4.2
E1106 Control Board Assembly Details ................................................................................. 9
Circuit Diagram ..............................................................................................................................................................................9
E1106 Control Board Assembly Components .............................................................................................................................10
5
Troubleshooting..................................................................................................................... 12
List of Figures
Figure 1: E1106 Evaluation Assemblies and Control Board ............................................................................................................................................3
Figure 2: E1106 Connections...........................................................................................................................................................................................4
Figure 3: QT1106 Main Window.......................................................................................................................................................................................5
Figure 4: QT1106 Setup Dialog Box ................................................................................................................................................................................5
Figure 5: E1106 Circuit Diagram ......................................................................................................................................................................................9
Figure 6: E1106 Control Board Assembly Details..........................................................................................................................................................10
Figure 7: QWheel Assembly Details Figure 8: QSlide Assembly Details..................................................................................................................10
List of Tables
Table 1: QT1106 IC, 32-QFN (U3) .................................................................................................................................................................................11
2 of 14
E1106 User Manual
1
1.1
E1106 Overview
Introduction
This kit is designed for the evaluation and development of applications using the QT1106 IC. The
kit includes evaluation assemblies (E1106 – see
Figure 1),
cables and QT1106 Demo software.
Each E1106 assembly has a serial (USB) interface allowing connection to a computer for control
and data viewing via QT1106 Demo computer software.
This unique IC allows designers to create speed or volume controls, using a wheel/slider and keys
as the interface on the panel of an appliance or personal electronic device.
Refer also to the QT1106 datasheet.
1.2
Contents of Kit
1 x E1106 control board
1 x E1106 QWheel assembly
1 x E1106 QSlide assembly
1 x USB-computer cable
2 x sample QT1106 ICs
1 x CD-ROM containing information about the QT1106, including QT1106 Demo software
(revision 7.2 or later) and documentation
E1106 QWheel
Assembly
E1106 Control Board

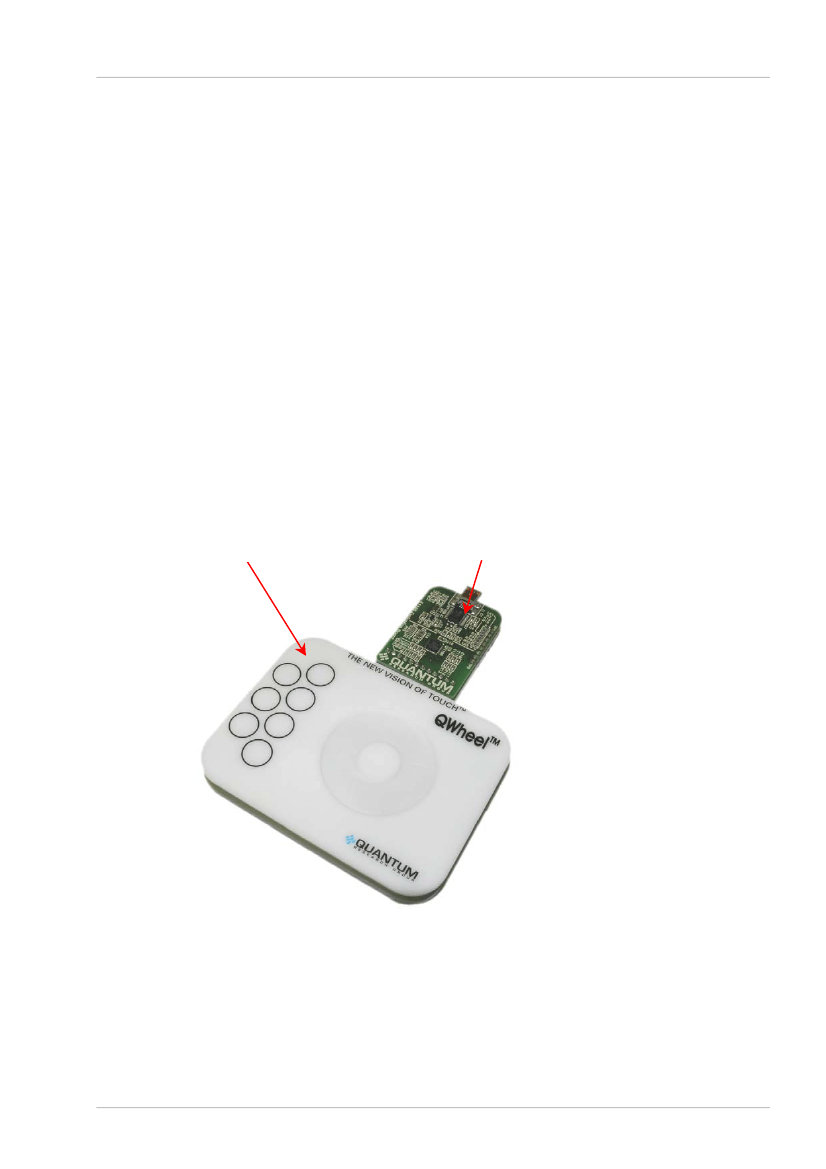

Figure 1: E1106 Evaluation Assemblies and Control Board
3 of 14
E1106 User Manual
2
Setting Up the E1106
To prepare the E1106 for use, proceed as follows:

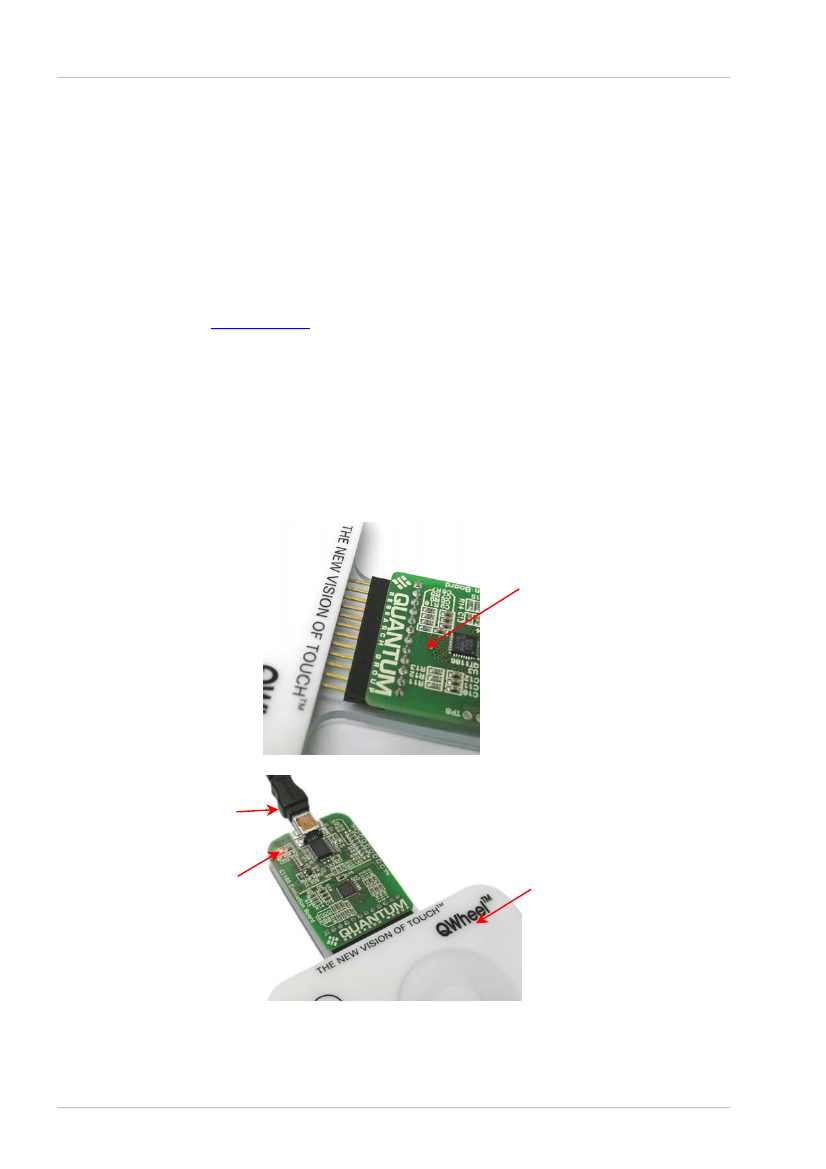

1. Connect the E1106 control board to the QWheel or QSlide evaluation assembly, ensuring
correct orientation of the connector (see
Figure 2).
2. Using the USB cable provided, connect the E1106 control board to the computer (see
Figure 2).
The LED on the E1106 is lit constantly to indicate that there is power to the board.
3. Install the QT1106 Demo software; either method is acceptable:
a. Put the supplied CD in the CD drive of the computer. Copy the contents of the CD to the
computer. Double-click the QT1106 Demo software to open it.
OR
b. Go to
www.qprox.com,
point to the
Support
tab and click
Download Archive.
Click
Software
and then the
QT1106 Demo
link. A dialog box appears asking if you want to run
or save the file that you are about to download. Click
Run.
This automatically downloads
the software.
If a dialog box appears saying “The publisher could not be verified. Are you sure you want
to run this software?” click
Run.
4. QT1106 Demo software is displayed on the computer monitor (see
Figure 3, page 5).
Note:
the E1106 QWheel and QSlide assemblies are supplied with a grounded transparent
backplate that allows the assemblies to be operated while being handheld, without requiring
recalibration. The backplate can be removed if required.
Control board
should be
component
side up.
Connecting the E1106 Control Board to the E1106 QWheel or QSlide
USB cable to computer
LED
QWheel
Assembly
Connections between the E1106 Control Board and computer
Figure 2: E1106 Connections
4 of 14
E1106 User Manual
3
3.1
QT1106 Demo Software
Introduction
QT1106 Demo software is used with the E1106 evaluation assembly. With QT1106 Demo software
you can send commands and see the effect that changing parameters has (see
Section 3.2
onwards).
Numerical Indicator
Shows the numerical equivalent
of the last reported touch position
(see Page 6)
Wheel/Slider Indicator
Shows the last reported
touch position
(see Page 6)
Key 6 is shown
being touched.
Cal All Keys:
Calibrates all the keys
simultaneously
(see Page 6)
Cal Wheel/Slider:
Calibrates the
wheel/slider
(see Page 6)
Setup:
Accesses the Setup
parameters
(see Page 6)
Keys Indicators:
Shows which key is
being touched and
also allows each
key to be calibrated
individually
(see Page 6)
Exit:
Closes the QT1106
Demo software
(see Page 6)
Connection:
Connection indicator (green) is constant when
the E1106 is connected to the computer,
flickering when it is not (see Page 6)

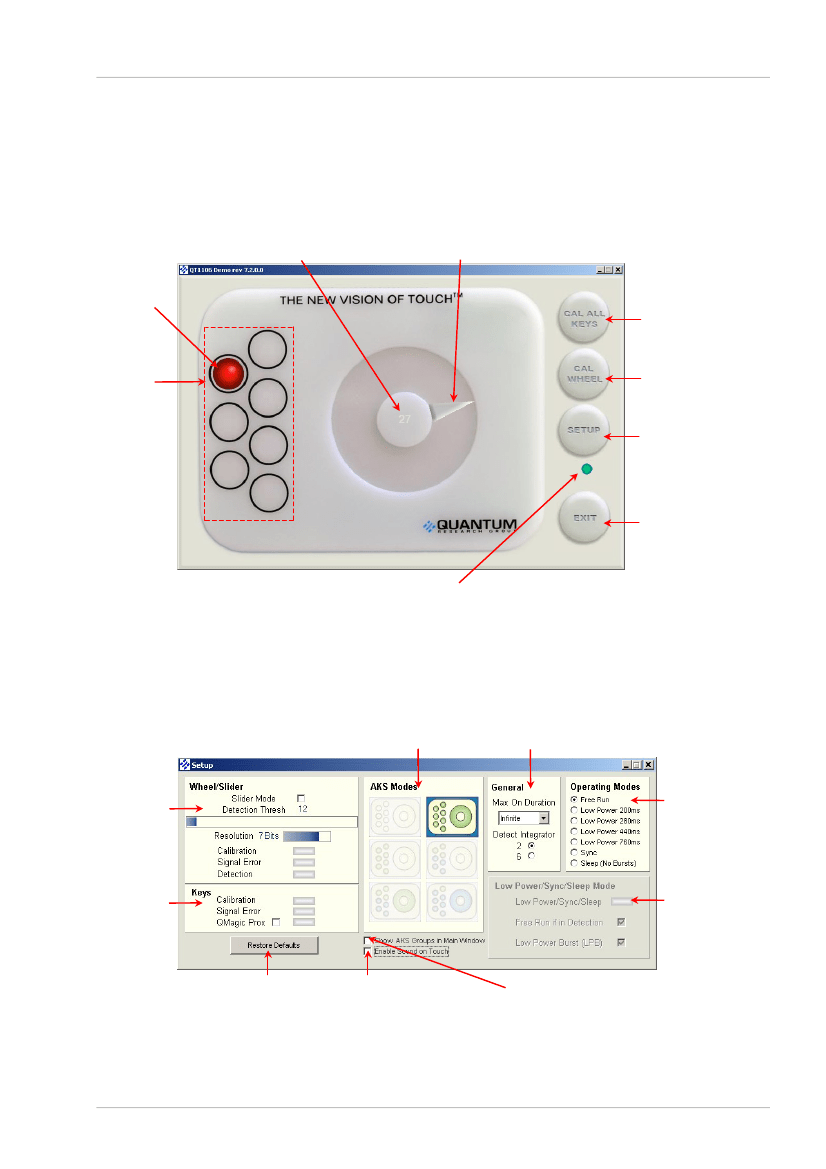

Figure 3: QT1106 Main Window
AKS Modes:
(see Page 7)
Wheel/Slider:
Slider Mode
Detection Thresh
Resolution
Calibration
Signal Error
Detection
(see Page 6)
Keys:
Calibration
Signal Error
QMagic Prox
(see Page 7)
General:
Max On Duration Detect Integrator
(see Page 7)
Operating
Modes:
(see Page 7)
Low Power/Sync
/Sleep Mode:
Enables parameters for
these modes
(see Page 8)
Restore Defaults:
Restores the default
parameters
(see Page 8)
Enable/disable sound
when wheel/slider or keys
are touched
(see Page 8)
Enable/disable to show the
AKS groups in the main
window
(see Page 8)
Figure 4: QT1106 Setup Dialog Box
5 of 14
