241-4-12A12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 241-4-12A12

241-4-12A12: DescriptionXFRMR LAMINATED 6VA CHAS MOUNT; CategoryPower management transformer; File Size100KB，1 Pages; ManufacturerPulse Electronics Power

Download Datasheet Parametric View All

241-4-12A12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	241-4-12A12	-	-	View	Buy Now

241-4-12A12 Overview

XFRMR LAMINATED 6VA CHAS MOUNT

241-4-12A12 Parametric

Parameter Name	Attribute value
type	laminated core
Voltage - Primary	115V
Voltage - Secondary (full load)	12.6V
Current - Output (maximum)	500mA
primary winding	single
secondary winding	single
center tap	yes
Power - Max	6 VA
Installation type	Base installation
Terminal type	Welding, quick connection
size/dimensions	60.45mm length x 35.05mm width
Height - Installation (maximum)	31.75mm
Voltage - Isolation	2500Vrms
weight	0.44 lbs (199.58g)

Preview

Download Datasheet

View All

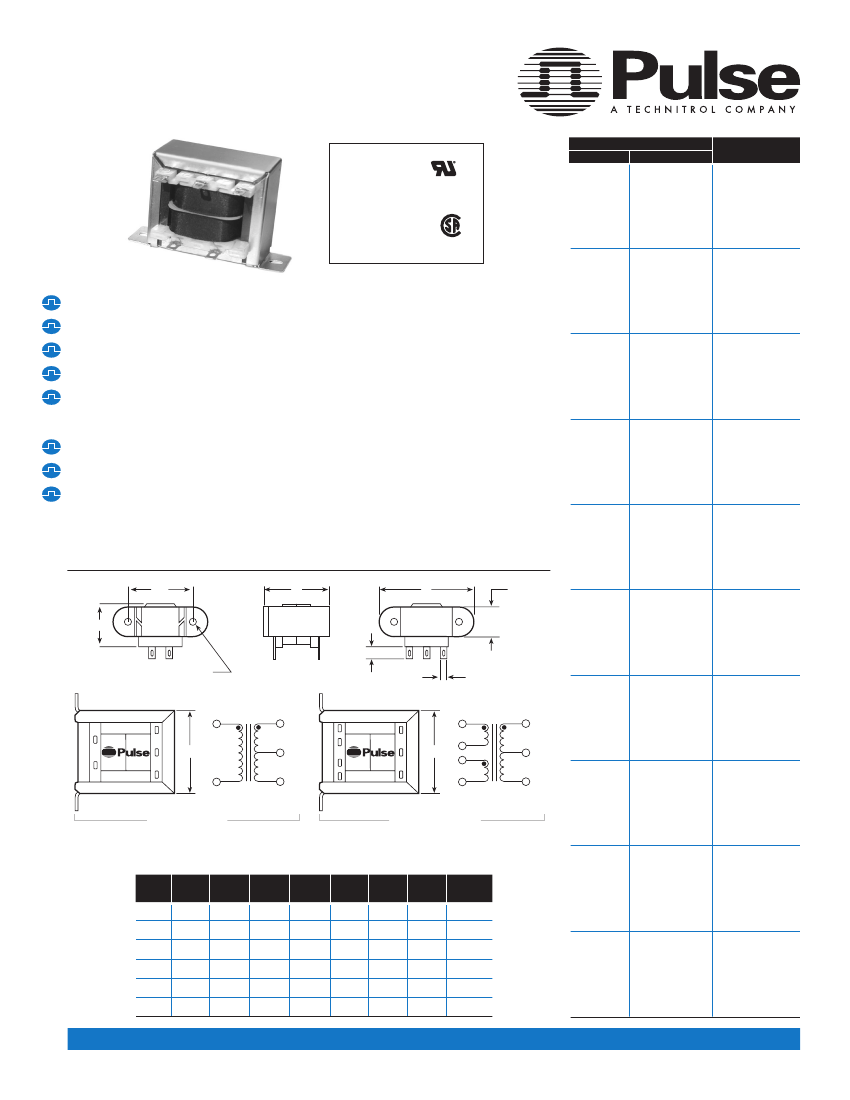

LaminateD transformers

Low Frequency, Open-Style Laminated,

Chassis-Tran Series

AgeNCy

APPROVALS

UL, 506, File E73539

UL 1446, File E179499

CSA 22.2#66,

File LR68051-2

UL Recognized Class B

Part Number

Single 115V

Dual 115/230V

241-3-10A1

(not available)

241-4-10A11

DP 241-4-10A11

241-5-10A21

DP 241-5-10A21

241-6-10A31

DP 241-6-10A31

241-7-10A41

DP 241-7-10A41

241-8-10A51

DP 241-8-10A51

241-3-12A2

(not available)

241-4-12A12

DP 241-4-12A12

241-5-12A22

DP 241-5-12A22

241-6-12A32

DP 241-6-12A32

241-7-12A42

DP 241-7-12A42

241-8-12A52

DP 241-8-12A52

241-3-16A3

(not available)

241-4-16A13

DP 241-4-16A13

241-5-16A23

DP 241-5-16A23

241-6-16A33

DP 241-6-16A33

241-7-16A43

DP 241-7-16A43

241-8-16A53

DP 241-8-16A53

241-3-20A4

(not available)

241-4-20A14

DP 241-4-20A14

241-5-20A24

DP 241-5-20A24

241-6-20A34

DP 241-6-20A34

241-7-20A44

DP 241-7-20A44

241-8-20A54

DP 241-8-20A54

241-3-24A5

(not available)

241-4-24A15

DP 241-4-24A15

241-5-24A25

DP 241-5-24A25

241-6-24A35

DP 241-6-24A35

241-7-24A45

DP 241-7-24A45

241-8-24A55

DP 241-8-24A55

241-3-28A6

(not available)

241-4-28A16

DP 241-4-28A16

241-5-28A26

DP 241-5-28A26

241-6-28A36

DP 241-6-28A36

241-7-28A46

DP 241-7-28A46

241-8-28A56

DP 241-8-28A56

241-3-36A7

(not available)

241-4-36A17

DP 241-4-36A17

241-5-36A27

DP 241-5-36A27

241-6-36A37

DP 241-6-36A37

241-7-36A47

DP 241-7-36A47

241-8-36A57

DP 241-8-36A57

241-3-48A8

(not available)

241-4-48A18

DP 241-4-48A18

241-5-48A28

DP 241-5-48A28

241-6-48A38

DP 241-6-48A38

241-7-48A48

DP 241-7-48A48

241-8-48A58

DP 241-8-48A58

241-3-56A9

(not available)

241-4-56A19

DP 241-4-56A19

241-5-56A29

DP 241-5-56A29

241-6-56A39

DP 241-6-56A39

241-7-56A49

DP 241-7-56A49

241-8-56A59

DP 241-8-56A59

241-3-120A10

(not available)

241-4-120A20 DP 241-4-120A20

241-5-120A30 DP 241-5-120A30

241-6-120A40 DP 241-6-120A40

241-7-120A50 DP 241-7-120A50

241-8-120A60 DP 241-8-120A60

Secondary

RMS Rating

10V C.T. @ 0.25A

10V C.T. @ 0.6A

10V C.T. @ 1.2A

10V C.T. @ 3.0A

10V C.T. @ 5.0A

10V C.T. @ 10A

12.6V C.T. @ 0.2A

12.6V C.T. @ 0.5A

12.6V C.T. @ 1.0A

12.6V C.T. @ 2.5A

12.6V C.T. @ 4.0A

12.6V C.T. @ 8.0A

16V C.T. @ 0.15A

16V C.T. @ 0.4A

16V C.T. @ 0.8A

16V C.T. @ 2.0A

16V C.T. @ 3.5A

16V C.T. @ 6.25A

20V C.T. @ 0.12A

20V C.T. @ 0.3A

20V C.T. @ 0.6A

20V C.T. @ 1.5A

20V C.T. @ 2.8A

20V C.T. @ 5.0A

24V C.T. @ 0.1A

24V C.T. @ 0.25A

24V C.T. @ 0.5A

24V C.T. @ 1.25A

24V C.T. @ 2.4A

24V C.T. @ 4.0A

28V C.T. @ 0.085A

28V C.T. @ 0.2A

28V C.T. @ 0.42A

28V C.T. @ 1.1A

28V C.T. @ 2.0A

28V C.T. @ 3.6A

36V C.T. @ 0.065A

36V C.T. @ 0.17A

36V C.T. @ 0.35A

36V C.T. @ 0.85A

36V C.T. @ 1.5A

36V C.T. @ 2.8A

48V C.T. @ 0.05A

48V C.T. @ 0.125A

48V C.T. @ 0.25A

48V C.T. @ 0.63A

48V C.T. @ 1.2A

48V C.T. @ 2.0A

56V C.T. @ 0.045A

56V C.T. @ 0.11A

56V C.T. @ 0.22A

56V C.T. @ 0.54A

56V C.T. @ 1.0A

56V C.T. @ 1.8A

120V C.T. @ 0.02A

120V C.T. @ 0.05A

120V C.T. @ 0.1A

120V C.T. @ 0.25A

120V C.T. @ 0.5A

120V C.T. @ 0.85A

Channel frame mounting

Split bobbin. High isolation (2500V). 2500VRMS Hipot

Non-concentric design - eliminates ESS

No crossover between primary/secondary winding leads

Vacuum impregnated - withstands board washing

systems and reduces audible noise

Baked resin provides environmentally-resistant finish

Center tapped secondary offers dual outputs

Terminals suitable for either hard wiring or quick connect

mechanicals

½½

½½½½

½½½½½½½½½½½½½½½½½½½½½½

½½½½

schematics

½½

½½½½½½½½½½½

½½

½½½½½½½½½½½½½

Dimensions (inches)

Size

2.4

100

2.06

2.38

2.81

3.25

3.69

4.03

1.06

1.25

1.38

1.69

1.81

2.25

1.19

1.38

1.63

1.94

2.25

2.56

1.62

1.69

1.94

2.31

2.69

3.06

0.56

0.69

0.81

1.06

1.31

1.75

2.00

2.38

2.81

3.13

3.56

Wt.

(lb.)

0.25

0.44

0.70

1.10

1.70

2.75

USA 858 674 8100

●

Germany 49 7032 7806 0

●

Singapore 65 6287 8998

●

Shanghai

86 21 54643211 / 2

●

China 86 769 85538070

●

Taiwan 886 3 4641811

www.pulseeng.com
