BX2483WNLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> BX2483WNLT

BX2483WNLT: DescriptionXFRMR ADSL FOR BROADCOM CPE CHIP; CategoryPower/power management; File Size56KB，1 Pages; ManufacturerPulse Electronics Network; Environmental Compliance

Download Datasheet Parametric Compare View All

BX2483WNLT Overview

XFRMR ADSL FOR BROADCOM CPE CHIP

BX2483WNLT Parametric

Parameter Name	Attribute value
Transformer type	ADSL
inductance	410µH
Energy Time (ET)	-
Turns Ratio - Primary:Secondary	2 ：1
Installation type	surface mount
size/dimensions	0.525" long x 0.555" wide (13.34mm x 14.10mm)
Height - Installation (maximum)	0.485"（12.32mm）
Operating temperature	-40°C ~ 85°C
weight	0.22 oz (6.27g)

Preview

Download Datasheet

View All

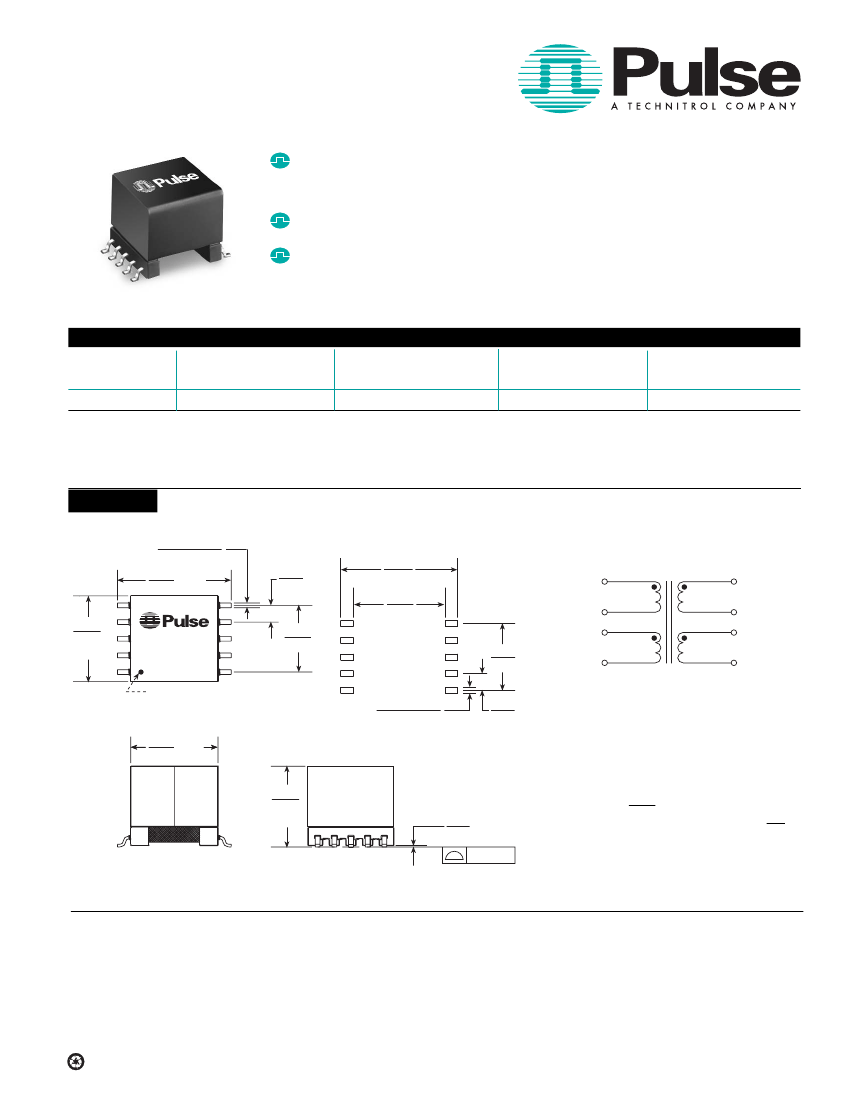

ADSL LINE TRANSFORMERS

For Broadcom ADSL CPE Chipsets

Matched to Broadcom 6345 and 6335 chipsets

with 12V line driver

Excellent THD performance in a small footprint

Designed to meet UL1950 and EN60950

supplementary insulation requirements

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

Part

Number

BX2483W

Turns Ratio

Ratio

(Line:Chip)

2:1

OCL

Primary

(µH ±5%)

409.5

Isolation

Voltage

(Vrms)

1500

THD @ 30kHz,

4.5Vp-p

(dB MAX)

-85

NOTE:

Optional Tape & Reel packaging can be ordered by adding a

"T"

suffix to the part number (ex: BX2483WT).

Mechanical

BX2483W

10 X .028

± .005

0,71

± 0,13

.695

17,65 MAX

.525

13,34

MAX

Schematic

.098

2,50

.394

10,00

.715

18,16

.526

13,36

.394

10,00

10 X .048

± .005

1,22

± 0,13

.098

2,50

Line

Chip

Date Code

Country of Origin

BX2483W

Note:

Pin 1 is as marked. Pin numbers increment

sequentially clockwise around the part.

.555

14,10MAX

.485

12,32

MAX

.004 MIN

0,10

.005/0,13

10 SURFACES

Weight

. . . . . . . . . . . . . .6.2 grams

Tape & Reel

. . . . . . . . . . . .150/reel

Tray

. . . . . . . . . . . . . . . . . . .60/tray

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

For More Information :

UNITED STATES

(Worldwide)

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

http://www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

UNITED KINGDOM

(Northern Europe)

1 & 2 Huxley Road

The Surrey Research Park

Guildford, Surrey GU2 5RE

United Kingdom

TEL: 44 1483 401700

FAX: 44 1483 401701

FRANCE

SINGAPORE

(Southern Europe) (Southern Asia)

Zone Industrielle

F-39270

Orgelet

France

TEL: 33 3 84 35 04 04

FAX: 33 3 84 25 46 41

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

TEL: 65 6287 8998

FAX: 65 6280 0080

TAIWAN, R.O.C.

(Northern Asia)

3F-4, No. 81, Sec. 1

HsinTai Wu Road

Hsi-Chih, Taipei Hsien

Taiwan, R.O.C.

Tel: 886 2 2698 0228

FAX: 886 2 2698 0948

HONG KONG

(China/Hong Kong)

9/F, Phase 2, Tai Sang

Shatin Warehouse Centre

6 Wong Chuk Yeung Street

Fotan, Shatin, Hong Kong

TEL: 852 2788 6588

FAX: 852 2776 1055

DISTRIBUTOR

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

B847.A (12/03)
