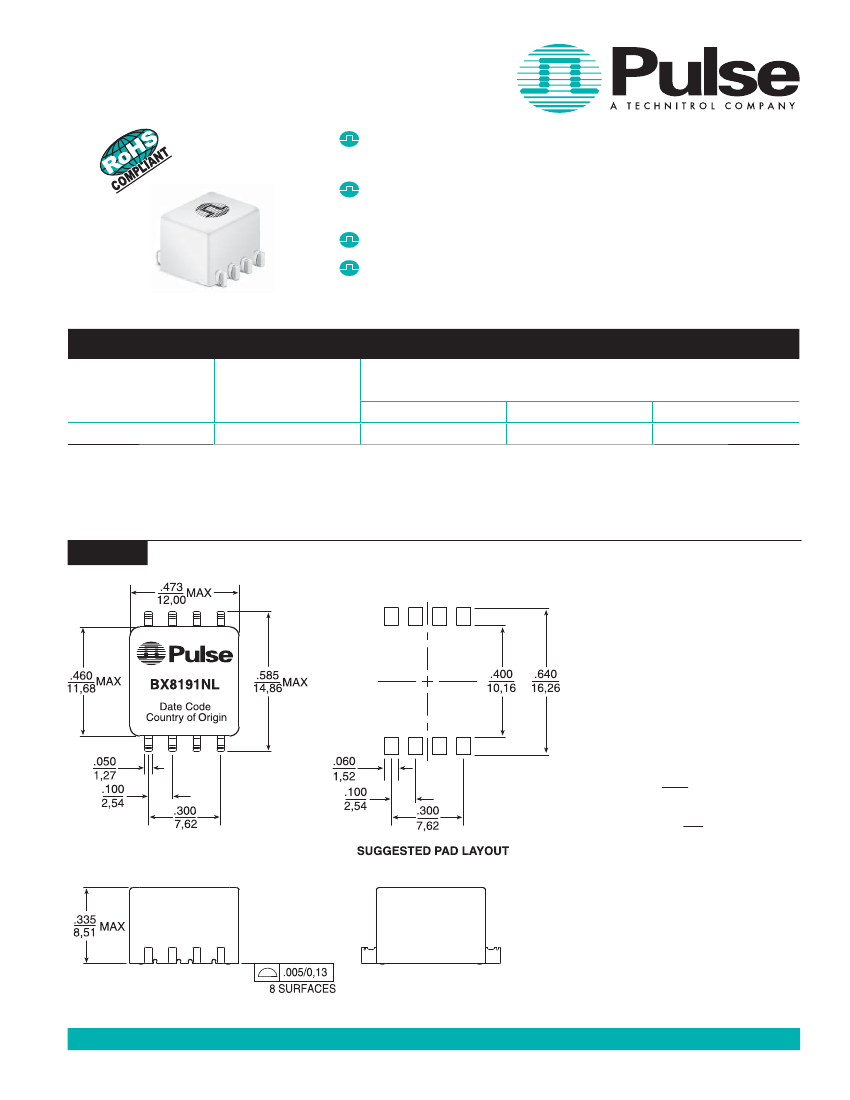

COMMON MODE CHOKE
Designed for ADSL2+ Applications
Optimized for the enhanced EMI performance required
by today’s high frequency ADSL2+ technology
Cost effective construction with Pulse SLIC
patented technology
Low inter-winding capacitance
Excellent common mode attenuation helps systems
to meet FCC and other EMI standards
Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C
Part
Number
BX8191NL
Number
of Lines
30 kHz
2
30
Common Mode Attenuation
(dB TYP)
1 MHz
51
2 MHz
45
NOTE:
Parts are shipped in trays unless Tape & Reel packaging is specified by adding the suffix “T” to the part number
(i.e. BX8191NLT).
Mechanical
BX8191NL
Weight
. . . . . . . . . . . 2.0 grams
Tape & Reel
. . . . . . . . 250/reel
Tube
. . . . . . . . . . . . . . . 40/tube
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
USA 858 674 8100
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai
86 21 62787060
China 86 755 33966678
Taiwan 886 3 4643715
www.pulseeng.com
1
B824.B (4/10)
COMMON MODE CHOKE
Designed for ADSL2+ Applications
Schematic
BX8191NL
For More Information:
Pulse Worldwide
Headquarters
12220 World Trade Dr.
San Diego, CA 92128
U.S.A.
www.pulseeng.com
Tel: 858 674 8100
Fax: 858 674 8262
Pulse Europe
Einsteinstrasse 1
D-71083 Herrenberg
Germany
Pulse China Headquarters
B402, Shenzhen Academy of
Aerospace Technology Bldg.
10th Kejinan Rd.
High-Tech Zone
Nanshan District
Shenzen, PR China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 2704/2705
Super Ocean Finance Ctr.
2067 Yan An Rd. West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia
135 Joo Seng Rd.
#03-02
PM Industrial Bld g.
Singapore 368363
Pulse North Asia
3F, No. 198
Zhongyuan Rd.
Zhongli City
Taoyuan County 320
Taiwan R. O. C.
Tel: 886 3 4356768
Fax: 886 3 4356823
(Pulse)
Fax: 886 3 4356820
(FRE)
Tel: 49 7032 7806 0
Fax: 49 7032 7806 135
Tel: 65 6287 8998
Fax: 65 6287 8998
