Section 1
Introduction
1.1
SAM3S Evaluation Kit
The SAM3S Evaluation Kit (SAM3S-EK) enables evaluation capabilities and code development of appli-
cations running on a SAM3S4C device.
1.2
User Guide
This guide focuses on the SAM3S-EK board as an evaluation platform. It is made up of 6 sections:
Section 1 includes references, applicable documents, acronyms and abbreviations.
Section 2 describes the kit contents, its main features and specifications.
Section 3 provides board specifications.
Section 4 describes the development environment.
Section 5 provides instructions to power up the SAM3S-EK and describes how to use it.
Section 6 describes the hardware resources, default jumper and switch settings, and connectors.
Section 7 provides schematics.
Section 8 describes the troubleshooting.
1.3
References and Applicable Documents
Table 1-1.
References and Applicable Documents
Title
SAM3S Datasheet
Comment
http://www.atmel.com/dyn/products/datasheets.asp?family_id=605#2127
SAM3S-EK Development Board User Guide
1-1
11031C–ATARM–30-Mar-11
Section 2
Kit Contents
2.1
Deliverables
The Atmel
®
SAM3S-EK toolkit contains the following items:
Board:
– a SAM3S-EK board
– a universal input AC/DC power supply with US, Europe and UK plug adapters
Cables:
– one USB cable
– one serial RS232 cable
A Welcome Letter

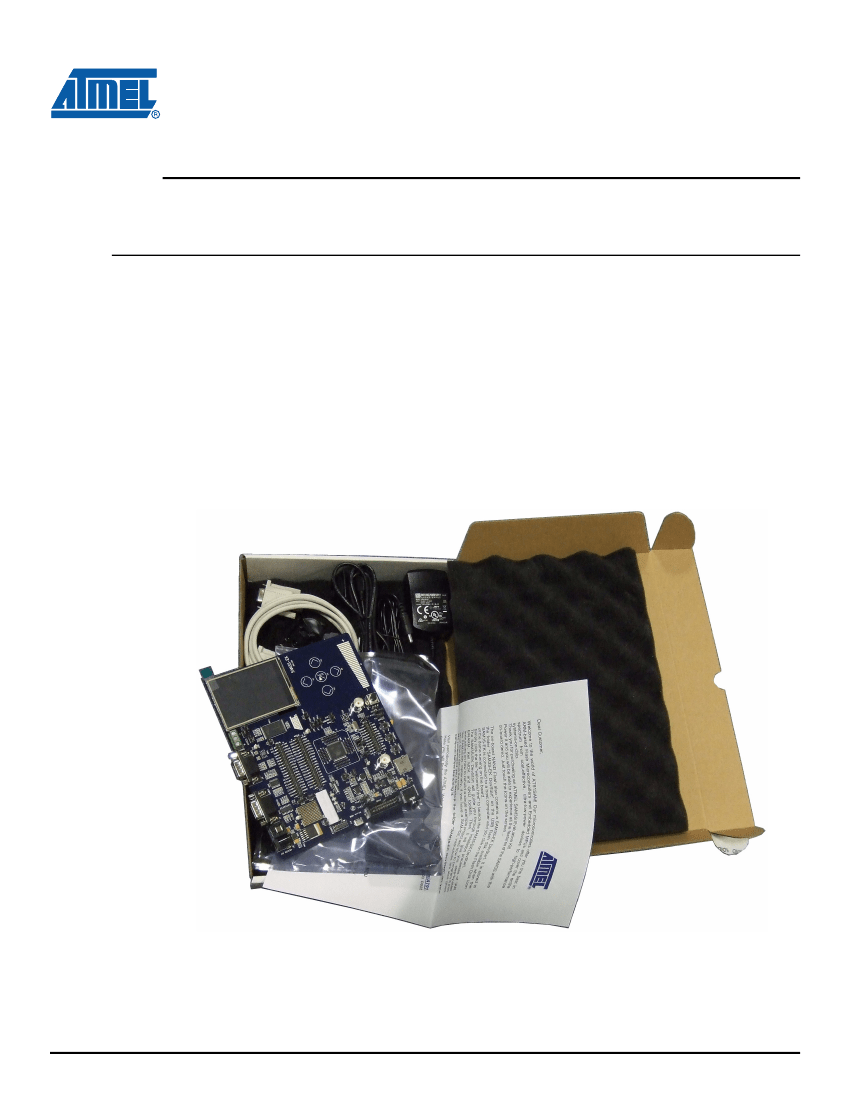

Figure 2-1.
Unpacked SAM3S-EK
Unpack and inspect the kit carefully. Contact your local Atmel distributor, should you have issues con-
cerning the contents of the kit.
SAM3S-EK Development Board User Guide
2-1
11031C–ATARM–30-Mar-11
