1.5SMC400C datasheet, PDF - EEWORLD Datasheet

1.5SMC400C: DescriptionTrans Voltage Suppressor Diode, 1500W, 324V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size236KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric View All

1.5SMC400C Overview

Trans Voltage Suppressor Diode, 1500W, 324V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN

Parameter Name	Attribute value
Parts packaging code	DO-214AB
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum breakdown voltage	440 V
Minimum breakdown voltage	360 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	BIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	324 V
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

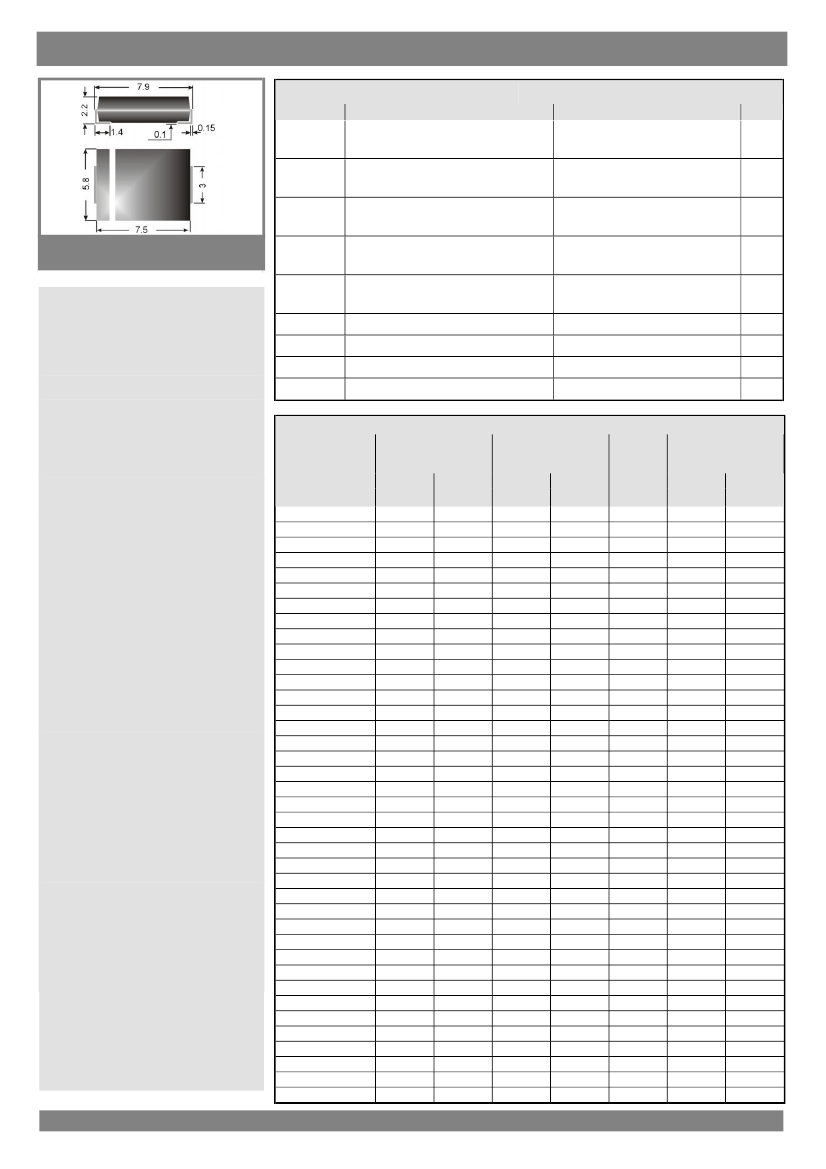

1,5 SMC 6,8 ... 1,5 SMC 400CA

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Surface mount diode

Unidirectional and

Bidirectional Transient

Voltage Suppressor

diodes

1,5 SMC 6,8 ... 1,5 SMC400CA

Pulse Power

Dissipation: 1500 W

Stand-off

voltage: 5,5 ... 356 V

Features

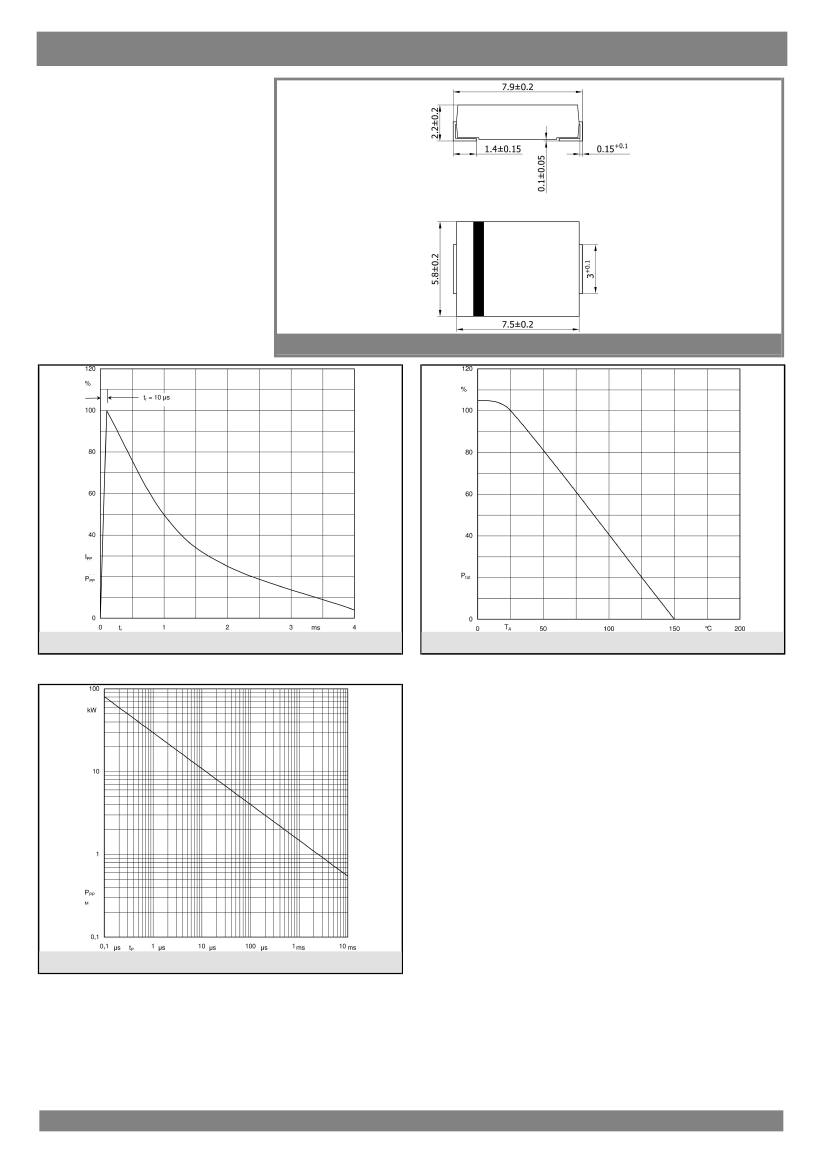

Mechanical Data

1)

2)

3)

4)

1

04-09-2009 MAM
