162-43250-3004R

Description
Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
CategoryThe connector    The connector
File Size68KB,1 Pages
ManufacturerThomas & Betts Corporation
Websitehttp://www.tnb.com/
Download Datasheet Parametric View All

162-43250-3004R Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

162-43250-3004R Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Other featuresSTANDARD: DIN 41612
Connector typeBOARD EURO CONNECTOR
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderMALE
DIN complianceYES
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number16
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts32
UL Flammability Code94V-0
Base Number Matches1

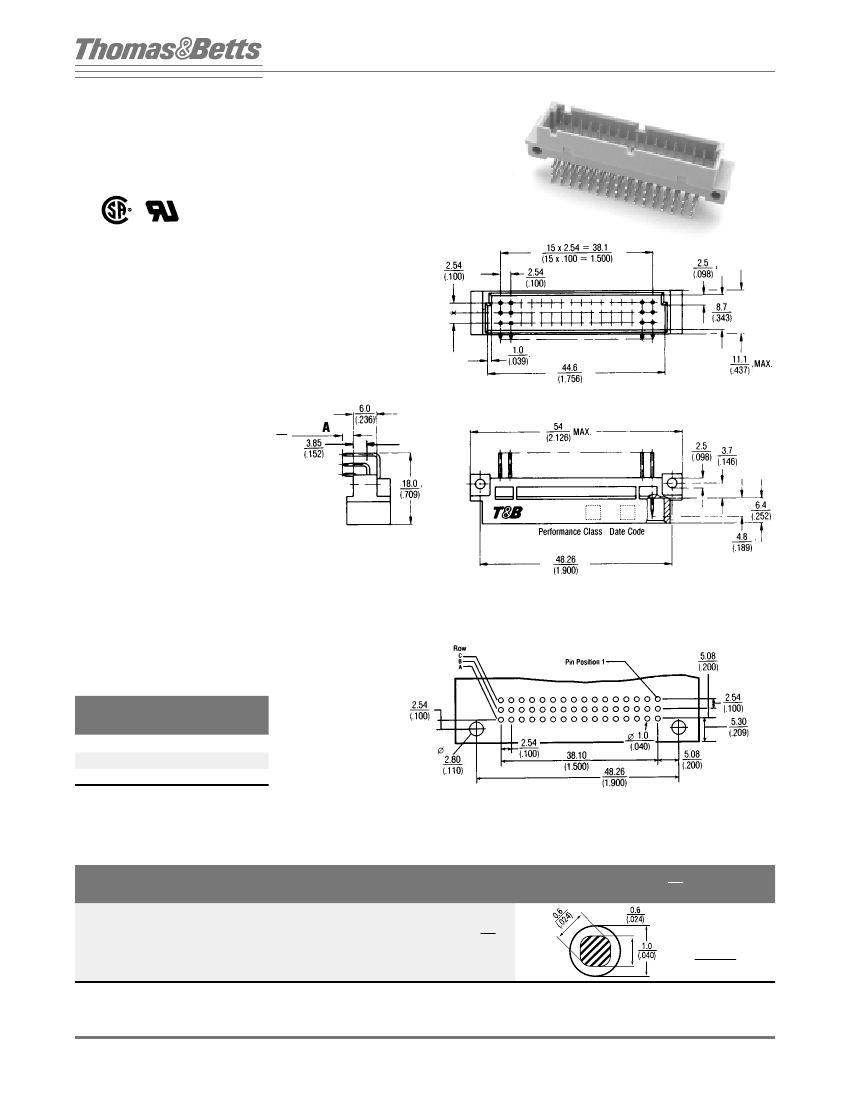

Two–Piece Connectors
Standard DIN
TYPE C/2
MALE CONNECTOR
SERIES 16
LR92984
E60980
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
Glass filled thermoplastic
rated UL 94V-0
C
OLOR
:
Gray
C
ONTACTS
:
Copper alloy, nickel plate overall,
gold finish in contact zone. Tin/lead on solder
tails, tin/lead or gold on posts.
E
LECTRICAL
P
ROPERTIES
C
URRENT
R
ATING
:
2 Amps per pin
I
NSULATION
R
ESISTANCE
:
>1 x 10
9
0hms
D
IELECTRIC
S
TRENGTH
:
> 500 VDC at sea level
E
NVIRONMENTAL
P
ROPERTIES
T
EMPERATURE
R
ATING
:
-55˚C TO 125°C
Extended length contacts available.
Consult factory for details.
2.9
(.114)
Recommended Printed Circuit Board Layout
X
1
8
4
PERFORMANCE LEVEL
level 1 - 500 mating cycles
level 2 - 400 mating cycles
level 3 - 50 mating cycles
Ordering Information
NO. OF CONTACTS
CONTACT LOADING
CATALOG NO.
SPECIFY X
161-43250-300X
161-44830-300X
A = 2.9
(.114)
TERMINATION STYLE
MM
(INCHES)
32
48
a, c
a, b, c
1, 2, 3–16
1, 2, 3–16
Solder Post
0.6 x 0.6
(.024 x .024)
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters (inches).
