CLD-DS05 Rev 16F
Product family data sheet
Cree
®
XLamp
®
XR-E LED
PRoDuCt DEsCRiPtion
The XLamp
®
XR-e LeD is leading the LeD
lighting revolution with its unprecedented
lighting-class
brightness,
efficacy,
lifetime and quality of light. These
lighting-class features enable the XLamp
XR-E LED to replace many traditional
light sources and save money with
energy-efficient light and long lifetimes.
Cree
XLamp
LeDs
bring
high
FEAtuREs
•
Available in white (2600 K to
10,000 K CCT), blue, royal blue and
green
•
•
•
•
•
•
•
Maximum drive current: up to
1000 mA
Maximum junction temperature:
150 °C
Industry-leading JEDEC standard
pre-qualification testing
Reflow solderable – JEDEC
J-STD-020C compatible
Electrically neutral thermal path
RoHS and ReACh compliant
UL
®
recognized component
(E349212)
tAbLE oF ContEnts
Characteristics
............................................2
Flux Characteristics - White
........................3
Flux Characteristics - Color
........................4
Relative Spectral Power Distribution
.........5
Relative Flux vs. Junction Temperature.....6
electrical Characteristics
............................7
Relative Flux vs. Current .............................7
Typical Spatial Distribution.........................8
Thermal design
...........................................8
Reflow Soldering Characteristics ...............9
Notes
........................................................
10
Mechanical Dimensions
..........................
12
Tape and Reel
...........................................
13
Packaging
.................................................
14
performance and quality of light to a wide
range of lighting applications, including
color-changing lighting, portable and
personal lighting, outdoor lighting, indoor
directional lighting, commercial lighting
and emergency-vehicle lighting.
www.CRee.Com/XLAmp
Copyright © 2006-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are
registered trademarks and the Cree logo is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
XLamp
®
XR-E LED
ChARACtERistiCs
Characteristics
Thermal Resistance, junction to solder point
Viewing Angle (FWHM) - white
Viewing Angle (FWHM) - royal blue, blue, green
Temperature Coefficient of Voltage - white, royal blue, blue, green
ESD Classification (HBM per Mil-Std-883D)
DC Forward Current - white ≥ 5000 K, royal blue, blue
DC Forward Current - white < 5000 K, green
DC Pulse Current (@ 1 kHz, 10% duty cycle)
Reverse voltage
Forward Voltage (@ 350 mA)
Forward Voltage (@ 700 mA)
Forward Voltage (@ 1000 mA) - white ≥ 5000 K, royal blue, blue
LED Junction Temperature
mA
mA
A
v
v
v
v
°C
3.3
3.5
3.7
150
unit
°C/W
degrees
degrees
mV/°C
Minimum
typical
8
90
100
-4.0
Class 2
1000
700
1.8
5
3.9
Maximum
Copyright © 2006-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
2
XLamp
®
XR-E LED
FLuX ChARACtERistiCs - WhitE (t
J
= 25 °C)
The following tables describe the available colors and flux for XR-E LEDs by listing the correlated color temperature or dominant wavelength
range for the entire family and by providing several base order codes. It is important to note that the base order codes listed here are a
subset of the total available order codes for the product family. For more order codes, as well as a complete description of the order-code
nomenclature, please consult the XR Family Binning and Labeling document.
CCt Range
Minimum
Maximum
Minimum Luminous Flux
Group
P4
Q2
Cool White
5000 K
10,000 K
Q3
Q4
Q5
R2
P3
P4
Neutral
White
3700 K
5000 K
Q2
Q3
Q4
N3
N4
Warm White
2600 K
3700 K
P2
P3
P4
Flux (lm)
80.6
87.4
93.9
100
107
114
73.9
80.6
87.4
93.9
100
56.8
62.0
67.2
73.9
80.6
Color
order Code
XReWHT-L1-0000-00901
XReWHT-L1-0000-00A01
XREWHT-L1-0000-00B01
XReWHT-L1-0000-00C01
XReWHT-L1-0000-00D01
XReWHT-L1-0000-00e01
XReWHT-L1-0000-008e4
XReWHT-L1-0000-009e4
XReWHT-L1-0000-00Ae4
XREWHT-L1-0000-00BE4
XReWHT-L1-0000-00Ce4
XReWHT-L1-0000-005e7
XReWHT-L1-0000-006e7
XReWHT-L1-0000-007e7
XReWHT-L1-0000-008e7
XReWHT-L1-0000-009e7
Notes:
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and ±2 on
CRI measurements. See the Measurements section (page 10).
•
Typical CRI for Cool White & Neutral White (3700 K – 10,000 K CCT) is 75.
•
Typical CRI for Warm White (2600 K – 3700 K CCT) is 80.
Copyright © 2006-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
3
XLamp
®
XR-E LED
FLuX ChARACtERistiCs - CoLoR (t
J
= 25 °C)
The following tables describe the available colors and flux for XR-E LEDs by listing the correlated color temperature or dominant wavelength
range for the entire family and by providing several base order codes. It is important to note that the base order codes listed here are a
subset of the total available order codes for the product family. For more order codes, as well as a complete description of the order-code
nomenclature, please consult the XR Family Binning and Labeling document.
Dominant Wavelength Range
Color
Minimum
Group
DWL
(nm)
Maximum
Group
DWL
(nm)
Minimum Radiant
Flux (mW)
Group
13
Royal
Blue
D3
450
D5
465
14
15
Flux (mW)
300
350
425
XReROY-L1-0000-00801
XReROY-L1-0000-00901
XReROY-L1-0000-00A01
order Code
Dominant Wavelength Range
Color
Minimum
Group
Blue
B3
DWL
(nm)
465
Maximum
Group
B6
DWL
(nm)
485
Minimum Luminous
Flux (lm)
Group
J
K
Flux (lm)
23.5
30.6
order Code
XREBLU-L1-0000-00J01
XREBLU-L1-0000-00K01
Dominant Wavelength Range
Color
Minimum
Group
Green
G2
DWL
(nm)
520
Maximum
Group
G4
DWL
(nm)
535
Minimum Luminous
Flux (lm)
Group
P
Flux (lm)
67.2
order Code
XReGRN-L1-0000-00P01
Note: Cree maintains a tolerance of ±7% on flux and power measurements and ±1 nm on dominant wavelength measurements. See the
Measurements section (page 10).
Copyright © 2006-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
4
XLamp
®
XR-E LED

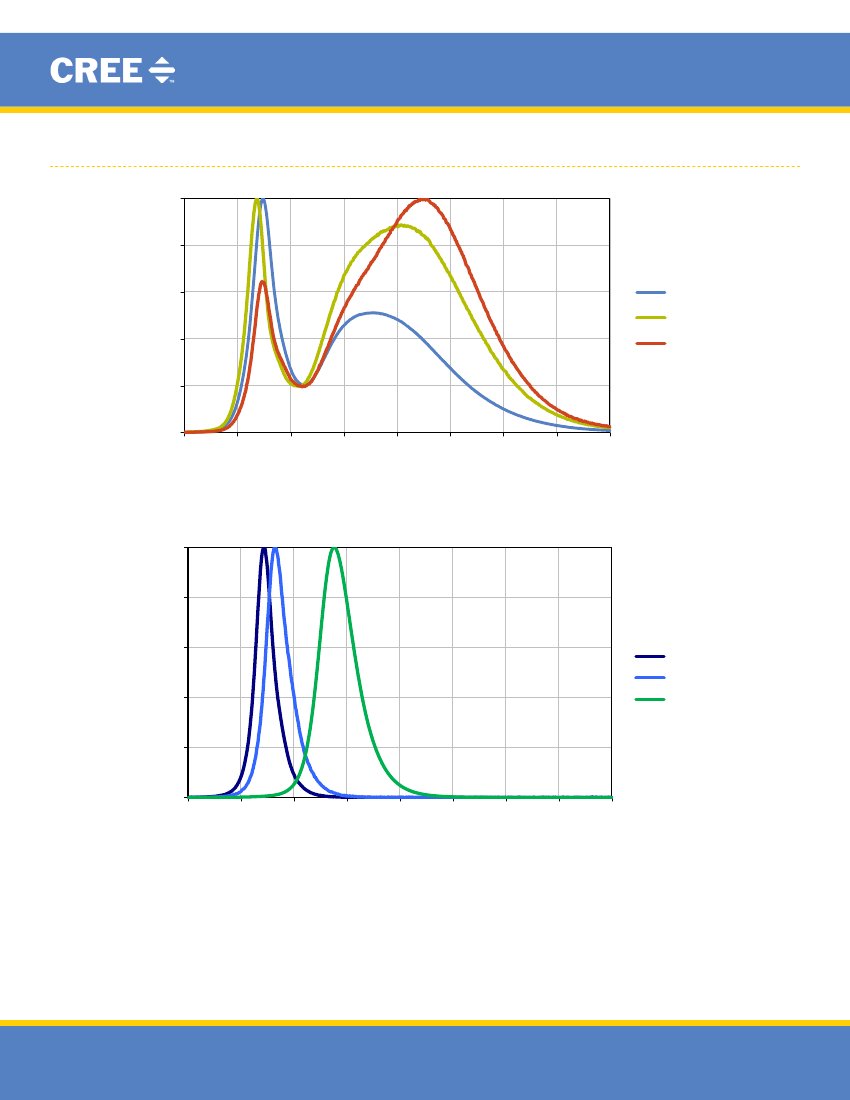

RELAtivE sPECtRAL PoWER DistRibution
100
Relative Spectral Power
Relative Radiant Power (%)
80
60
5000 K - 10000 K CCT
3700 K - 5000 K CCT
40
2600 K - 3700 K CCT
20
0
380
430
480
530
580
630
680
730
780
Wavelength (nm)
100
Relative Radiant Power (%)
80
60
Royal Blue
Blue
Green
40
20
0
380
430
480
530
580
630
680
730
780
Wavelength (nm)
Copyright © 2006-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
5
