DEMO MANUAL DC1493A
16-Bit Differential,
ΔΣ
ADC
with I
2
C Interface
DESCRIPTION
Demonstration circuit 1493A features the LTC
®
2463, a
16-bit high performance
ΔΣ
analog-to-digital converter
(ADC) with an I
2
C interface. The input is differential with a
range of ±REF The modulator’s proprietary sampling tech-
.
nique reduces the average input current to less than 50nA—
orders of magnitude lower than typical delta sigma
ADCs.
DC1493A is a member of Linear Technology’s QuikEval
family of demonstration boards. It is designed to allow easy
evaluation of the LTC2463 and may be connected directly
to the target application’s analog signals while using the
DC590 USB Serial Controller board and supplied software
to measure performance. The exposed ground planes allow
proper grounding to prototype circuitry. After evaluating
with Linear Technology’s software, the digital signals can
be connected to the end application’s processor/controller
for development of the serial interface.
Design files for this circuit board are available at
http://www.linear.com/demo
L,
LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
RIBBON CABLE TO
DC590 CONTROLLER
INPUT
DC1493 F01

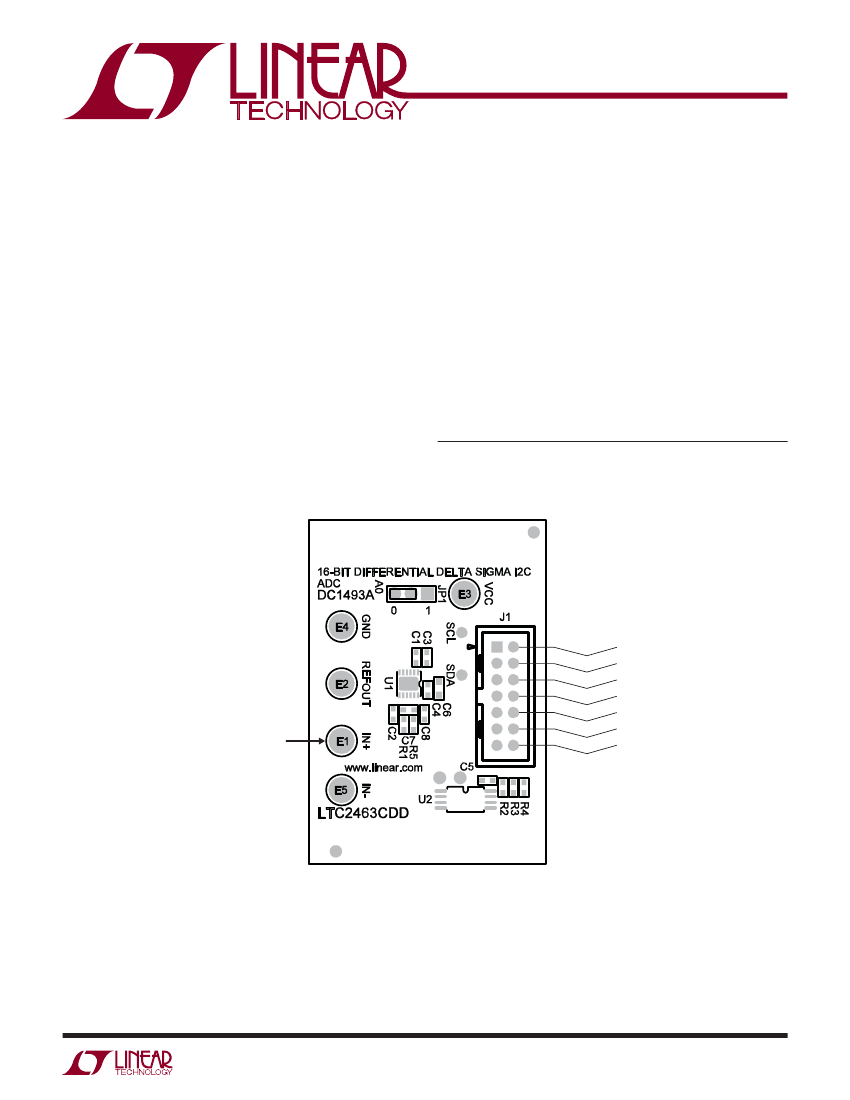

Figure 1. Proper Measurement Equipment Setup
dc1493af
1
DEMO MANUAL DC1493A
QUICK START PROCEDURE
Connect DC1493A to a DC590 USB Serial Controller using
the supplied 14-conductor ribbon cable. Connect DC590
to host PC with a standard USB A/B cable. Run the evalu-
ation software supplied with DC590 or downloaded from
http://www.linear.com/software. The correct program will
be loaded automatically. Click the COLLECT button to start
reading the input voltage. Details on software features are
documented in the control panel’s help menu.
Tools are available for logging data, changing reference
voltage, changing the number of points in the strip chart
and histogram, and changing the number of points aver-
aged for the DVM display.

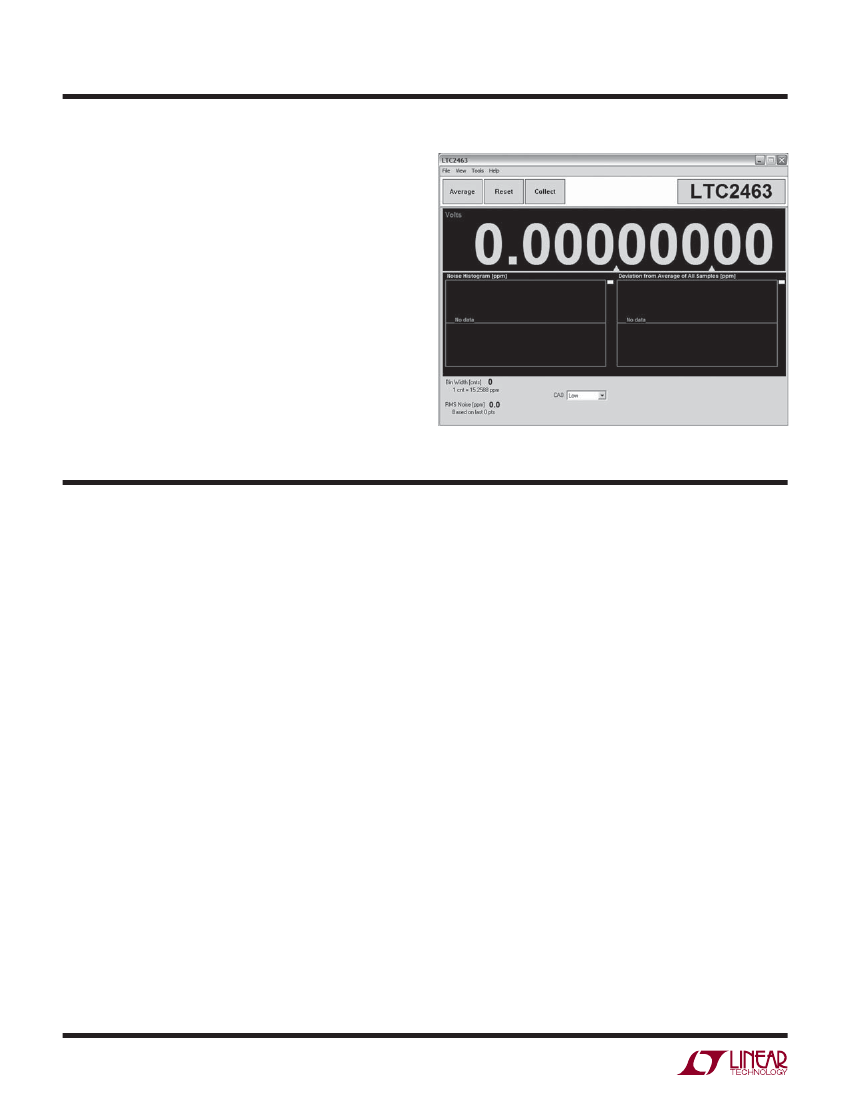

Figure 2. Software Screenshot
HARDWARE SETUP
CONNECTION TO DC590 SERIAL CONTROLLER
J1 is the power and digital interface connector. Connect
to DC590 serial controller with supplied 14-conductor
ribbon cable.
Jumpers
A0:
Selects I
2
C address of the LTC2463. This is set to GND
by default. Should this jumper be set to a different setting,
the software should be changed to reflect this.
ANALOG CONNECTIONS
Analog signal connections are made via the row of turret
posts along the edge of the board. Also, when connecting
the board to an existing circuit the exposed ground planes
along the edges of the board may be used to form a solid
connection between grounds.
GND:
This turret is connected directly to the internal
ground planes.
VCC:
This is the supply and reference voltage for the ADC.
Do not draw any power from this point.
IN+:
This is the positive input to the ADC
IN–:
This is the negative input to the ADC.
REFOUT :
This turret is connected to the LTC2463 REFOUT
pin. This pin may be used to provide a reference voltage
to an external circuit and can source up to 100μA. Do
NOT drive this pin.
dc1493af
2
DEMO MANUAL DC1493A

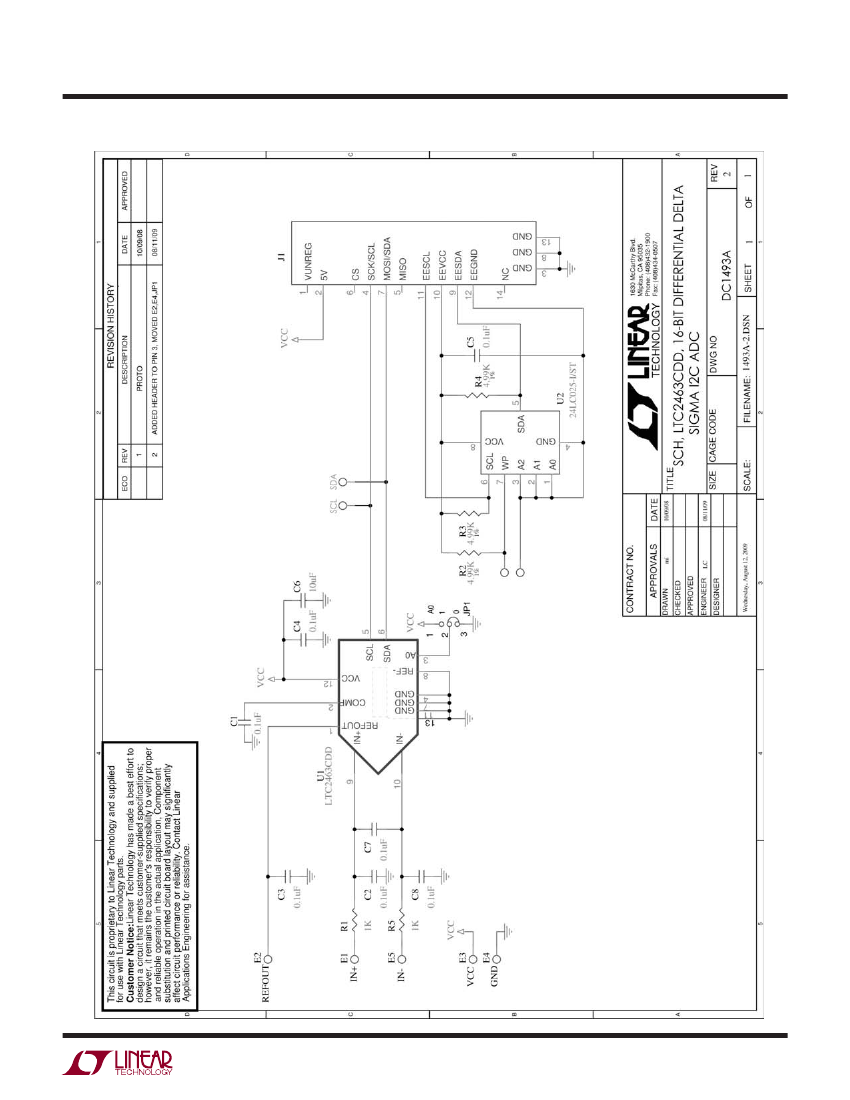

SCHEMATIC DIAGRAM
dc1493af
