ZL60038TGDE: Description650-nm, 125 Mbps Pin Preamplifier for Plastic Optical Fiber; CategoryWireless rf/communication Optical fiber; File Size243KB，6 Pages; ManufacturerZarlink Semiconductor (Microsemi); Websitehttp://www.zarlink.com/

Download Datasheet Parametric Compare View All

ZL60038TGDE Overview

650-nm, 125 Mbps Pin Preamplifier for Plastic Optical Fiber

ZL60038TGDE Parametric

Parameter Name	Attribute value
Maker	Zarlink Semiconductor (Microsemi)
package instruction	TO-46
Reach Compliance Code	unknow
body height	3.8 mm
Body length or diameter	4.7 mm
Built-in features	AMPLIFIER
Communication standards	GR-468
Connection Type	SMA CONNECTOR
data rate	125 Mbps
Emitter/Detector Type	PIN PHOTODIODE
Fiber optic equipment types	RECEIVER
Fiber type	980/1000, POF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal operating wavelength	650 nm
Package form	TO-46
Sensitivity	-24 dBm
Maximum supply voltage	3.55 V
Minimum supply voltage	3.05 V
Nominal supply voltage	3.3 V
surface mount	NO

Preview

Download Datasheet

View All

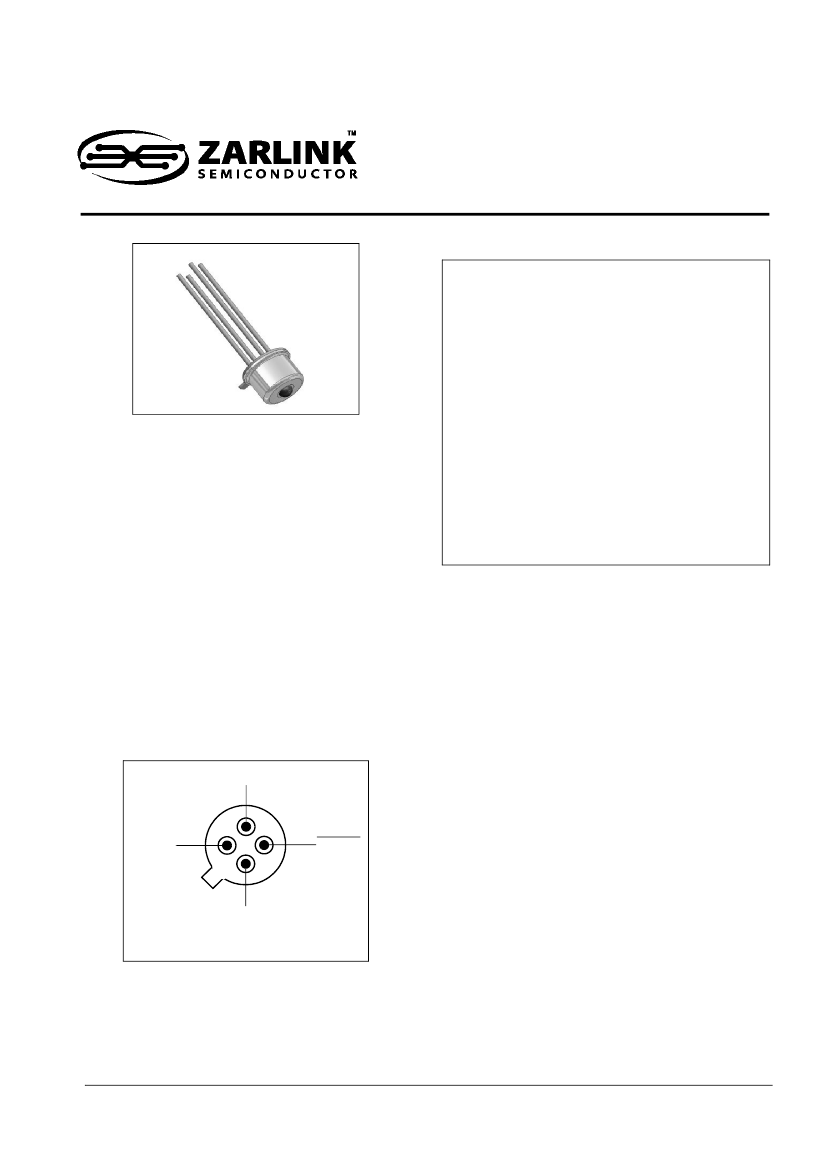

ZL60038

650-nm, 125 Mbps Pin Preamplifier

for Plastic Optical Fiber

Data Sheet

August 2005

Ordering Information

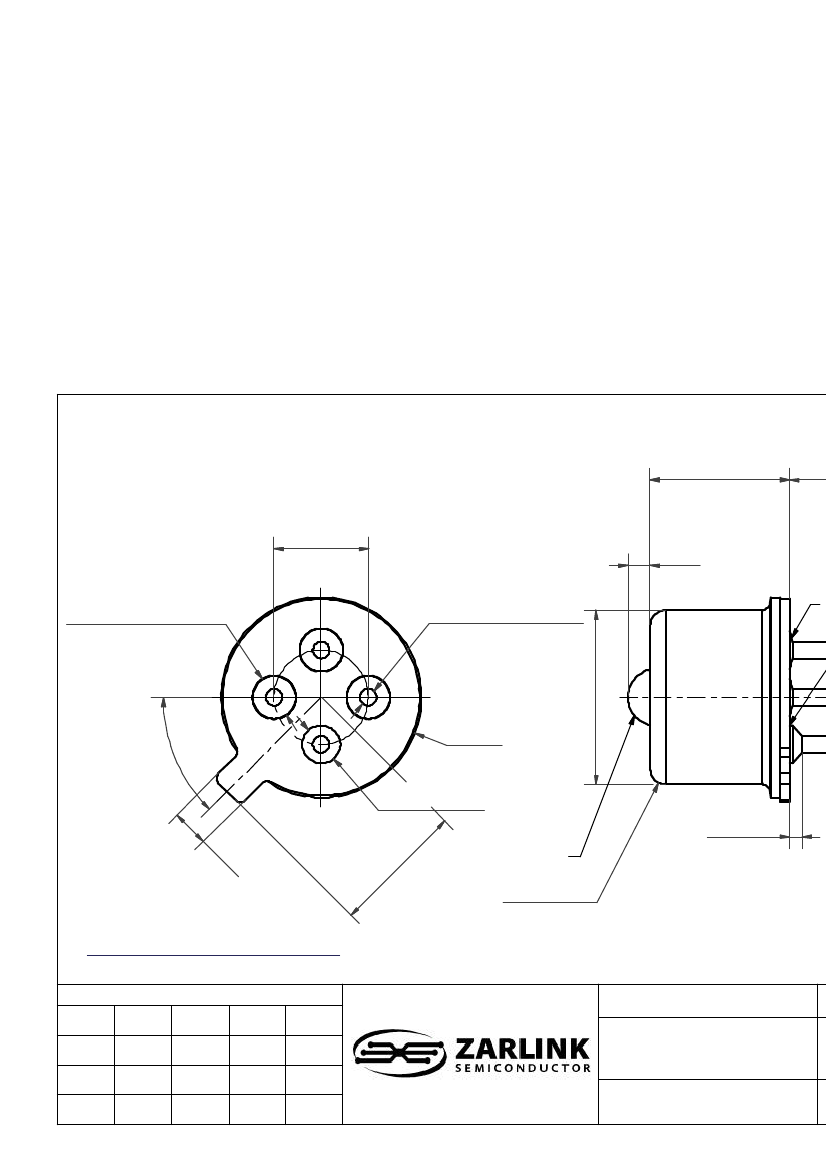

ZL60038TBDE, TO-46 with lens

The ZL60038 is also available assembled in

standard optical receptacles:

ZL60038TDDE,

ZL60038TEDE,

ZL60038TFDE,

ZL60038TGDE,

in ST receptacle

in SC receptacle

in FC receptacle

in SMA receptacle

Features

•

Data rates up to 250 Mbps

Large-area Si photodiode

TIA with AGC

Hermetically sealed package (MIL-STD 883)

Single 3.3 V power supply

In addition the ZL60038 can also be supplied in

customer-specific receptacles, on request

-40°C to +85°C

Applications

•

Plastic Optical Fiber (POF) based optical

communication links

IEEE Fast Ethernet

IEEE 1394b Firewire

Automotive, Industrial and Residential

Networking

Description

The ZL60038 is a compact optical receiver designed

for 650-nm plastic optical fiber (POF) based optical

communication systems with data rates up to

250 Mbps.

The optical receiver is assembled in a single compact

TO-46 package and contains an optimized large-area

Si PIN photodiode in combination with a

transimpedance amplifier (TIA) with automatic gain

control (AGC). The receiver operates using a single

3.3 V power supply. It is designed for use with large-

core POF with core sizes up to 980

µm.

Such optical

fiber types are often found in Automotive, Industrial

and Residential networks.

Reliability assurance is based on Telcordia GR-468-

CORE and the part is compliant to the EU directive

2002/95/EC issued 27 January 2003 [RoHS].

Data Out

Case

GND

Bottom View

Figure 1 - Pin-out Diagram

Zarlink Semiconductor Inc.

Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.

ZL60038TGDE Related Products

	ZL60038TGDE	ZL60038	ZL60038TBDE	ZL60038TDDE	ZL60038TEDE	ZL60038TFDE
Description	650-nm, 125 Mbps Pin Preamplifier for Plastic Optical Fiber	650-nm, 125 Mbps Pin Preamplifier for Plastic Optical Fiber	650-nm, 125 Mbps Pin Preamplifier for Plastic Optical Fiber	650-nm, 125 Mbps Pin Preamplifier for Plastic Optical Fiber	650-nm, 125 Mbps Pin Preamplifier for Plastic Optical Fiber	650-nm, 125 Mbps Pin Preamplifier for Plastic Optical Fiber
Maker	Zarlink Semiconductor (Microsemi)	-	Zarlink Semiconductor (Microsemi)	Zarlink Semiconductor (Microsemi)	Zarlink Semiconductor (Microsemi)	Zarlink Semiconductor (Microsemi)
package instruction	TO-46	-	TO-46	TO-46	TO-46	TO-46
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow
body height	3.8 mm	-	3.8 mm	3.8 mm	3.8 mm	3.8 mm
Body length or diameter	4.7 mm	-	4.7 mm	4.7 mm	4.7 mm	4.7 mm
Built-in features	AMPLIFIER	-	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Communication standards	GR-468	-	GR-468	GR-468	GR-468	GR-468
Connection Type	SMA CONNECTOR	-	-	ST CONNECTOR	SC CONNECTOR	FC CONNECTOR
data rate	125 Mbps	-	125 Mbps	125 Mbps	125 Mbps	125 Mbps
Emitter/Detector Type	PIN PHOTODIODE	-	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE	PIN PHOTODIODE
Fiber optic equipment types	RECEIVER	-	RECEIVER	RECEIVER	RECEIVER	RECEIVER
Fiber type	980/1000, POF	-	980/1000, POF	980/1000, POF	980/1000, POF	980/1000, POF
Installation features	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Nominal operating wavelength	650 nm	-	650 nm	650 nm	650 nm	650 nm
Package form	TO-46	-	TO-46	TO-46	TO-46	TO-46
Sensitivity	-24 dBm	-	-24 dBm	-24 dBm	-24 dBm	-24 dBm
Maximum supply voltage	3.55 V	-	3.55 V	3.55 V	3.55 V	3.55 V
Minimum supply voltage	3.05 V	-	3.05 V	3.05 V	3.05 V	3.05 V
Nominal supply voltage	3.3 V	-	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	-	NO	NO	NO	NO
