ZAB100: Description6 A, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size81KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

ZAB100 Overview

6 A, SILICON, RECTIFIER DIODE

ZAB100 Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
package instruction	O-PALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	1000 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

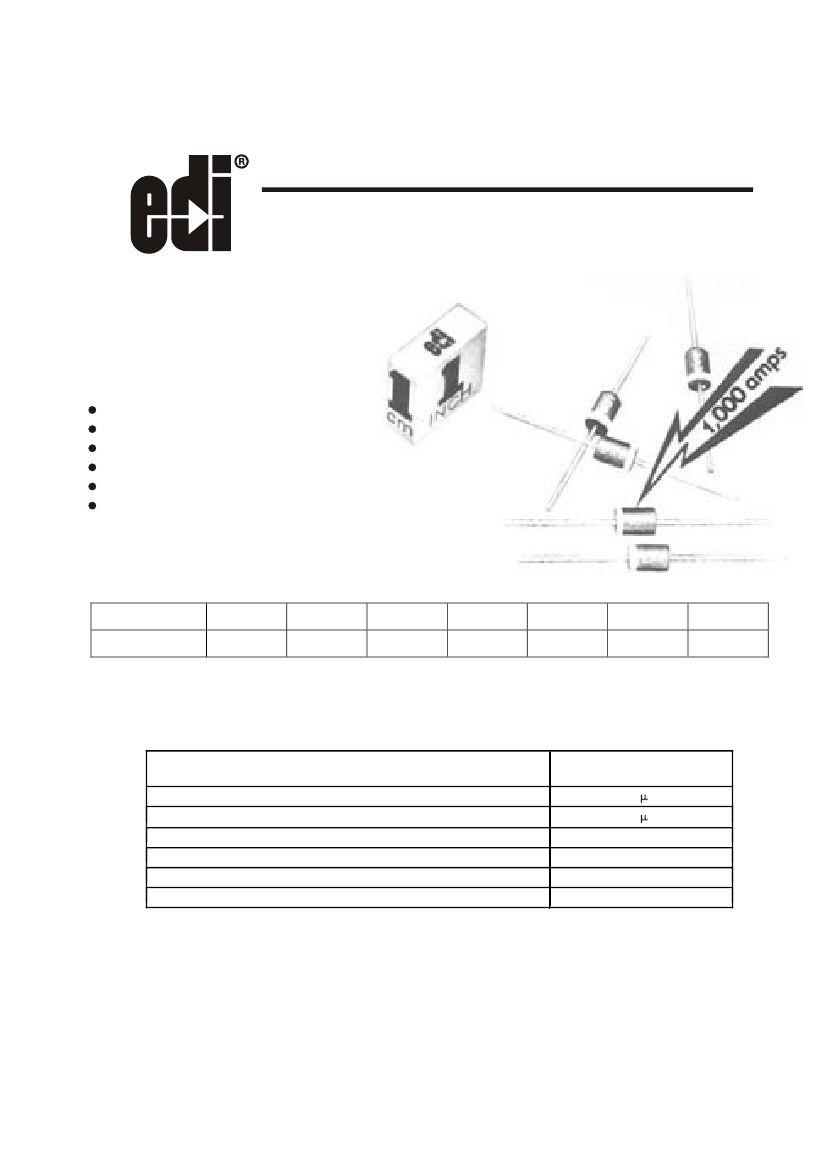

ZAB

6 AMPERE AXIAL LEAD RECTIFIERS

HIGH SURGE

PRV TO 1,000 VOLTS

6 AMP RATING

1000 AMP SURGE

HIGH TEMPERATURE STABILITY

HIGH SURGE CAPABILITY

AVALANCHE CHARACTERISTICS

PRV

50V

100V

200V

400V

600V

800V

1000V

TYPE NO.

ZAB005

ZAB010

ZAB020

ZAB040

ZAB060

ZAB080

ZAB100

ELECTRICAL CHARACTERISTICS at T

A

=25°C Unless

Otherwise Specified

Max. DC Reverse Current @ PRV and 25 C, I

R

Max. DC Reverse Current @ PRV and100 C, I

R

Max.For ward Voltage Drop @ 6.0 Amps V

F

Ambient Operating Temperature

Range,T

A

Storage Temperature Range,T

STG

Max.One -

Half Cycle Surge Current, I

FM

(Surge) @ 60H

Z

o

ZAB SERIES

A

5

vv

00

150

A

1.0Volts

-55 C to +150

o

C

-55

o

C to +150

o

C

I,000 Amps

o

EDI reserves the right to change these specifications at any time without notice.

ZAB100 Related Products

	ZAB100	ZAB	ZAB010	ZAB005	ZAB020	ZAB080	ZAB060	ZAB040
Description	6 A, SILICON, RECTIFIER DIODE	6 A, SILICON, RECTIFIER DIODE	6 A, SILICON, RECTIFIER DIODE	6 A, SILICON, RECTIFIER DIODE	6 A, SILICON, RECTIFIER DIODE	6 A, SILICON, RECTIFIER DIODE	6 A, SILICON, RECTIFIER DIODE	6 A, SILICON, RECTIFIER DIODE
Maker	EDI [Electronic devices inc.]	-	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
package instruction	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	-	1 V	1 V	1 V	1 V	1 V	1 V
JESD-30 code	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak forward current	1000 A	-	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A
Number of components	1	-	1	1	1	1	1	1
Phase	1	-	1	1	1	1	1	1
Number of terminals	2	-	2	2	2	2	2	2
Maximum operating temperature	150 °C	-	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	6 A	-	6 A	6 A	6 A	6 A	6 A	6 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	-	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	-	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	-	100 V	50 V	200 V	800 V	600 V	400 V
surface mount	NO	-	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	-	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	-	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	-	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
