MAXQ615-KIT# datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Development board/suite/development tools> MAXQ615-KIT#

MAXQ615-KIT#: DescriptionEVALUATION KIT FOR MAXQ615; CategoryDevelopment board/suite/development tools; File Size328KB，9 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric View All

MAXQ615-KIT# Overview

EVALUATION KIT FOR MAXQ615

MAXQ615-KIT# Parametric

Parameter Name	Attribute value
Board type	Evaluation platform
type	MCU 16-bit
core processor	MAXQ20S
operating system	-
platform	-
Supporting products/related products	MAXQ615
Installation type	fixed
content	board, cable

Preview

Download Datasheet

View All

MAXQ615 Evaluation Kit

Evaluates: MAXQ615

General Description

The MAXQ615 evaluation kit (EV kit) provides a proven

platform for conveniently evaluating the capabilities of

the MAXQ615 low-power, 16-bit, RISC microcontroller

targeted for battery-powered applications. The EV kit

includes a MAXQ615 EV kit board, example software,

USB-to-JTAG interface board, 10-pin JTAG interface

cable, and a standard A-to-mini-B USB cable for con-

necting to a personal computer. The EV kit board, which

provides pin headers providing access to the proces-

sor’s I/O port pins, a 5V power-supply input, pushbutton

switches for user input, and an on-board SPI ADC and

C temperature sensor for demonstration purposes.

The EV kit provides a complete, functional system ideal

for developing and debugging applications as well as

evaluating the overall capabilities of the MAXQ615 RISC

processor.

Features

Easily Loads and Debugs Code Using Supplied

JTAG Board

JTAG Interface Provides In-Application Debugging

Features



Step-by-Step Execution Tracing



Breakpointing by Code Address, Data Memory

Address, or Register Access



Data Memory or Register Content View and Edit

On-Board 3.3V Voltage Regulator

On-Board DS1775 I

C Temperature Sensor

On-Board MAX1118 SPI ADC

Two User-Input Pushbutton Switches with Paired

Indicator LEDs (Connected to GPIO)

Prototyping Area

(Optional) +5V Regulated, Minimum 250mA Capac-

ity, Center Post Positive Power Supply with 2.5mm

Jack. Models that have been used in the past

include CUI Inc. model DPR050030-P6P-SZ and V

Infinity model EPS050100-P6P. If the EV kit is pow-

ered through the USB-to-JTAG adapter (through

the 5V supply provided on the JTAG cable), then

this power supply is not needed.

EV Kit Contents

MAXQ615 EV Kit Board with Either Socketed

MAXQ615 (XU1) or Soldered MAXQ615 (U4)

USB-to-JTAG Adapter Board

2 x 5-Pin Connector Ribbon Cable (0.1in spacing)

for JTAG Programming

Standard A-to-Mini-B USB interface Cable

MAXQ615 EV Kit CD (includes the MAXQ615 IC

data sheet and user’s guide; MAXQ615 EV kit

quick start guide, data sheet, and schematics;

application notes; utilities and configuration files;

and example programs including source code).

Go to

www.maximintegrated.com/evkitsoftware

download the latest version of the EV kit CD.

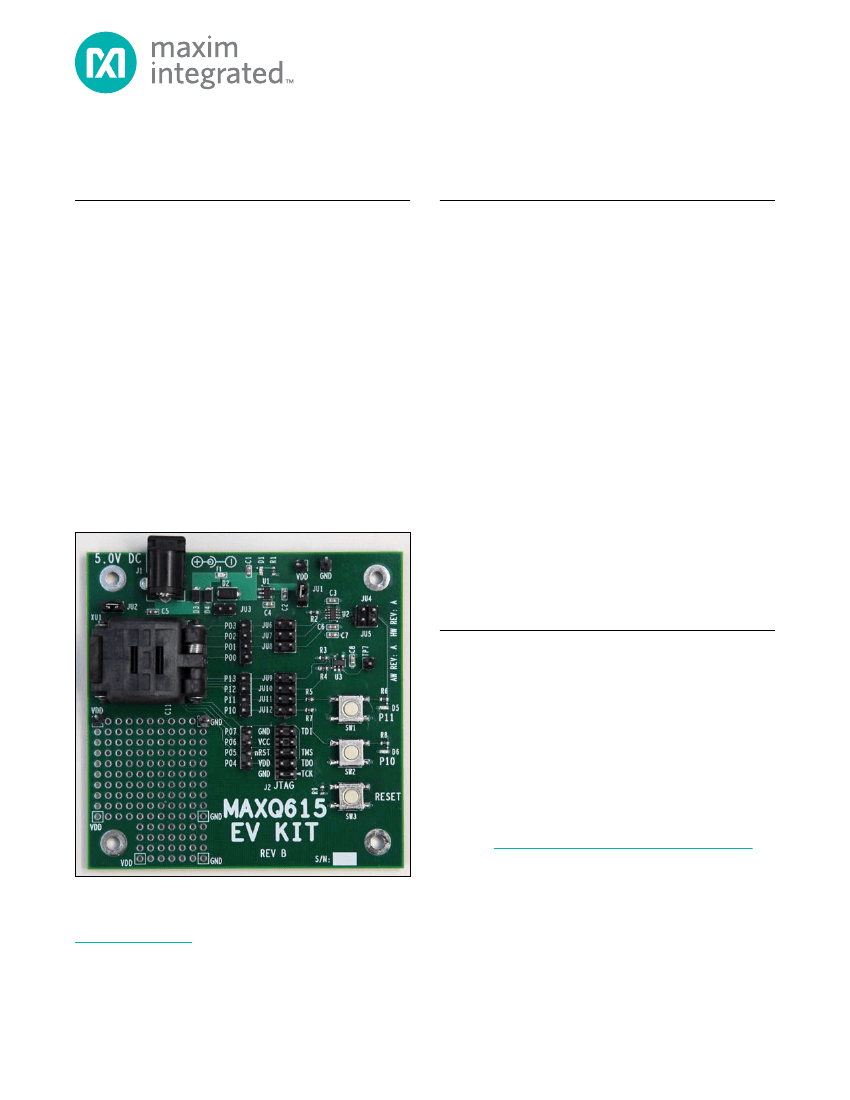

Figure 1. MAXQ615 Evaluation Kit Board

Ordering Information

appears at end of data sheet.

For pricing, delivery, and ordering information, please contact Maxim Direct at

1-888-629-4642, or visit Maxim Integrated’s website at www.maximintegrated.com.

19-6413; Rev 0; 7/12
