PQ2614BHA-4R7K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> PQ2614BHA-4R7K

PQ2614BHA-4R7K: DescriptionFIXED IND 4.7UH 30A 1.9MOHM SMD; CategoryPassive components; File Size377KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

PQ2614BHA-4R7K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PQ2614BHA-4R7K	-	-	View	Buy Now

PQ2614BHA-4R7K Overview

FIXED IND 4.7UH 30A 1.9MOHM SMD

PQ2614BHA-4R7K Parametric

Parameter Name	Attribute value
type	Winding
Material - Core	ferrite
inductance	4.7µH
Tolerance	±10%
Rated current	30A
Current - saturation value	48A
shield	shield
DC resistance (DCR)	1.9 milliohm max
Q value at different frequencies	-
Frequency - Self-resonance	25MHz
grade	AEC-Q200
Operating temperature	-40°C ~ 155°C
Inductor Frequency - Test	100kHz
characteristic	-
Installation type	surface mount
Package/casing	non-standard
Supplier device packaging	-
size/dimensions	1.098" long x 0.780" wide (27.90mm x 19.80mm)
Height - Installation (maximum)	0.630"（16.00mm）

Preview

Download Datasheet

View All

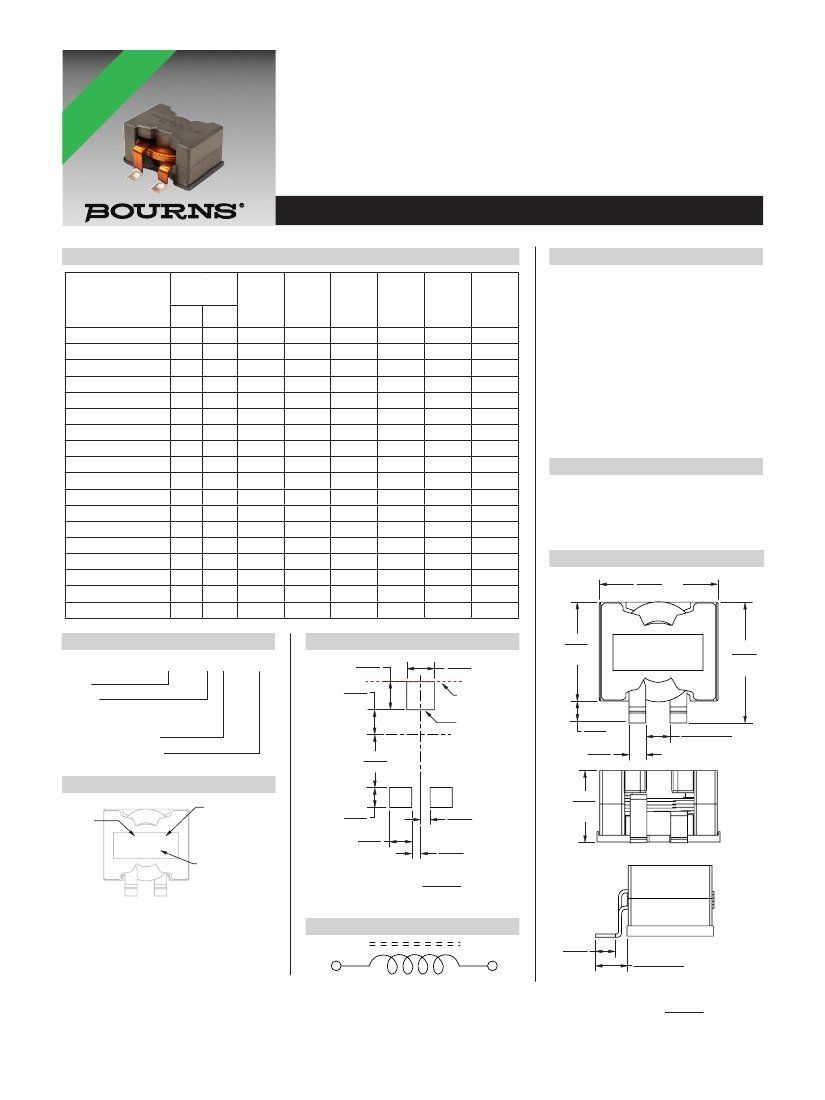

Features

Q2 *Ro

00 HS

C a

OM nd

Applications

Automotive - power conversion

DC/DC converters

Switch-mode power supplies

High current Point-of-Load

Magnetically shielded

Flat wirewound

Low DCR

High saturation current

Extra solder pad for increased mechanical

C-

stability

AEC-Q200 compliant

RoHS compliant* and halogen free**

Electrical Specifications @ 25 °C

Bourns

Part Number

Inductance

@ 100 kHz /

0.1 V

Tol.

(µH)

(%)

SRF

(MHz)

Typ.

PQ2614BLA/BHA Series - Shielded Power Inductors

27.9

MAX.

(1.063)

General Specifications

Isat2

(A)

27.94

Typ.

Irms

DCR

Isat1

19.8

(mW)

(A)

(0.780)

Max.

PQ2614BLA-1R0K

Typ.

YYWW X

MAX.

PQ2614BLA-1R0K

PQ2614BLA-1R5K

PQ2614BLA-2R2K

PQ2614BLA-3R3K

PQ2614BLA-4R7K

PQ2614BLA-6R8K

PQ2614BHA-100K

PQ2614BLA-100K

PQ2614BLA-150K

PQ2614BLA-220K

PQ2614BLA-330K

PQ2614BHA-150K

PQ2614BHA-220K

PQ2614BHA-330K

PQ2614BHA-2R2K

PQ2614BHA-3R3K

PQ2614BHA-4R7K

PQ2614BHA-6R8K

1.0

1.5

2.2

3.3

4.7

6.8

± 10

0.85

1.29

1.62

1.29

1.62

1.29

1.62

1.29

1.62

1.29

1.62

1.29

1.62

1.29

1.62

1.29

3.8

(0.150)

MIN.

1.20

1.60

6.9

(0.272)

1.90

3.8

1.60

(0.150)

1.90

1.60

1.90

1.60

1.90

1.60

1.90

1.60

1.90

1.60

1.90

6.9 ± 0.5

(0.272 ± 0.020)

>100

6.63 ± 0.51

66.9

(0.261 ± 0.020)

(1.100)

MAX.

>100

84.8

68.4

57.0

50.1

39.0

36.2

27.8

23.4

17.6

15.2

11.0

9.6

6.8

5.9

3.3

84.0

54.0

48.0

36.9

34.5

26.0

21.5

16.2

14.0

9.8

8.6

6.0

5.1

2.6

Dielectric Withstand Voltage -

Terminal to Core .... 300 VDC 5 mA max.

Operating Temperature

................................-40 °C to +155 °C

(Temperature rise included)

Storage Temperature (Component)

................................-40 °C to +155 °C

Rated Current

.......... Inductance drops 20 % at Isat1

Inductance drops 30 % at Isat2

Temperature Rise .....40 °C at rated Irms

Moisture Sensitivity Level .....................1

ESD Classification (HBM)................. N/A

Materials

Core ..............................................Ferrite

Wire ............................Enameled copper

Terminal Finish ...................................Sn

Packaging ............................. 25 pcs/tray

Product Dimensions

27.9

MAX.

(1.063)

16.0

1.62

(0.630)

1.90

MAX.

How to Order

Recommended Layout

5.28

(0.208)

5.08

(0.200)

6.35

(0.250)

ALIGN EDGE OF

INDUCTOR HERE

MOUNTING PAD

(DO NOT MAKE

ELECTRICAL

CONNECTION)

PQ2614B _ A - 100K

Model

Current

L = Low Isat

H = High Isat

19.8

(0.780)

MAX.

PQ2614BLA-1R0K

YYWW X

27.94

(1.100)

MAX.

AEC-Q200 Compliant

Value Code (see table)

11.56

(0.455)

6.9

(0.272)

3.8

(0.150)

6.63 ± 0.51

(0.261 ± 0.020)

Typical Part Marking

SERIES

PQ2614BLA-1R0K

YYWW X

VALUE

CODE

5.59

(0.220)

5.33

(0.10)

2.41

2.5

(0.095)

(.099)

16.0

(0.630)

MAX.

DATE CODE

MARKING:

YY = YEAR

WW = WEEK

X = A - MONDAY

B - TUESDAY

C - WEDNESDAY

D - THURSDAY

E - FRIDAY

F - SATURDAY

G - SUNDAY

4.5

(.177)

2.41

(0.095)

DIMENSIONS:

1.5

(.060)

(INCHES)

Electrical Schematic

3.8

(0.150)

MIN.

6.9 ± 0.5

(0.272 ± 0.020)

* RoHS Directive 2015/863, Mar 31, 2015 and Annex.

5.28

6.35

DIMENSIONS:

(0.208)

**Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl)

(0.250)

(INCHES)

content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less.

5.08

Specifications are subject to change without notice.

ALIGN EDGE OF

(0.200)

INDUCTOR HERE

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.

MOUNTING PAD

(DO NOT MAKE

ELECTRICAL

CONNECTION)

11.56
