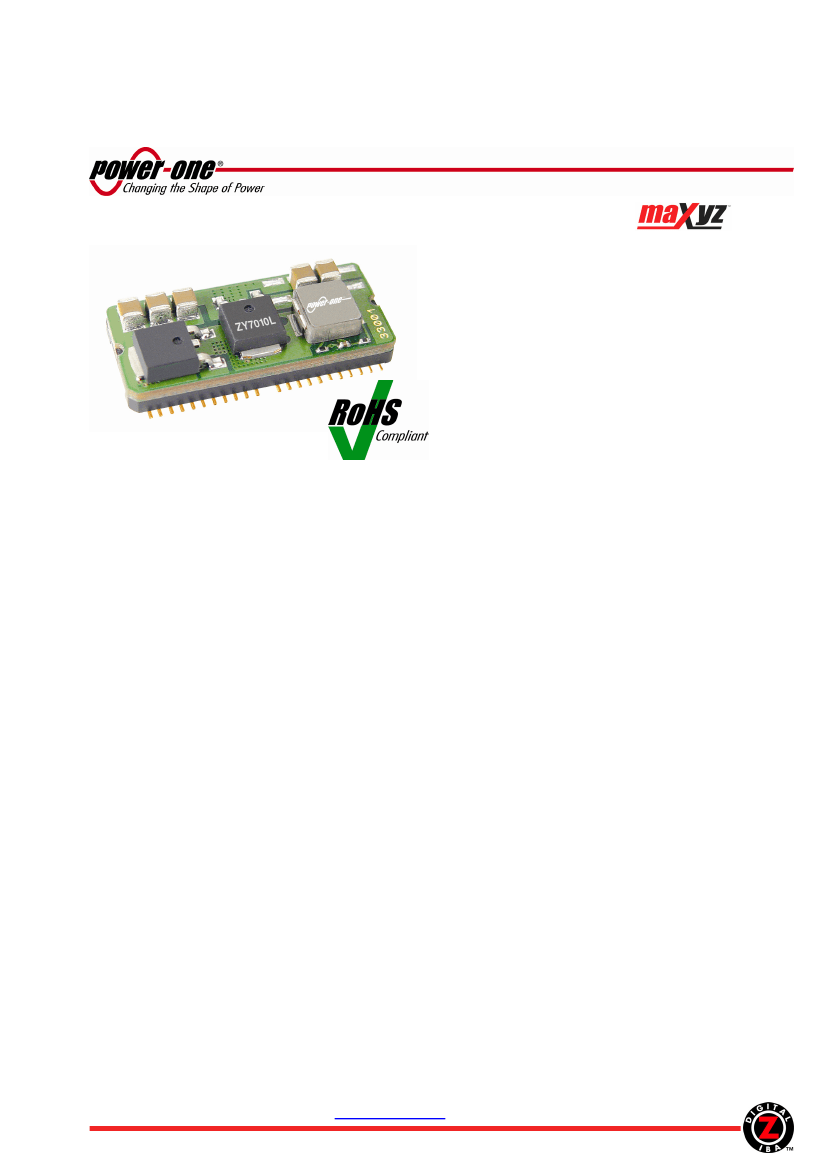

ZY7010L 10A DC-DC Intelligent POL Data Sheet
3V to 13.2V Input
•
0.5V to 5.5V Output
Member of the
Family
Applications
•
Low voltage, high density systems with
Intermediate Bus Architectures (IBA)
•
Point-of-load regulators for high performance DSP,
FPGA, ASIC, and microprocessor applications
•
Desktops, servers, and portable computing
•
Broadband, networking, optical, and
communications systems
•
Active memory bus terminators
Benefits
•
Integrates digital power conversion with intelligent
power management
•
Eliminates the need for external power
management components
•
Completely programmable via industry-standard
I
2
C communication bus
•
One part that covers all applications
•
Reduces board space, system cost and
complexity, and time to market
Description
Features
•
RoHS lead free and lead-solder-exempt products are
available
•
Wide input voltage range: 3V–13.2V
•
High continuous output current: 10A
•
Wide programmable output voltage range: 0.5V–5.5V
•
Active digital current share
•
Single-wire serial communication bus for frequency
synchronization, programming, and monitoring
•
Optimal voltage positioning with programmable slope
of the VI line
•
Overcurrent, overvoltage, undervoltage, and
overtemperature protections with programmable
thresholds and types
•
Programmable fixed switching frequency 0.5-1.0MHz
•
Programmable turn-on and turn-off delays
•
Programmable turn-on and turn-off voltage slew rates
with tracking protection
•
Programmable feedback loop compensation
•
Power Good signal with programmable limits
•
Programmable fault management
•
Start up into the load pre-biased up to 100%
•
Full rated current sink
•
Real time voltage, current, and temperature
measurements, monitoring, and reporting
•
Small footprint SMT package: 16x32mm
•
Extremely low profile of 7mm
•
Compatible with conventional pick-and-place
equipment
•
Wide operating temperature range
•
UL60950 recognized, CSA C22.2 No. 60950-00
certified, and TUV EN60950-1:2001 certified
The ZY7010L is an intelligent, fully programmable step-down point-of-load DC-DC module integrating digital power
conversion and intelligent power management. When used with ZM7000 Series Digital Power Managers, the
ZY7010L completely eliminates the need for external components for sequencing, tracking, protection, monitoring,
and reporting. All parameters of the ZY7010L are programmable via the industry-standard I
2
C communication bus
and can be changed by a user at any time during product development and service.
ZD-00422 REV. 2.2
www.power-one.com
Page 1 of 34
ZY7010L 10A DC-DC Intelligent POL Data Sheet
3V to 13.2V Input
•
0.5V to 5.5V Output
Reference Documents:
•
ZM7XXX Digital Power Manager. Data Sheet
•
ZM7XXX Digital Power Manager. Programming Manual
•
Z-One
®
Graphical User Interface
•
ZM00056-KIT USB to I
2
C Adapter Kit. User Manual
1.
Ordering Information
ZY
Product
family:
Z-One
Module
1
70
Series:
Intelligent
POL
Converter
10
Output
Current:
10A
L
Output voltage setpoint
accuracy:
L
– 1.2% or 20mV,
whichever is greater
y
RoHS compliance:
No suffix
- RoHS
compliant with Pb
1
solder exemption
G
- RoHS compliant
for all six substances
–
zz
Packaging Option
2
:
T1
– 500pcs T&R
T2
– 100pcs T&R
T3
– 50pcs T&R
Q1
– 1pc sample for
evaluation only
Dash
______________________________________
The solder exemption refers to all the restricted materials except lead in solder. These materials are Cadmium (Cd), Hexavalent chromium
(Cr6+), Mercury (Hg), Polybrominated biphenyls (PBB), Polybrominated diphenylethers (PBDE), and Lead (Pb) used anywhere except in
solder.
2
Packaging option is used only for ordering and not included in the part number printed on the POL converter label.
3
The evaluation board is available in only one configuration: ZM7300-KIT-HKS.
Example:
ZY7010LG-T2:
A 100-piece reel of RoHS compliant POL converters with the output voltage setpoint of
1.0% or 20mV, whichever is greater. Each POL converter is labeled ZY7010LG.
2.
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings may cause performance degradation, adversely affect long-
term reliability, and cause permanent damage to the converter.
Parameter
Operating Temperature
Input Voltage
Output Current
Conditions/Description
Controller case temperature
250ms Transient
(See Output Current Derating Curves)
-10
Min
-40
Max
105
15
10
Units
°C
VDC
ADC
3.
Environmental and Mechanical Specifications
Parameter
Ambient Temperature Range
Storage Temperature (Ts)
Weight
MTBF
Peak Reflow Temperature
Peak Reflow Temperature
Lead Plating
Moisture Sensitivity Level
Calculated Per Telcordia Technologies SR-332
ZY7010L
ZY7010LG
ZY7010L and ZY7010LG
JEDEC J-STD-020C
245
3.11
220
260
100% Matte Tin or
1.5µm Ag over 1.5µm Ni
3
Conditions/Description
Min
-40
-55
Nom
Max
85
125
15
Units
°C
°C
grams
MHrs
°C
°C
ZD-00422 REV. 2.2
www.power-one.com
Page 2 of 34
ZY7010L 10A DC-DC Intelligent POL Data Sheet
3V to 13.2V Input
•
0.5V to 5.5V Output
4.
Electrical Specifications
Specifications apply at the input voltage from 3V to 13.2V, output load from 0 to 10A, ambient temperature from -
40°C to 85°C, 100µF output capacitance, and default performance parameters settings unless otherwise noted.
4.1
Input Specifications
Parameter
Input voltage (V
IN
)
Input Current (at no load)
Undervoltage Lockout (VLDO
connected to VIN)
Undervoltage Lockout (VLDO
connected to V
AUX
=5V)
External Low Voltage Supply
VLDO Input Current
Conditions/Description
At V
IN
<4.75V, VLDO pin needs to be
connected to an external voltage source
higher than 4.75V
V
IN
≥4.75V,
VLDO pin connected to VIN
Ramping Up
Ramping Down
Ramping Up
Ramping Down
Connect to VLDO pin when V
IN
<4.75V
Current drawn from the external low
voltage supply at V
LDO
=5V
4.75
50
Min
3
50
4.2
3.75
3.0
2.5
13.2
Nom
Max
13.2
Units
VDC
mADC
VDC
VDC
VDC
VDC
VDC
mADC
4.2
Output Specifications
Parameter
Output Voltage Range (V
OUT
)
Conditions/Description
Programmable
1
Default (no programming)
V
IN
=12V, I
OUT
=0.5*I
OUT MAX
,
F
SW
=500kHz, room temperature
V
IN MIN
to V
IN MAX
V
IN MIN
to V
IN MAX
0 to I
OUT MAX
Slew rate 2.5A/µs, 50 -100% load step
C
OUT
=220µF, F
SW
=1MHz
to 10% of peak deviation
V
IN
=5.0V, V
OUT
=0.5V, F
SW
=500kHz
V
IN
=5.0V, V
OUT
=2.5V, F
SW
=500kHz
V
IN
=12V, V
OUT
=0.5V, F
SW
=500kHz
V
IN
=12V, V
OUT
=2.5V, F
SW
=500kHz
V
IN
=12V, V
OUT
=5.0V, F
SW
=500kHz
V
IN
=12V, I
OUT
=0.5*I
OUT MAX
Default
Programmable, 250kHz steps
Default
Programmable, 1.56% steps
500
90.5
0
95
Min
0.5
0.5
(See Ordering Information)
-10
2
±0.4
±0.3
50
200
10
15
15
25
45
20
500
1,000
10
ADC
%V
OUT
%V
OUT
mV
µs
mV
mV
mV
mV
mV
ppm/°C
kHz
kHz
%
%
Nom
Max
5.5
Units
VDC
VDC
Output Voltage Setpoint Accuracy
Output Current (I
OUT
)
Line Regulation
Load Regulation
Dynamic Regulation
Peak Deviation
Settling Time
Output Voltage Peak-to-Peak
Ripple and Noise
BW=20MHz
Full Load
Temperature Coefficient
Switching Frequency
Duty Cycle Limit
1
2
ZY7010L is a step-down converter, thus the output voltage is always lower than the input voltage as show in Figure 1.
At the negative output current (bus terminator mode) efficiency of the ZY7010L degrades resulting in increased internal power dissipation.
Therefore maximum allowable negative current under specific conditions is 20% lower than the current determined from the derating curves
shown in paragraph 5.5.
ZD-00422 REV. 2.2
www.power-one.com
Page 3 of 34
ZY7010L 10A DC-DC Intelligent POL Data Sheet
3V to 13.2V Input
•
0.5V to 5.5V Output

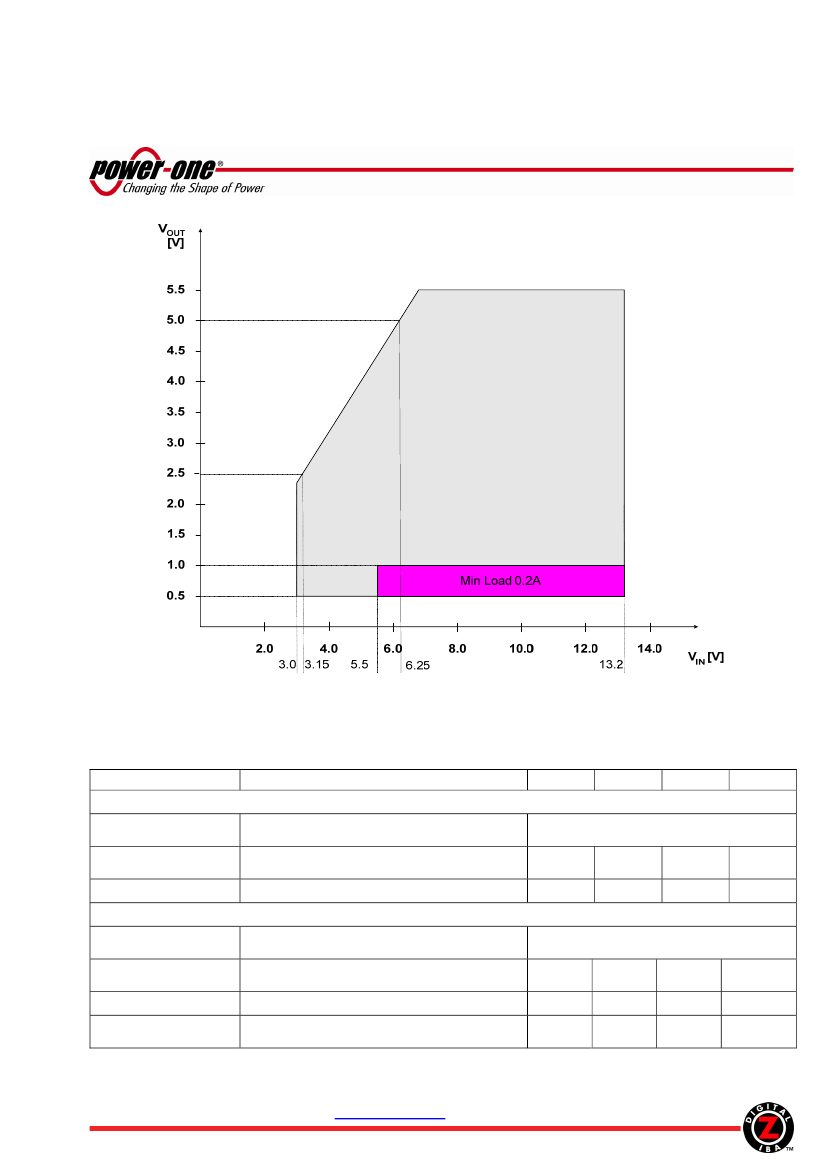

Figure 1. Output Voltage as a Function of Input Voltage and Output Current
4.3
Protection Specifications
Parameter
Conditions/Description
Output Overcurrent Protection
Type
Threshold
Threshold Accuracy
Output Overvoltage Protection
Type
Threshold
Threshold Accuracy
Delay
Default
Programmable
Default
Programmable in 10% steps
Measured at V
O.SET
=2.5V
From instant when threshold is exceeded until
the turn-off command is generated
Non-Latching, 130ms period
Latching/Non-Latching
130
%V
O.SET
130
%V
O.SET
2
6
%V
OVP.SET
µs
Default
Programmable
Default
Programmable in 11 steps
Non-Latching, 130ms period
Latching/Non-Latching
150
%I
OUT
150
%I
OUT
25
%I
OCP.SET
Min
Nom
Max
Units
50
-25
110
1
-2
ZD-00422 REV. 2.2
www.power-one.com
Page 4 of 34
ZY7010L 10A DC-DC Intelligent POL Data Sheet
3V to 13.2V Input
•
0.5V to 5.5V Output
Output Undervoltage Protection
Type
Threshold
Threshold Accuracy
Delay
Default
Programmable
Default
Programmable in 5% steps
Measured at V
O.SET
=2.5V
From instant when threshold is exceeded until
the turn-off command is generated
Overtemperature Protection
Type
Turn Off Threshold
Turn On Threshold
Threshold Accuracy
Delay
From instant when threshold is exceeded until
the turn-off command is generated
Tracking Protection (when Enabled)
Type
Threshold
Threshold Accuracy
Delay
From instant when threshold is exceeded until
the turn-off command is generated
Overtemperature Warning
Threshold
Threshold Accuracy
Hysteresis
Delay
From instant when threshold is exceeded until
the warning signal is generated
Power Good Signal (PGOOD pin)
Logic
Lower Threshold
Upper Threshold
Delay
Threshold Accuracy
From instant when threshold is exceeded until
status of PG signal changes
Measured at V
O.SET
=2.5V
-2
V
OUT
is inside the PG window
V
OUT
is outside the PG window
Default
Programmable in 5% steps
High
Low
90
90
110
6
2
95
N/A
%V
O.SET
%V
O.SET
%V
O.SET
µs
%V
O.SET
Always enabled, reported in Status register
-5
3
6
120
5
°C
°C
°C
µs
Default
Programmable
Enabled during output voltage ramping up
-50
6
Disabled
Latching/Non-Latching, 130ms period
±250
50
mVDC
mVDC
µs
Default
Programmable
Temperature is increasing
Temperature is decreasing after the module was
shut down by OTP
-5
6
Non-Latching, 130ms period
Latching/Non-Latching
130
120
5
°C
°C
°C
µs
Non-Latching, 130ms period
Latching/Non-Latching
75
%V
O.SET
85
%V
O.SET
2
6
%V
UVP.SET
µs
75
-2
___________________
1
Minimum OVP threshold is 1.0V
ZD-00422 REV. 2.2
www.power-one.com
Page 5 of 34
