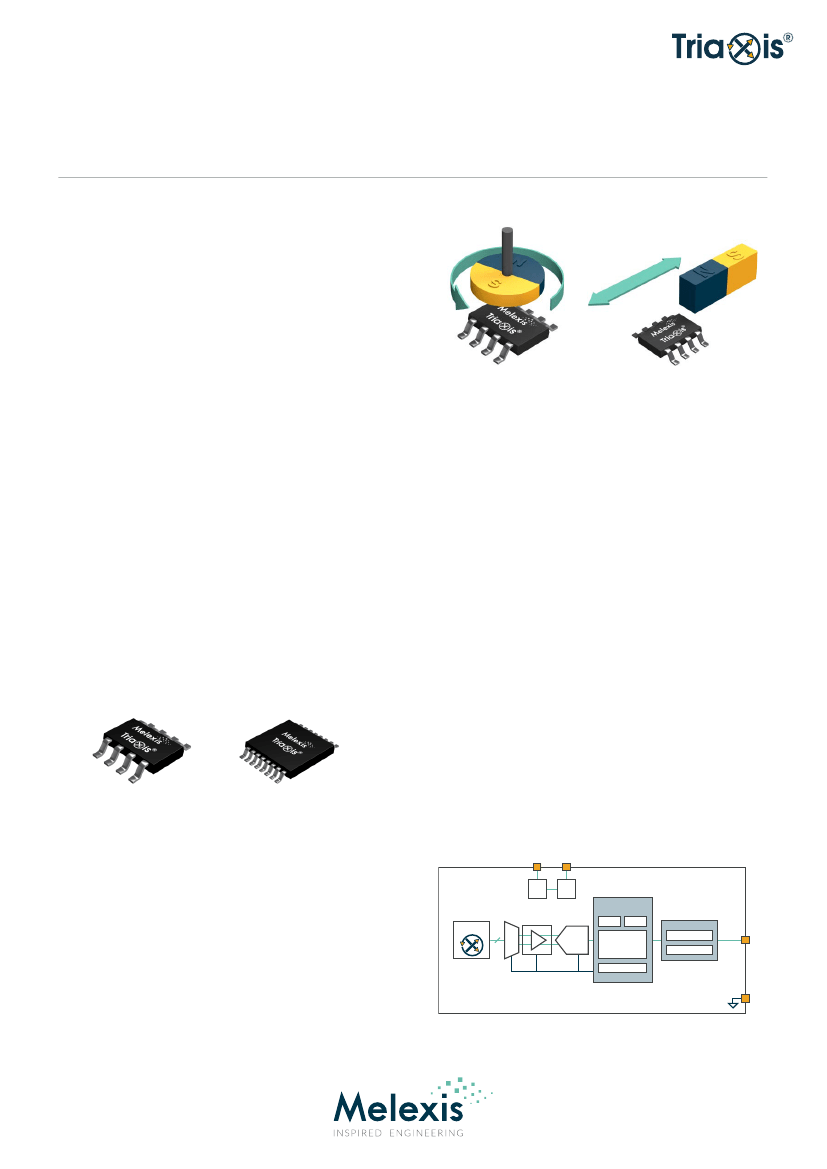

MLX90365 Triaxis Position
Sensor IC
Datasheet
Features and Benefits
Absolute Rotary & Linear Position Sensor IC
Triaxis® Hall Technology
Simple Magnetic Design
Programmable Transfer Characteristic (Multi-
Points – Piece-Wise-Linear)
Selectable Output Mode: Analog (Ratiometric)
– Pulse Width Modulation (PWM)
12 bit Resolution - 10 bit Thermal Accuracy
Open/Short Diagnostics
On Board Diagnostics
Over-Voltage Protection
Under-Voltage Detection
48 bit ID Number option
Automotive Temperature Range
AEC-Q100 Qualified
Single Die – SOIC-8 Package RoHS Compliant
Dual Die (Full Redundant) – TSSOP-16 Package
RoHS Compliant
Thermal Offset correction
Description
The MLX90365 is a monolithic sensor IC sensitive
to the flux density applied orthogonally and
parallel to the IC surface.
The MLX90365 is sensitive to the three
components of the flux density applied to the IC
(i.e. B
X
, B
Y
and B
Z
). This allows the MLX90365 with
the correct magnetic circuit to decode the
absolute position of any moving magnet (e.g.
rotary position from 0 to 360 Degrees or linear
displacement, stroke). It enables the design of
novel generation of non-contacting position
sensors that are frequently required for both
automotive and industrial applications.
MLX90365 reports a programmable ratiometric
analog output signal compatible with any resistive
potentiometer or programmable linear Hall
sensor. Through programming, the MLX90365
provides also a digital PWM (Pulse Width
Modulation) output characteristic.
V
DD
V
DIG
SOIC-8
TSSOP-16
Applications
Absolute Rotary Position Sensor
Absolute Linear Position Sensor
Pedal Position Sensor
Steering Wheel Position Sensor
Throttle Position Sensor
Float-Level Sensor
Ride Height Position Sensor
Non-Contacting Potentiometer
Prot.
2V5
Reg
DSP
V
X
V
Y
V
Z
RAM
EEPROM
MUX
Triaxis
®
Output Stage
12 bit Analog
G
ADC
µC
12 bit PWM
OUT
ROM - Firmware
V
SS
MLX90365 Triaxis Position Sensor IC
Datasheet
Contents
Features and Benefits................................................................................................................................ 1
Applications............................................................................................................................................... 1
Description ................................................................................................................................................ 1
1. Ordering Information ............................................................................................................................ 4
2. Functional Diagram ............................................................................................................................... 5
3. Glossary of Terms .................................................................................................................................. 5
4. Pinout .................................................................................................................................................... 6
5. Absolute Maximum Ratings ................................................................................................................... 7
6. Electrical Specification ........................................................................................................................... 8
7. Isolation Specification.......................................................................................................................... 10
8. Timing Specification............................................................................................................................. 11
ANALOG OUTPUT .................................................................................................................................... 11
PWM OUTPUT .......................................................................................................................................... 12
9. Accuracy Specification ......................................................................................................................... 13
9.1. ANALOG OUTPUT .............................................................................................................................. 13
9.2. PWM OUTPUT ................................................................................................................................... 14
10. Magnetic Specification ...................................................................................................................... 17
11. CPU & Memory Specification............................................................................................................. 17
12. Traceability Information .................................................................................................................... 17
13. End-User Programmable Items.......................................................................................................... 18
14. Description of End-User Programmable Items................................................................................... 20
14.1. Output modes ................................................................................................................................. 20
14.1.1. OUT mode ................................................................................................................................. 20
14.1.2. PWM Output Mode .................................................................................................................. 21
14.2. Output Transfer Characteristic ...................................................................................................... 21
14.2.1. Enable scaling Parameter (only for LNR type 4 pts) ............................................................... 22
14.2.2. CLOCKWISE Parameter ............................................................................................................. 23
14.2.3. Discontinuity Point (or Zero Degree Point) ............................................................................. 23
14.2.4. 4-Pts LNR Parameters ............................................................................................................... 23
14.2.5. 17-Pts LNR Parameters ............................................................................................................. 24
14.2.6. CLAMPING Parameters............................................................................................................. 25
REVISION 5.8 – DEC, 22 2016
REVISION 5.8 - DEC, 22th 2016
TH
Page 2 of 45
MLX90365 Triaxis Position Sensor IC
Datasheet
14.2.7. Thermal Ouput Offset correction Specific to ABE version ..................................................... 25
14.3. Identification ................................................................................................................................... 27
14.4. Lock.................................................................................................................................................. 27
14.5. Sensor Front-End ............................................................................................................................ 27
14.5.1. MAPXYZ ..................................................................................................................................... 28
14.5.2. SMISM, k and SEL_k Parameters ............................................................................................. 28
14.5.3. GAINMIN and GAINMAX Parameters ...................................................................................... 28
14.6. Filter ................................................................................................................................................ 29
14.6.1. Hysteresis Filter ........................................................................................................................ 29
14.6.2. FIR Filters ................................................................................................................................... 29
14.7. Programmable Diagnostic Settings ................................................................................................ 30
14.7.1. DIAG mode ................................................................................................................................ 30
14.7.2. DIAG Level ................................................................................................................................. 30
14.7.3. Field Strength Diagnostic ......................................................................................................... 30
14.7.4. PWM Diagnostic ....................................................................................................................... 30
14.7.5. Diagnostic Features .................................................................................................................. 31
14.8. EEPROM endurance........................................................................................................................ 31
15. Self Diagnostic ................................................................................................................................... 31
16. Recommended Application Diagrams ................................................................................................ 35
16.1. MLX90365 in SOIC-8 Package ........................................................................................................ 35
16.2. MLX90365 in TSSOP-16 Package.................................................................................................... 36
17. Standard information regarding manufacturability of Melexis products with different soldering
processes............................................................................................................................................ 38
18. ESD Precautions................................................................................................................................. 38
19. Package Information.......................................................................................................................... 39
19.1. SOIC-8 - Package Dimensions ......................................................................................................... 39
19.2. SOIC-8 - Pinout and Marking .......................................................................................................... 40
19.3. SOIC-8 - Sensitive spot positioning ................................................................................................ 40
19.4. TSSOP-16 - Package Dimensions .................................................................................................... 42
19.5. TSSOP-16 - Pinout and Marking ..................................................................................................... 43
19.6. TSSOP-16 - Sensitive spot positioning ........................................................................................... 43
20. Disclaimer .......................................................................................................................................... 45
21. Contact .............................................................................................................................................. 45
REVISION 5.8 – DEC, 22 2016
TH
Page 3 of 45
MLX90365 Triaxis Position Sensor IC
Datasheet
1. Ordering Information
Product Code
MLX90365
MLX90365
MLX90365
MLX90365
MLX90365
MLX90365
MLX90365
MLX90365
MLX90365
Temperature Code
E
E
K
K
L
L
L
L
L
Package Code
DC
GO
DC
GO
DC
GO
DC
DC
GO
Option Code
ABD-000
ABD-000
ABD-000
ABD-000
ABD-000
ABD-000
ABD-200
ABE-000
ABE-000
Packing Form Code
RE
RE
RE
RE
RE
RE
RE
RE
RE
Legend:
Temperature Code:
E: from -40 Deg.C to 85 Deg.C
K: from -40 Deg.C to 125 Deg.C
L: from -40 Deg.C to 150 Deg.C
Package Code:
Option Code:
“DC” for SOIC-8 package
“GO” for TSSOP-16 package (dual die)
ABD-xxx: die version
XXX-000 – Standard
XXX-200 – Preprogrammed – See section
End-User Programmable Items
Packing Form:
Ordering Example:
“RE” for Reel
“TU” for Tube
MLX90365EDC-ABD-000-RE
Table 1 – Legend
REVISION 5.8 – DEC, 22 2016
TH
Page 4 of 45
MLX90365 Triaxis Position Sensor IC
Datasheet
2. Functional Diagram
V
DD
V
DIG
2V5
Reg
Prot.
DSP
V
X
V
Y
V
Z
RAM
EEPROM
MUX
Triaxis
®
Output Stage
12 bit Analog
G
ADC
µC
12 bit PWM
OUT
ROM - Firmware
V
SS
Figure 1 – Block Diagram
3. Glossary of Terms
Gauss (G), Tesla (T)
TC
NC
ADC
LSB
MSB
DNL
INL
RISC
ASP
DSP
ATAN
IMC
CoRDiC
EMC
FE
RE
FW
HW
PWM
%DC
Units for the magnetic flux density - 1 mT = 10 G
Temperature Coefficient
(in ppm/Deg.C.)
Not Connected
Analog-to-Digital Converter
Least Significant Bit
Most Significant Bit
Differential Non-Linearity
Integral Non-Linearity
Reduced Instruction Set Computer
Analog Signal Processing
Digital Signal Processing
Trigonometric function: arctangent (or inverse tangent)
Integrated Magneto-Concentrator
(IMC®)
Coordinate Rotation Digital Computer
(i.e. iterative rectangular-to-polar transform)
Electro-Magnetic Compatibility
Falling Edge
Rising Edge
Firmware
Hardware
Pulse Width Modulation
Ratio Ton / Tperiod where Ton is the high state duration and Tperiod is the duration of 1
REVISION 5.8 – DEC, 22 2016
TH
Page 5 of 45
