SI2180-B60-GM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> SI2180-B60-GM

SI2180-B60-GM: DescriptionIC DEMODULATOR ISDB-T 48QFN; CategoryWireless rf/communication Telecom circuit; File Size261KB，2 Pages; ManufacturerSilicon Laboratories Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

SI2180-B60-GM Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SI2180-B60-GM	-	-	View	Buy Now

SI2180-B60-GM Overview

IC DEMODULATOR ISDB-T 48QFN

SI2180-B60-GM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Silicon Laboratories Inc
package instruction	7 X 7 MM, ROHS COMPLIANT, QFN-48
Reach Compliance Code	compliant
JESD-30 code	S-XQCC-N48
Number of functions	1
Number of terminals	48
Maximum operating temperature	75 °C
Minimum operating temperature	-10 °C
Package body material	UNSPECIFIED
encapsulated code	HQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Nominal supply voltage	1.2 V
surface mount	YES
technology	CMOS
Telecom integrated circuit types	TELECOM CIRCUIT
Temperature level	COMMERCIAL EXTENDED
Terminal form	NO LEAD
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

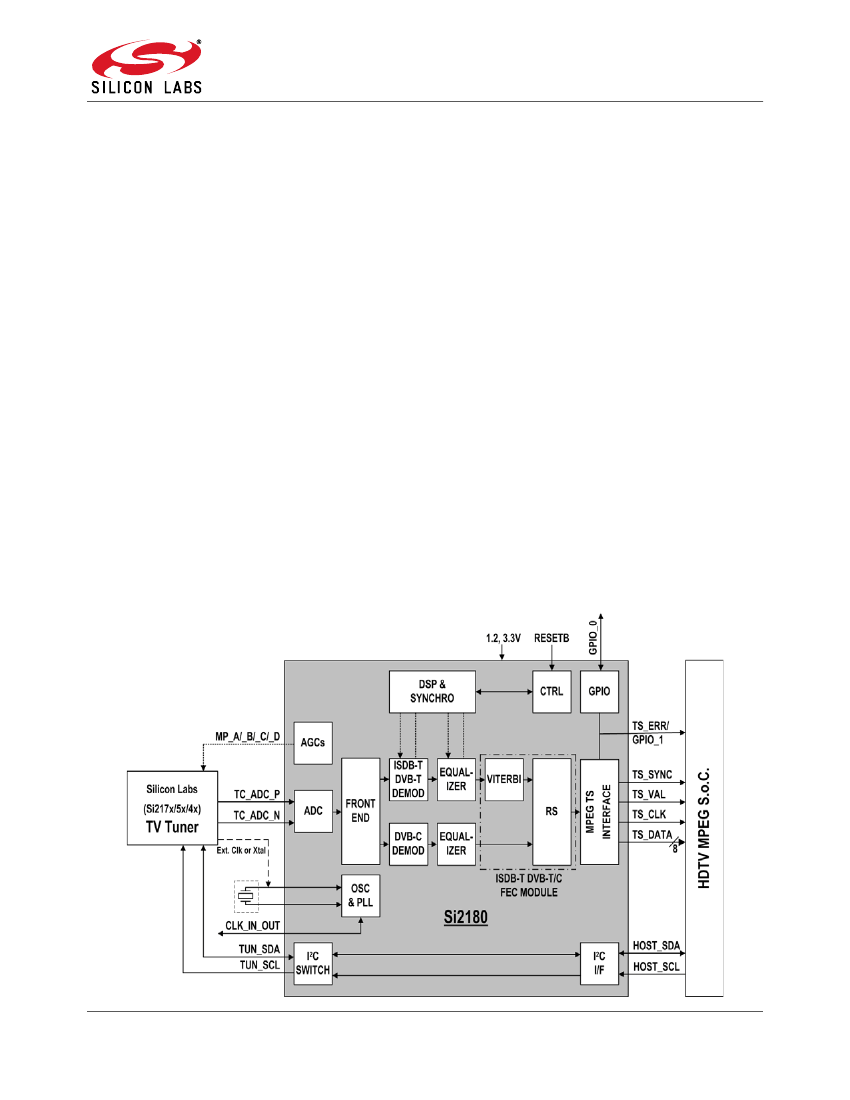

ISDB-T and DVB-T/C Demodulator

Description

The Si2180 integrates digital demodulators for the Japanese

and South American terrestrial ISDB-T standard and for the

DVB-T and DVB-C standards in a single advanced CMOS die.

Leveraging Silicon Labs' proven digital demodulation

architecture, the Si2180 achieves excellent reception

performance for each media while significantly minimizing

front-end design complexity, cost, and power dissipation.

Connecting the Si2180 to a hybrid TV tuner or digital only

tuner, such as Silicon Labs' Si217x/5x/4x devices, results in a

high-performance and cost optimized TV or STB front-end

solution.

Leveraging significant field experience in DVB terrestrial

demodulation (DVB-T), Silicon Labs’ internally-developed

ISDB-T demodulator can accept standard or low-IF inputs

(differential) and complies with the Brazilian SBTVD-T

terrestrial specifications (ABNT NBR 16.601 and 15.604).

Main features include fast channel scan, very short lock times,

state of the art CCI performance, partial reception, and

auxiliary channels decoding. DVB-T and DVB-C demodulators

are next-generation enhanced versions of proven and

broadly-used Silicon Labs’ Si2169/68/67/66/64/62/60 devices.

The cable reception allows demodulating widely deployed

DVB-C legacy standard (ITU J.83 Annex A/C) and the

Americas' cable standard (ITU J.83 Annex B).

The Si2180 offers an on-chip blind scan algorithm for DVB-C

standard, as well as a blind lock function. The Si2180

programmable transport stream output interface provides a

flexible range of output modes and is fully compatible with all

MPEG decoders or conditional access modules to support any

customer application.

Si2180-B60

Features

Pin-to-pin compatible with all Si216x/8x single demods fam-

ily

API compatible with all single and dual demods families

ISDB-T (ABNT NBR 16.601 and 15.604)

6, 7, and 8 MHz bandwidth

Partial reception supported (reception of only one

OFDM segment at the center of a group of segments)

AC1 and AC2 decoding

DVB-T (ETSI EN 300 744)

OFDM demodulator and enhanced FEC decoder

NorDig unified 2.5 and D-Book 8 compliant

DVB-C (ETSI EN 300 429) and ITU-T J.83 Annex A/B/C

QAM demodulator and FEC decoder

1 to 7.2 MSymbol/s

C serial bus interfaces (master and host)

Firmware control (embedded ROM/NVM)

Upgradeable with patch download via I

C or fast SPI

Flexible TS output interface (serial, parallel, and slave)

Fast lock times for all media

Low power consumption

Two power supplies: 1.2 and 3.3 V

7x7 mm, QFN-48 pin package, Pb-free/RoHS compliant

Applications

iDTV: on-board design or in a NIM

Advanced multimedia STB, PVR, and Blu-ray recorders

PC-TV accessories

Digital Demodulator

11.5.15
