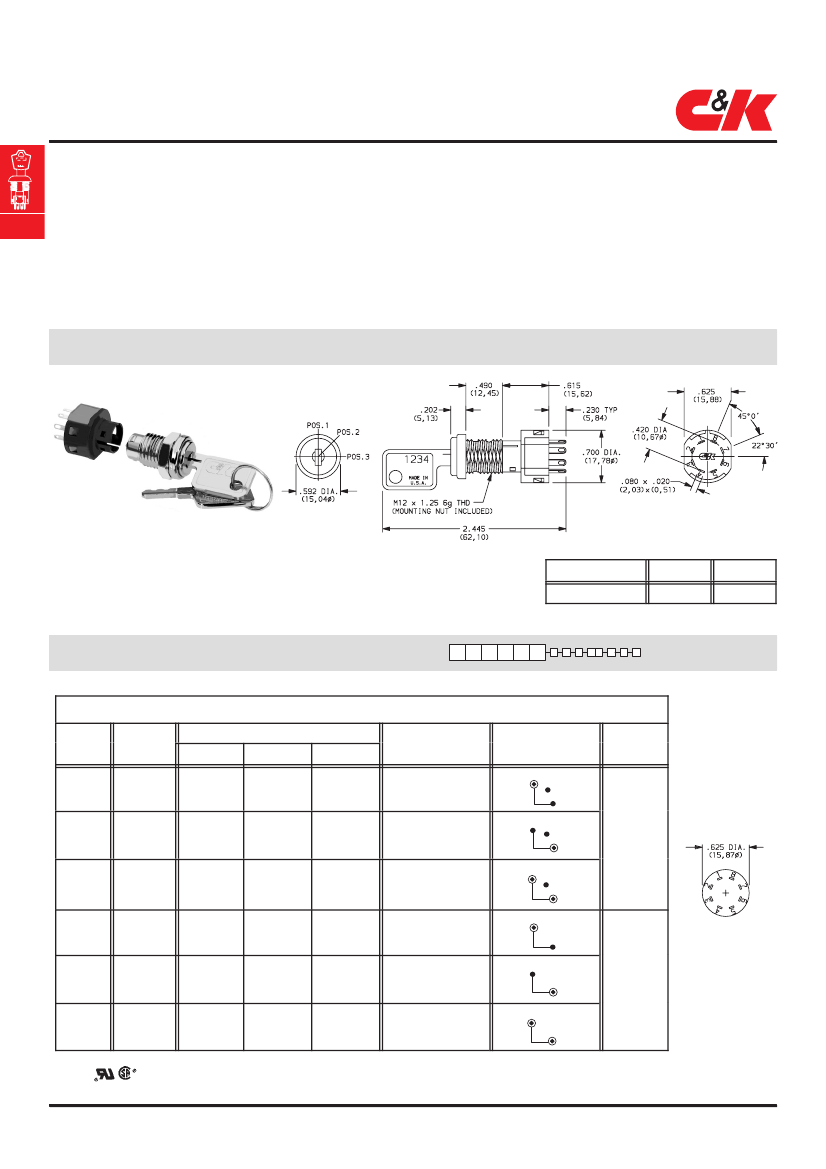

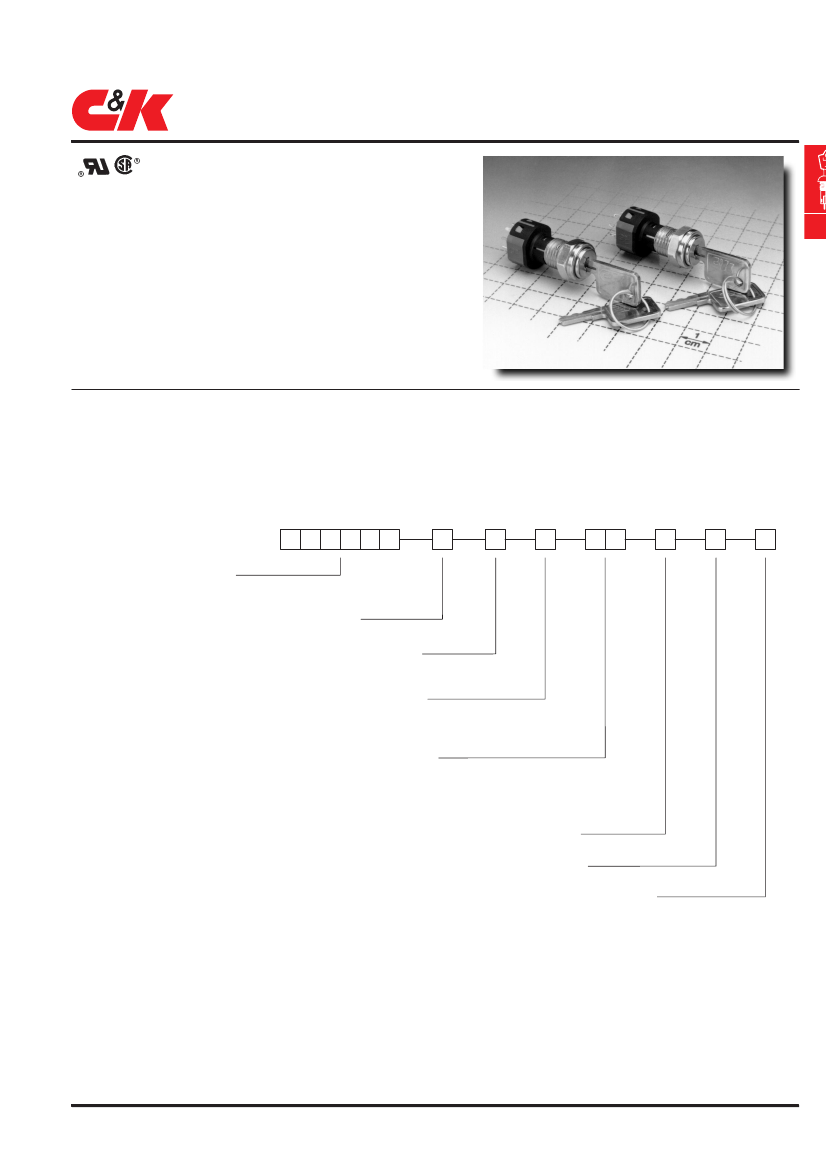

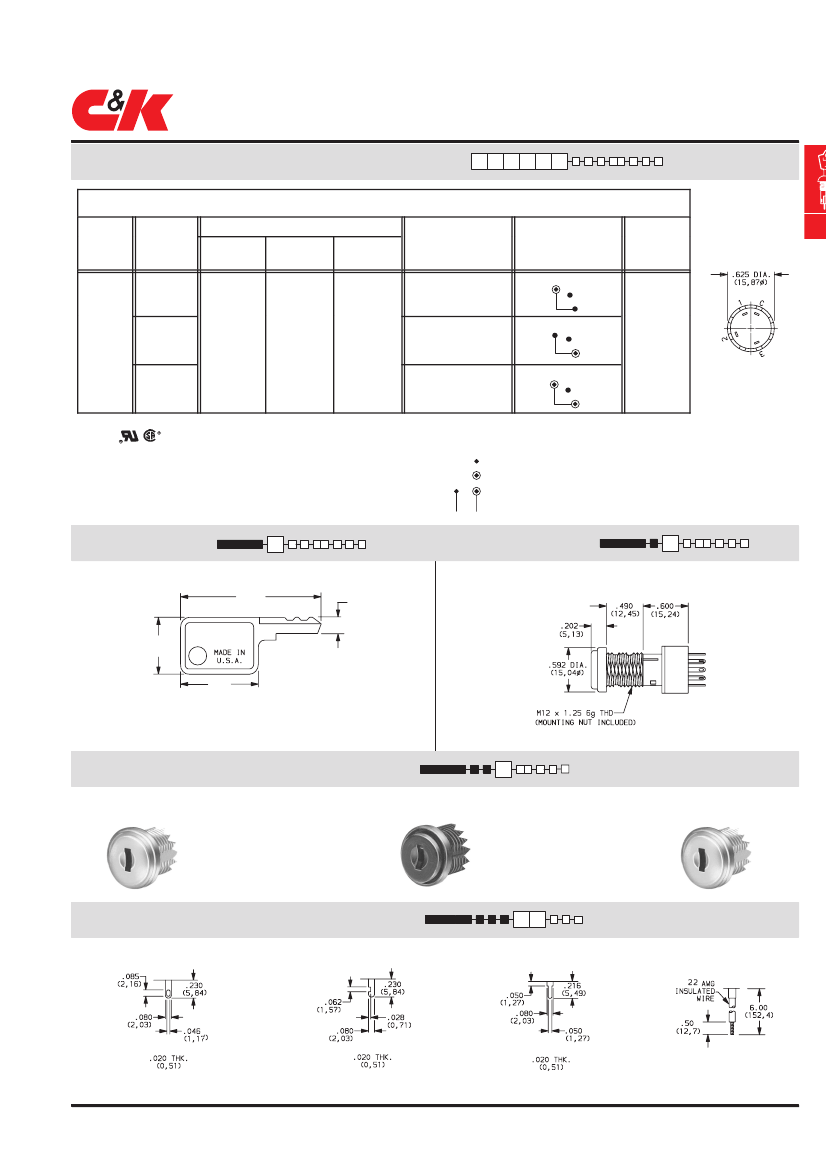

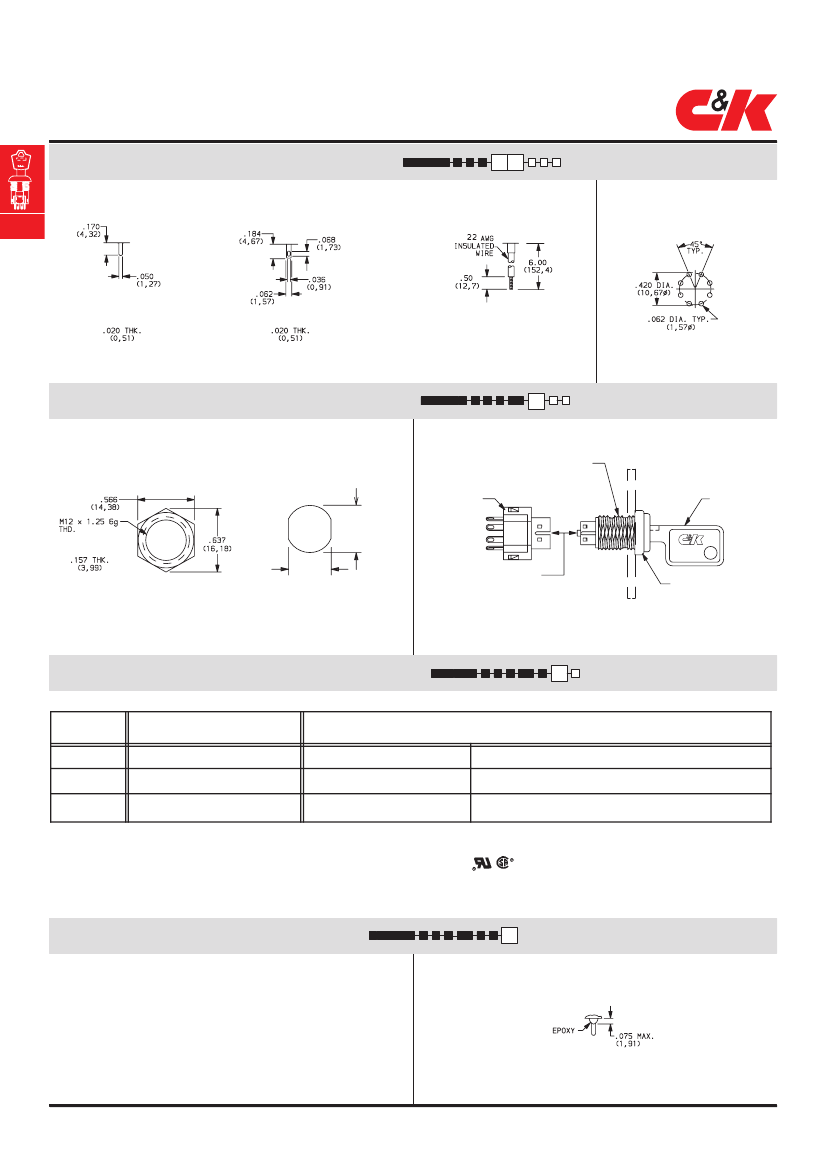

YF Series
4 Tumbler Miniature Switchlocks
Features/Benefits
Models Available
S
S
S
S
S
S
S
PCB mounting
Multi-pole and multi-position
Positive detent
Low level and power capability
H
Switchlock
Typical Applications
Computer servers
Point-of-sale terminals
Cash registers
Build-A-Switch
Our easy Build-A-Switch concept allows you to mix and match options to create the switch you need. Below is a complete
listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.
A switchlock with standard options is shown on page H-12. Available options are shown and described on pages H-12 thru H-14.
For additional options not shown in catalog, consult Customer Service Center.
Typical Example:
Y F 0
0 1
3
2
C
2
0 3
N
Q
Switch and Lock Function
YF0013
(STD.) SP, 45_ Index, keypull pos. 1
YF2013
DP, 45_ Index, keypull pos. 1
Keying
YF001C
SP, 45_ Index, keypull pos. 3
2
(STD.) Two nickel plated brass keys
YF201C
DP, 45_ Index, keypull pos. 3
YF001U
SP, 45_ Index, keypull pos. 1 & 3
Lock Type
YF201U
DP, 45_ Index, keypull pos. 1 & 3
C
(STD.) 4 Tumbler, single bitted
YF0113
SP, 90_ Index, keypull pos. 1
lock with detent
YF2113
DP, 90_ Index, keypull pos. 1
Lock Finish
YF011C
SP, 90_ Index, keypull pos. 2
2
(STD.) Stainless steel facing
YF211C
DP, 90_ Index, keypull pos. 2
8
Gloss black facing
F
Polished nickel facing
YF011U
SP, 90_ Index, keypull pos. 1 & 2
YF211U
DP, 90_ Index, keypull pos. 1 & 2
Terminations
YF4513
SP W/Common, 45_ Index, keypull pos. 1
03
(STD.) Solder lug with hole
YF451C
SP W/Common, 45_ Index, keypull pos. 3
01
Solder lug with notch
02
PC Thru-hole
YF451U
SP W/Common, 45_ Index, keypull pos. 1 & 3
07
Solder lug with hole
(YF45 models)
Mounting Style
WC
Wire lead
N
(STD.) With nut
Contact Material
Q
(STD.) Silver
B
Gold
G
Gold over silver
Seal
NONE
(STD.) No seal
E
Epoxy seal
C&K Components, Inc. Web Site:
www.ckcorp.com
Americas Sales
Tel: 800-635-5936 Fax: 617-926-6846
Europe Sales
Tel: +44-1536-521147 Fax: +44-1536-411602
S
Asia Sales
Tel: +852-2798-6393 Fax: +852-2751-9926
Rev. A 8/99
H-11
YF Series
4 Tumbler Miniature Switchlocks
Specifications
CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or
28 V DC; 2 AMPS @ 250 V AC (UL / CSA). See page H-14 for
additional ratings.
ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.
CONTACT RESISTANCE: Below 10 milliohms typ. initial @
2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 10
9
ohms min.
DIELECTRIC STRENGTH: 1,000 V RMS min. @ sea level.
INDEXING: 45_ - 3 pos. max. Models with common terminal,
45_ - 3 pos. max. 90_ - 2 pos. max.
Materials
LOCK: Zinc alloy with stainless steel facing. 4 tumbler,
single bitted lock with integral detent mechanism.
KEYS: Two nickel plated brass keys with code number.
SWITCH HOUSING: 6/6 Nylon (UL 94V-2).
CONTACTS & TERMINALS: Q contact material: Copper, silver plated.
See page H-14 for additional contact materials.
MOUNTING NUT: Brass, bright zinc plated.
TERMINAL SEAL: Epoxy.
NOTE:
Specifications and materials listed above are for switchlocks with standard options.
For information on specific and custom switchlocks, consult Customer Service Center.
H
Switchlock
SWITCHLOCK WITH STANDARD OPTIONS
YF00132C203NQ
TERM. NOS. MOLDED
ON HOUSING
SP
PART NUMBER
YF00132C203NQ
NOTE:
For panel mounting information, see page H-14.
SWITCH AND LOCK FUNCTION
SINGLE & DOUBLE POLE SWITCHES
CONNECTED TERMINALS
O
NO.
POLES
SP
DP
O
MODEL
NO.
POS. 1
8-1
8-1, 4-5
POS. 2
1-2
1-2, 5-6
POS. 3
2-3
2-3, 6-7
KEY PULL
POSITIONS
OC
LOCK
CONFIGURATION
POS. 1
2
3
POS. 1
2
3
INDEXING
YF0013
YF2013
YF001C
YF201C
YF001U
YF201U
YF0113
YF2113
YF011C
YF211C
YF011U
YF211U
Position 1
SP
DP
8-1
8-1, 4-5
1-2
1-2, 5-6
2-3
2-3, 6-7
Position 3
45°
SP
DP
8-1
8-1, 4-5
1-2
1-2, 5-6
2-3
2-3, 6-7
POS. 1
Positions 1 & 3
2
3
SP
DP
8-1
8-1, 4-5
1-3
1-3, 5-7
POS. 1
Position 1
2
POS. 1
SP
DP
8-1
8-1, 4-5
1-3
1-3, 5-7
Position 2
2
90°
SP
DP
8-1
8-1, 4-5
1-3
1-3, 5-7
POS. 1
Positions 1 & 2
2
All models
with all options when ordered with ‘G’ or ‘Q’ contact material.
H-12
C&K Components, Inc. Web Site:
www.ckcorp.com
Americas Sales
Tel: 800-635-5936 Fax: 617-926-6846
Europe Sales
Tel: +44-1536-521147 Fax: +44-1536-411602
S
Asia Sales
Tel: +852-2798-6393 Fax: +852-2751-9926
Rev. A 8/99
ÑÑÑÑÑÑÑ
Ñ
NO. POLES
SP
INDEXING
45_
TERMINAL NUMBERS
Terminal numbers molded
on bottom of housing.
YF Series
4 Tumbler Miniature Switchlocks
SWITCH AND LOCK FUNCTION
SINGLE POLE SWITCHES WITH COMMON
CONNECTED TERMINALS
NO.
POLES
MODEL
NO.
KEY PULL
POSITIONS
LOCK
CONFIGURATION
POS. 1
2
3
POS. 1
2
3
H
TERMINAL NUMBERS
INDEXING
POS. 3
POS. 1
POS. 2
Switchlock
YF4513
Position 1
SP WITH
COMMON
YF451C
C-1
C-3
C-2
Position 3
45°
POS. 1
YF451U
Positions 1 & 3
2
3
Terminal numbers marked
on bottom of insulator.
LEGEND
All models
with all options when ordered with ‘G’ or ‘Q’ contact material.
C
= Common
= Detent Positions (45_ or 90_)
= Key pull possible in these positions.
= Stop Positions
KEYING
2
(STD.) TWO NICKEL PLATED BRASS KEYS
1.435
(36,44)
.174
(4,19)
LOCK TYPE
C
(STD.) 4 TUMBLER, SINGLE BITTED LOCK WITH DETENT
.548
(13,91)
0029
.772
(19,6)
Key part number: 119091029
NOTE:
All orders keyed alike with code number on key. For more than one key code,
replacement keys, or other special features, consult Customer Service Center.
LOCK FINISH
2
(STD.) STAINLESS STEEL FACING
8
GLOSS BLACK FACING
F
POLISHED NICKEL PLATED FACING
TERMINATIONS
03
(STD.) SOLDER LUG WITH HOLE
01
SOLDER LUG WITH NOTCH
02
PC THRU-HOLE
WC
WIRE LEAD
YF0X & YF2X Models
Black wire standard, other colors and
lengths available, consult Customer
Service Center. UL style 1015.
C&K Components, Inc. Web Site:
www.ckcorp.com
Americas Sales
Tel: 800-635-5936 Fax: 617-926-6846
Europe Sales
Tel: +44-1536-521147 Fax: +44-1536-411602
S
Asia Sales
Tel: +852-2798-6393 Fax: +852-2751-9926
Rev. A 8/99
H-13
YF Series
4 Tumbler Miniature Switchlocks
TERMINATIONS
02
PC THRU-HOLE
07
SOLDER LUG WITH HOLE
WC
WIRE LEAD
PC MOUNTING
H
Switchlock
Black wire standard, other colors and
lengths available, consult Customer
Service Center. UL style 1015.
YF45 Models
MOUNTING STYLE
N
(STD.) WITH NUT
Switch and Lock Assembly Instructions
PANEL MOUNTING
SWITCH BASE
LOCK MUST BE IN PANEL
BEFORE ATTACHING
SWITCH BASE
KEY SHOWN IN
POSITION ONE
.472 DIA.
(11,99)
.420
(10,67)
ALIGN TAB WITH SLOT
AND SNAP TOGETHER
4 TUMBLER LOCK
Nut part number: 179090123
Panel thickness:
.300 (7,62) max.
NOTE:
Switch installation is permanent. Switch cannot be removed from lock
after assembly. Attempts to separate switch and lock may damage switch.
CONTACT MATERIAL
OPTION
CODE
CONTACT AND TERMINAL MATERIAL
SILVER
2
GOLD
1
GOLD OVER SILVER
3
POWER
LOW LEVEL / DRY CIRCUIT
LOW LEVEL / DRY CIRCUIT OR POWER
RATINGS
4 AMPS @ 125 V AC OR 28 V DC; 2 AMPS @ 250 V AC (UL / CSA).
0.4 VA MAX. @ 20 V AC OR DC MAX.
0.4 VA MAX. @ 20 V AC OR DC MAX. OR 4 AMPS @ 125 V AC OR
28 V DC; 2 AMPS @ 250 V AC (UL / CSA).
Q
(STD.)
B
G
CONTACT MATERIAL / APPLICATION RECOMMENDATIONS — SEE CHART, PAGE L-31.
1
CONTACTS & TERMINALS: Copper, with gold plate over nickel plate.
2
CONTACTS & TERMINALS: Copper, silver plated (standard with all
All models
with all options when ordered with ‘G’ or ‘Q’ contact material.
termination options).
3
CONTACTS & TERMINALS: Copper, with gold plate over silver plate.
NOTE:
‘G’ contact material is equivalent to both ‘B’ and ‘Q’ contact materials.
SEAL
NONE
(STD.) NO SEAL
E
EPOXY SEAL
Not available on YF45 models.
H-14
C&K Components, Inc. Web Site:
www.ckcorp.com
Americas Sales
Tel: 800-635-5936 Fax: 617-926-6846
Europe Sales
Tel: +44-1536-521147 Fax: +44-1536-411602
S
Asia Sales
Tel: +852-2798-6393 Fax: +852-2751-9926
Rev. A 8/99
