Oven Controlled Crystal Oscillator
NA-10 MHz-2500 series
2500 Series in 25.4x25.4mm DIP package
NA-10M-2500 series oscillators is designed for applications where space is at a premium
and good frequency stability is required. The oscillators can be used in many
communications applications. A choice of quartz resonators offers a variety of
performance versus cost options to fit most applications.
RoHS Compliant Standard
ELECTRICAL SPECIFICATIONS
1.
OUTPUT (PIN = “R.F. OUTPUT”)
Parameter
1.1.
Frequency
Min.
Typ.
10.000000
Max.
Unit
MHz
@ +25 ±1°C
Test Condition
1.2.
Initial Accuracy
-0.1
+0.1
ppm
after turn on power 15 ±1 minutes
≤
90 days following date code
VCO Input at Center Voltage ±0.001V
1.3.
1.4.
1.5.
1.6.
1.7.
Waveform
Level
Load
Harmonics
Spurious
+6
Sine wave
+8
50
-30
-60
dBc
dBc
+10
dBm
2.
FREQUENCY STABILITY
Parameter
Min.
Typ.
±3, ±5, ±10
Max.
Unit
ppb
°C
referenced to 25°C
Test Condition
Refer to Table 1 : Ordering Information
per day, at time of shipment
after 30 days
2.1.
Ambient
Aging
-0.5
Daily
Yearly
10 Years
-0.5
-50
-0.3
-0.5
-30 ~ +70
-40 ~ +85
+0.5
+0.5
+50
+0.3
+0.5
0.05
-0.5
-10
+0.5
+10
ppb
ppb
ppb
ppm
ppb
ppb/s
ppb
ppb
2.2.
2.3.
2.4.
2.5.
2.6.
Voltage
Short term
Load
Warm-up
±5% change
root Allan variance
±5% change
in 10 minutes @ +25 ±1°C
referenced to 1 hour
Page 1of 3
Specifications subject to change without notice
Rev(1)06/2013
www.taitien.com
sales@taitien.com.tw
Our Performance Your Reputation
Parameter
Min.
Typ.
-95
-125
Max.
-90
-120
-135
-145
-150
Unit
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
@ 1Hz
@ 10Hz
@ 100Hz
@ 1KHz
@ 10KHz
Test Condition
2.7.
Phase Noise
-140
-148
-152
3.
ELECTRICAL FREQUENCY ADJUSTMENT (PIN = “VCO INPUT”)
Parameter
Min.
Typ.
Max.
-0.5
+0.5
Unit
ppm
ppm
VCO @ Min. Voltage
VCO @ Max. Voltage
Test Condition
Referenced to frequency at nominal
Center Voltage
3.1.
Tuning Range
0
0
3.2.
3.3.
3.4.
3.5.
3.6.
Control Voltage
Slope
Center Voltage
Linearity
Input Impedance
+5.0
+4.0
Positive
+2.5
+2.0
V
V
Optional, Refer to Table 1 : Ordering Information
V
V
+10
%
k
Optional, Refer to Table 1 : Ordering Information
Note 1
-10
100
4.
INPUT POWER (PIN = “+VDC”)
Parameter
Min.
+4.75
Typ.
+5.0
Max.
+5.25
800
1.3
Unit
V
mA
W
@ turn on
@ +25°C
Test Condition
4.1.
4.2.
4.3.
Voltage
Current
Steady State
5.
REFERENCE VOLTAGE (PIN = "REFERENCE VOLTAGE")
(Optional Function. Refer to Table 1 : Ordering Information.)
Parameter
Min.
+3.8
9
Typ.
+4.0
Max.
+4.2
Units
V
k
Test Condition
Over temperature range in 2.1.
5.1.
5.2.
Voltage
Load
6.
ENVIRONMENTAL
Parameter
Reference Std.
-40°C to +85°C
-55°C to +105°C
MIL-STD-202, Method 103
Test Condition A
MIL-STD-202, Method 201
MIL-STD-202, Method 213,
Test Condition J
95% RH @ +40°C,non-condensing,240 hours
0.06” Total p-p, 10 to 55 Hz
30g, 11ms, half-sine
Note 2
Test Condition
6.1.
6.2.
6.3.
6.4.
6.5.
Note 1.
Note 2.
Operating Temperature
Storage Temperature
Humidity
Vibration (non-operating)
Shock (non-operating)
When not connected, VCO INPUT is internally held at this voltage.
Output maintained over this temperature range. Other requirements of this specification may not be met when operating outside the
temperature range in 2.1.
Page 2of 3
Specifications subject to change without notice
Rev(1)06/2013
www.taitien.com
sales@taitien.com.tw
Our Performance Your Reputation
Table 1 : ORDERING INFORMATION
TAITIEN
Model No.
Temp. (℃)
℃
-30~+70
-40~+85
-30~+70
-40~+85
NA-10M-2500
NA-10M-2503
NA-10M-2550
NA-10M-2553
NA-10M-2501
NA-10M-2504
NA-10M-2551
NA-10M-2554
NA-10M-2502
NA-10M-2505
NA-10M-2552
NA-10M-2555
ppb
±
3
±
5
±
10
Control
Voltage
Reference
Voltage
+2.5V
+2.0V
N/A
+4.0V

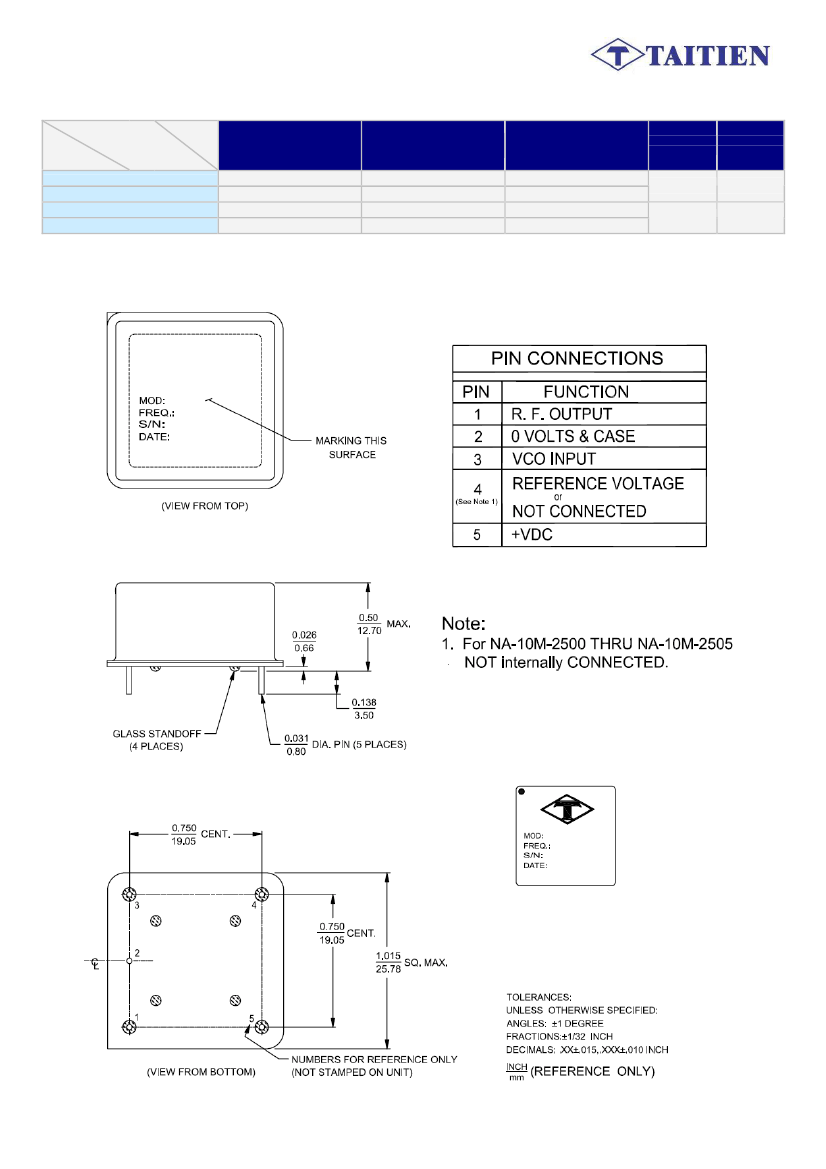

OUTLINE DRAWING
Page 3of 3
Specifications subject to change without notice
Rev(1)06/2013
www.taitien.com
sales@taitien.com.tw
