PD57030
PD57030S
RF POWER TRANSISTORS
The
LdmoST
Plastic FAMILY
TARGET DATA
N-CHANNEL ENHANCEMENT-MODE LATERAL
MOSFETs
•
EXCELLENT THERMAL STABILITY
•
COMMON SOURCE CONFIGURATION
•
POUT = 30 W with 13 dB gain @ 945 MHz / 28V
•
NEW RF PLASTIC PACKAGE
DESCRIPTION
The PD57030 is a common source N-Channel, en-
hancement-mode, lateral Field-Effect RF power
transistor. It is designed for high gain, broad band
commercial and industrial applications. It operates
at 28V in common source mode at frequencies of
up to 1GHz. PD57030 boasts the excellent gain,
linearity and reliability of ST’s latest LDMOS tech-
nology mounted in the first true SMD plastic RF
power package, PowerSO-10RF. PD57030’s su-
perior linearity performance makes it an ideal so-
lution for base station applications.
The PowerSO-10 plastic package, designed to of-
fer high reliability, is the first ST JEDEC approved,
high power SMD package. It has been specially
optimized for RF needs and offers excellent RF
performances and ease of assembly.

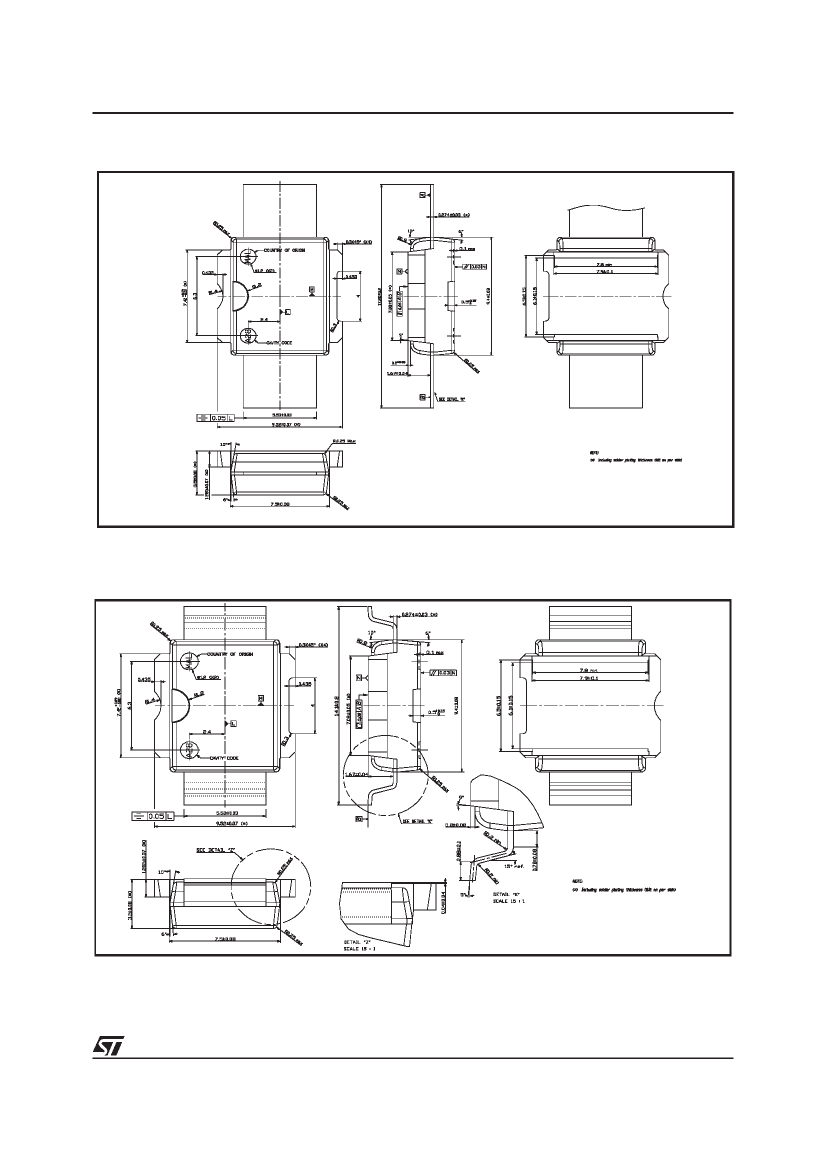

PowerSO-10RF
(Formed Lead)
ORDER CODE
BRANDING
PD57030
XPD57030
PowerSO-10RF
(Straight Lead)
ORDER CODE
BRANDING
PD57030S
XPD57030S
ABSOLUTE MAXIMUM RATINGS(T
CASE
= 25
0
C)
Symbol
V
(BR)DSS
V
GS
I
D
P
DISS
T
j
T
STG
Parameter
Drain-Source Voltage
Gate-Source Voltage
Drain Current
Power Dissipation (@ Tc = 70
0
C)
Max. Operating Junction Temperature
Storage Temperature
Value
65
±20
4
52.8
165
-65 to 175
Unit
V
V
A
W
0
C
0
C
THERMAL DATA
(T
CASE
= 70
0
C)
R
th(j-c)
May 2000
Junction-Case Thermal Resistance
1.8
0
C/W
1/4
PD57030 PD57030S
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. N o license is granted
by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject
to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not
authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.
The ST logo is registered trademark of STMicroelectronics
®
2000 STMicroelectronics - All Rights Reserved
All other names are the property of their respective owners.
