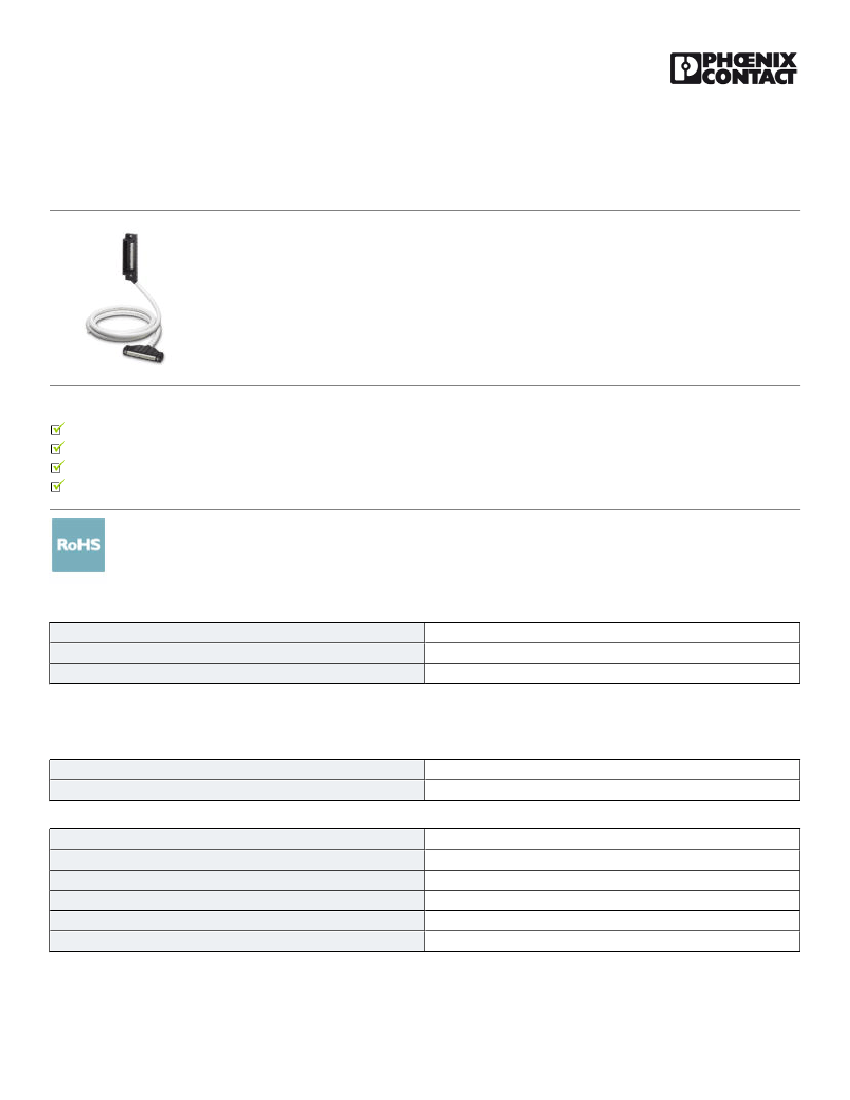

Front adapters - FLK 50-PA/EZ-DR/HF/KS/1000/YUC - 2904637
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Cast front adapter with attached, halogen-free round cable and a 50-pos. socket strip injection-molded on both
sides for the connection of Yokogawa controllers. Cable length: 10.0 m
Why buy this product
Molded connectors
KS/AKB-compatible connectors on the module side
Can be screwed on
Lateral cable outlet of the I/O module
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 STK
85444290
Germany
Technical data
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 70 °C
-20 °C ... 70 °C
General
Nominal voltage U
N
Max. permissible current
Designation
Standards/regulations
Designation
Standards/regulations
30 V DC
500 mA (per path at 70°C)
Halogen-free sheath
IEC 60754-1
No development of corrosive fumes
IEC 60267-2
Connection data 1
09/07/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/2904637
Front adapters - FLK 50-PA/EZ-DR/HF/KS/1000/YUC - 2904637
Technical data
Connection data 1
Connection name
Connection method
Torque
Number of connections
Number of positions
Control side
Yokogawa, I/O cards compatible
0.5 Nm (Screw connection)
1
50
Connection data 2
Connection name
Connection method
Torque
Number of connections
Number of positions
Field level
Yokogawa, KS compatible
0.5 Nm (Screw connection)
1
50
Cable
Structural data
Individual wires per module
Single wire, material
Single wire, cross section
External diameter
Length of cable
Outer sheath, material
External sheath, color
Shielding
Halogen-free cable
Max. conductor resistance
Cable insulation resistance
Cable impedance
Cable resistance
Cable capacity
Insulation
Flame resistance
Resistance to oil
Gasoline resistance
in acc. to UL style 2464/1061
7
Cu tin-plated
0.14 mm²
11 mm
10 m
PVC
gray RAL 7035
yes
Yes
0.16 Ω/m
approx. 153 MΩ/km
approx. 120 Ω
approx. 155 Ω/km
approx. 130 pF/m
Semi-rigid PVC
IEC 60332-3-22
DIN VDE 0472 Part 803, test type B
Against occasional splashes
Supported controller
Controller
- suitable I/O card
Controller
YOKOGAWA CS3000 CentumVP
ADV151
ADV551
YOKOGAWA STARDOM
09/07/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/2904637
Front adapters - FLK 50-PA/EZ-DR/HF/KS/1000/YUC - 2904637
Technical data
Supported controller
- suitable I/O card
NFDV151
NFDV551
Standards and Regulations
Resistance to oil
Flame resistance
Designation
Standards/regulations
Designation
Standards/regulations
DIN VDE 0472 Part 803, test type B
IEC 60332-3-22
Halogen-free sheath
IEC 60754-1
No development of corrosive fumes
IEC 60267-2
Drawings
09/07/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/2904637
Front adapters - FLK 50-PA/EZ-DR/HF/KS/1000/YUC - 2904637
Connection diagram
50-pos.
connector to
the I/O card
50-pos.
connector to
the module
Wire color
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
black
brown
red
orange
yellow
green
blue
violet
gray
white
white-black
white-brown
white-red
white-orange
white-yellow
white-green
white-blue
white-violet
white-gray
brown-black
brown-red
brown-orange
brown-yellow
brown-green
brown-blue
brown-violet
brown-gray
brown-white
green-black
green-brown
green-red
green-orange
green-blue
green-violet
green-gray
green-white
yellow-black
yellow-brown
yellow-red
yellow-orange
yellow-blue
yellow-violet
yellow-gray
yellow-white
gray-black
gray-brown
gray-red
gray-orange
gray-yellow
gray-green
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27141152
27249290
09/07/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/2904637
Front adapters - FLK 50-PA/EZ-DR/HF/KS/1000/YUC - 2904637
Classifications
eCl@ss
eCl@ss 9.0
27242292
ETIM
ETIM 4.0
ETIM 5.0
EC000237
EC002584
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
EAC / UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
EAC RU C-DE.A*30.B00767
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 238705
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 238705
cULus Listed
