VGAS121034S770DP datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> VGAS121034S770DP

VGAS121034S770DP: DescriptionVARISTOR 47V 400A 1210; CategoryPassive components The resistor; File Size607KB，10 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

VGAS121034S770DP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VGAS121034S770DP	-	-	View	Buy Now

VGAS121034S770DP Overview

VARISTOR 47V 400A 1210

VGAS121034S770DP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Circuit maximum DC voltage	34 V
Circuit RMS maximum voltage	30 V
Maximum energy absorption capacity	2 J
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	1.7 mm
Package length	3.2 mm
Package form	SMT
Package width	2.49 mm
method of packing	TR, 7 Inch
Rated (AC) voltage (URac)	30 V
Rated power dissipation(P)	0.04 W
Guideline	AEC-Q200
Resistor type	VARISTOR
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Thermistor Applications	TEMPERATURE SENSING
Operating Voltage	34 V
Base Number Matches	1

Preview

Download Datasheet

View All

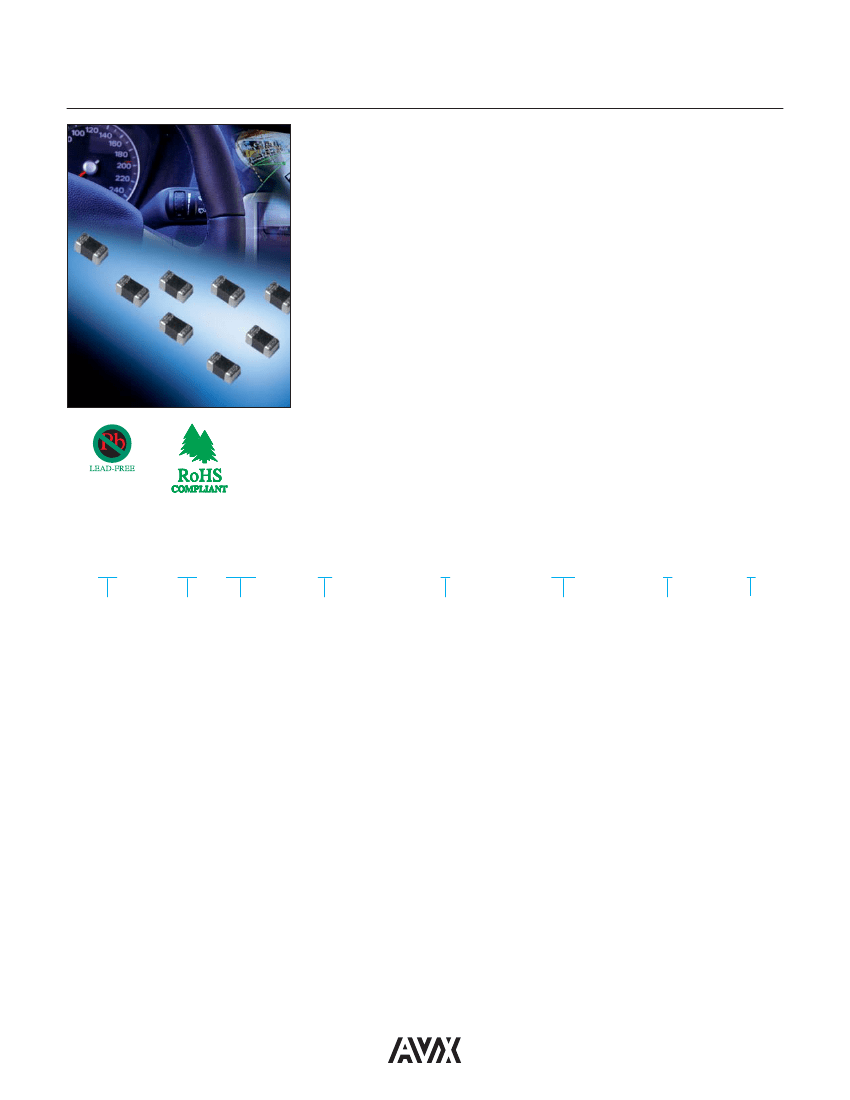

TransGuard

Automotive Series

Multilayer Varistors for Automotive Applications

GENERAL DESCRIPTION

The TransGuard Automotive Series are zinc oxide (ZnO) based ceramic semicon-

ductor devices with non-linear, bi-directional voltage-current characteristics.

They have the advantage of offering bi-directional overvoltage protection as well as

EMI/RFI attenuation in a single SMT package. The Automotive Series high current

and high energy handling capability make them well suited for protection against

automotive related transients.

AVX VG series parts (large case size, high energy) are glass encapsulated. These

parts provide the same high reliability as traditional VC series parts. The glass

encapsulation provides also enhanced resistance against harsh environment or

process such as acids, salts, chlorite flux.

Operating Temperature: -55ºC to +125ºC

FEATURES

•

High Reliability

High Energy Absorption (Load Dump)

High Current Handling

AEC Q200 Qualified

Bi-Directional protection

EMI/RFI attenuation

Multi-strike capability

Sub 1nS response to ESD strike

APPLICATIONS

•

Internal Combustion Engine (ICE) Vehicles

Hybrid Electric Vehicles (HEV)

Plug-in Hybrid Electric Vehicles (PHEV)

Commercial Vehicles

– CAN, LIN, FLEXRAY based modules

– Sensors

– Module load dump protection

– Motor/inductive load transient suppression

LEAD-FREE COMPATIBLE

COMPONENT

HOW TO ORDER

Varistor Chip

VC = Varistor Chip

VG = Varistor Glass

Encapsulated

Chip

1206

Working

Voltage

03 = 3.3Vdc

05 = 5.6Vdc

09 = 9Vdc

12 = 12Vdc

14 = 14Vdc

16 = 16Vdc

18 = 18Vdc

22 = 22Vdc

26 = 26Vdc

30 = 30Vdc

31 = 31Vdc

34 = 34Vdc

38 = 38Vdc

42 = 42Vdc

45 = 45Vdc

48 = 48Vdc

56 = 56Vdc

60 = 60Vdc

65 = 65Vdc

85 = 85Vdc

Energy

Rating

A = 0.1J

B = 0.2J

C = 0.3J

D = 0.4J

E = 0.5J

F = 0.7J

H = 1.2J

J = 1.5J

K = 0.6J

L = 0.8J

S = 1.9-2.0J

X = 0.05J

M = 1J

N = 1.1J

U = 4.0-5.0J

P = 2.5-3.7J

Y = 6.5-12J

400

Clamping

Voltage

140 = 14V

150 = 18V

220 = 22V

250 = 27V

300 = 32V

380 = 38V

390 = 42V

400 = 42V

440 = 44V

490 = 49V

540 = 54V

570 = 57V

580 = 60V

620 = 67V

650 = 67V

770 = 77V

800 = 80V

900 = 90V

101 = 100V

111 = 110V

131 = 135V

151 = 150V

Package

D = 7" (1000)*

R = 7" (4000)*

T = 13" (10,000)*

W = 7" (10,000)**

0402 only

Termination

P = Ni/Sn plated

Automotive Case

Series

Size

0402

0603

0805

1206

1210

1812

2220

3220

*Not available for 0402

**Only available for 0402
